Butterfly valves DNOVA are designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Pneumatic valve DNOVA is used to change direction, start, stop compressed air flows in a pneumatic system depending on external control action.
The DNOVA APL-210N limit switch unit is an electrical device designed to open and close the working circuit and to visualize the positions of the shut-off valve shut-off valve. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalize in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labeled CLOSED is visible; if it is open, only the yellow part labeled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the color difference between the open and closed position reduces the probability of misinterpretation of information. Thanks to the use of limit switch units it becomes possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which allows to increase the reliability of the system as a whole and simplifies diagnostics in case of malfunction detection.
The AFC2000 air treatment unit is designed to clean compressed air from moisture droplets and solid particles, remove condensate, automatically maintain pressure at a preset level, supply lubricant from the tank in the compressed air flow to the elements of the pneumatic system with a wide range of throughput from 500 liters/minute to 10 000 liters/minute. The lubricator adds oil with a viscosity of 32 mm²/s (=cSt) at 40°C to the pneumatic system for further lubrication of control components such as pneumatic cylinders and pneumatic valves.

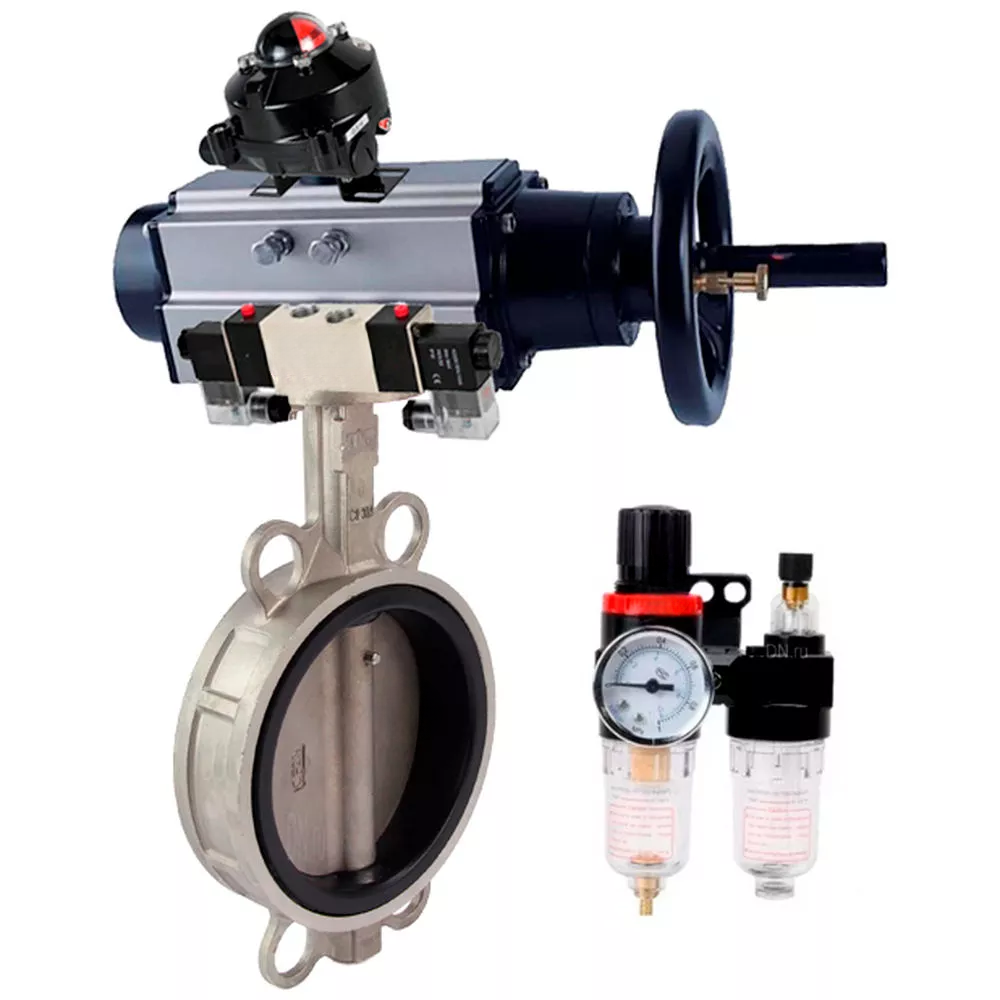

Technical parameters of water butterfly valve DNOVA WBV3232N-2W-Fb-H, body - stainless steel 316L, disk - stainless steel 316L, seal - NBR, with pneumatic drive PA-DA-105-1, with pneumatic distributor 4V320-10 220V, limit switch unit APL- 210N, ATU AFC2000:

Dimensions and sizes of water butterfly valve DNOVA WBV3232N-2W-Fb-H, body - stainless steel 316L, disk - stainless steel 316L, seal - NBR, with pneumatic drive PA-DA-105-1, with pneumatic distributor 4V320-10 220V, limit switch unit APL- 210N, ATU AFC2000:

Table of parts and materials of water butterfly valve DNOVA WBV3232N-2W-Fb-H, body - stainless steel 316L, disk - stainless steel 316L, seal - NBR, with pneumatic drive PA-DA-105-1, with pneumatic distributor 4V320-10 220V, limit switch unit APL- 210N, ATU AFC2000:

Technical parameters of pneumatic valve DNOVA 4V320-10 220V:

Technical parameters of limit switch units DNOVA APL- 210N

Passports and certificates

Data sheet for DNOVA DA/SA double-acting pneumatic actuator with return springs

The cost and delivery time for your order depend on several factors, including the specific product you are ordering, the quantity, and the country of destination. Each product may have different manufacturing lead times and shipping requirements, which can affect the overall delivery schedule.

To get the most accurate and up-to-date information on delivery costs and timelines, we recommend contacting our sales managers. They will be happy to provide you with a detailed quote and estimated delivery time based on your specific requirements.

Please feel free to reach out to us for any questions or further assistance regarding your order.
