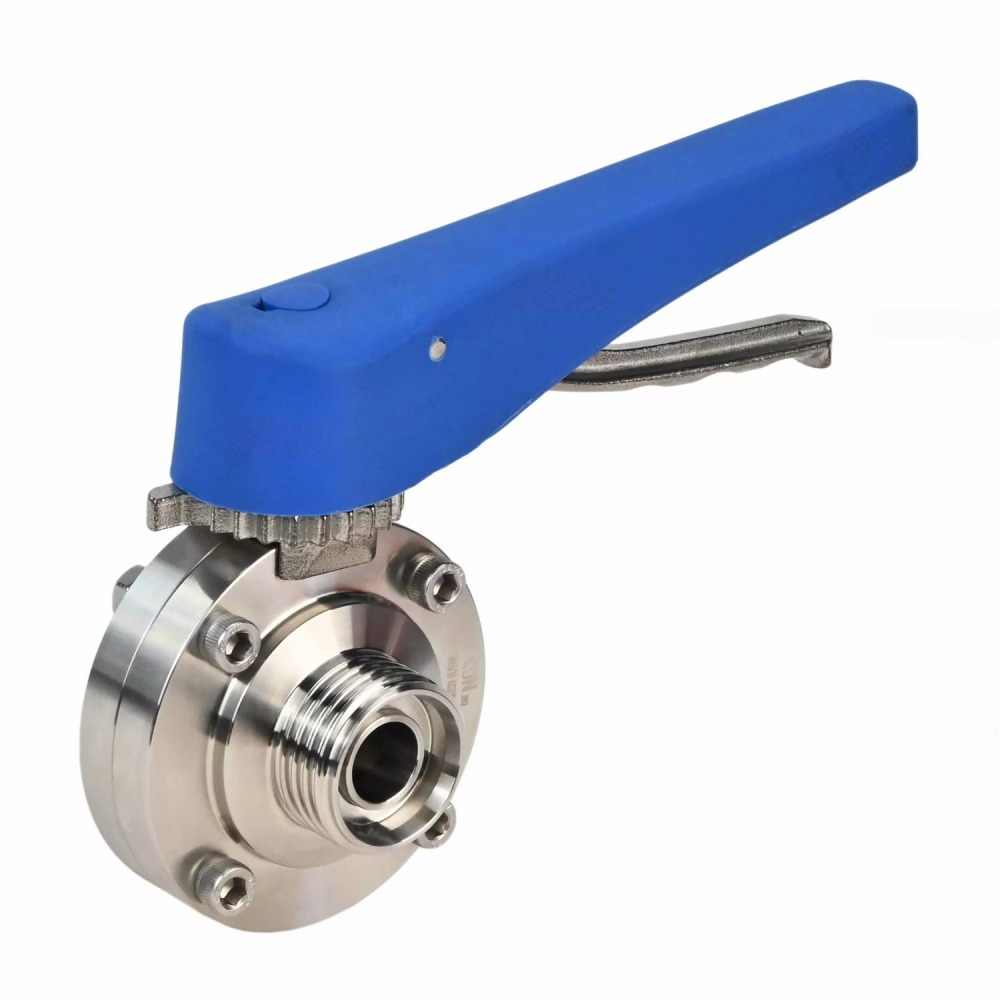

Water Butterfly Valve DNOVA WBV3131E-2W-T-H, body material - stainless steel AISI 304, disk material - stainless steel AISI 304, seal - EPDM, handle

From $10.23 USD
From $10.23 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

Butterfly valves are designed for use as shut-off or regulating valves to control flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Principle of operation: The valves are opened and closed by turning the disk by 90°. Opening is performed by turning the handle counterclockwise, closing - clockwise.

Overall and installation dimensions of water butterfly valve DNOVA WBV3131E-2W-T-H, body material - stainless steel AISI 304, disk material - stainless steel AISI 304, seal - EPDM, handle:

Diameter D, mm G, mm D1, mm A, mm H, mm J, mm K, mm
DN15 15 Rd34x1/8 78 66 86 126 8x8
DN20 19 Rd44x1/6 78 66 86 126 8x8
DN25 25 Rd52x1/6 78 66 86 126 8x8
DN32 31 Rd58x1/6 86 70 90 126 8x8
DN40 37 Rd65x1/6 90 74 92 126 8x8
DN50 49 Rd78x1/6 106 76 104 133 10x10
DN65 66 Rd95x1/6 124 80 113 144 10x10
DN80 81 Rd110x1/4 139 84 123.5 160 11x11
DN100 100 Rd130x1/4 159 104 133.5 160 11x11



Materials of parts of water butterfly valve DNOVA WBV3131E-2W-T-H, body material - stainless steel AISI 304, disk material - stainless steel AISI 304, seal - EPDM, handle:

№ Part name Material
1 Body Stainless steel 304
2 Rotary unit Stainless steel 304
3 Disc Stainless steel 304
4 Seat seal EPDM
5 Nut A2~70 steel
6 Bolt A2~70 steel
7 Plug ABS plastic

Specifications

Country of origin
China
Body material
stainless steel AISI 304
Maximum allowable temperature
135 °C
Connection type
threaded
Control type
handle
Nominal pressure
10 bar
Type of seal
EPDM
Disc material
stainless steel AISI 304

Delivery

The cost and delivery time for your order depend on several factors, including the specific product you are ordering, the quantity, and the country of destination. Each product may have different manufacturing lead times and shipping requirements, which can affect the overall delivery schedule.

To get the most accurate and up-to-date information on delivery costs and timelines, we recommend contacting our sales managers. They will be happy to provide you with a detailed quote and estimated delivery time based on your specific requirements.

Please feel free to reach out to us for any questions or further assistance regarding your order.
