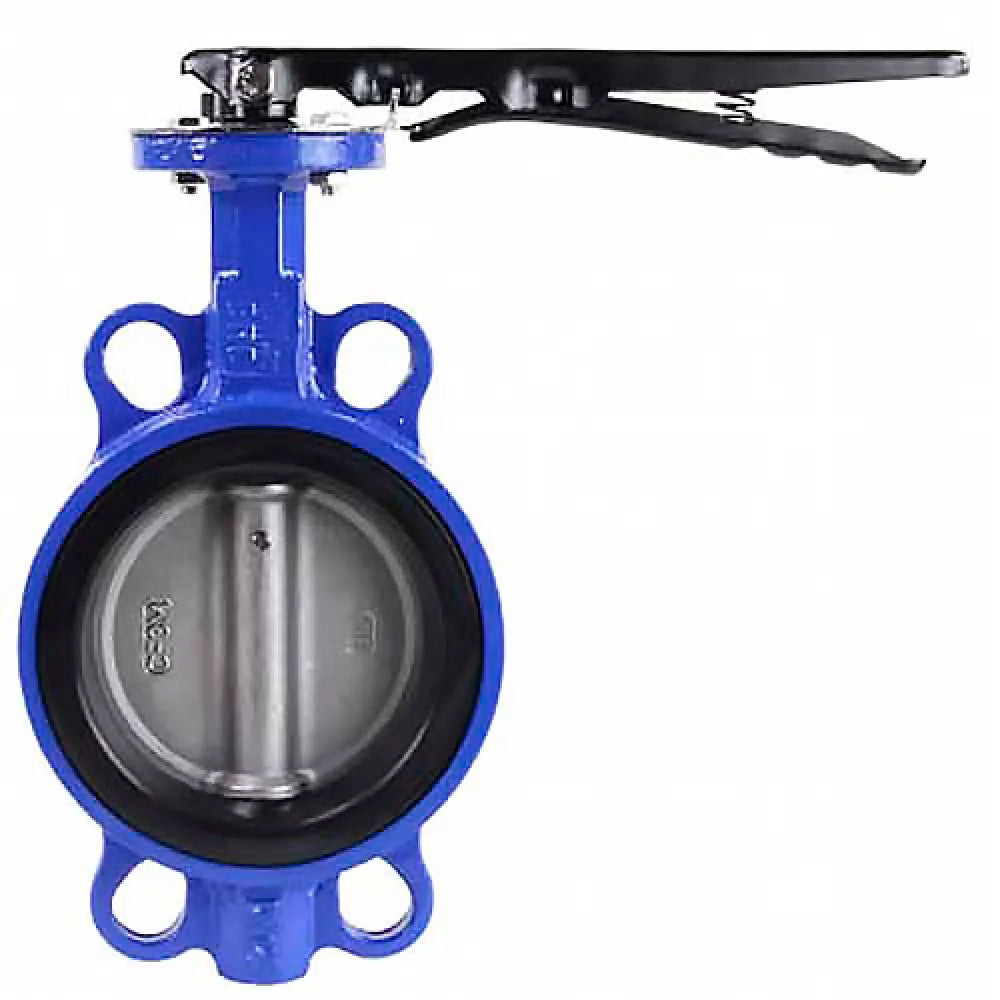

Water Butterfly Valve DNOVA WBV1632E-2W-Fb, body material - cast iron QT450, disk material - stainless steel AISI 316, seal - EPDM, handle

From $9.80 USD
From $9.80 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

The WBV1632E-2W-Fb butterfly valve is designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries. Operating principle: The valves are opened and closed by turning the disk by 90°. Opening is performed by turning the handle counterclockwise, closing - clockwise.

Installation dimensions and sizes of water butterfly valve DNOVA WBV1632E-2W-Fb, body material - cast iron QT450, disk material - stainless steel AISI 316, seal - EPDM, handle:

Diameter L H H1 D2 D1 n-d
DN40 43 147 70 92 125 4- Ø23
DN50 43 147 70 92 125 4- Ø23
DN65 46 155 76 110 145 4- Ø23
DN80 46 164 92 121 160 8- Ø20
DN100 52 175 106 153 180 4- Ø23
DN125 56 194 119 176 210 4- Ø23
DN150 56 206 132 207 240 4- Ø25
DN200 60 237 162 259 295 4- Ø25
DN250 68 282 200 316 355 4-Ø28
DN300 78 311 225 370 410 4-Ø28



Details and materials of water butterfly valve DNOVA WBV1632E-2W-Fb, body material - cast iron QT450, disk material - stainless steel AISI 316, seal - EPDM, handle:

№ Part name Material
1 Body Cast iron QT450
2 Disk Stainless steel 316L
3 Seat seal EPDM
+ wear resistant material
(siliclone+graphite)
4 Stem Steel 2Cr13

Specifications

Country of origin
China
Body material
cast iron QT450
Maximum allowable temperature
110 °C
Connection type
compact flanged
Control type
handle
Nominal pressure
16 bar
Type of seal
EPDM
Disc material
stainless steel AISI 316

Delivery

The cost and delivery time for your order depend on several factors, including the specific product you are ordering, the quantity, and the country of destination. Each product may have different manufacturing lead times and shipping requirements, which can affect the overall delivery schedule.

To get the most accurate and up-to-date information on delivery costs and timelines, we recommend contacting our sales managers. They will be happy to provide you with a detailed quote and estimated delivery time based on your specific requirements.

Please feel free to reach out to us for any questions or further assistance regarding your order.
