How it works
Double-acting rotary actuator
Butterfly disc
5/2 double-solenoid pilot
Limit-switch box
The number that matters
Max. medium temperature
120°C
The highest medium temperature this valve is rated for.
Construction
Parts and materials

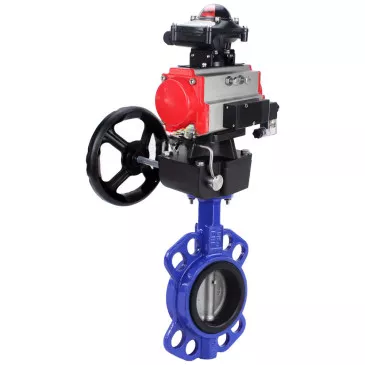

DNOVA WBV1132N-2W-Fb-H butterfly valves are designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Pneumatic valve DNOVA 4V320-10 220V is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.
The DNOVA APL-210N EX limit switch unit is an electrotechnical device designed to open and close the working circuit and to visualise the positions of the shut-off body of pipeline valves. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalise extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-coloured visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labelled CLOSED is visible; if it is open, only the yellow part labelled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the colour difference between open and closed position reduces the probability of misinterpretation of information. Thanks to the use of the BCV it becomes possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics in case of fault detection.
The DNOVA MON manual doubleturn actuator with worm gear and HDM reduction reducer enables manual setting of the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual override is intended to provide the most efficient and effective solution to the full range of manual override applications.
Technical parameters Rotary disc gate valves DNOVA WBV1132N-2W-Fb-H, wafer, body - cast iron GG25, seal - NBR
| Name | Value |
|---|---|
| Nominal Pressure PN, bar | 16 |
| Working Medium Temperature, °C | from -20 to 120 |
| Application | Water supply, Heating systems |
| Pipe Connection | Flanged |
| Valve Type | Rotary disc valve |
| Actuation Type | Pneumatic actuator |
| Country of Manufacture | China |
Overall and installation dimensions of the gate valve DNOVA WBV1132N-2W-Fb-H DN40
| DN | A | B | C | E | L | ØD | Ød | 4-Ødo | HxH | bore diameter |
| 40 | 114 | 66 | 26 | 34 | 210 | 65 | 50 | 4-7 | 9x9 | 50 |
Sketch Butterfly valves WBV1132N-2W-Fb-H DN40
Dimensions and dimensions of Butterfly valves DNOVA WBV1132N-2W-Fb-H, wafer, body - cast iron GG25, seal - NBR
| DN | L | H | F | L1 | E | G |
| 40 | 34 | 180 | 98 | 153 | 120 | 147 |
| 50 | 43 | 203 | 115 | 174 | 120 | 147 |
| 65 | 46 | 223 | 115 | 174 | 120 | 147 |
| 80 | 46 | 245 | 135 | 216 | 133 | 147 |
| 100 | 52 | 275 | 135 | 216 | 133 | 147 |
| 125 | 56 | 303 | 160 | 279 | 180 | 147 |
| 150 | 56 | 331 | 160 | 279 | 180 | 147 |
| 200 | 60 | 410 | 193 | 308 | 180 | 147 |
| 250 | 68 | 490 | 210 | 405 | 195 | 147 |
| 300 | 78 | 560 | 237 | 465 | 195 | 147 |
Sketch of rotary disc gate valves DNOVA WBV1132N-2W-Fb-H, wafer, body - cast iron GG25, seal - NBR
Table of parts and materials for butterfly disc gate valves DNOVA WBV1132N-2W-Fb-H, wafer, body - cast iron GG25, seal - NBR
| № | Name | Material |
|---|---|---|
| 1 | Body | Cast iron GG25 |
| 2 | Seat sealing | NBR |
| 3 | Disc | Stainless steel 316L |
| 4 | Stem | SS AISI 416 |
| 5 | Pin | SS AISI 420 |
| 6 | Bushing | PTFE |
| 7 | Sealing ring | NBR |
Technical parameters of pneumatic valve DNOVA 4V320-10 220V
| Name | Value |
|---|---|
| Type of Pneumatic Valve | Spool |
| Pneumatic Valve Model | 4V320-10 220V |
| Operating Pressure, bar | 1.5 ÷ 8 |
| Supply Voltage, V | 220 V |
| Actuation Frequency, cycles/sec | 5 |
Technical parameters of limit switch unit DNOVA APL-210N
| Name | Value |
|---|---|
| Limit Switch Box Model | APL-210N |
| Service Life, years | 10 |
Parts and materials table for DNOVA APL-210N limit switch unit
| № | Name | Material |
|---|---|---|
| 1 | Body | Cast aluminum |
| 2 | Indicator cap | Polyester plastic |
| 3 | 3D-indicator | ABC plastic |
| 4 | Cam | Polyester plastic |
| 5 | Spring | Stainless steel |
| 6 | Screws | Stainless steel |
| 7 | Sealing rings | NBR |
| 8 | Bushing | Bronze |
| 9 | Ground terminal | Stainless steel |
| 10 | Shaft | Stainless steel |
Technical parameters of handwheels DNOVA MON
| Name | Value |
|---|---|
| Mounting method | Horizontal/Vertical |
| Protection rating, IP | 67 |
| Connection type | ISO 5211 |
Parts and materials table for the handwheel DNOVA MON
| № | Name | Material |
|---|---|---|
| 1 | Shaft for pneumatic actuator mounting | Steel 45 |
| 2 | O-ring | EPDM |
| 3 | Retaining spring | Spring steel |
| 4 | Upper end cover | Aluminum alloy |
| 5 | Screw | Steel 304 |
| 6 | Retaining clip (main rod) | Steel 304 |
| 7 | Housing | Aluminum alloy |
| 8 | O-ring | EPDM |
| 9 | Gearbox | Cast iron GGG50 |
| 10 | Adapter coupling | Cast iron GGG40 |
| 11 | Gearbox shaft | Cast iron GGG40 |
- Body material
- Grey cast iron GG25
- Maximum allowable temperature
- 120 °C
- Connection type
- Compact flanged
- Type of seal
- NBR
- Disc material
- Stainless steel AISI 316L
- Limit switches
- Yes
- Country of origin
- China
