How it works
Spring-return rotary actuator
Butterfly disc
5/2 double-solenoid pilot
Limit-switch box
The number that matters
Nominal pressure
16bar
The pressure class of the valve body at 20 °C. Working limits depend on the medium and its temperature.
Construction
Parts and materials
The butterfly valve is designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Pneumatic double-acting rotary actuators PA-DA and pneumatic rotary actuators with return spring PA-SA are designed for automation of industrial valve control process with maximum torque up to 2128 Nm.
The pneumatic valve is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.
The limit switch unit is designed for visual and electrical signaling of the end positions of the shut-off body of the pipeline valves.
Air treatment unit is designed to clean compressed air from moisture droplets and solid particles, remove condensate, automatically maintain the pressure at the preset level, supply lubricant from the tank in the compressed air flow to the pneumatic system elements.
Technical parameters of DNOVA WBV0232E-2W-Fb-H butterfly valves, body material - aluminum alloy, disc material - stainless steel AISI 316L, sealing - EPDM, with pneumatic actuator with return springs PA-SA-083, 4V320-08 220V, LSU APL-410N EX, ATU AFC2000:
| Name | Significance |
| Working pressure, bar | 16 |
| Working medium temperature, °C | from -20 to 120 |
| Application | water supply, heating |
| Connection to pipeline | interflanged |
| Gate type | swivel disk |
| Control type | pneumatic actuator |
| Manufacturer's country | China |

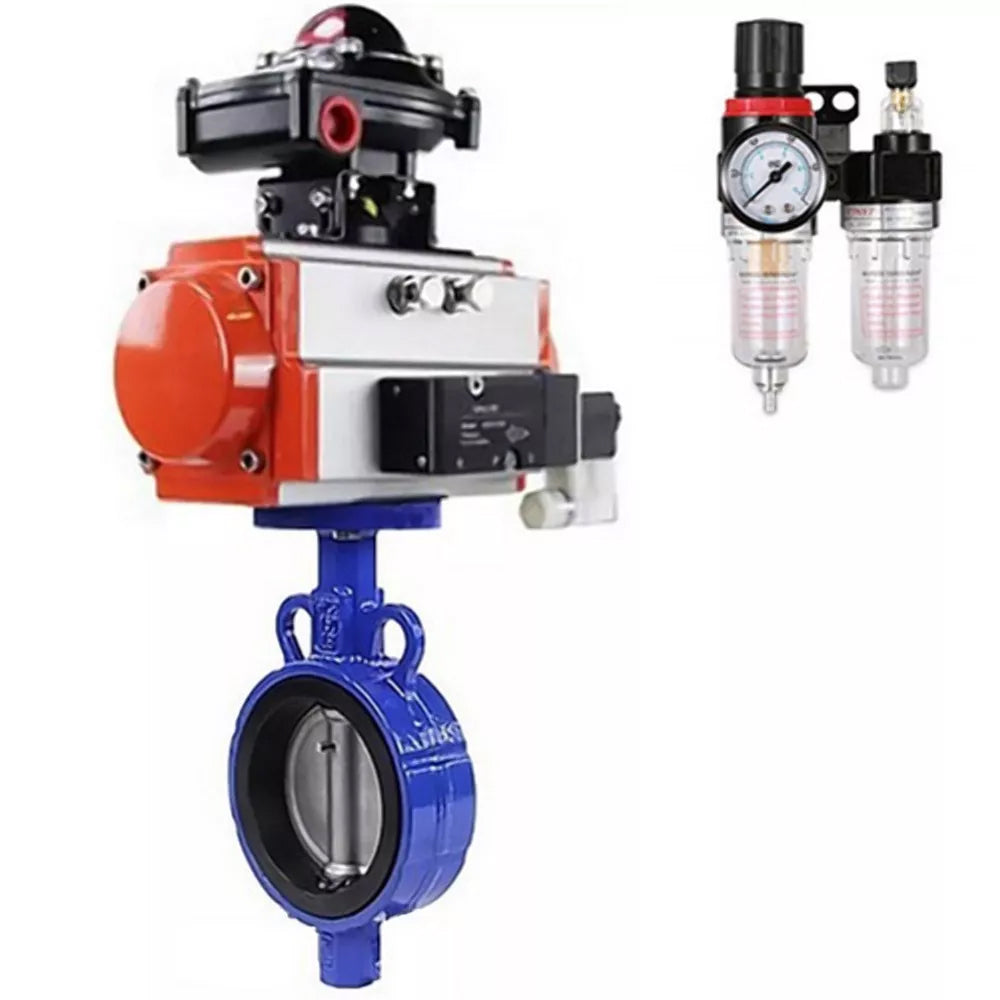

Butterfly valves WBV0232E-2W-Fb-H, body material - aluminum alloy, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator with return springs PA-SA-083, 4V320-08 220V, LSU APL-410N EX, ATU AFC2000
Dimensions and dimensions of DNOVA WBV0232E-2W-Fb-H butterfly valves, body material - aluminum alloy, disc material - stainless steel AISI 316L, sealing - EPDM, with pneumatic actuator with return springs PA-SA-083, 4V320-08 220V, LSU APL-410N EX, ATU AFC2000:
| DN | B, mm | L, mm | H, mm | H2, mm | E, mm | B1, mm | X, mm | Y, mm |
| 25 | 93 | 36 | 174 | 44.5 | 26 | 152 | 162 | 139 |
| 32 | 93 | 36 | 174 | 44.5 | 26 | 152 | 162 | 139 |
Sketch Butterfly valves WBV0232E-2W-Fb-H, body material - aluminum alloy, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator with return springs PA-SA-083, 4V320-08 220V, LSU APL-410N EX, ATU AFC2000
Materials DNOVA WBV0232E-2W-Fb-H butterfly valves, body material - aluminum alloy, disc material - stainless steel AISI 316L, sealing - EPDM, with pneumatic actuator with return springs PA-SA-083, 4V320-08 220V, LSU APL-410N EX, ATU AFC2000:
| № | Part | Material |
| 1 | Body | Cast iron GGG50 |
| 2 | Disk | High-strength cast iron |
| 3 | Seat seal | EPDM |
| 4 | Upper stem | AISI 420 steel |
| 5 | Lower stem | AISI 420 steel |
| 6,11 | Retaining ring | AISI 201 steel |
| 7 | Duster | NBR |
| 8 | Stem gasket | NBR |
| 9 | Shaft gasket | AISI 201 steel |
| 10 | Plug | Plastic |
Sketch of parts and materials Butterfly valves WBV0232E-2W-Fb-H, body material - aluminum alloy, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator with return springs PA-SA-083, 4V320-08 220V, LSU APL-410N EX, ATU AFC2000
Technical data of SA pneumatic actuators
| Design | with return springs |
| Nominal pressure PN, bar | 12 |
| Working pressure, bar | 2...8 |
| Working medium | Filtered compressed air or non-aggressive gases, oils |
| Maximum particle diameter | less than 30 µm2 |
| Operating temperature t, °C | - 20 to +80 - 40 to +80 (low temperature version) - 20 to +160 (in dry air) |
| Adjustment range | ± 5 ° for rotation at 0 ° and 90 ° |
| Manual override | is |
| Position indicator | open/closed |
| Operating environment | indoors and outdoors. (All internal and external parts are anti-corrosion coated) |
Materials of SA pneumatic actuator parts:
| № | Name | Material |
| 1 | Enclosure | extruded aluminum |
| 2 | Side plugs | cast aluminum |
| 3 | Gear | stainless steel |
| 4 | Piston | steel/aluminum |
| 5 | Plugs | stainless steel |
| 6 | Piston ring | NBR |
| 7 | Springs | spring steel |
| 8 | Piston bearing | engineering plastic |
| 9 | Piston ring | NBR |
| 10 | Plug | NBR |
| 11 | Thrust ring | engineering plastic |
| 12 | Ring | engineering plastic |
| 13 | Washer | stainless steel |
| 14 | Spring clip | stainless steel |
| 15 | Indicator | plastic |
| 16 | Indicator housing | plastic |
| 17 | Bearing | engineering plastic |
| 18 | Cam | steel |
| 19 | Bearing | NBR |
| 20 | Bearing | engineering plastic |
| 21 | Bearing | engineering plastic |
| 22 | Sealing ring | NBR |
| 23 | Sealing ring | NBR |
| 24 | Bearing | stainless steel |
| 25 | Adjustment nut | stainless steel |
| 26 | Adjustment screw | stainless steel |
| 27 | Sleeve | aluminum |
Material sketch of SA pneumatic actuator
Technical parameters of pneumatic valve 4V320-08 220V:
| Name | meaning |
| Type of pneumatic valve | slide valve |
| Working pressure, bar | 1.5 ÷ 8 |
| Supply voltage, V | 220 V |
| Total power, Va | 4.5 |
| Control | double-sided electromagnetic |
| Frequency of operation, cycle/sec | 5 |
Pneumatic valve 4V320-08 220V
Dimensions and dimensions of pneumatic valve 4V320-08 220V:
| Pneumatic valve model | 4V320-08 |
| A, mm | 71.9 |
| B, mm | 45 |
| C, mm | 94.4 |
| D, mm | 27 |
| E, mm | 69 |
| F, mm | 40 |
| I, mm | 24 |
| K, mm | 40 |
| L, mm | 188.8 |
| M, mm | 69.4 |
| N, mm | 50 |
| O, mm | 82.4 |
| P, mm | 24 |
| S, mm | 20 |
| T, mm | 6.5 |
| U, mm | 2.4 |
| V, mm | 4 |
| H, mm | 82.4 |
Sketch of dimensions and dimensions of pneumatic valve 4V320-08 220V
Technical parameters of limit switch unit APL-410N EX:
| Name | Value |
| Model of limit switch unit | APL-410N EX |
| Maximum voltage of limit switch, V | 250 |
| Working environment temperature, °C | -40 to +80 |
| Service life, years | 10 |
Limit switch unit APL-410N EX
Dimensions and dimensions of the APL-410N EX: limit switch unit:
| Model | D, mm | D1, mm | H, mm | L, mm | B, mm | M, mm |
| APL-410N EX | 9.5 | 5 | 174 | 177 | 178 | 8 |
Main parameters of the AFC2000 air treatment unit:
| Operating pressure, bar | 8 |
| Maximum pressure, bar | 10 |
| Adjustable pressure range, bar | 0,5 ÷ 9 |
| Breaking pressure, bar | 15 |
| Air connection | 1/4” |
| Operating temperature, C | -5 to +60 |
| Filter particle size, µm | 40 |
| Oil viscosity | ISO VG 32 |
| Weight, kg | 0,395 |
| Set composition | filter-moisture separator, pressure regulator, lubricator, bracket |
Air treatment unit AFC2000
- Body material
- Aluminum alloy
- Maximum allowable temperature
- 120 °C
- Connection type
- Compact flanged
- Control type
- Pneumatic actuator
- Nominal pressure
- 16 bar
- Type of seal
- EPDM
- Coating type
- uncoated
- Disc material
- Stainless steel AISI 316L
- Explosion-proof
- Yes
- Torque
- 25 Nm
- Manual override
- No
- Limit switches
- Yes
- Feedback sensor
- Limit switches
- Supply voltage
- 220 V
- Type of pneumatic actuator
- with return springs
- Angle of rotation
- 90°
- Country of origin
- China
