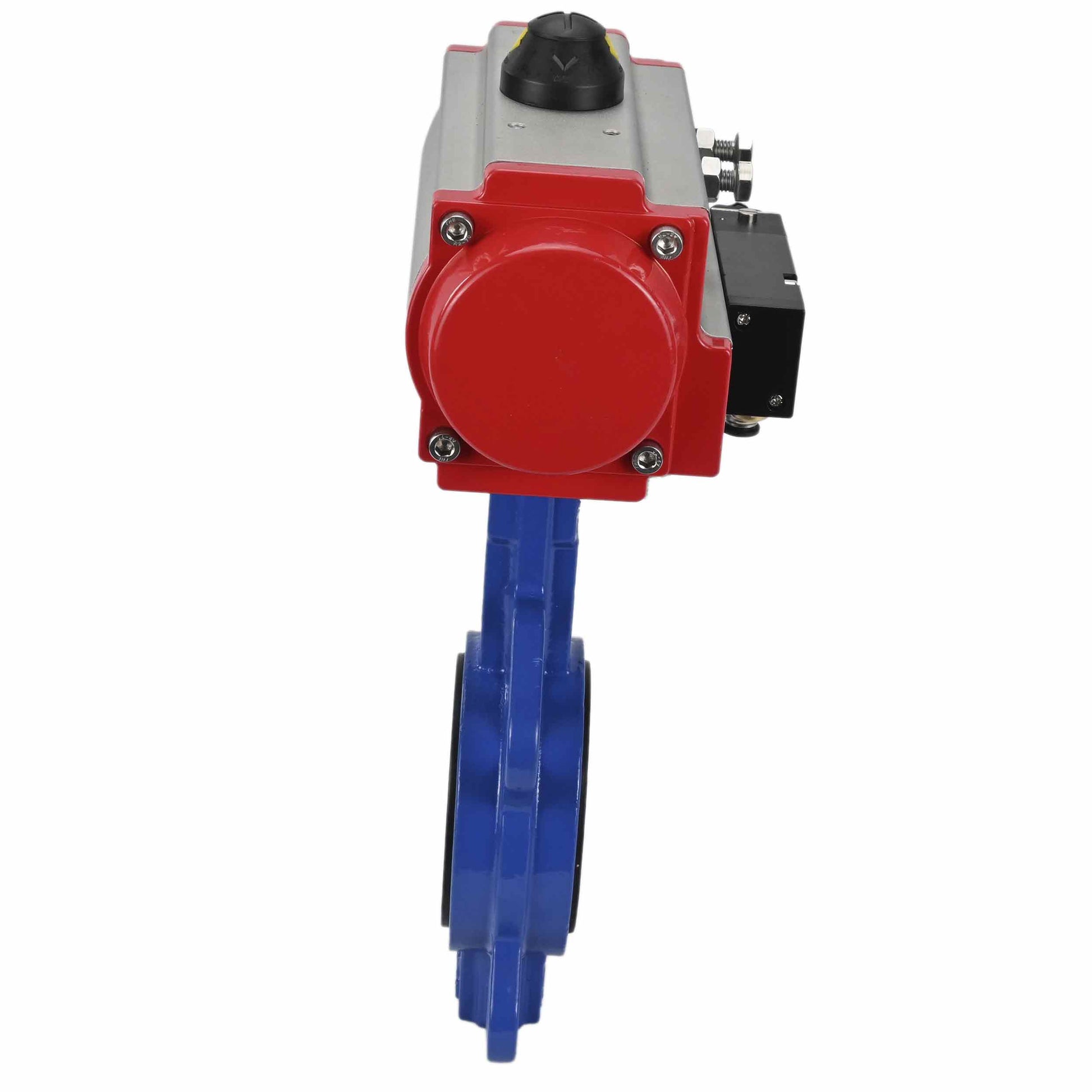

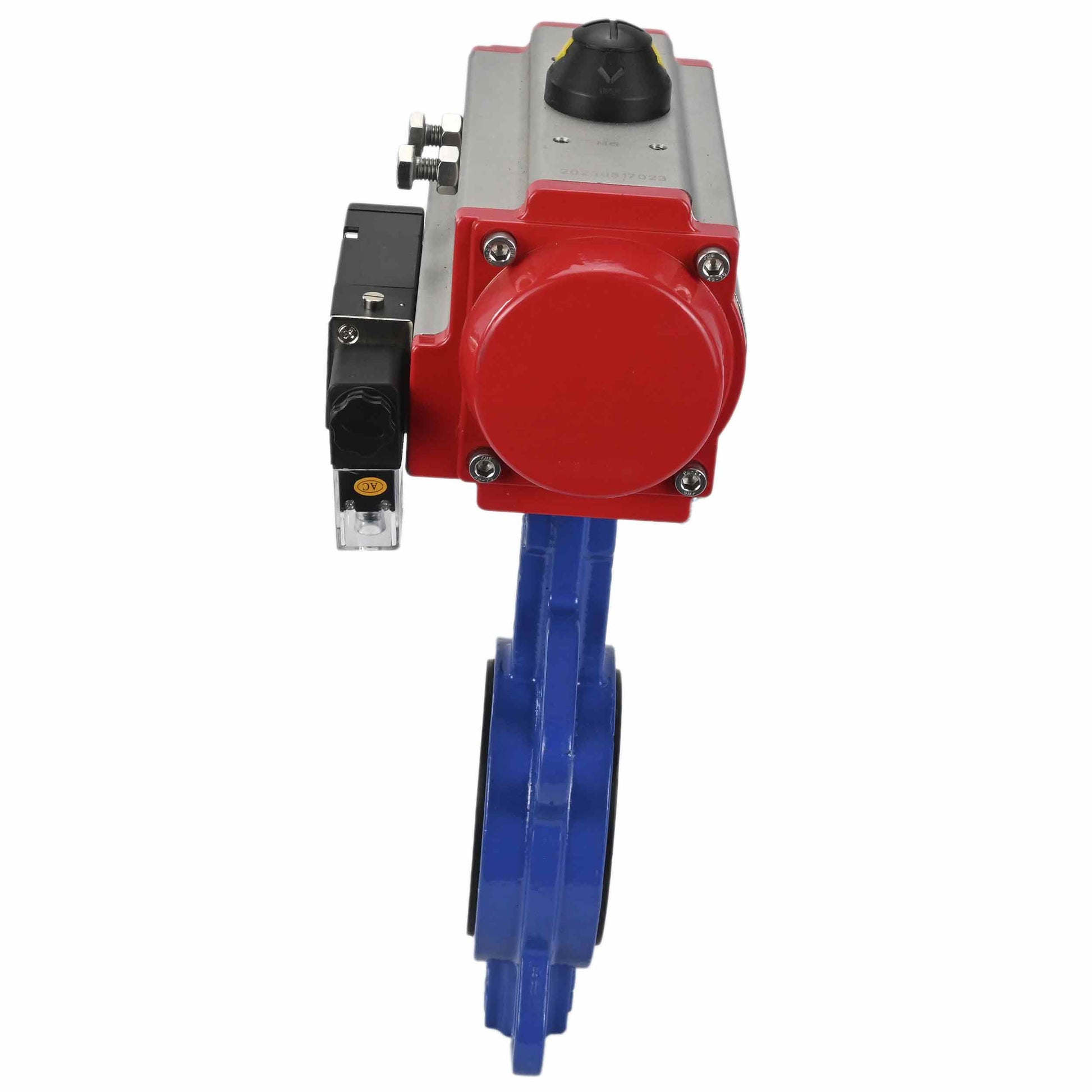

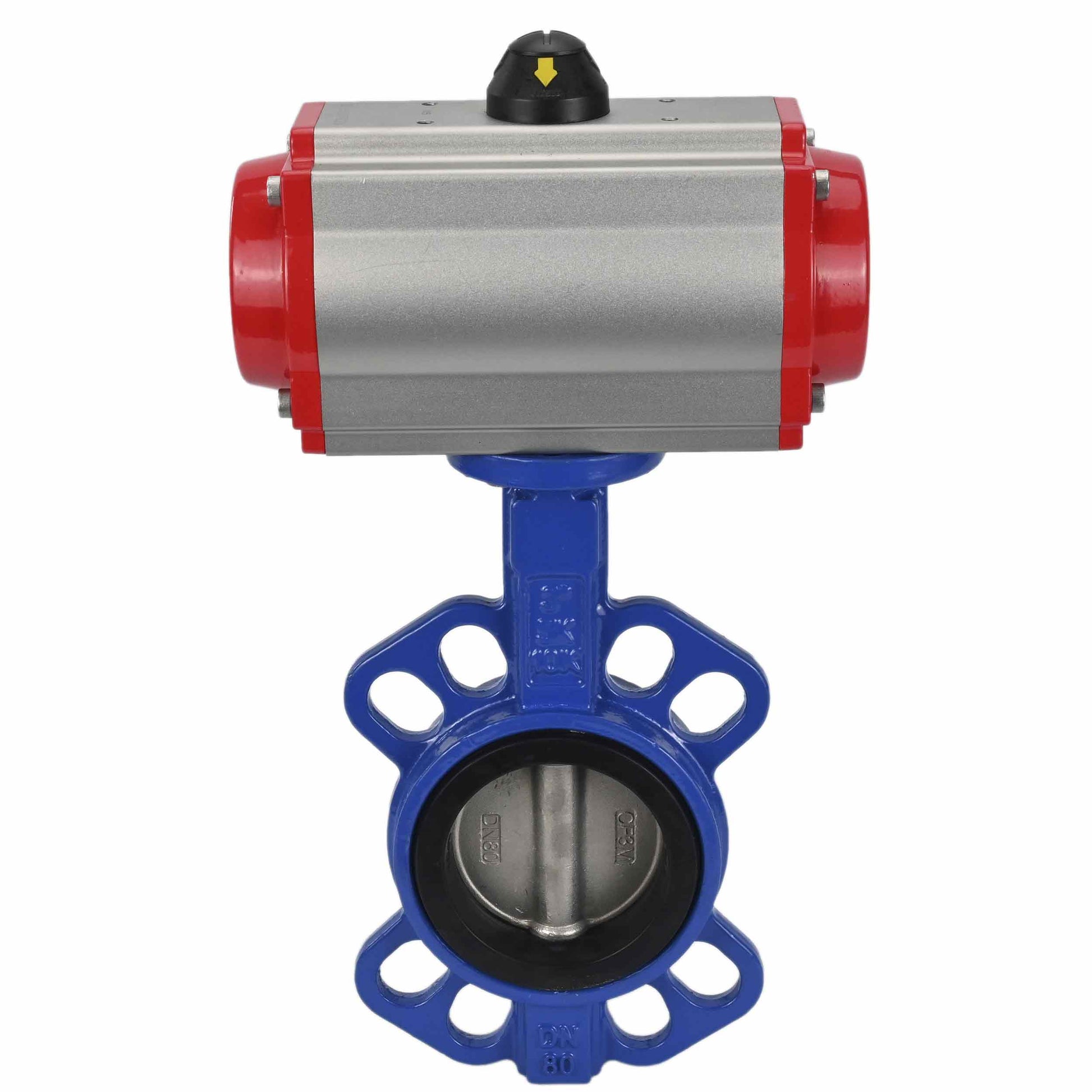

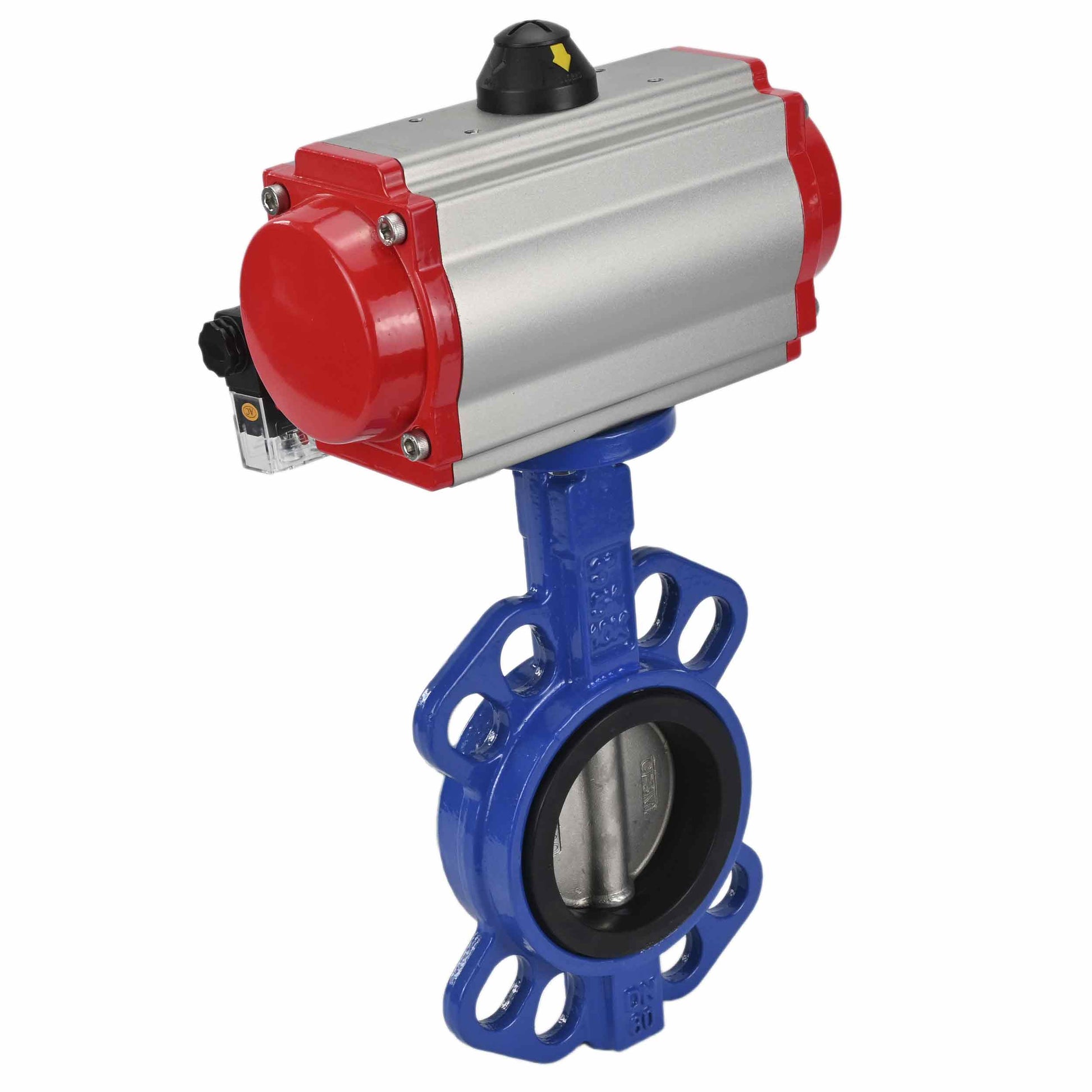

Description
A water butterfly valve is a type of valve used to control the flow of water or other fluids through a pipeline. It gets its name from the butterfly-shaped disc inside the valve that rotates to open or close the flow. When the valve is fully open, the disc is positioned parallel to the flow direction, allowing unobstructed passage of water. When the valve is closed, the disc is turned perpendicular to the flow, effectively blocking the flow of water. Water butterfly valves are commonly used in various industries and applications, including water treatment plants, sewage systems, irrigation systems, and industrial processes. They are known for their compact design, lightweight construction, and ease of installation. These valves are often preferred for their quick operation, as the disc can be opened or closed with a simple quarter-turn motion. Butterfly valves can be operated manually with a handle or lever, or they can be automated using electric, pneumatic, or hydraulic actuators to control the valve remotely. They are known for their low-pressure drop and relatively low cost compared to other types of valves. It's worth noting that water butterfly valves are specifically designed for use with water and compatible fluids. Different materials and designs may be required for valves intended for use with corrosive or high-pressure fluids. It's important to select the appropriate type of butterfly valve based on the specific application and fluid requirements.
Basic technical data and characteristics
| Parameter | Value |
| Nominal diameter DN, mm | 40 – 300 |
| Nominal pressure PN, bar | 16 |
| Flow direction | Bidirectional |
| Operating medium temperature, °C | -20 to +120 |
| Ambient temperature, °C | -20 to +100 |
| Shut-off tightness | Class A |
| Working medium | Cold and hot water, oil-free and grease-free air, stationary air conditioning, mildly aggressive media, other media neutral to material |
| Body material | Cast iron GGG50 |
| Disc material | Cast iron GGG40 |
| Pipeline connection | interflange |
| Control type | Handle |
| Average service life, years | 5 |
| Average cycle life (open/close cycles) | 20,000 (under non-aggressive media and average pressure and temperature conditions) |

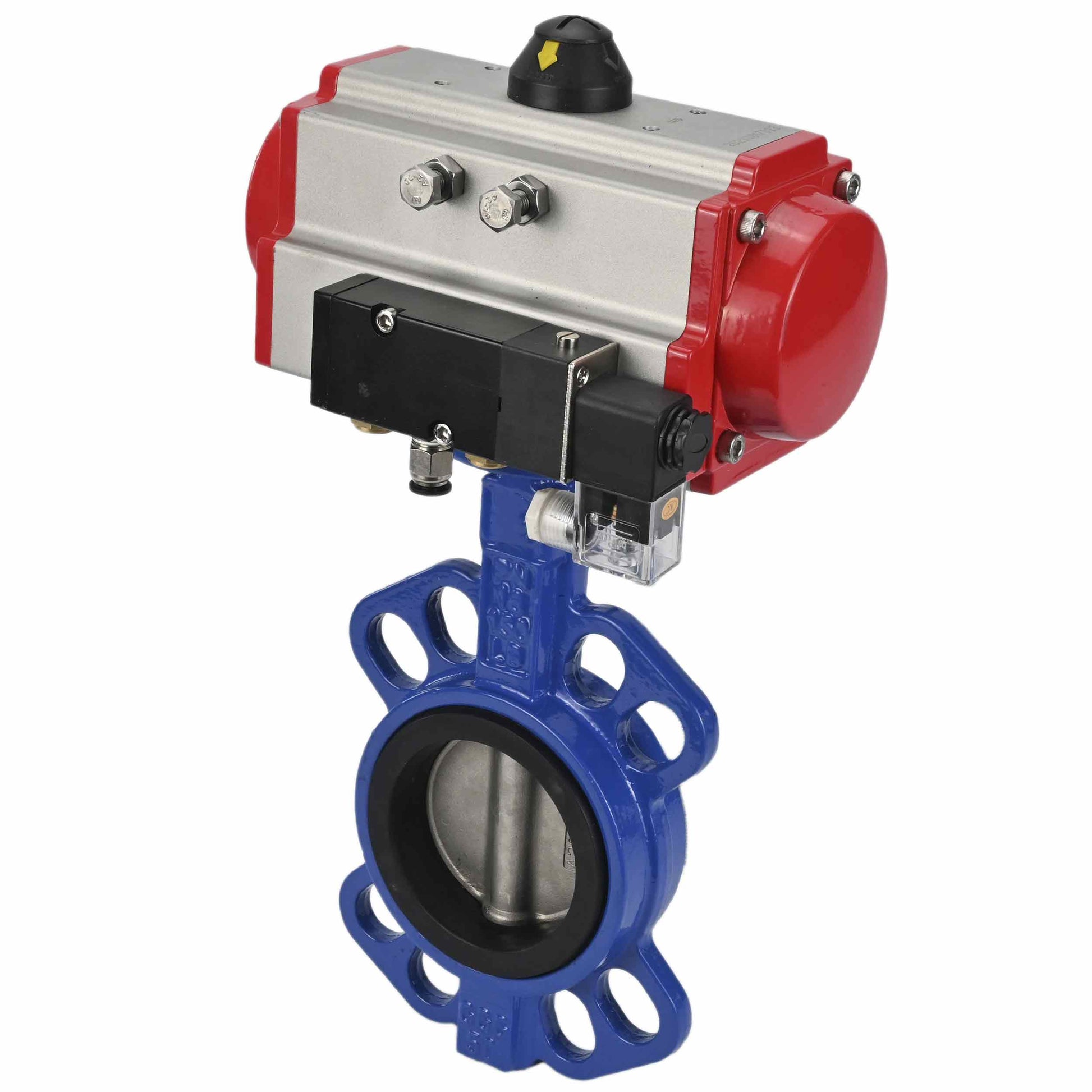

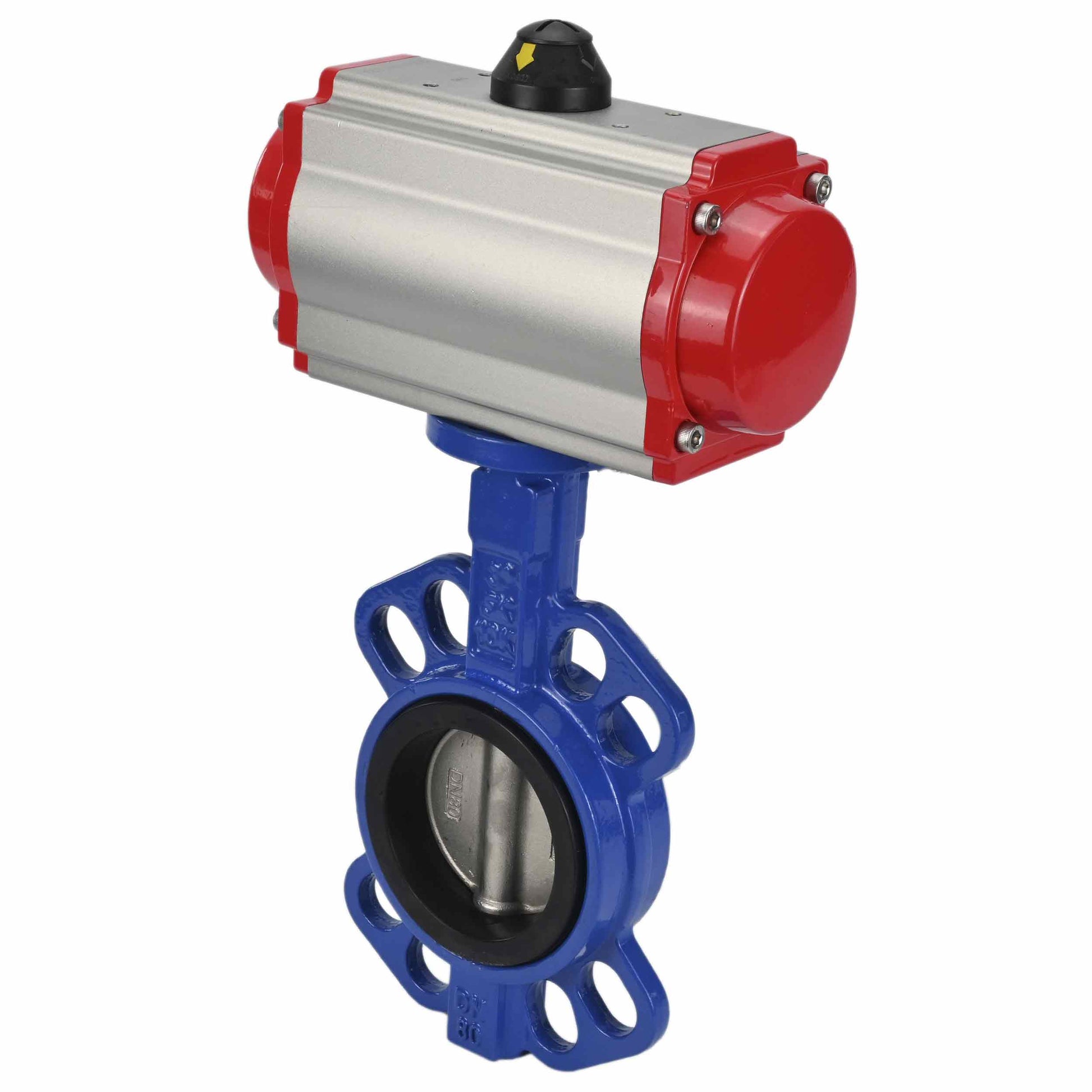

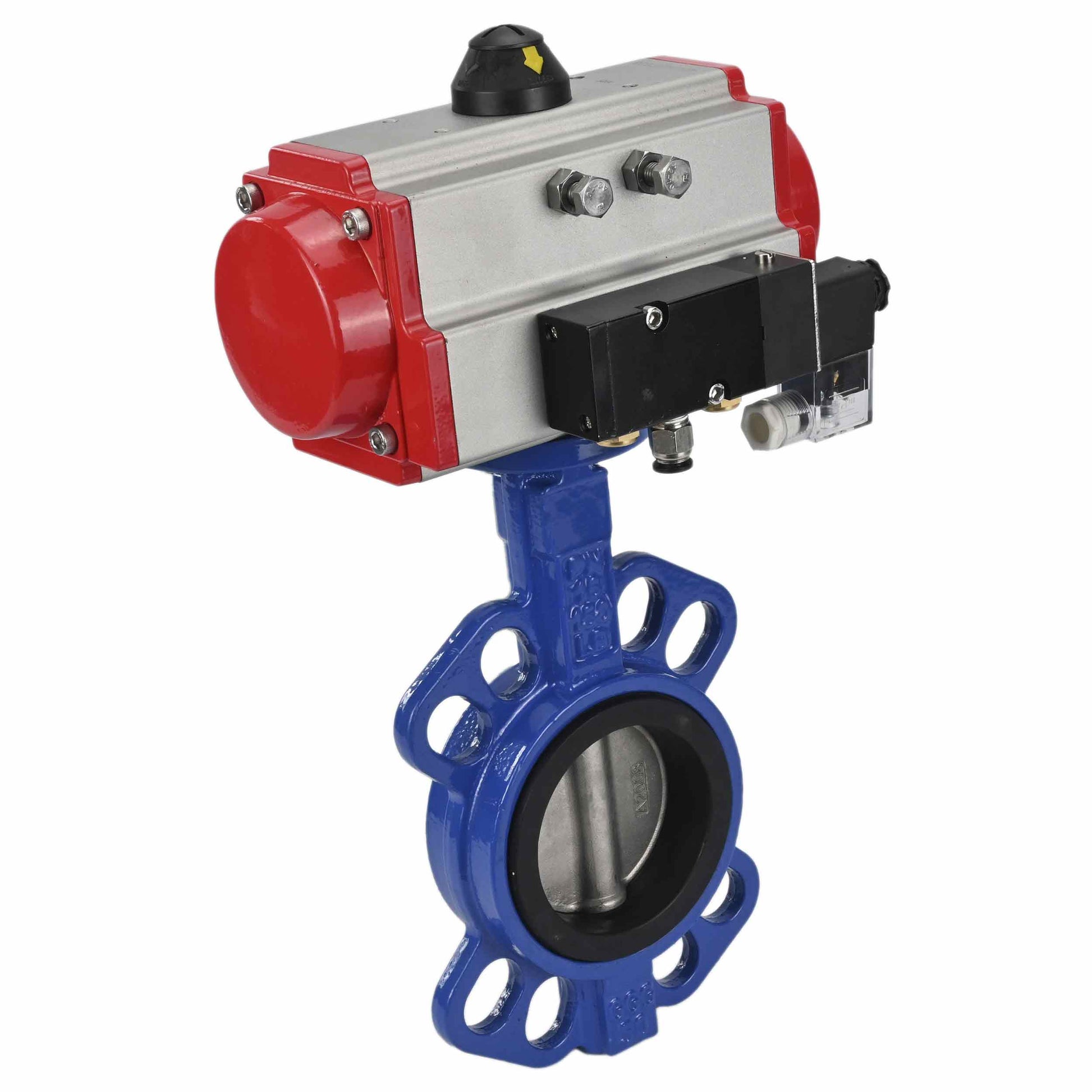

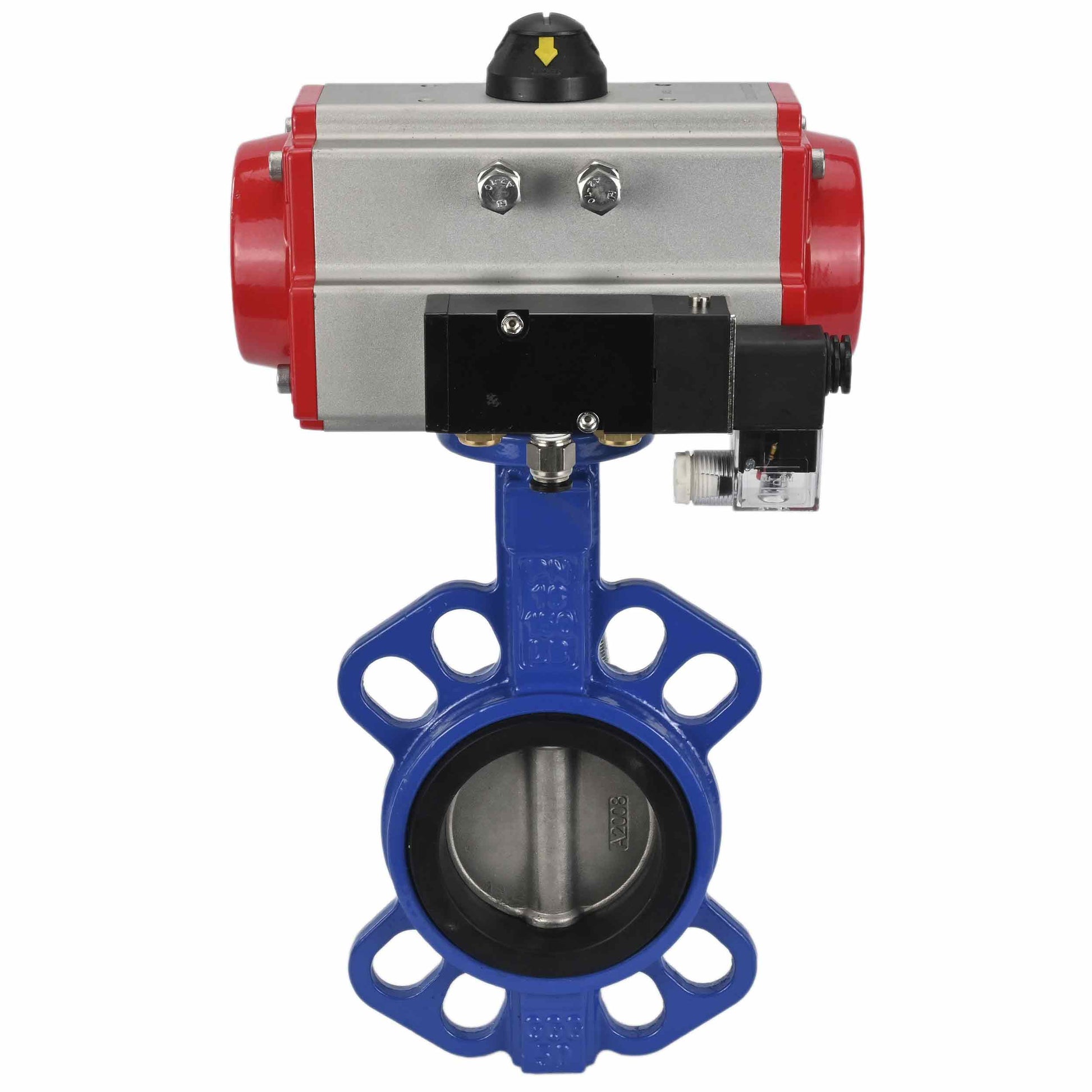

Gate dimensions Elephant Water Butterfly Valve Elephant WBV1432E-2W-Fb-H
| DN | H | H1 | H2 | L | L1 | ØDм | ØDк | D2 (flow section) |
| mm | ||||||||
| 40 | 146 | 74 | 25 | 43 | 216 | 73 | 75 | 50 |
| DN | H | H1 | H2 | L | L1 | ØDм | ØDк |
| mm | |||||||
| 50 | 146 | 74 | 25 | 43 | 216 | 73 | 84.5 |
| 65 | 156 | 80 | 25 | 46 | 216 | 86 | 104.5 |
| 80 | 163 | 100 | 25 | 46 | 216 | 103 | 123.5 |
| 100 | 180 | 116 | 25 | 52 | 255 | 131 | 139.5 |
| 125 | 189 | 123 | 25 | 56 | 255 | 155 | 169.5 |
| 150 | 206 | 137 | 25 | 56 | 255 | 183 | 196 |
| 200 | 232 | 165 | 35 | 60 | 370 | 235 | 247 |
| 250 | 275 | 203 | 35 | 68 | 370 | 286 | 304 |
| 300 | 314 | 235 | 35 | 78 | 370 | 338 | 358 |
Sketch of gates Elephant Water Butterfly Valve Elephant WBV1432E-2W-Fb-H
Materials of parts of rotary disc valves Elephant Water Butterfly Valve Elephant WBV1432E-2W-Fb-H
| № | Name | Material |
| 1 | Body | cast iron GGG50 |
| 2 | Cuff | EPDM |
| 3 | Disk | cast iron GGG40 |
| 4 | Stock | stainless steel SS 416/2Cr13 |
| 5 | Hairpin | stainless steel AISI 316L |
| 6 | Sleeve | NBR |
| 7 | Sealing ring | NBR |
| 8 | Fixing plate | carbon steel |
| 9 | Handle with lock | carbon steel |
Sketch of materials for rotary disc valves Elephant Water Butterfly Valve Elephant WBV1432E-2W-Fb-H
Technical characteristics of the pneumatic distributor 4M310-08
| Design | Spool-type |
| Test pressure (body strength test. Not for operation!), bar | 10 |
| Working pressure (recommended range for normal operation), bar | 1.5 ÷ 8 |
| Valve type | 5/2 five-port, two-position |
| Working medium | purified air (40 µm filter fineness) |
| Operating temperature, °C | 0 to +60 |
| Actuation frequency | 5 cycles per second |
| Manual override | yes |
| Protection rating/insulation class | IP65/F |
| Connection to pneumatic actuator | NAMUR-compliant mounting surface (VDI/VDE3845) |
| Body material | anodized aluminum |
| Effective cross-sectional area, mm2 | 25 (Cv = 1.4) |
| Exhaust port dimensions (vent to atmosphere) | 2 - PT1/4” |
| Air inlet port size (to pneumatic valve) | G1/4” |
| Air outlet port size (to pneumatic actuator) | 2 x Ø19.2 mm |
| Response time, sec | 0.05 |
| Supply voltage, V | 220AC/24DC |
| Coil power | 220VAC – 5.5 VA/24VDC – 4.8 W |
| Weight, kg | 0.35 |
| Average service life, cycles | 10,000,000 |
Overall and installation dimensions of the pneumatic distributor 4M310-08
| A | C | D | E | F | G | H | I | K | L | J | N | M |
| mm | ||||||||||||
| 40 | 24 | 28 | 32 | 40 | 21,5 | 69 | 45 | 17,5 | 135 | 29,3 | 40 | 27 |
Sketch of the dimensions of the pneumatic distributor 4M310-08
Basic materials and parts of the pneumatic distributor 4M310-08
| № | Part Name | Material |
| 1 | Connector | Engineering plastic |
| 2 | Nut | POM + carbon steel |
| 3 | Coil | Copper |
| 4 | Control Elements | — |
| 5 | Plate | Carbon steel |
| 6 | Piston | POM |
| 7 | Control Valve Seat | Engineering plastic |
| 8 | Valve Body | Aluminum alloy |
| 9 | Spool | Aluminum alloy |
| 10 | O-Ring Seal | HNBR |
| 11 | Rear Cover | Engineering plastic |
| 12 | Filter | Synthetic material |
| 13 | Piston | POM |
| 14 | Spring | Stainless steel |
| 15 | Manual Override | Engineering plastic |
| 16 | Rear Seat | Aluminum alloy |
| 17 | Spring Seat | Aluminum alloy |
| 18 | Type C Towing Shackle | 65Mn |
Sketch of the dimensions of the pneumatic distributor 4M310-08
