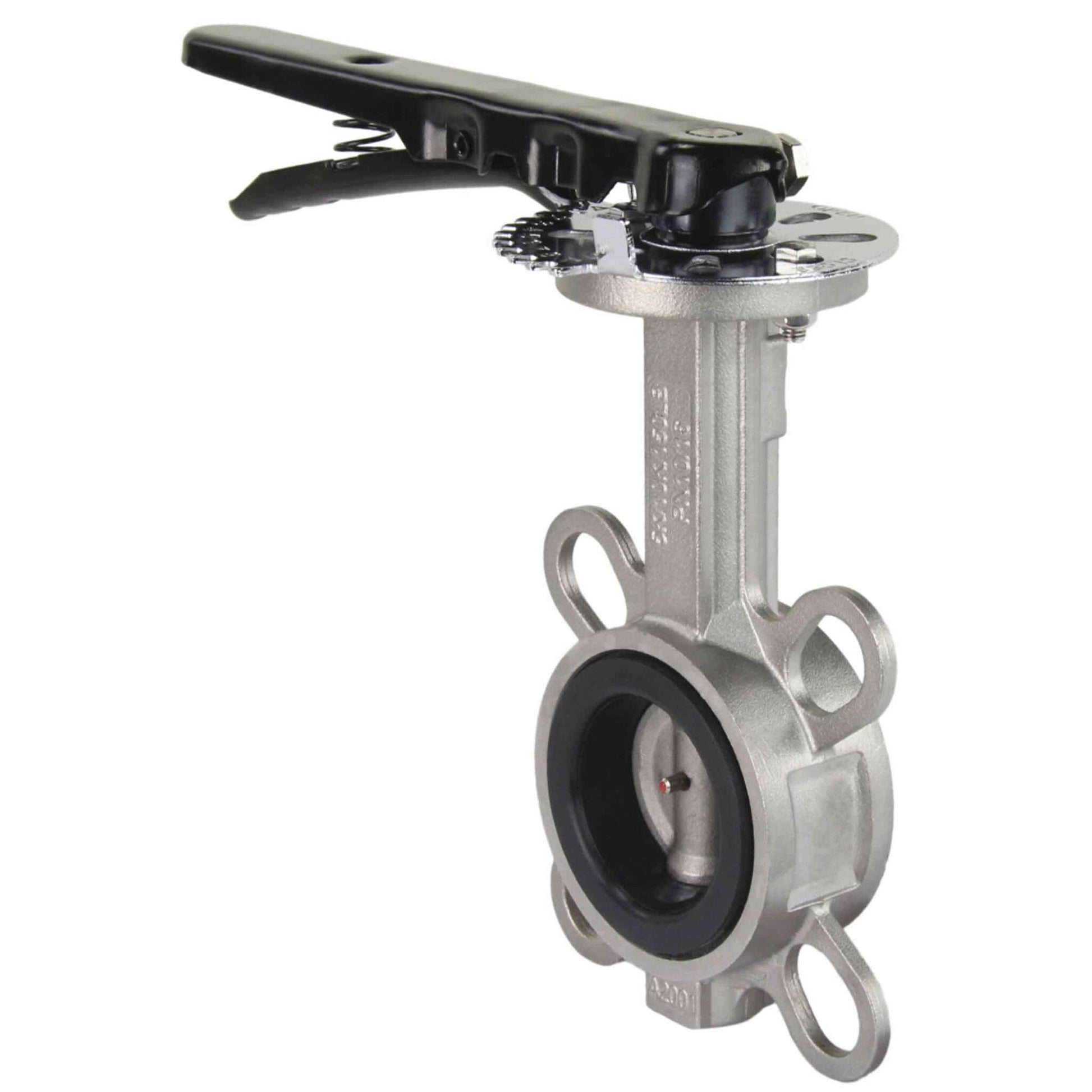

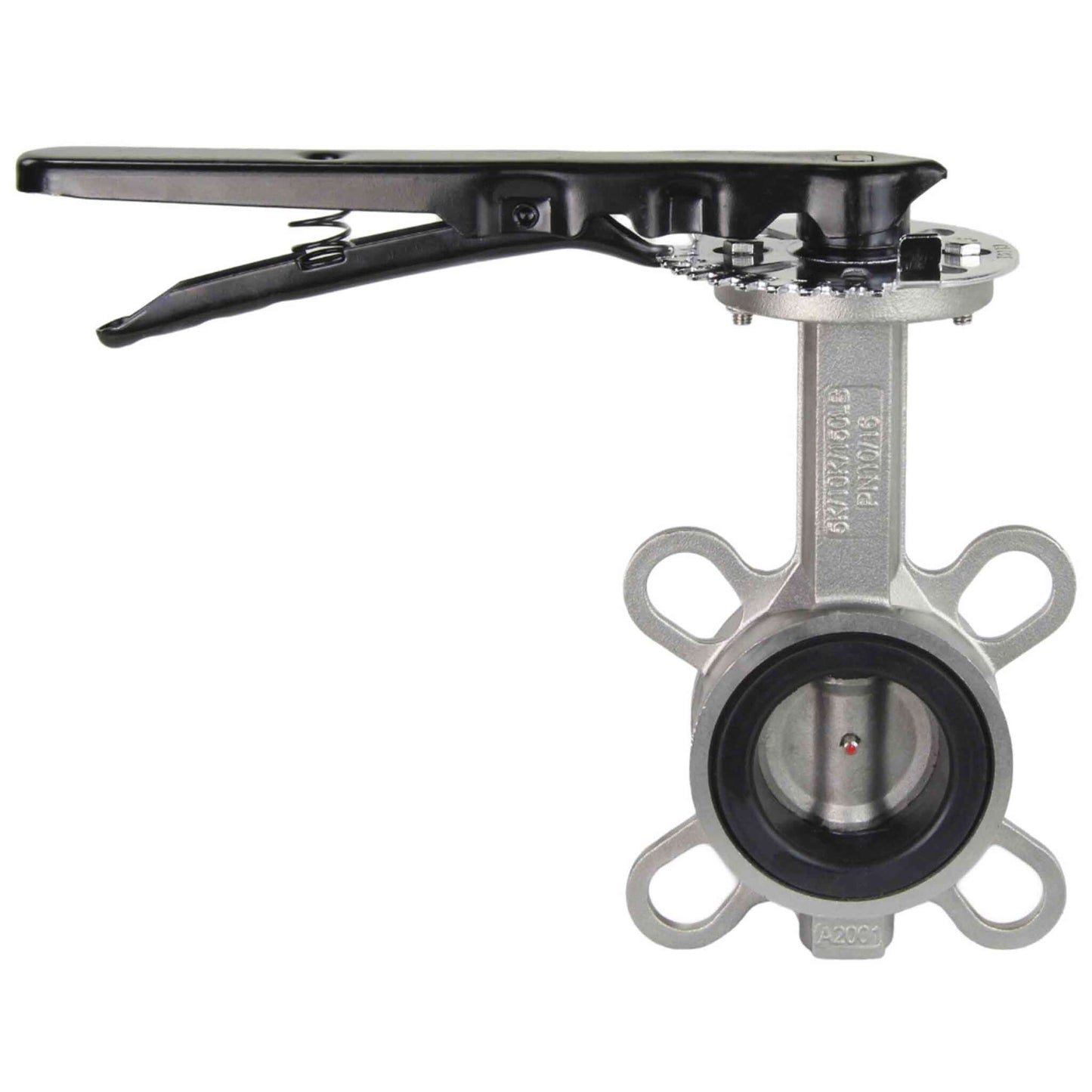

Water Butterfly Valve DNOVA WBV3232N-2W-Fb-H PN16, body and disk material - stainless steel 316L, seal - NBR, handwheel operated

From $16.74 USD
From $16.74 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

Water Butterfly Valve DNOVA is intended for use as shut-off or control valves for flow control in heat supply systems, water supply systems, in technological processes in the food, chemical, oil and gas, pulp and paper and other industries.

Overall dimensions of the gate valve DNOVA WBV3232N-2W-Fb-H PN16, body and disk material - stainless steel 316L, seal - NBR, handwheel operated

DN H1, mm H2, mm H3, mm Dm, mm Dk, mm L, mm ØC, mm
DN40/50 62 126 25 73 90 43 125
DN50 62 126 25 73 90 43 125
DN65 72 133 25 85 103 46 145
DN80 91 142 25 100 116 46 160
DN100 107 165 25 131 151 52 180
DN125 121 183 25 155 174 56 210
DN150 134 195 25 184 205 56 240
DN200 171 236 35 234 255 60 295
DN250 197 276 35 288 315 68 355
DN300 240 315 35 340 375 78 410

Эскиз Затворы дисковые поворотные DN.ru WBV3232N-2W-Fb-H Ду40-300 Ру16, корпус -сталь 316L, диск - сталь 316L, уплотнение - NBR, с рукояткой

Sketch of overall dimensions of the gate valve DNOVA WBV3232N-2W-Fb-H PN16, body and disk material - stainless steel 316L, seal - NBR, handwheel operated

Specification Rear DNOVA WBV3232N-2W-Fb-H PN16, body and disk material - stainless steel 316L, seal - NBR, handwheel operated

№ Name Material
1 Housing WCB steel or AISI 316L stainless steel
2 Cuff EPDM, PTFE, NBR
3 Disc AISI 316L stainless steel
4 Rod SS 416/2Cr13 stainless steel
5 Pin AISI 316L stainless steel
6 Bushing EPDM
7 Sealing ring EPDM
8 Fixing plate carbon steel
9 Handle with lock carbon steel

Эскиз Затворы дисковые поворотные DN.ru WBV3232E-2W-Fb-H Ду40-300 Ру16, корпус -сталь 316L, диск - сталь 316L, уплотнение - EPDM, с рукояткой

Sketch of specification water Butterfly Valve DNOVA

Specifications

Country of origin
China
Body material
Stainless steel AISI 316
Maximum allowable temperature
85 °C
Connection type
Compact flanged
Control type
Handle
Nominal pressure
16 bar
Type of seal
NBR
Disc material
Stainless steel AISI 316L/1.4404
