How it works
Linear electric actuator
Two-way globe valve
The number that matters
Max. medium temperature
150°C
The highest medium temperature this valve is rated for.
Construction
Parts and materials
Applications
Media and industries
- Water
- Ethylene Glycol
- Neutral Media
- Propylene glycol
- Water Supply
- Heating Systems
- Ventilation
Shut-off and regulating valves are designed for hermetic shut-off or changing the flow rate of the working medium in the pipeline.
Main technical characteristics of DNOVA VSR1-13V-PED-F two-way stop and control valves, body material - cast iron EN-JS1025, body material - stainless steel AISI 304, sealing - fluorocarbon (Viton, FPM), with electric actuator XCK220-1500 AC220V:
| Nominal diameter DN, mm | 15÷150 |
| Nominal pressure PN, bar | 16 |
| Temperature of working medium t, °C | from 0 to +150 |
| Working medium | non-flammable, explosion-proof, non-toxic, chemically neutral to the materials of the parts liquids and gases, water, aqueous solutions of ethylene glycol and propylene glycol with a concentration of up to 60%; the working environment should not contain mechanical impurities with a particle size of more than 70 microns. If the particle size exceeds 70 microns, then the installation of a filter in front of the valve is mandatory. |
| Direction of working medium supply | arrow on the valve body |
| Ambient temperature, °C | from -5 to +55 |
| Relative humidity of the environment, % | 30÷80 |
| Connection to the pipeline | flanged |
| Design of mating flanges | B |
| Voltage of the electric drive, V | 220 |
| Models of the electric drive | DN15÷65 – XCK220-1500 (where 1500 is the developed drive torque, N); DN80 – XCK220-2500 (where 2500 is the developed drive torque, N); DN100÷150 – XCK220-3000 (where 3000 is the developed drive torque, N); |
| Body material | cast iron EN-JS1025 |
| Seal material in the valve | fluororubber |
| Flow characteristic | equal percentage |
| Product type | two-way |
| Valve design | DN15÷25 – non-pressure-balanced DN32÷150 – pressure-balanced |

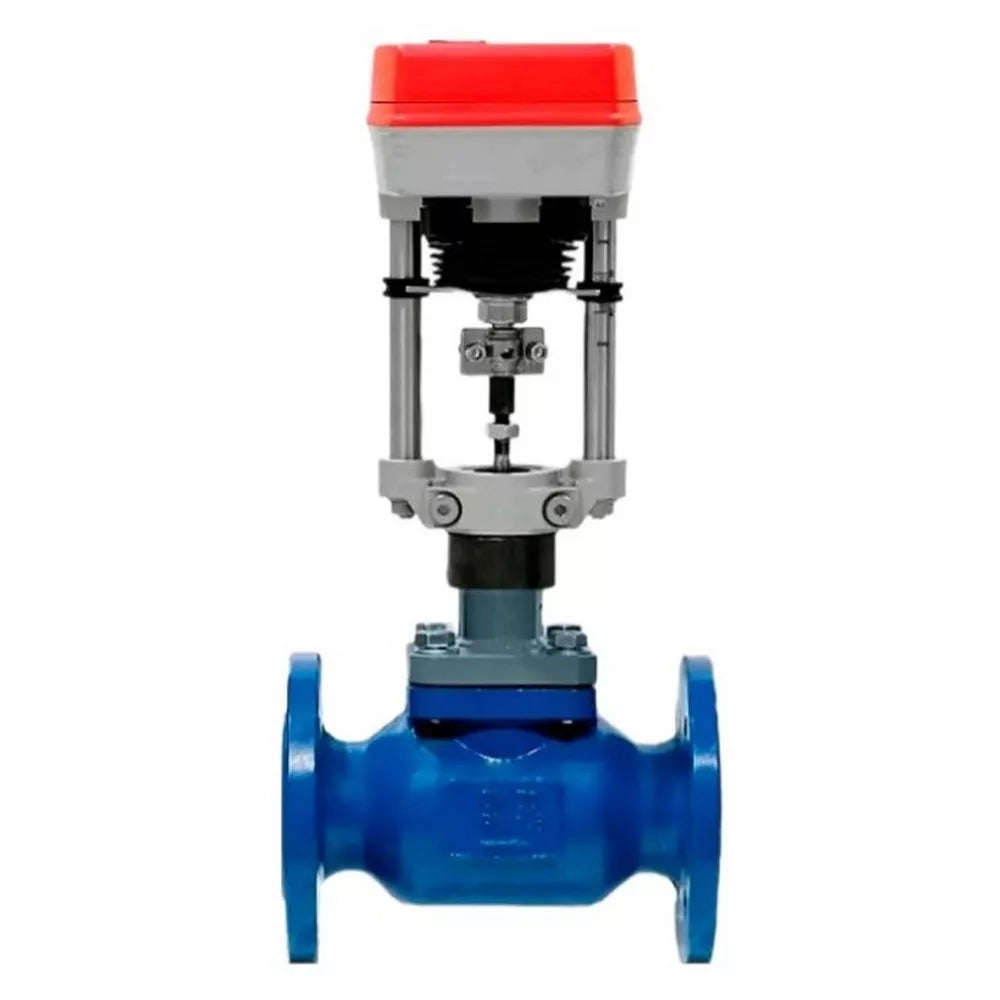

Two-way shut-off and regulating valve DNOVA VSR1-13V-PED-F, body material - cast iron EN-JS1025, locking body material - stainless steel AISI 304, seal - Fluorocarbon (Viton, FPM), with electric drive XCK220-1500 AC220V
Dimensions and dimensions DNOVA VSR1-13V-PED-F two-way stop and control valves, body material - cast iron EN-JS1025, body material - stainless steel AISI 304, sealing - fluorocarbon (Viton, FPM), with electric actuator XCK220-1500 AC220V:
| Parameter | DN, mm | ||||||
| 15 | 20 | 25 | 32 | 40 | 50 | 65 | |
| L, mm | 130 | 150 | 160 | 180 | 200 | 230 | 290 |
| A, mm | 82 | 92 | 96 | 110 | 120 | 135 | 165 |
| B, mm | 64 | 62 | 64 | 45 | 50 | 100 | 115 |
| H, mm | 139 | 137 | 139 | 120 | 125 | 175 | 190 |
| D, mm | 95 | 105 | 115 | 140 | 150 | 165 | 185 |
| ØPCD, mm | 65 | 75 | 85 | 100 | 110 | 125 | 145 |
| N-ØPo | 4–14 | 4–14 | 4–14 | 4–19 | 4–19 | 4–19 | 4–19 |
| Weight (with drive), kg | 6.1 | 6.9 | 7.7 | 9.2 | 10.5 | 13.7 | 17.2 |
Sketch of dimensions and dimensions DNOVA VSR1-13V-PED-F two-way control valves, body material - cast iron EN-JS1025, locking body material - stainless steel AISI 304, seal - Fluorocarbon (Viton, FPM), with electric drive XCK220-1500 AC220V
| Parameter | DN, mm | |||
| 80 | 100 | 125 | 150 | |
| L, mm | 310 | 350 | 400 | 480 |
| A, mm | 175 | 186 | 220 | 262 |
| B, mm | 116 | 146 | 160 | 185 |
| H, mm | 191 | 221 | 235 | 260 |
| D, mm | 200 | 220 | 250 | 285 |
| ØPCD, mm | 160 | 180 | 210 | 240 |
| N-ØPo | 8–19 | 8–19 | 8–19 | 8–23 |
| Weight (with drive), kg | 27.5 | 33.7 | 40.6 | 56.6 |
Sketch of dimensions and dimensions DNOVA VSR1-13V-PED-F two-way control valves, body material - cast iron EN-JS1025, locking body material - stainless steel AISI 304, seal - Fluorocarbon (Viton, FPM), with electric drive XCK220-1500 AC220V
Parts and materials table DNOVA VSR1-13V-PED-F two-way stop and control valves, body material - cast iron EN-JS1025, body material - stainless steel AISI 304, sealing - fluorocarbon (Viton, FPM), with electric actuator XCK220-1500 AC220V:
| № | Part Name | Material |
| 1 | Housing | cast iron EN-JS1025 |
| 2 | Plunger | stainless steel AISI 304 |
| 3 | Plunger Seal | fluororubber |
| 4 | Valve Shaft | stainless steel AISI 304 |
| 5 | Valve Cover | steel Q235 |
| 6 | Gasket | graphite |
| 7 | Plug Assembly | stainless steel AISI 304 + VITON + PTFE |
- Body material
- cast iron QT450
- Maximum allowable temperature
- 150 °C
- Connection type
- Flanged
- Control type
- electric drive
- Operating environment
- Water, Ethylene Glycol, Neutral Media, and Propylene glycol
- Applications
- Water Supply, Heating Systems, and Ventilation
- Type of seal
- Fluorocarbon
- Locking material
- stainless steel AISI 304
- Supply voltage
- 220 V
- Type of control valve
- two-way
- Country of origin
- China
