How it works
Normally open solenoid valve
The number that matters
Nominal pressure
16bar
The pressure class of the valve body at 20 °C. Working limits depend on the medium and its temperature.
Construction
Parts and materials
Applications
Media and industries
- Water
- Air
- Liquid Medium
- Heating Systems
- Irrigation Systems
- Ventilation Systems

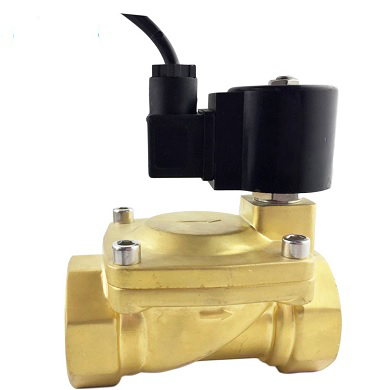

The DHDF21 electromagnetic fountain solenoid valve is designed specifically for controlling water jets in dynamic fountains. Its IP 68 protection rating allows for installation directly inside the water feature, eliminating the need to move it to a dry location. The electromagnetic solenoid valve is a functional and reliable pipeline valve. Its special electromagnetic coils have a service life of up to 1 million activations. The average response time for a membrane solenoid valve ranges from 30 to 500 milliseconds, depending on the diameter, pressure, and design. Electromagnetic valves can be used as remote control shutoff devices or for safety, such as shutoff, switching, or isolating solenoid valves. A normally open valve operates by maintaining the valve open while static and closing it when voltage is applied to the coil. To maintain the normally open valve in the closed position, voltage must be applied to the coil continuously.
Overall and installation dimensions of electromagnetic valves DNOVA DHDF21-NO 220V
| DN | Passage diameter | Hole diameter | A | B | H | Weight |
| 10 | 3/8" | 13 | 66 | 48 | 124 | 1.42 |
| 15 | 1/2" | 13 | 66 | 48 | 124 | 1.42 |
| 20 | 3/4" | 20 | 75 | 58 | 130 | 1.52 |
| 25 | 1" | 25 | 96 | 70 | 143 | 1.8 |
| 32 | 1 1/4" | 32 | 131 | 96 | 158 | 3.15 |
| 40 | 1 1/2" | 40 | 131 | 96 | 158 | 3.05 |
| 50 | 2" | 50 | 165 | 120 | 179 | 4.8 |
Sketch of the electromagnetic valve DNOVA DHDF21-NO 220V
- Body material
- Brass
- Maximum allowable temperature
- 80 °C
- Connection type
- Threaded BSP
- Operating environment
- Water, Air, and Liquid Medium
- Applications
- Heating Systems, Irrigation Systems, and Ventilation Systems
- Nominal pressure
- 16 bar
- Type of seal
- Viton
- Solenoid valve type
- Normally open
- Solenoid valve working principles
- Indirect acting
- Voltage
- 110/220V AC
Production. Usually 7–14 business days after you approve the quotation and pay. Made-to-specification items are confirmed in the quotation.
Freight. Not charged at checkout. A manager quotes air and sea freight to your port or airport, and nothing ships until you approve the price and the freight.
To North America. From approval and payment to the destination port or airport: air 14–24 days, sea 32–60 days. Estimates, not guarantees.
Terms. EXW Ningbo or FOB Ningbo Port; CIF on request. The agreed term is written on the Proforma Invoice.
