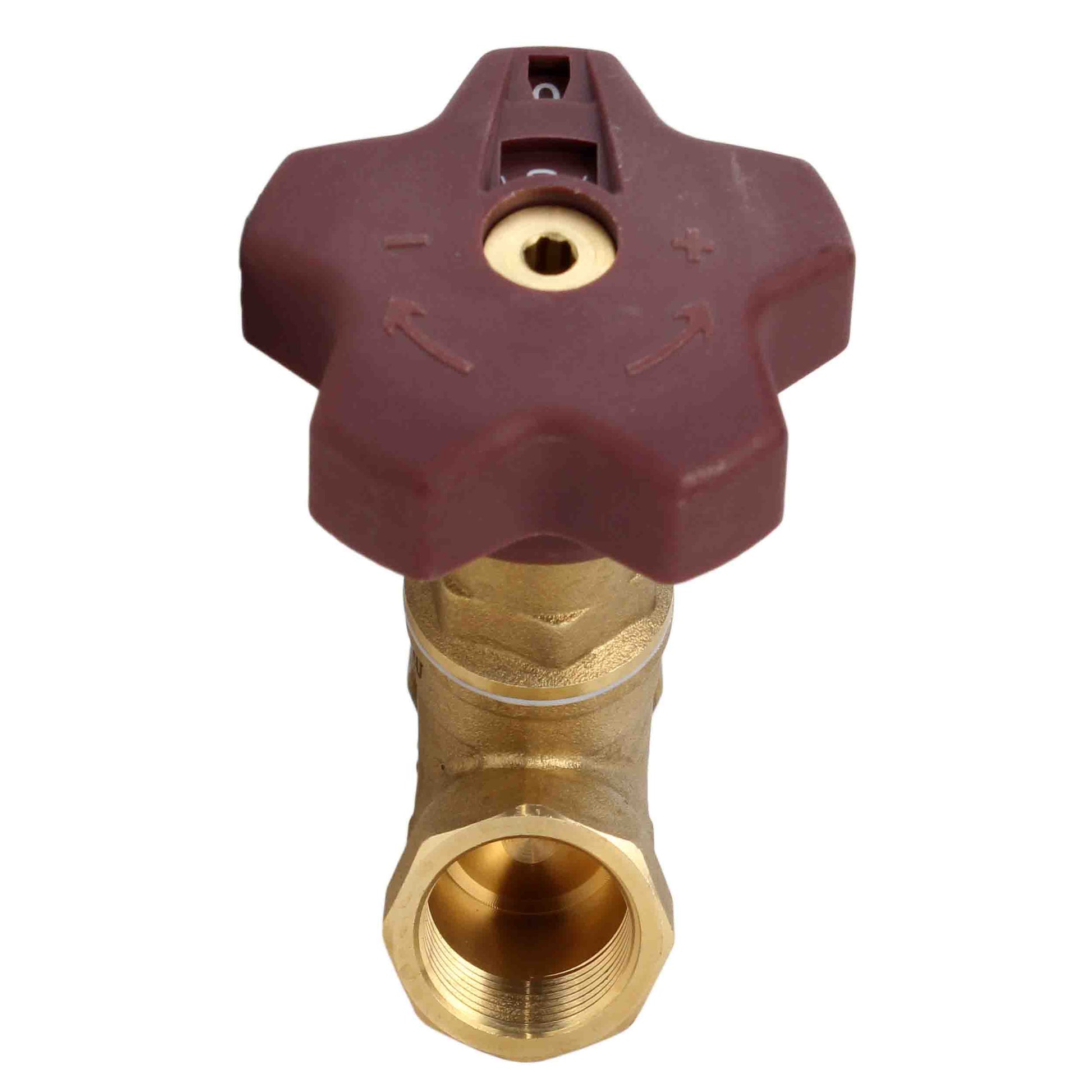

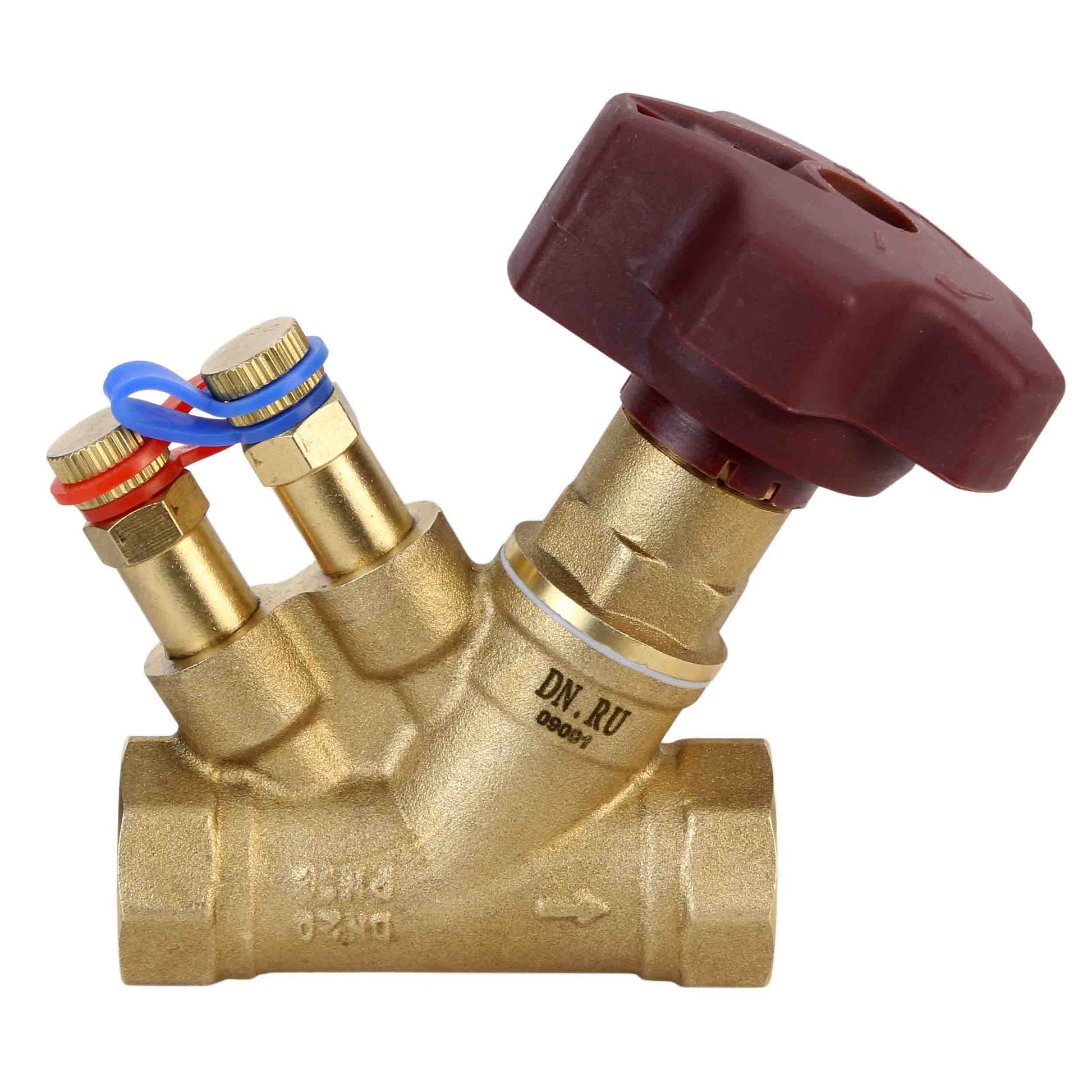

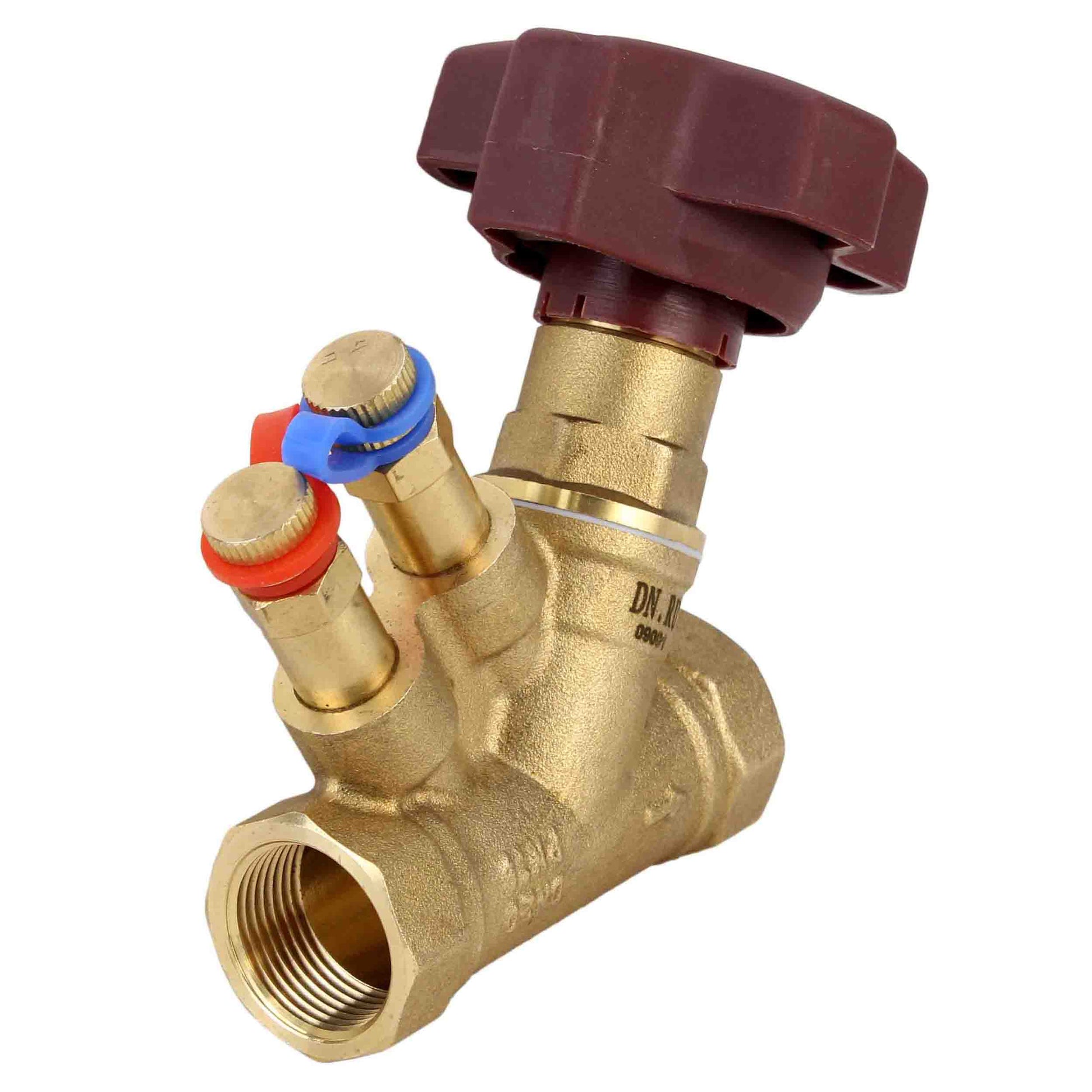

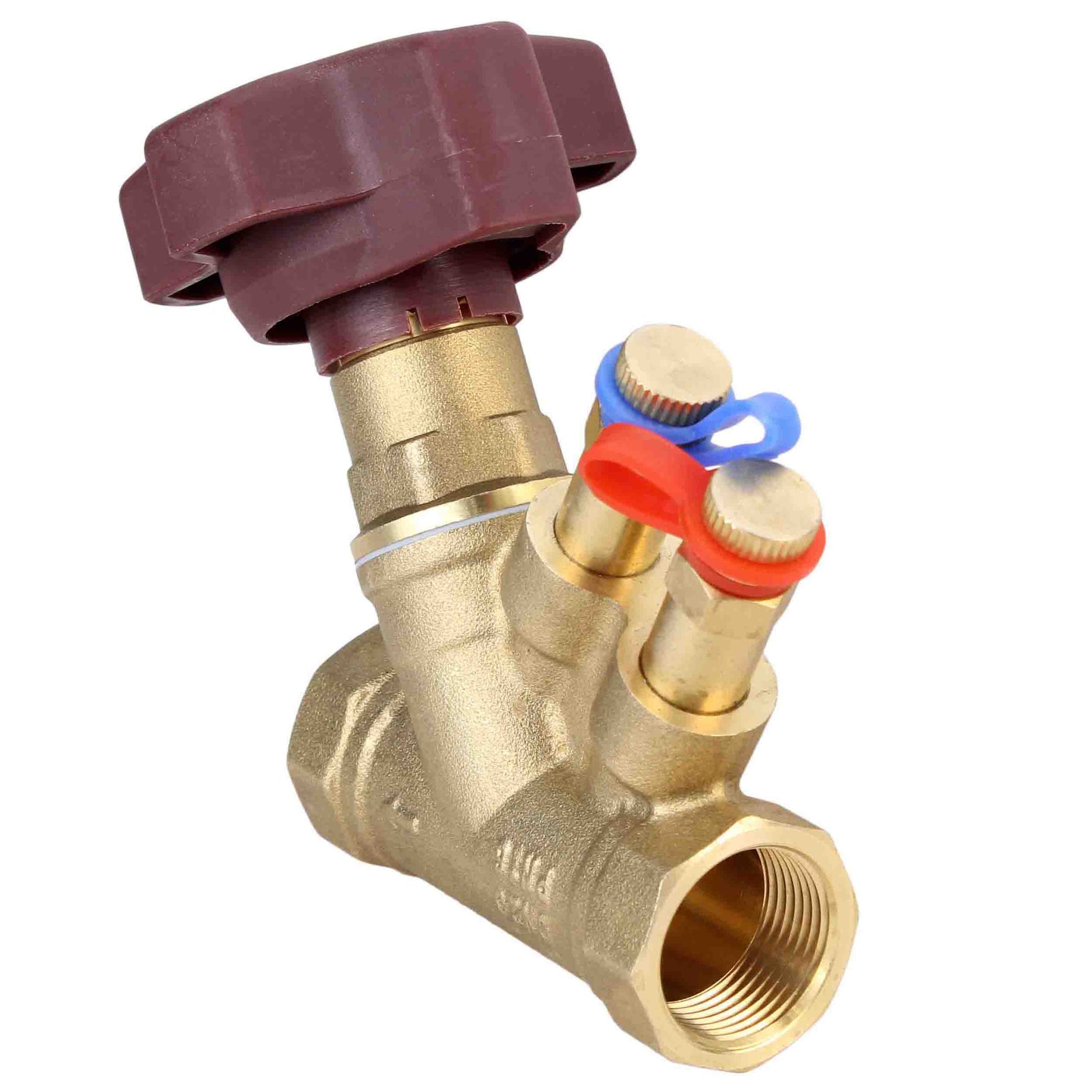

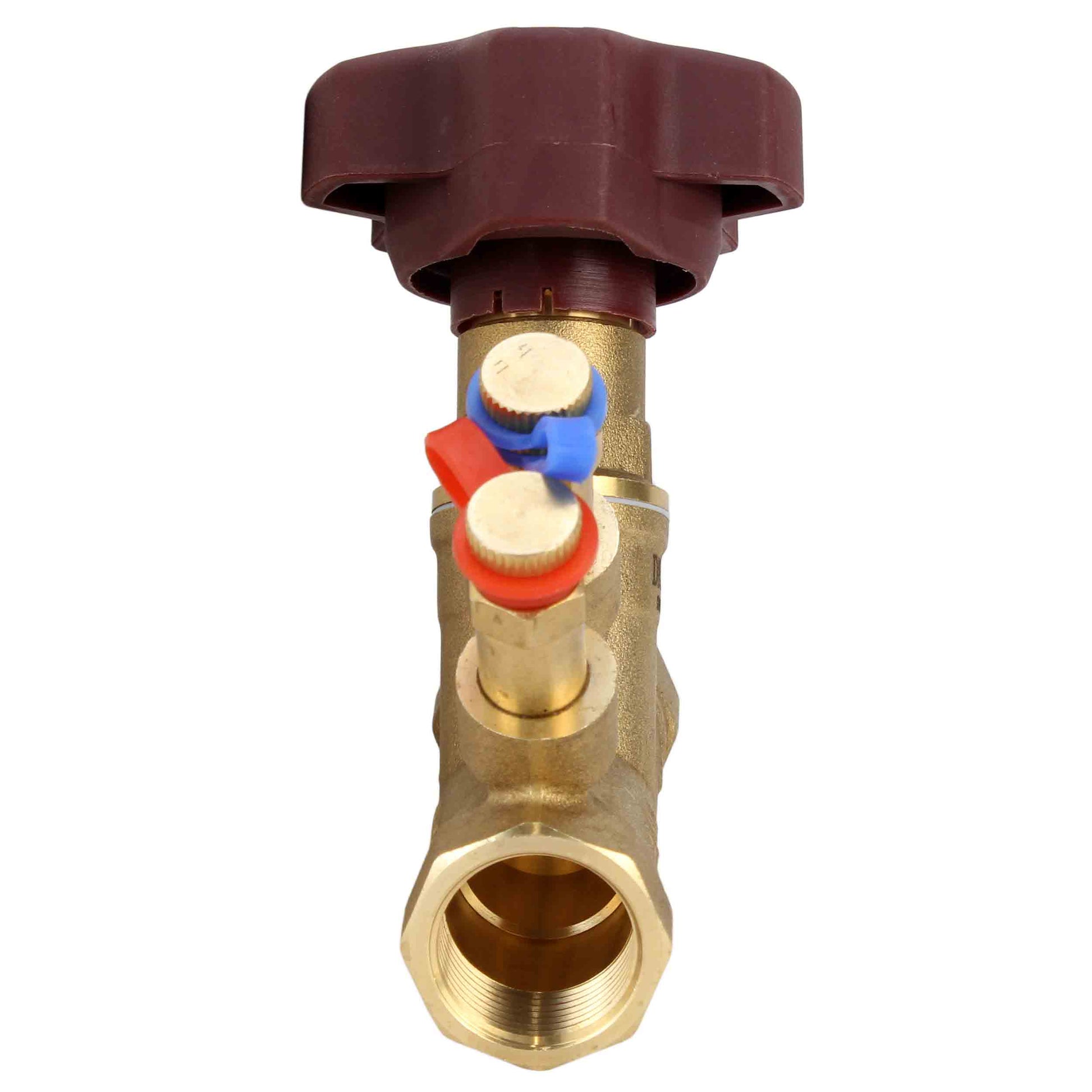

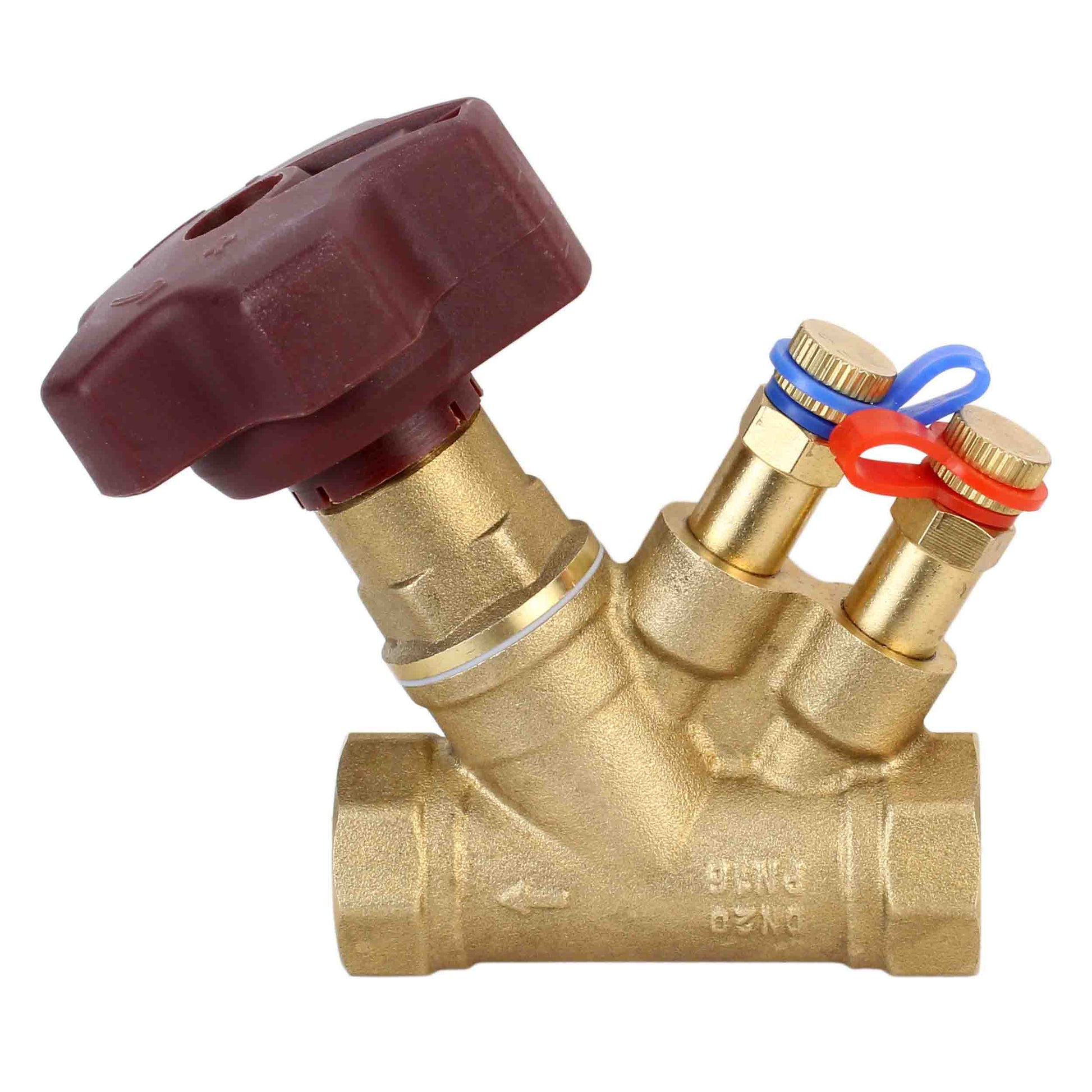

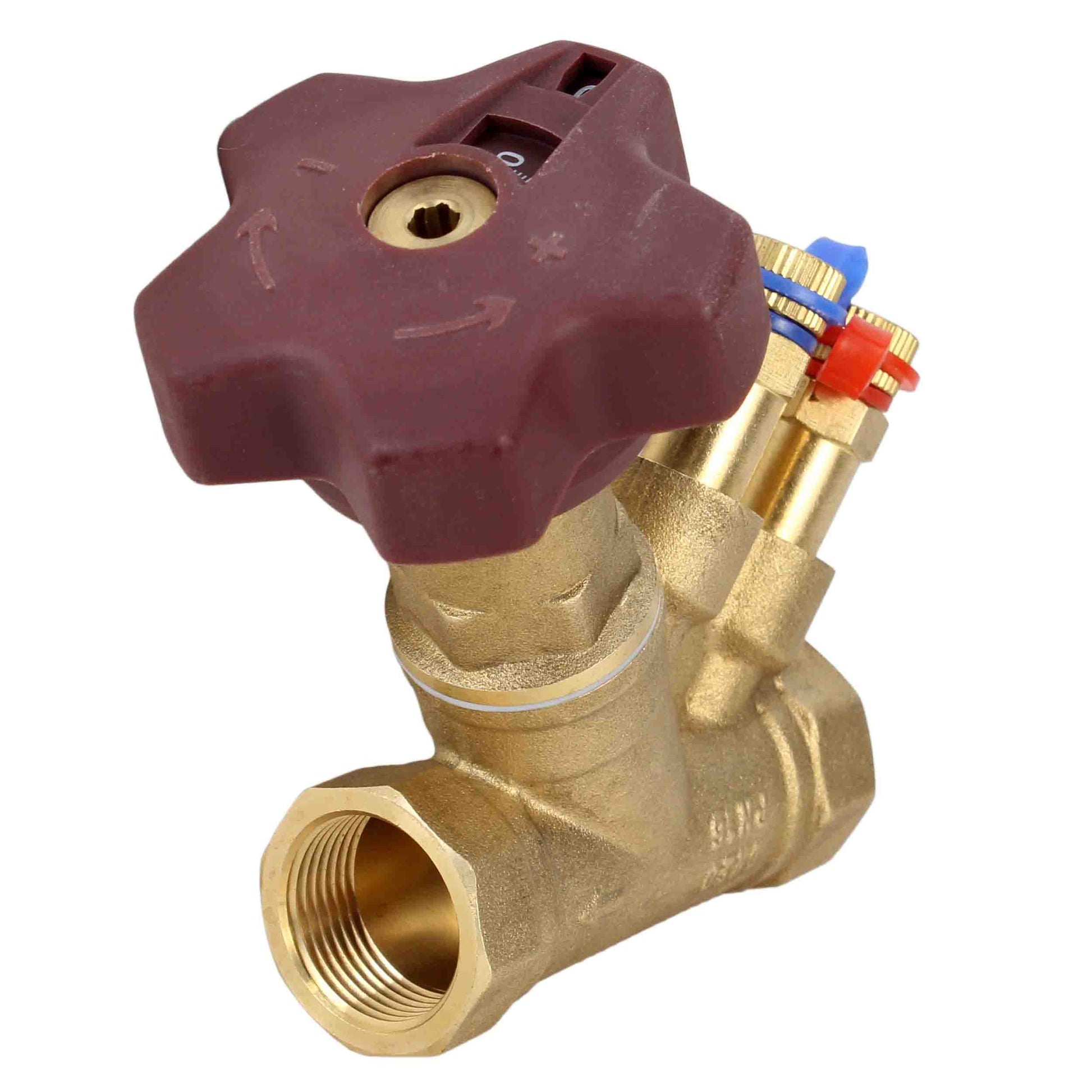

Static balancing valve DNOVA VB0000P-T 25 bar brass, Threaded NPT/BSP connection with nipples

From $13.70 USD
From $13.70 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

The balancing valve is used for hydraulic balancing, regulating and limiting the flow rate in heating, cooling and air-conditioning systems with water or aqueous ethylene glycol solution with a concentration not exceeding 50%. And can also fulfil the function of a shut-off valve.

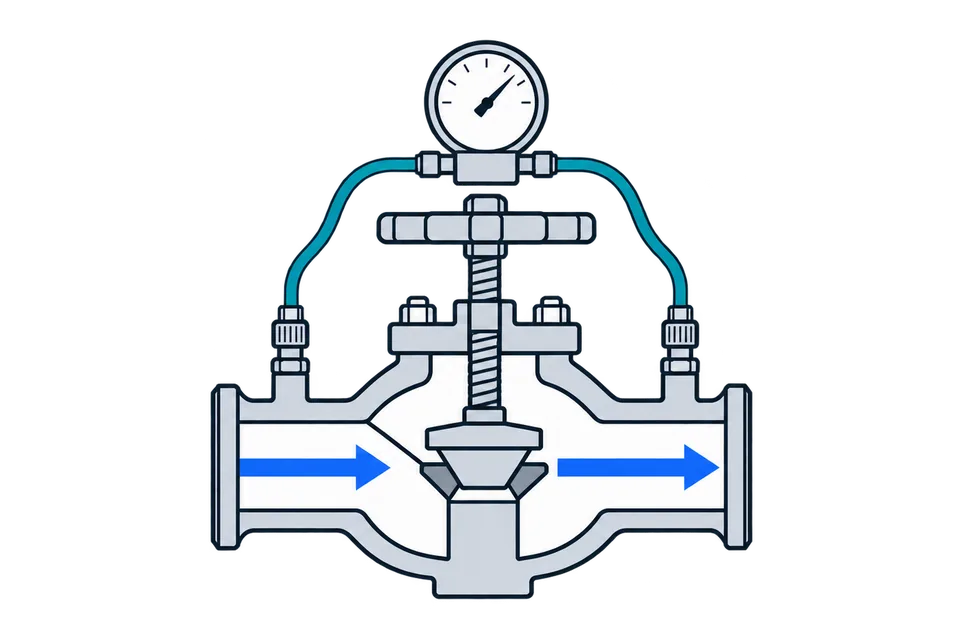

The valve design is a valve-type device. The differential pressure is set according to the setting chart or table by moving the stem with the help of a handle. Nipples for connection of a differential pressure gauge allow measuring the flow rate of the heating medium with an accuracy of ±5%.

Dimensions of balancing valves DNOVA VB0000P-T brass, threaded, with nipples

Size L L1 H B Weigh
DN15 87 143 112 12 0.49
DN20 96 142 108 15 0.58
DN25 100 153 125 20 0.84
DN32 114 163 129 25 1
DN40 124 177 142 32 1.2
DN50 145 190 154 40 1.9

Sketch of balancing valves DNOVA VB0000P-T brass, threaded, with nipples

Part materials of balancing valves DNOVA VB0000P-T brass, Threaded NPT/BSP connection with nipples

№ Part name Material
1 Case DZR brass
2 Stem DZR brass
3 Spool gasket PTFE
4 Gland rings EPDM
5 nipple DZR brass
6 Handle ABS-plastic

Material sketch of balancing valves DNOVA VB0000P-T brass, Threaded NPT/BSP connection with nipples

Specifications

Country of origin
China
Body material
Brass
Connection type
Threaded NPT/BSP
Operating environment
Water, Air, Oil Products
Nominal pressure
362 PSI (25bar)
Type of seal
PTFE
Locking material
Brass
Balancing valve type
Static

Delivery

The cost and delivery time for your order depend on several factors, including the specific product you are ordering, the quantity, and the country of destination. Each product may have different manufacturing lead times and shipping requirements, which can affect the overall delivery schedule.

To get the most accurate and up-to-date information on delivery costs and timelines, we recommend contacting our sales managers. They will be happy to provide you with a detailed quote and estimated delivery time based on your specific requirements.

Please feel free to reach out to us for any questions or further assistance regarding your order.

Variant Variant total Quantity Price Variant total
DN15 / 25 barD080-01175
DN15 / 25 barD080-01175
$13.70/ea		 $0.00
$13.70/ea $0.00
DN20 / 25 barD080-01176
DN20 / 25 barD080-01176
$15.72/ea		 $0.00
$15.72/ea $0.00
DN25 / 25 barD080-01177
DN25 / 25 barD080-01177
$21.68/ea		 $0.00
$21.68/ea $0.00
DN50 / 25 barD080-01180
DN50 / 25 barD080-01180
$47.17/ea		 $0.00
$47.17/ea $0.00
DN40 / 25 barD080-01179
DN40 / 25 barD080-01179
$32.51/ea		 $0.00
$32.51/ea $0.00
DN32 / 25 barD080-01178
DN32 / 25 barD080-01178
$25.92/ea		 $0.00
$25.92/ea $0.00
