Description

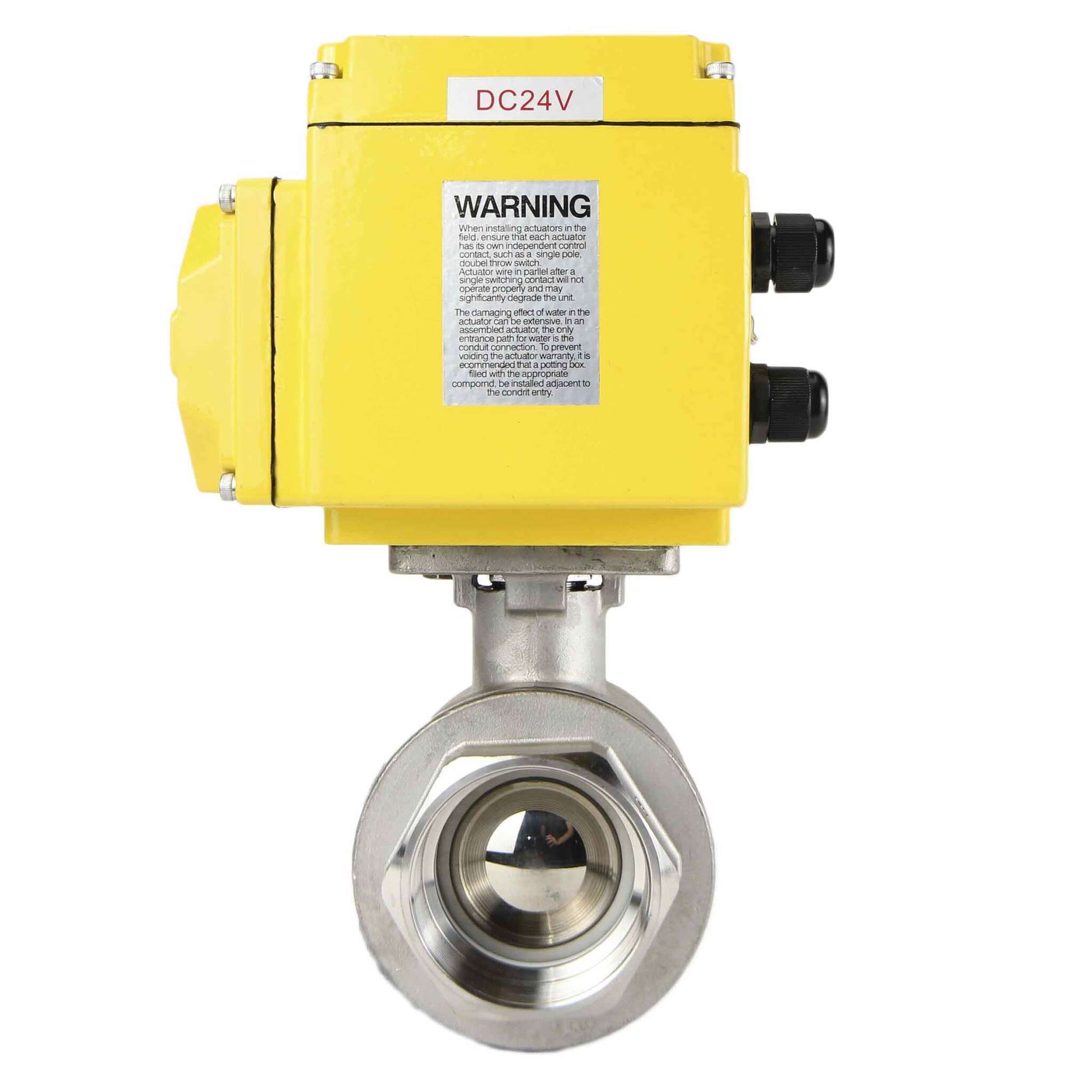

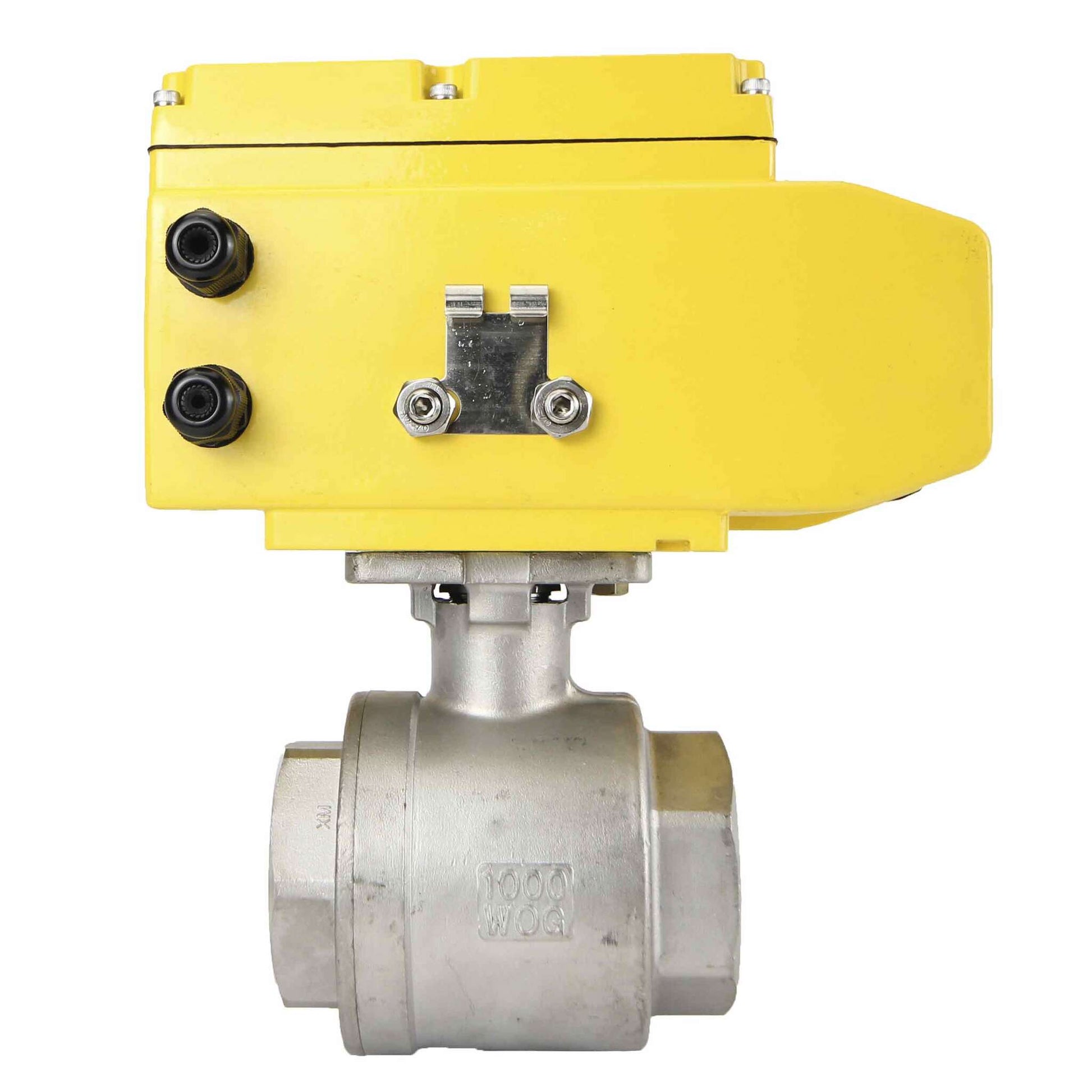

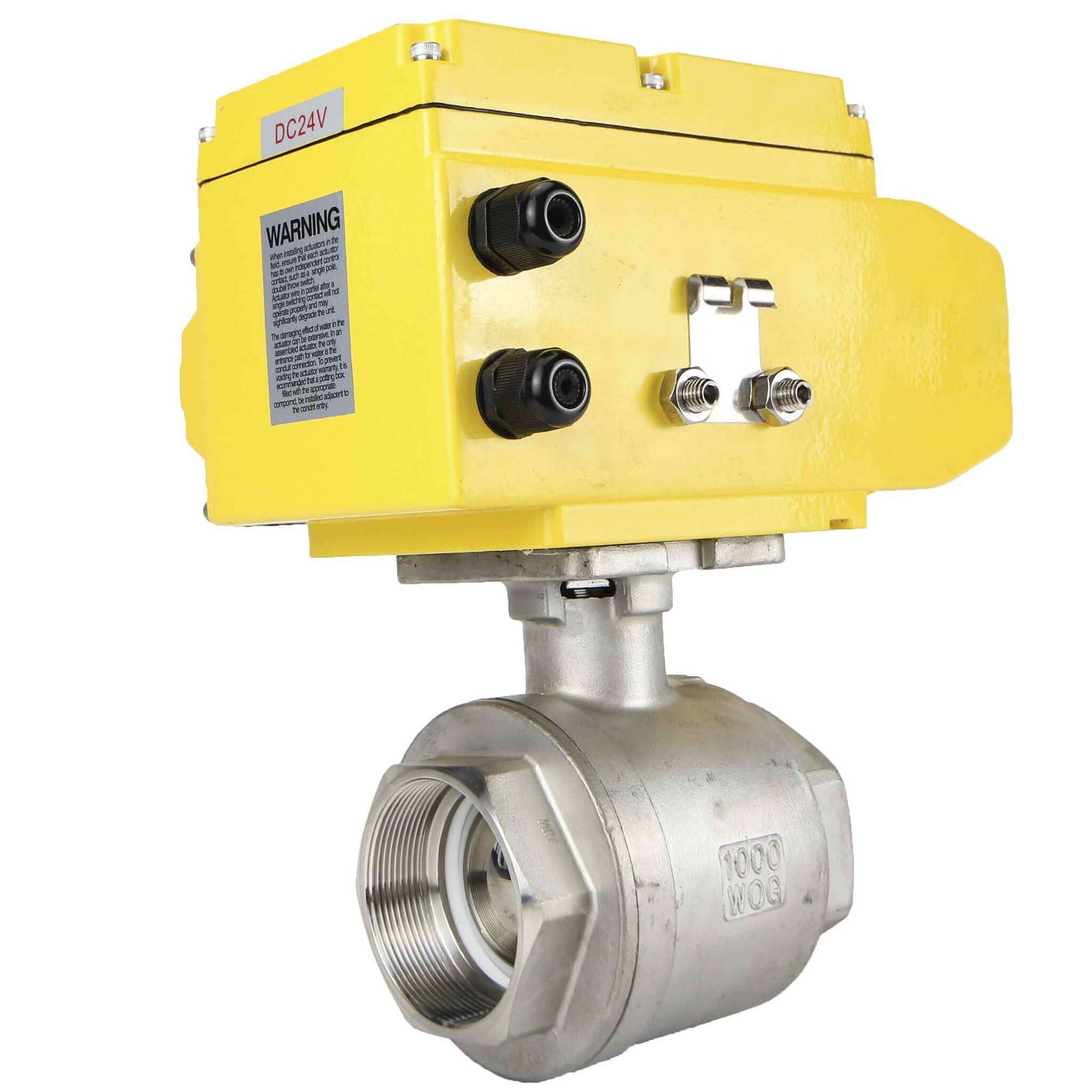

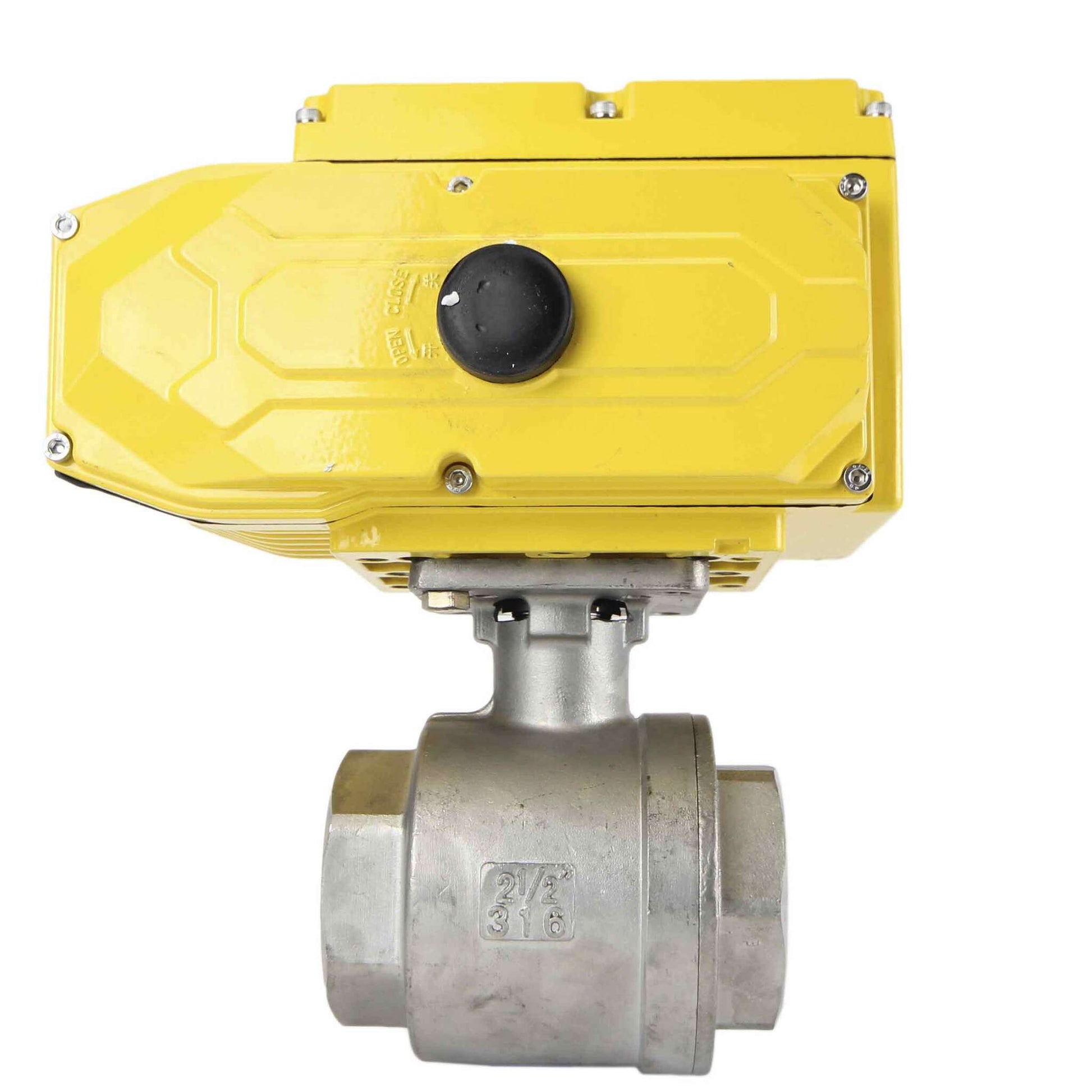

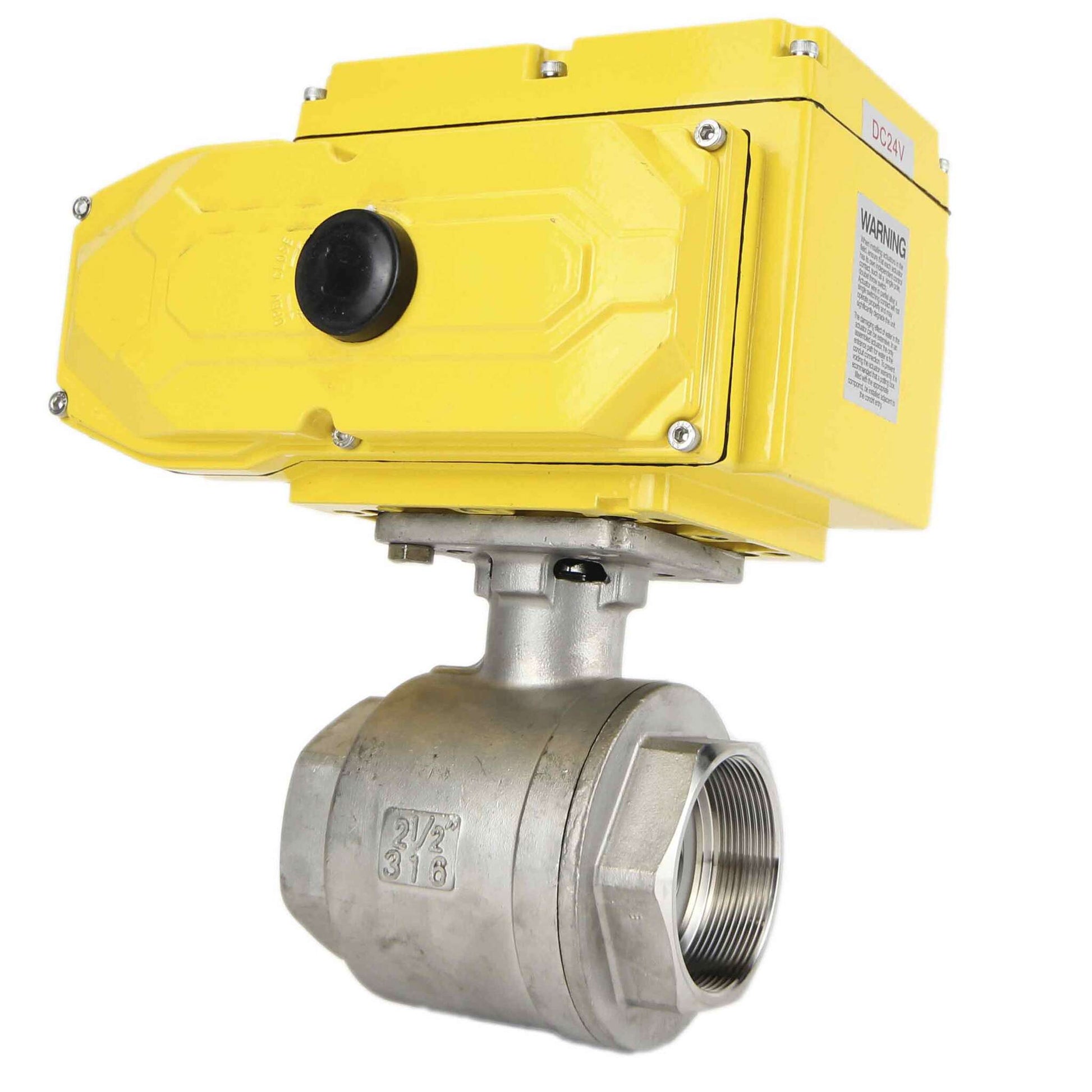

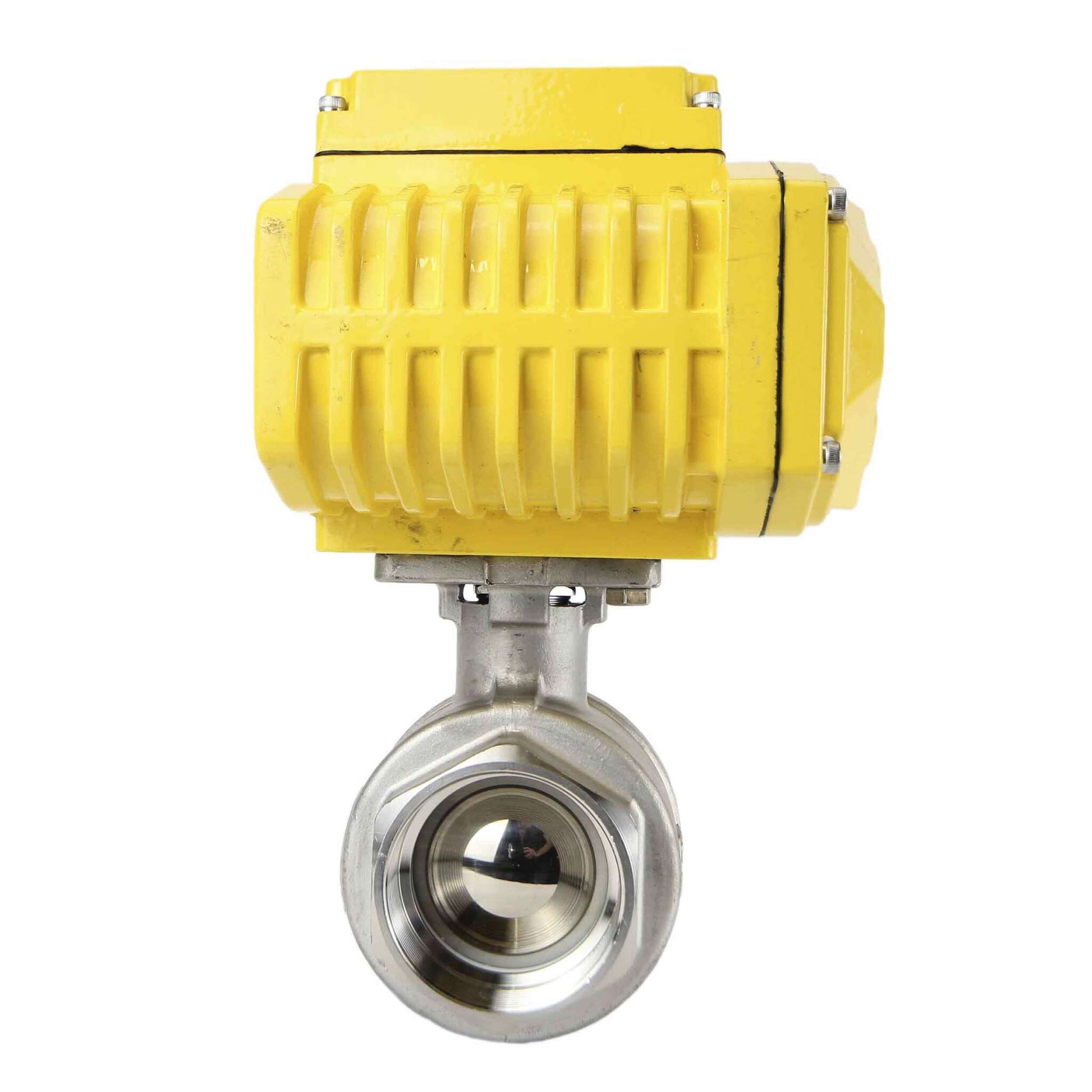

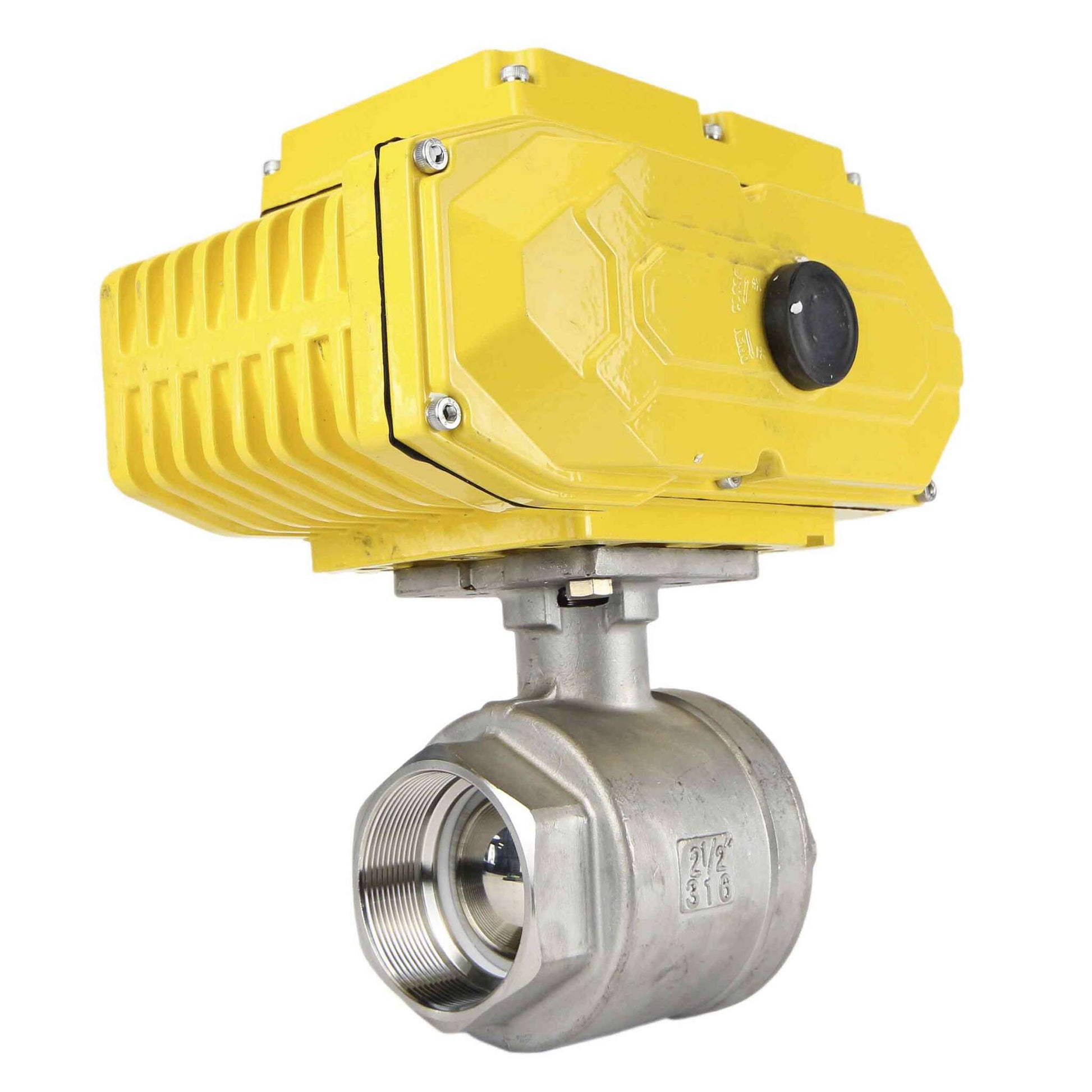

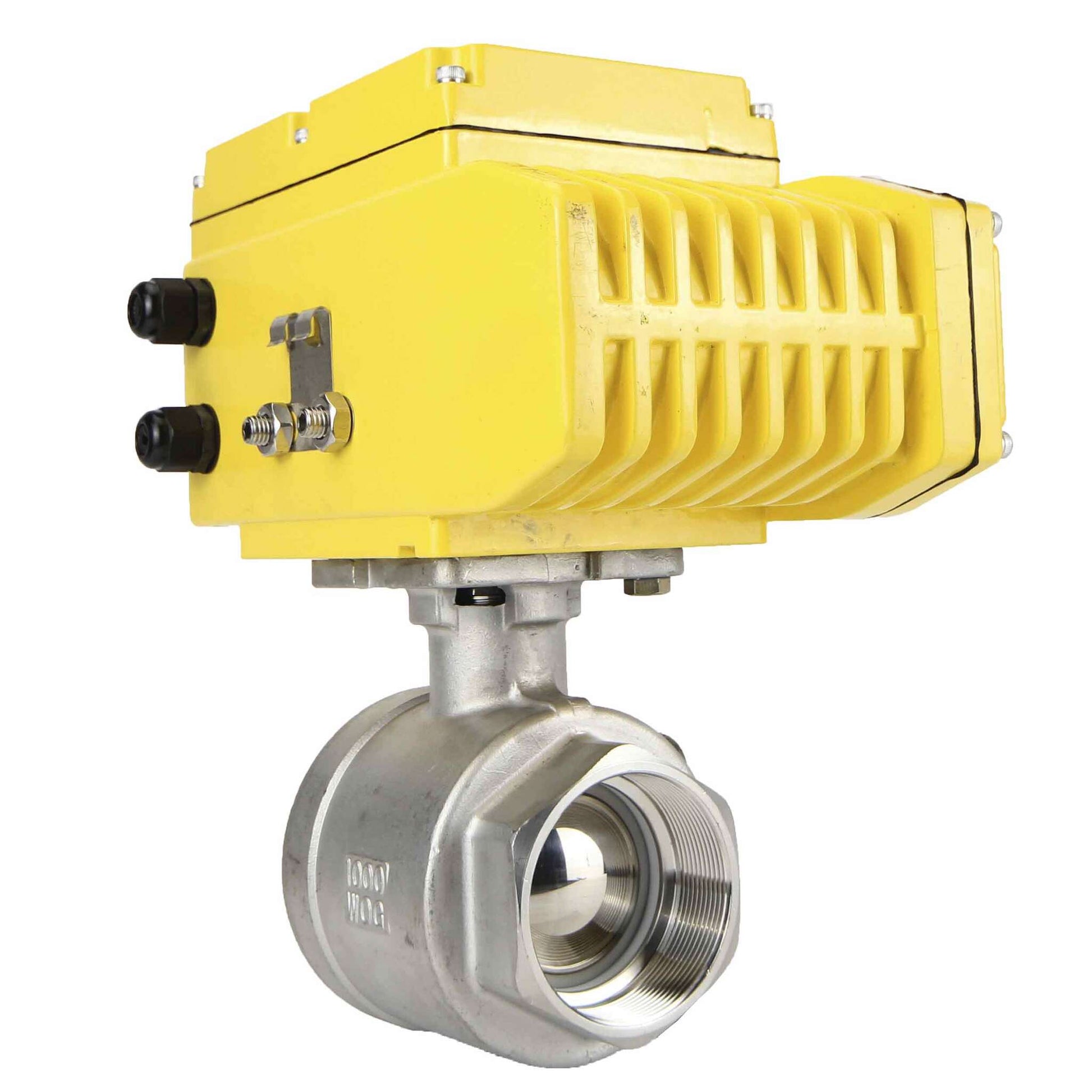

A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.

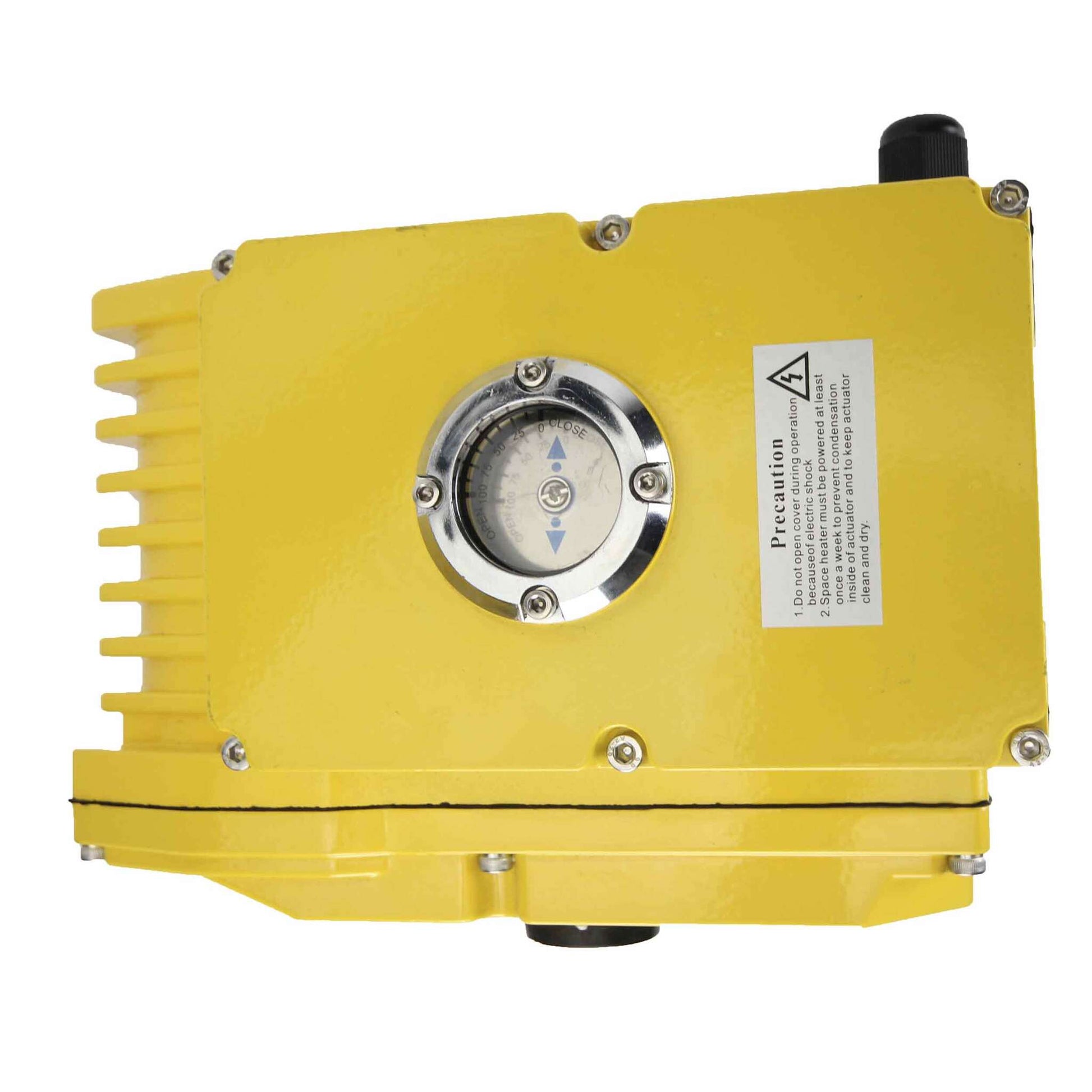

Main technical characteristics of electric drives DNOVA 003 blue 24V
| Parameter | Meaning |
| Electric drive type | quarter turn |
| Engine type | asynchronous |
| Rotation angle, ° | 90 (±2) |
| Full rotation time, sec | 25 |
| Torque, Nm | 30 |
| Connection size (ISO5211) | F03/F05 |
| Nominal consumption current, A | 0.10 |
| Waterproof cable entry | G1/2 |
| Power, W | 25 |
| Limit switches | correspond to the states of full opening and closing of the drive |
| Availability of manual backup | hexagon |
| Visual indicator | scale |
| Automatic shutdown in extreme positions | Yes |
| Body material | aluminum alloy |
| Housing protection class | IP65 |
| Power cord length, mm | 200 |
| Ambient temperature, °C | from -30 to +60 |
| Weight, kg | 1.2 |
Wiring diagram for electric drive DNOVA 003 blue 24V
Technical characteristics of electric drives DNOVA-003 24V
| Parameter | Meaning |
| Electric drive type | quarter turn |
| Engine type | asynchronous |
| Rotation angle, ° | 90 |
| Full rotation time, sec | 20 |
| Torque, Nm | 30 |
| Connection size (ISO5211) | F03/F05 |
| Nominal consumption current, A | 0.5 |
| Power, W | 9 |
| Availability of manual backup | hexagon |
| Housing protection class | IP67 |
| Weight, kg | 2.1 |
