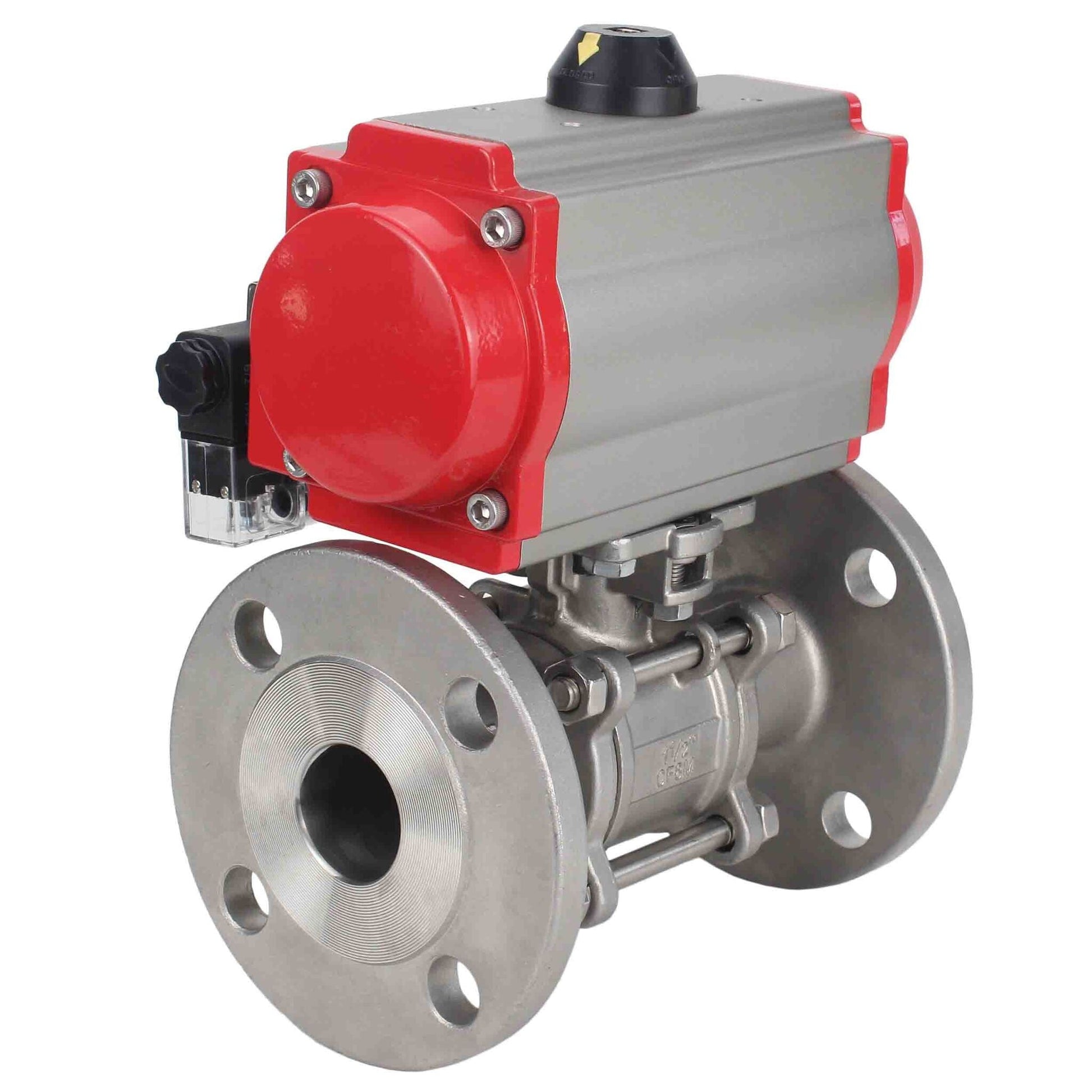

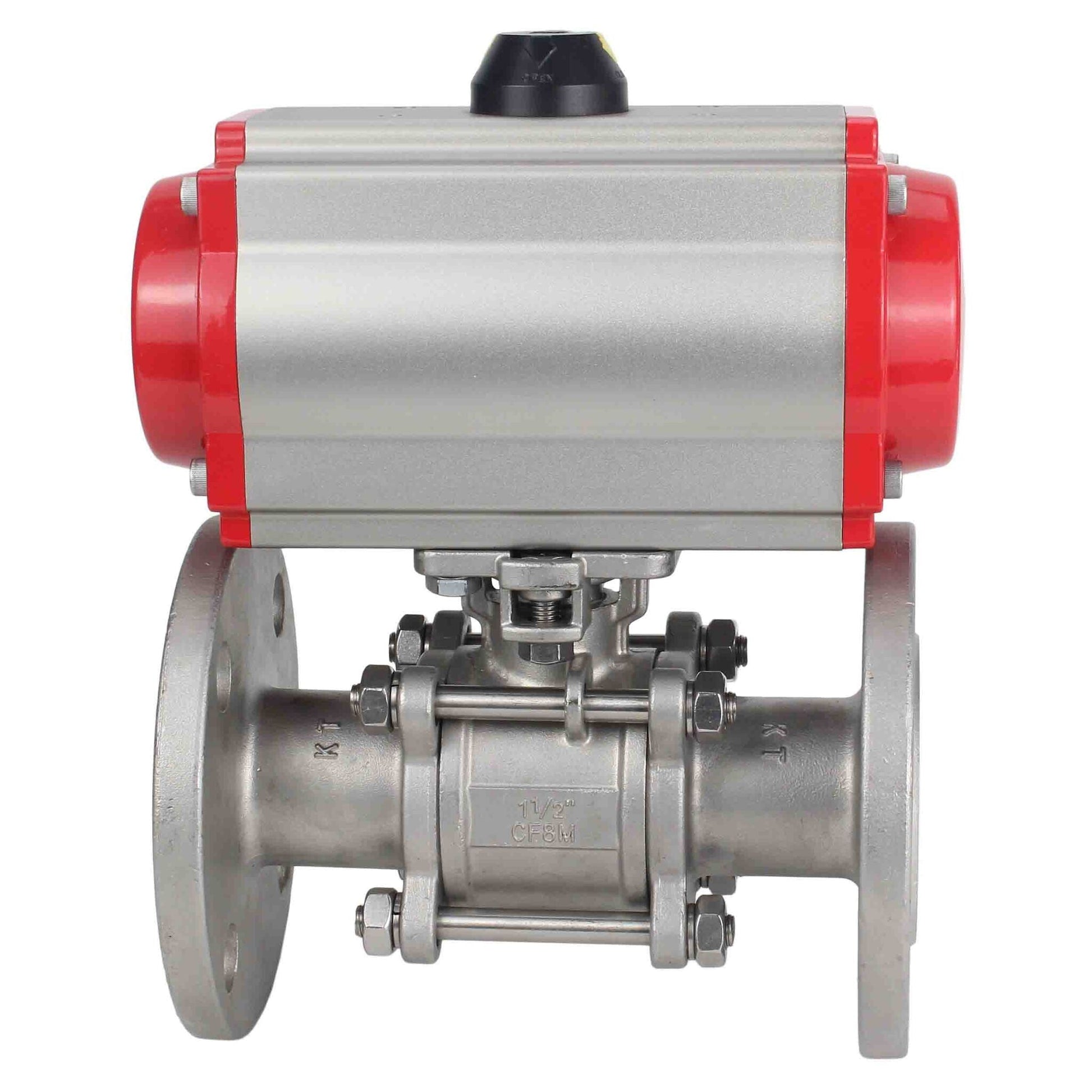

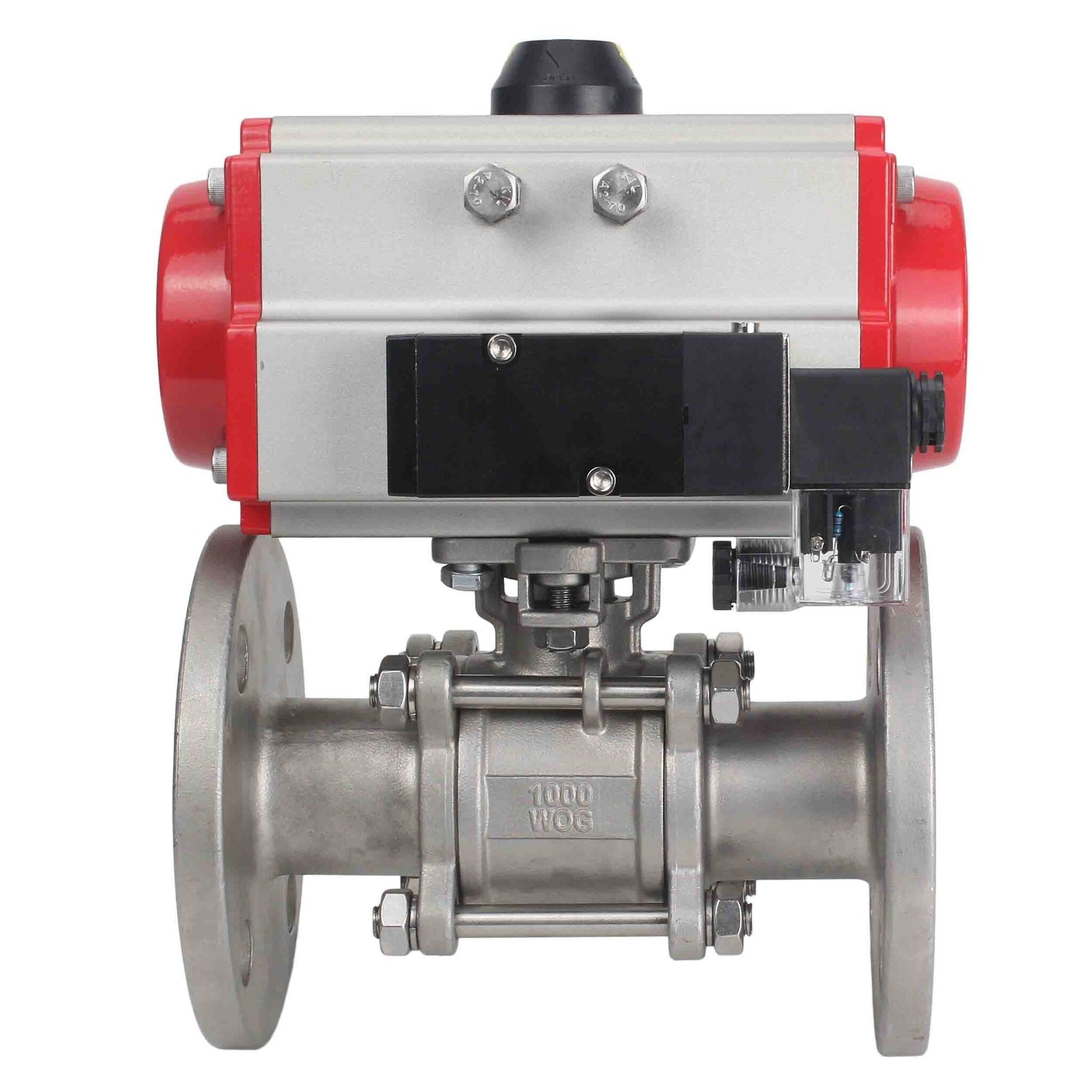

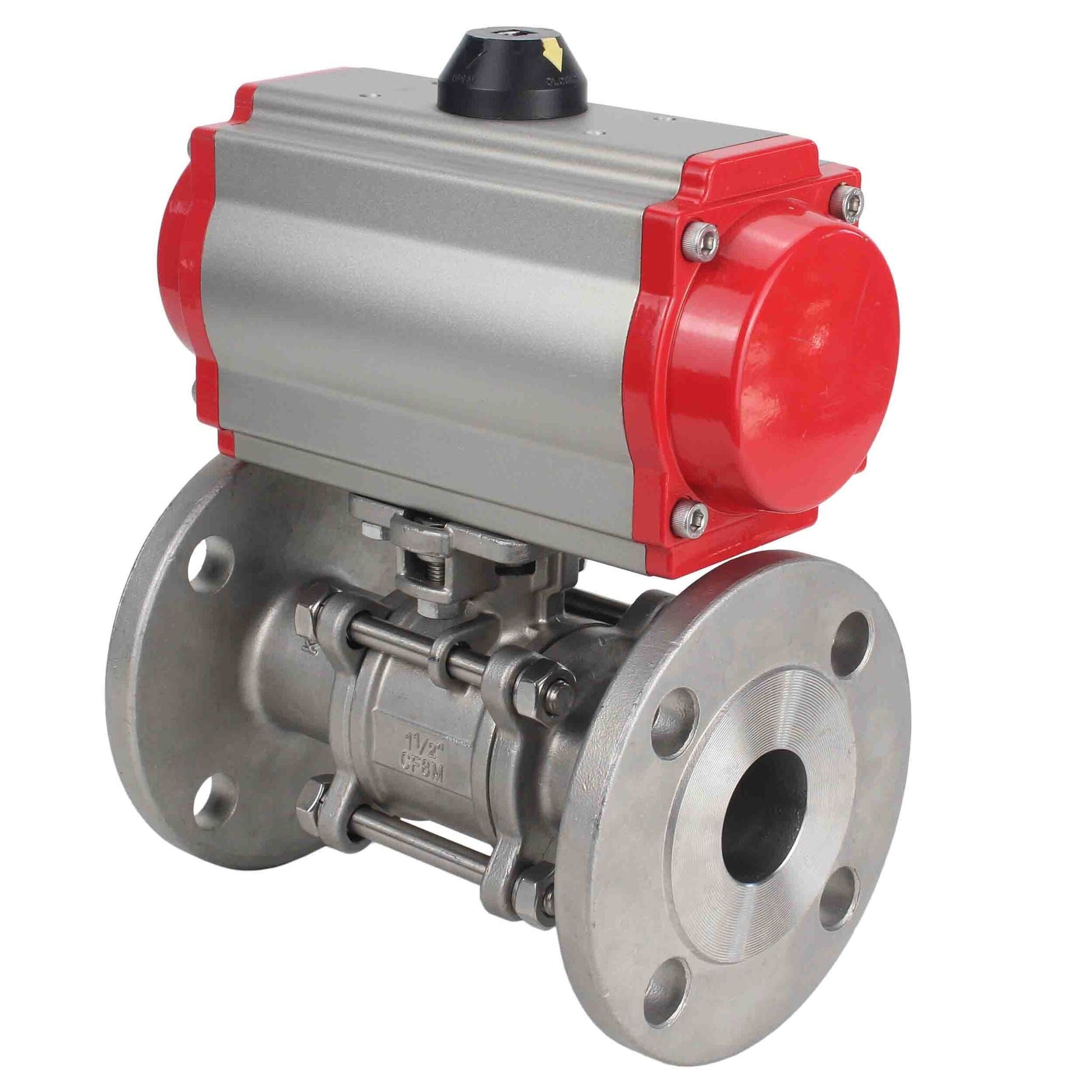

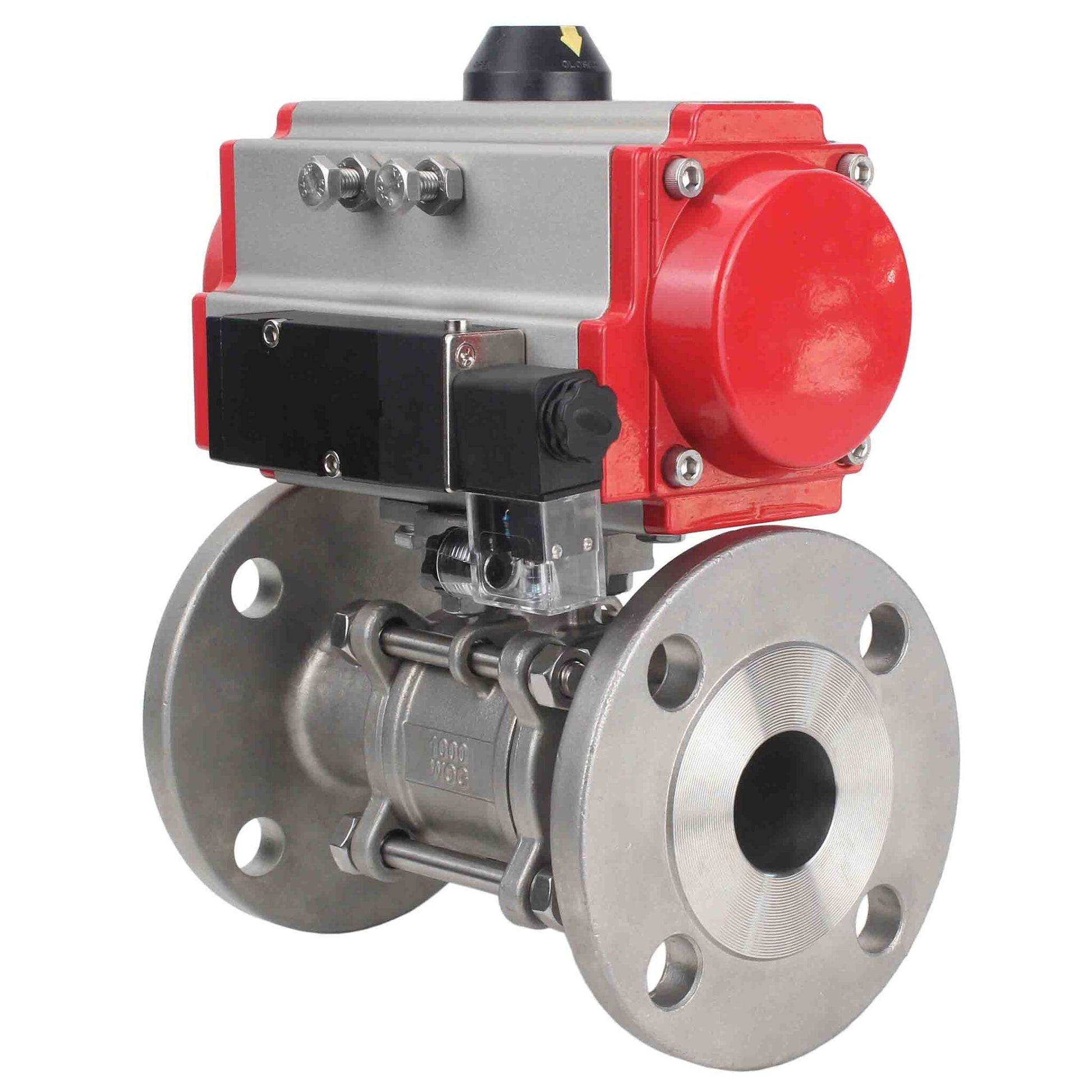

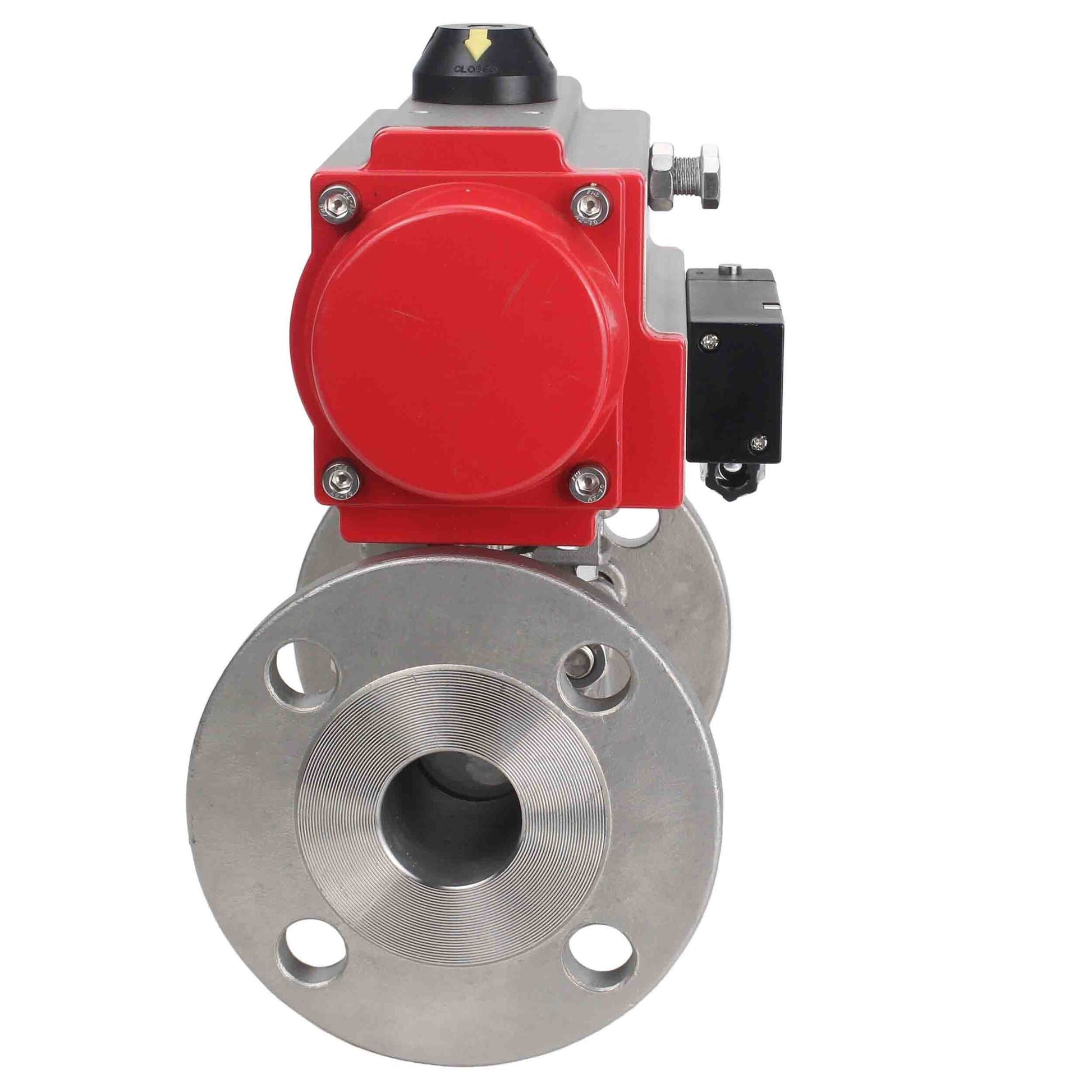

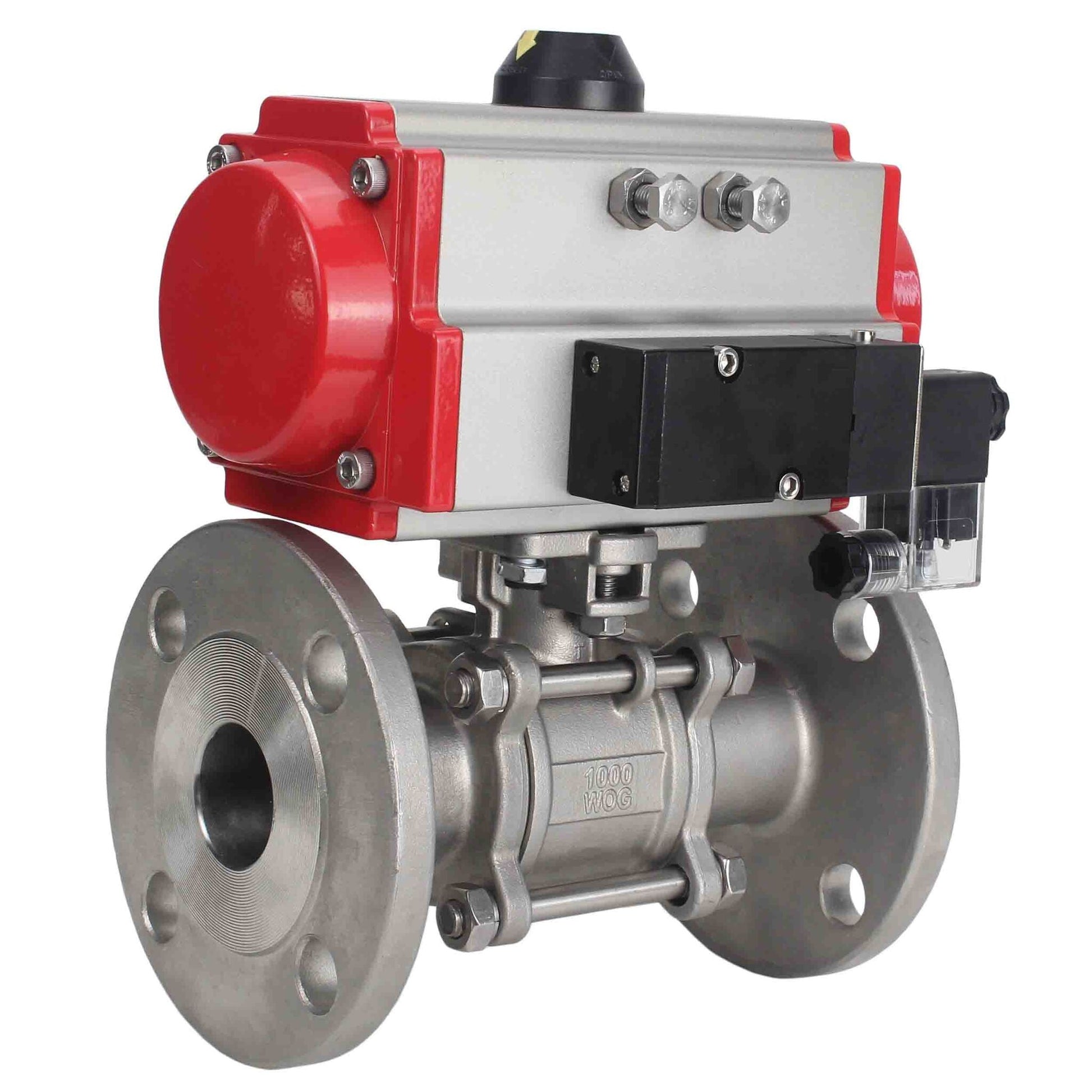

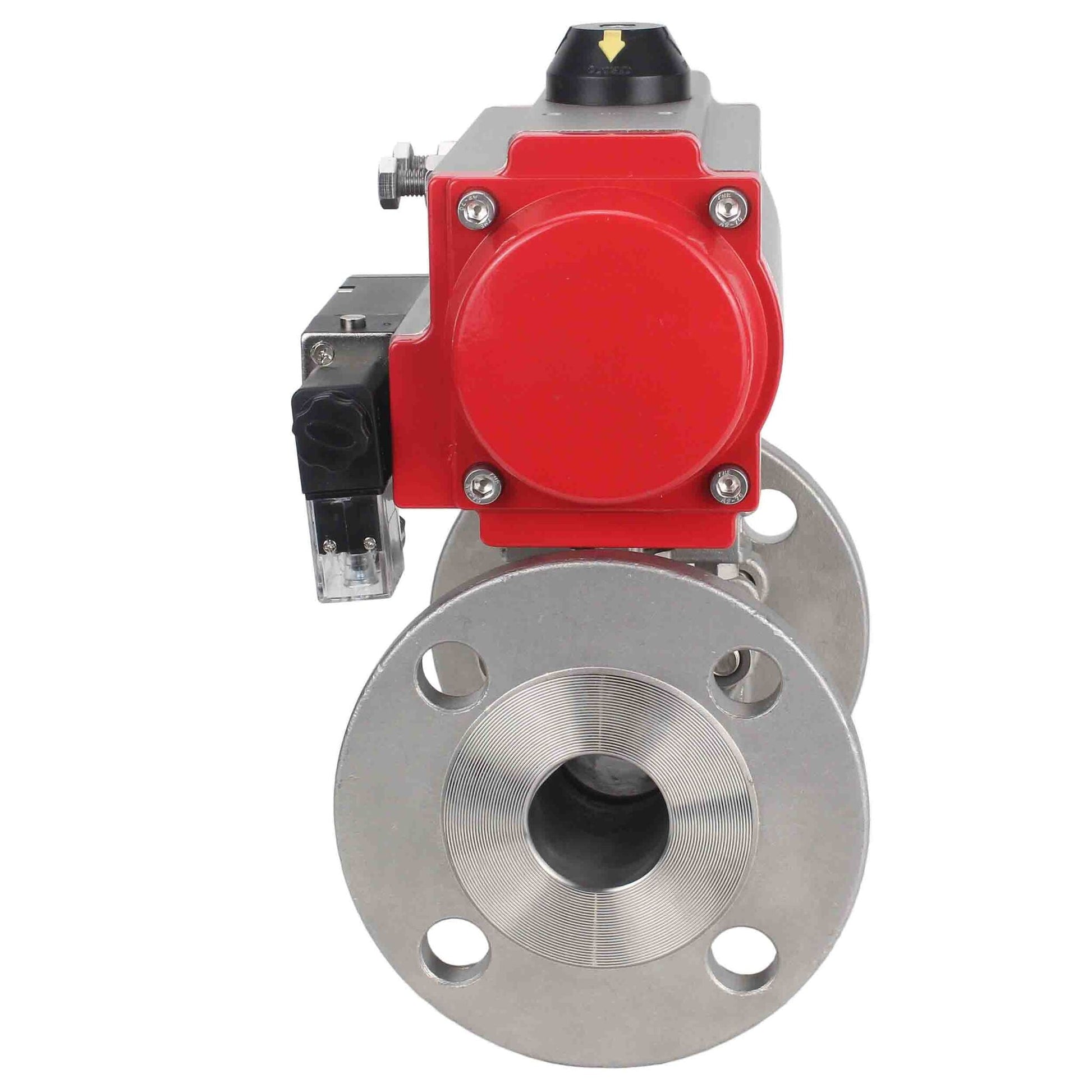

Spring-return rotary actuator
Two-way ball valve
5/2 single-solenoid pilot
The number that matters
Max. medium temperature
180°C
The highest medium temperature this valve is rated for.
Construction
Parts and materials
Applications
Media and industries
- Water
- Air
- Oil Products
- Water Supply
- Heat Supply
A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.
Technical data for ball valve DNOVA BV3232P(3pc)-FP-F-ISO-H PA-SA 4M310-08 24V:
| Nominal diameter, mm | 15-100 |
| Working pressure PN, bar | 40 |
| Temperature of working environment t, °C | from -20 to +180 |
| Working environment | Water, steam, petroleum products and other liquid or gaseous media that are neutral to the materials of the tap |
| Connection to the pipeline | flanged |
| Type of flow section | full bore |
| Control type | Pneumatic actuator with return springs DNOVA-SA |
Detail of ball valve DNOVA BV3232P(3pc)-FP-F-ISO-H PA-SA 4M310-08 24V
Material Data Sheet Ball Valve DNOVA BV3232P(3pc)-FP-F-F-ISO-H PA-SA 4M310-08 24V:
| № | Name | Material | Quantity |
| 1 | Frame | SS304/SS316 | 1 |
| 2 | Ball valve | SS304/SS316 | 1 |
| 3 | Bolt | SS201/SS304 | 4-6 |
| 4 | screw | SS201/SS304 | 6-12 |
| 5 | Sealing | PTFE | 1 |
| 6 | Stock | SS304/SS316 | 1 |
| 7 | Seal | SS201/SS304 | 1 |
| 8 | Lid | WCB/CF8/CF8M | 2 |
| 9 | Saddle rings | PTFE | 2 |
| 10 | Thrust washer | PTFE | 1 |
| 11 | screw | SS201/SS304 | 1 |
| 12 | Lever | SS201/SS304 | 1 |
| 13 | Handle shell | PVC | 1 |
| 14 | Stopper | SS201/SS304 | 1 |
Overall and installation dimensions of ball valve DNOVA BV3232P(3pc)-FP-F-ISO-H PA-SA 4M310-08 24V:
| DN | d | D | D1 | D2 | W | f | L±1.5 | T | H | Z-øM | Weight |
| mm | pcs-mm | kg | |||||||||
| 15 | 15 | 95 | 65 | 46 | 17 | 2 | 130 | 131 | 71 | 4-ø14 | 2,06 |
| 20 | 20 | 105 | 75 | 58 | 18 | 2 | 150 | 131 | 74 | 4-ø14 | 2,87 |
| 25 | 25 | 115 | 85 | 68 | 18 | 2 | 160 | 167 | 97 | 4-ø14 | 3,625 |
| 32 | 32 | 140 | 100 | 78 | 19 | 2 | 180 | 167 | 110 | 4-ø18 | 5,27 |
| 40 | 40 | 150 | 110 | 88 | 19 | 2 | 200 | 193 | 117 | 4-ø18 | 6,465 |
| 50 | 50 | 165 | 125 | 102 | 19 | 3 | 230 | 193 | 125,5 | 4-ø18 | 8,285 |
| 65 | 65 | 185 | 145 | 122 | 22 | 3 | 290 | 242 | 135,5 | 8-ø18 | 13 |
| 80 | 80 | 200 | 160 | 140 | 24 | 3 | 310 | 272 | 157 | 8-ø18 | 17,255 |
| 100 | 100 | 234 | 190 | 161 | 24 | 3 | 350 | 295 | 181 | 8-ø22 | 25,705 |
Sketch of ball valve DNOVA BV3232P(3pc)-FP-F-ISO-H PA-SA 4M310-08 24V
Pneumatic actuator DNOVA
Parameters of pneumatic actuator DNOVA:
- Pneumatic actuator type - double acting
- Working pressure of pneumatic drive - 6.0 bar
- Drive rotation angle - 90°
- Drive adjustment range - 5°
- Country of origin - China
- Operating environment - indoor and outdoor
- Position indicator - open/closed
- Coating - All internal and external parts have an anti-corrosion coating
Pneumatic distributor 4M310
Main parameters of pneumatic valves
| Design | spool type |
| Nominal pressure PN, MPa (kg/cm2) | 1,2 (12) |
| Working pressure, bar | 1.5…8 |
| Working environment | filtered compressed air |
| Ambient temperature t, °C | from +5 to +50 |
| Response frequency | 5 cycles/s |
| Manual duplication | There is |
| Degree of protection | IP 65 |
| Fastening | through through holes in the body |
| Body material | anodized aluminum |
| Response time | 0.05 sec. |
Passports and certificates
Data sheet for DNOVA DA/SA double-acting pneumatic actuator with return springs
- Port opening
- Full Port
- Configuration
- Two-way
- Body material
- Stainless steel AISI 316
- Material ball
- Stainless steel AISI 316
- Material ball seal
- PTFE
- Maximum allowable temperature
- 180 °C
- Connection type
- Flanged
- Control type
- Pneumatic actuator
- Operating environment
- Water, Air, and Oil Products
- Applications
- Water Supply and Heat Supply
- Voltage
- 24 V
- Valve feedback
- No
- Explosion-proof
- No
- Torque
- 272 Nm
- Electropneumatic positioner
- No
- Pneumatic actuator
- Yes
- Country of origin
- China
