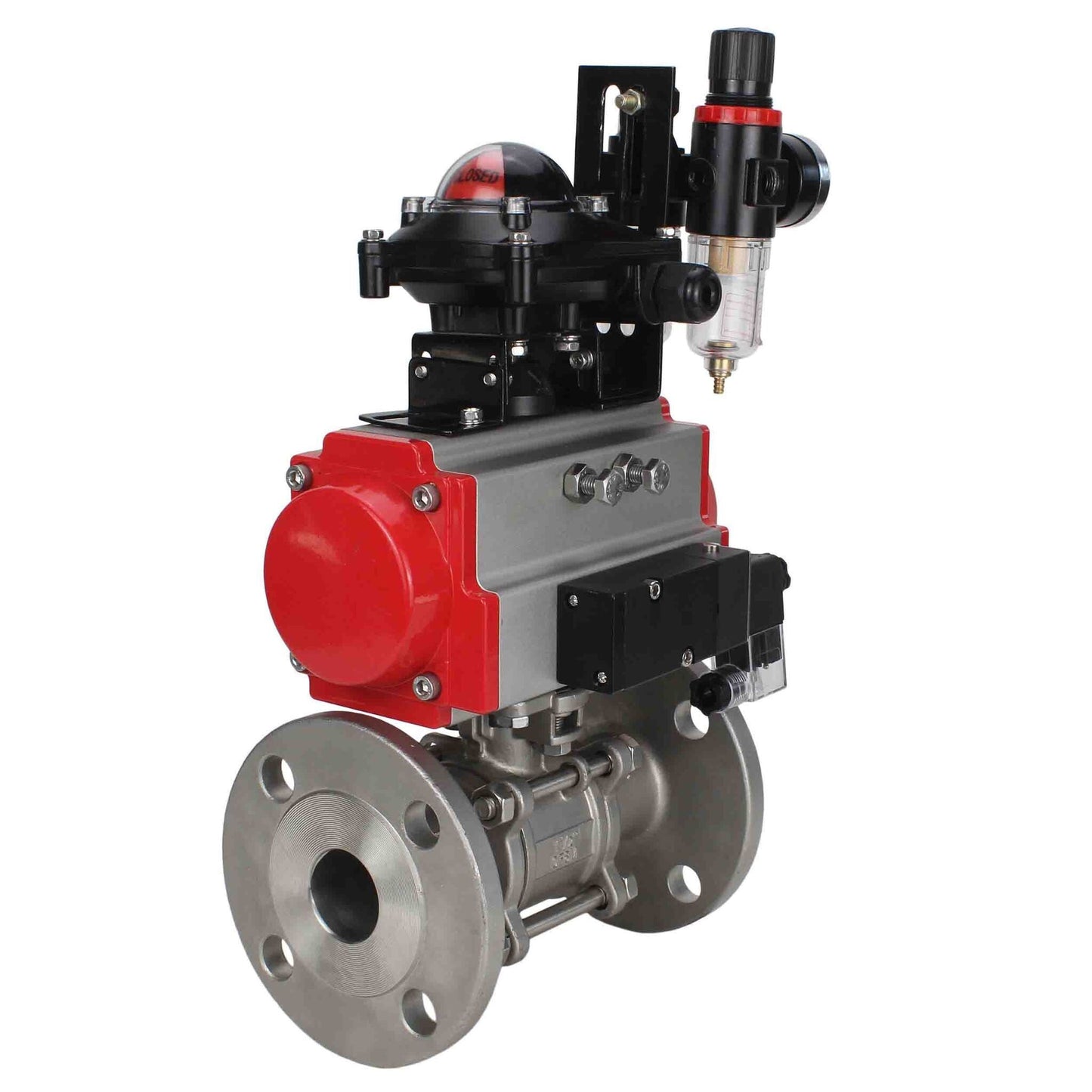

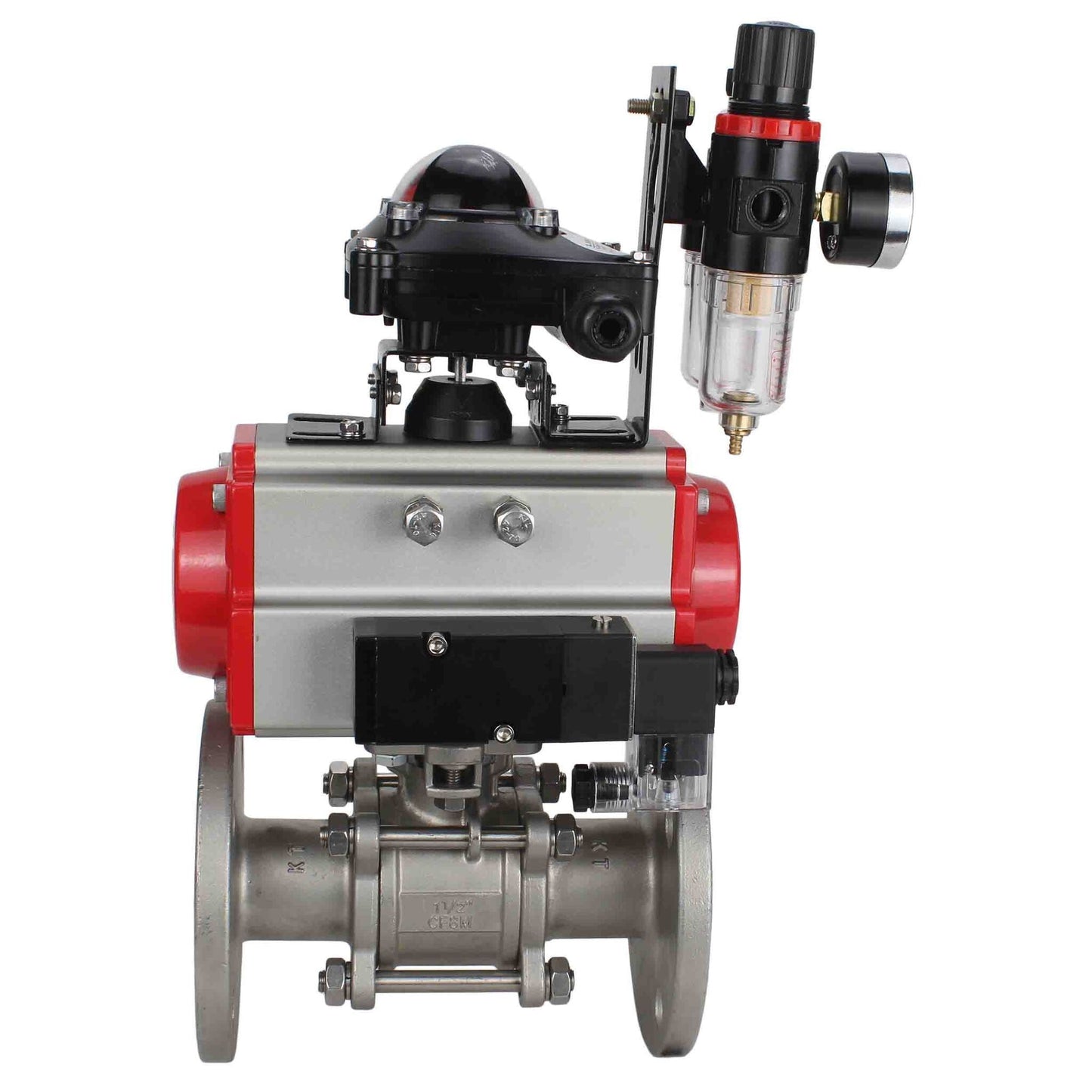

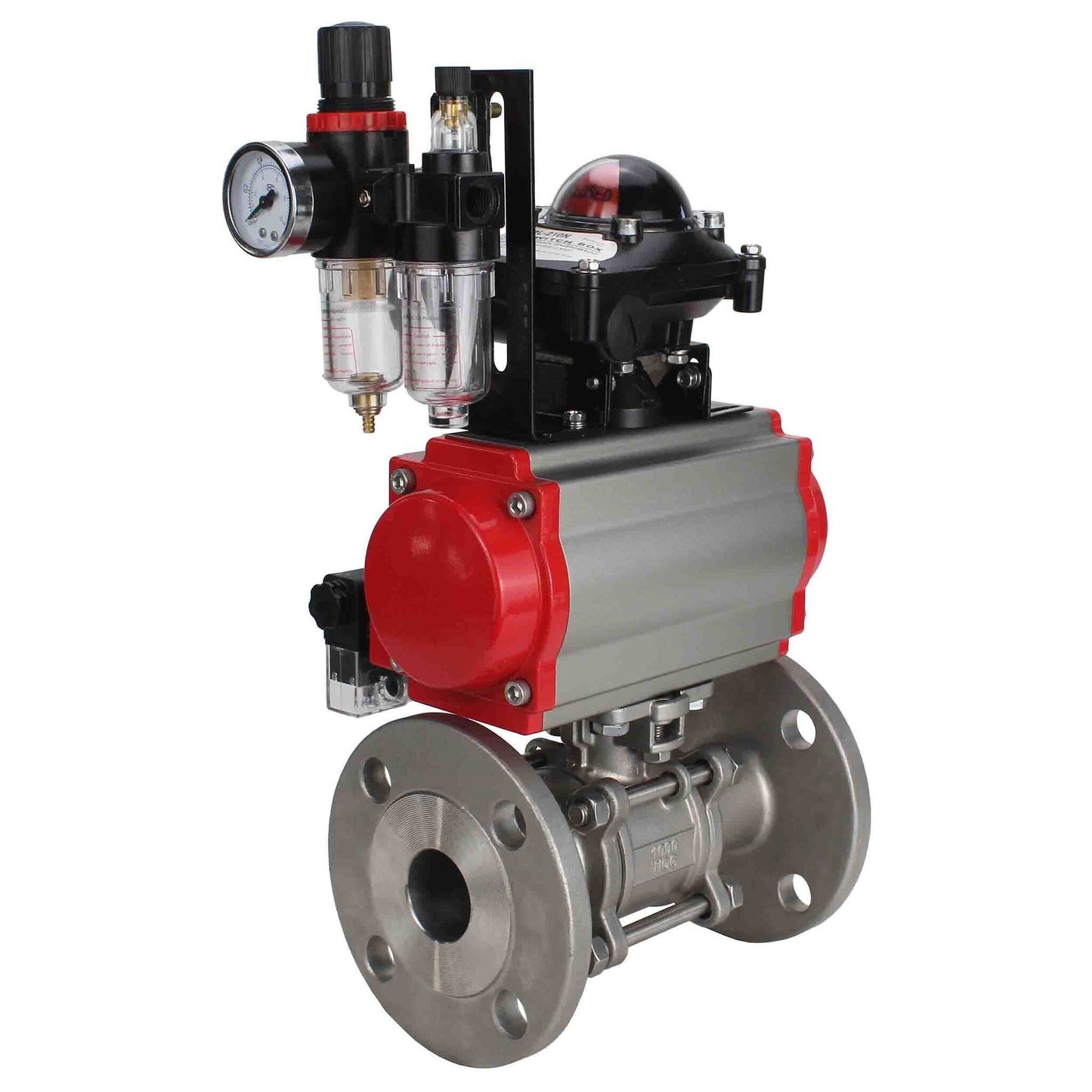

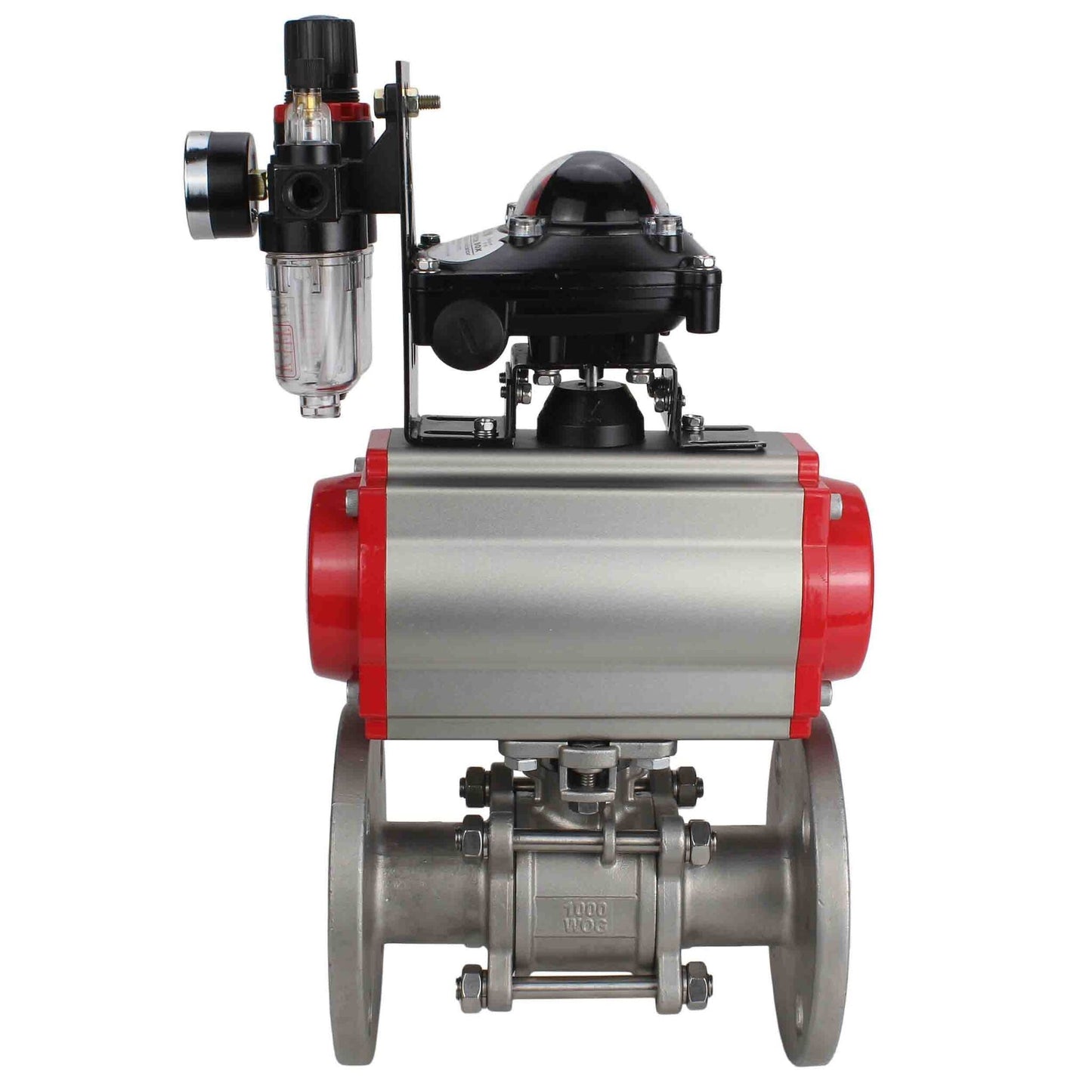

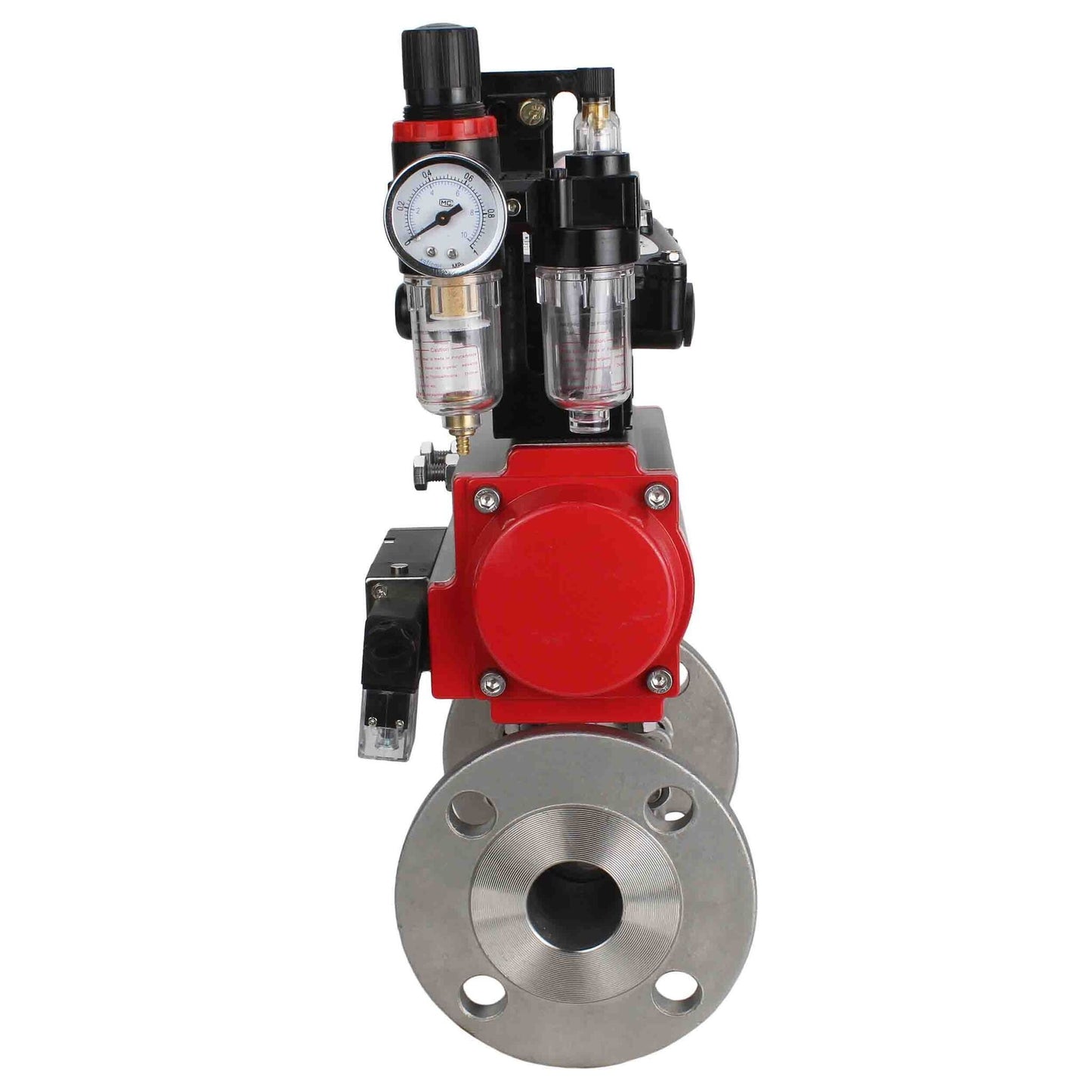

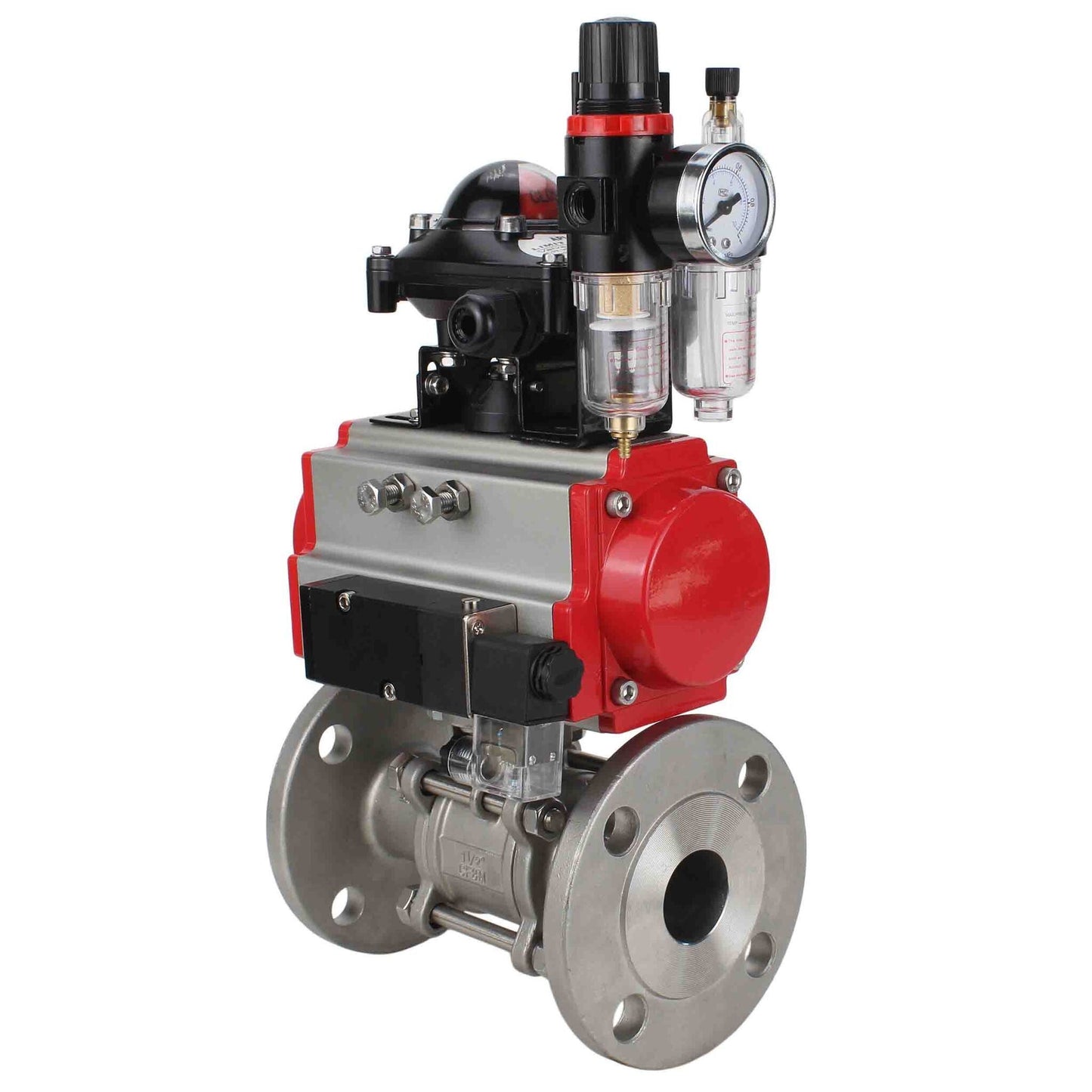

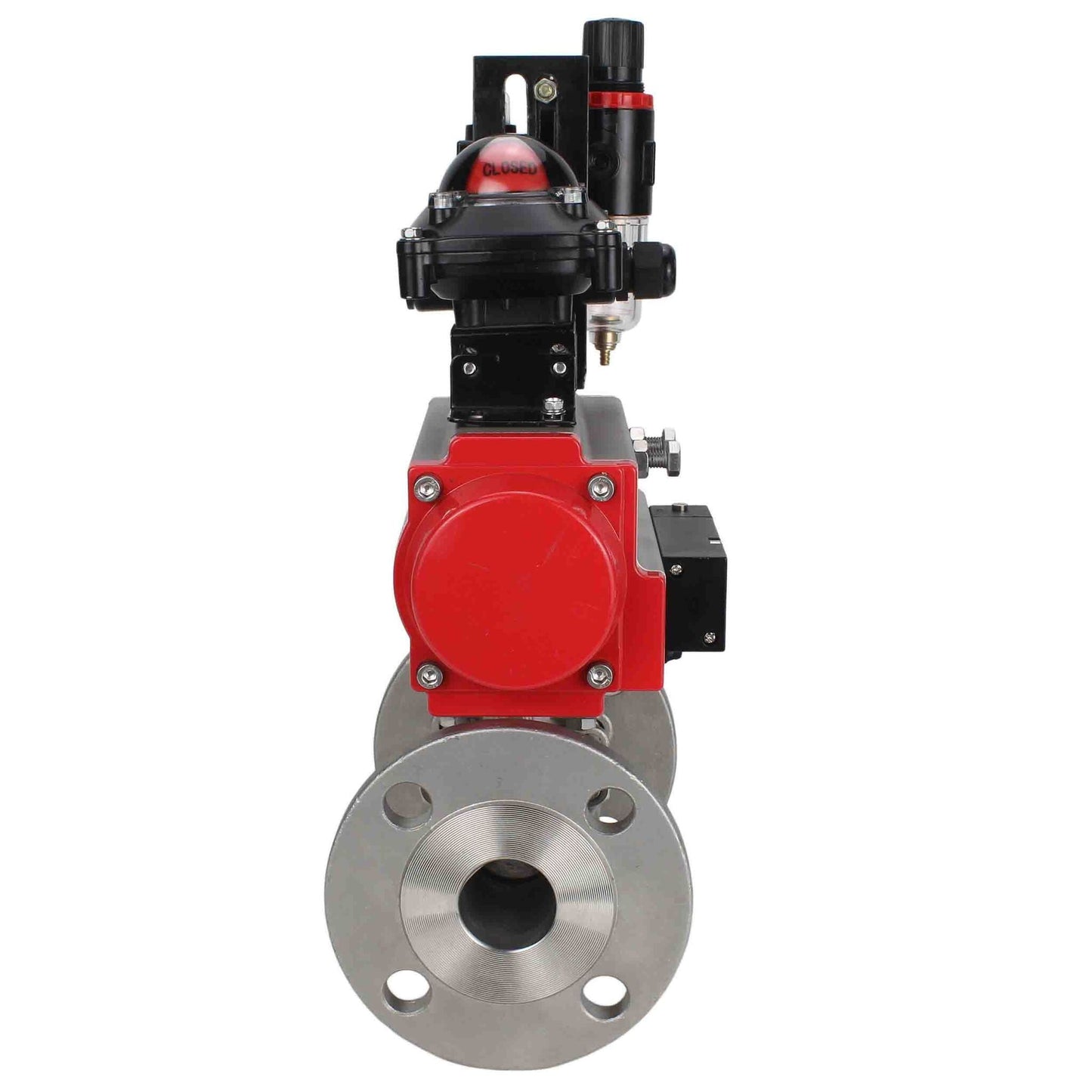

Stainless steel ball valve DNOVA ksfpt-316-180-da-4m310-24v-apl210n-afc2000, body material - stainless steel AISI 316, ball material - stainless steel AISI 316, seal - PTFE, pneumatic actuator operated

From $47.33 USD
From $47.33 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both hghi temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.

Ball Valve Detail DNOVA BV3232P(3pc)-FP-F-ISO-H PA-DA 4M310-08 24V APL-210N AFC2000

Nominal diameter, mm 15-100
Working pressure PN, bar DN15-50 – 40
DN65-80 – 25
DN100 – 16
Temperature of working environment t, ⁰C from -20 to +180
Working environment Water, steam, petroleum products and other liquid or gaseous media that are neutral to the materials of the tap
Connection to the pipeline flanged
Type of flow section full bore
Control type Double-acting pneumatic actuator DNOVA-DA

Ball Valve Detail DNOVA BV3232P(3pc)-FP-F-ISO-H PA-DA 4M310-08 24V APL-210N AFC2000

DNOVA BV3232P(3pc)-FP-F-ISO-H ball valve material specification PA-DA 4M310-08 24V APL-210N AFC2000:

№ Name Material Quantity
1 Frame SS304/SS316 1
2 Ball valve SS304/SS316 1
3 Bolt SS201/SS304 4-6
4 screw SS201/SS304 6-12
5 Sealing PTFE 1
6 Stock SS304/SS316 1
7 Seal SS201/SS304 1
8 Lid WCB/CF8/CF8M 2
9 Saddle rings PTFE 2
10 Thrust washer PTFE 1
11 screw SS201/SS304 1
12 Lever SS201/SS304 1
13 Handle shell PVC 1
14 Stopper SS201/SS304 1

Overall and installation dimensions of ball valve DNOVA BV3232P(3pc)-FP-F-ISO-H PA-DA 4M310-08 24V APL-210N AFC2000:

DN d D D1 D2 W f L±1.5 T H Z-øM Weight
mm pcs-mm kg
15 15 95 65 46 17 2 130 131 71 4-ø14 2,06
20 20 105 75 58 18 2 150 131 74 4-ø14 2,87
25 25 115 85 68 18 2 160 167 97 4-ø14 3,625
32 32 140 100 78 19 2 180 167 110 4-ø18 5,27
40 40 150 110 88 19 2 200 193 117 4-ø18 6,465
50 50 165 125 102 19 3 230 193 125,5 4-ø18 8,285
65 65 185 145 122 22 3 290 242 135,5 8-ø18 13
80 80 200 160 140 24 3 310 272 157 8-ø18 17,255
100 100 234 190 161 24 3 350 295 181 8-ø22 25,705

Sketch of ball valve DNOVA BV3232P(3pc)-FP-F-ISO-H PA-DA 4M310-08 24V APL-210N AFC2000

Pneumatic actuator DNOVA

Parameters of pneumatic actuator DNOVA:

  • Pneumatic actuator type - double acting
  • Working pressure of pneumatic drive - 6.0 bar
  • Drive rotation angle - 90°
  • Drive adjustment range - 5°
  • Country of origin - China
  • Operating environment - indoor and outdoor
  • Position indicator - open/closed
  • Coating - All internal and external parts have an anti-corrosion coating

Pneumatic distributor 4M310

Main parameters of pneumatic valves

Design spool type
Nominal pressure PN, MPa (kg/cm2) 1,2 (12)
Working pressure, bar 1.5…8
Working environment filtered compressed air
Ambient temperature t, ⁰C from +5 to +50
Response frequency 5 cycles/s
Manual duplication There is
Degree of protection IP 65
Fastening through through holes in the body
Body material anodized aluminum
Response time 0.05 sec.

Passports and certificates

Data sheet for DNOVA DA/SA double-acting pneumatic actuator with return springs

Specifications

Country of origin
China
Port opening
Full Port
Configuration
Two-way
Body material
Stainless steel AISI 316
Material ball
Stainless steel AISI 316
Material ball seal
PTFE
Maximum allowable temperature
180 °C
Connection type
Flanged
Control type
Pneumatic actuator
Operating environment
Water, Air, Oil Products
Applications
Water Supply, Heat Supply
Voltage
24 V
Valve feedback
Yes
Explosion-proof
No
Torque
308 Nm
Electropneumatic positioner
No
Pneumatic actuator
Yes
Limit switches
Yes

Delivery

The cost and delivery time for your order depend on several factors, including the specific product you are ordering, the quantity, and the country of destination. Each product may have different manufacturing lead times and shipping requirements, which can affect the overall delivery schedule.

To get the most accurate and up-to-date information on delivery costs and timelines, we recommend contacting our sales managers. They will be happy to provide you with a detailed quote and estimated delivery time based on your specific requirements.

Please feel free to reach out to us for any questions or further assistance regarding your order.

Variant Variant total Quantity Price Variant total
DN15 / 40 barD160-48452
DN15 / 40 barD160-48452
$47.33/ea		 $0.00
$47.33/ea $0.00
DN20 / 40 barD160-48453
DN20 / 40 barD160-48453
$53.79/ea		 $0.00
$53.79/ea $0.00
DN25 / 40 barD160-48454
DN25 / 40 barD160-48454
$58.69/ea		 $0.00
$58.69/ea $0.00
DN32 / 40 barD160-48455
DN32 / 40 barD160-48455
$82.96/ea		 $0.00
$82.96/ea $0.00
DN40 / 40 barD160-48456
DN40 / 40 barD160-48456
$93.32/ea		 $0.00
$93.32/ea $0.00
DN50 / 40 barD160-48457
DN50 / 40 barD160-48457
$122.01/ea		 $0.00
$122.01/ea $0.00
DN65 / 25 barD160-48458
DN65 / 25 barD160-48458
$181.17/ea		 $0.00
$181.17/ea $0.00
DN80 / 25 barD160-48459
DN80 / 25 barD160-48459
$205.69/ea		 $0.00
$205.69/ea $0.00
DN100 / 16 barD160-48460
DN100 / 16 barD160-48460
$359.41/ea		 $0.00
$359.41/ea $0.00
