Description
A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both hghi temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.
Technical data of ball valve DNOVA BV3131P(3pc)-FP-F-ISO-H PA-DA 4M310-08 220V:
| Nominal diameter, mm | 15-100 |
| Working pressure PN, bar |
DN15-50 – 40 DN65-80 – 25 DN100 – 16 |
| Temperature of working environment t, ⁰C | from -20 to +180 |
| Working environment | Water, steam, petroleum products and other liquid or gaseous media that are neutral to the materials of the tap |
| Connection to the pipeline | flanged |
| Type of flow section | full bore |
| Control type | Double-acting pneumatic actuator DNOVA-DA |

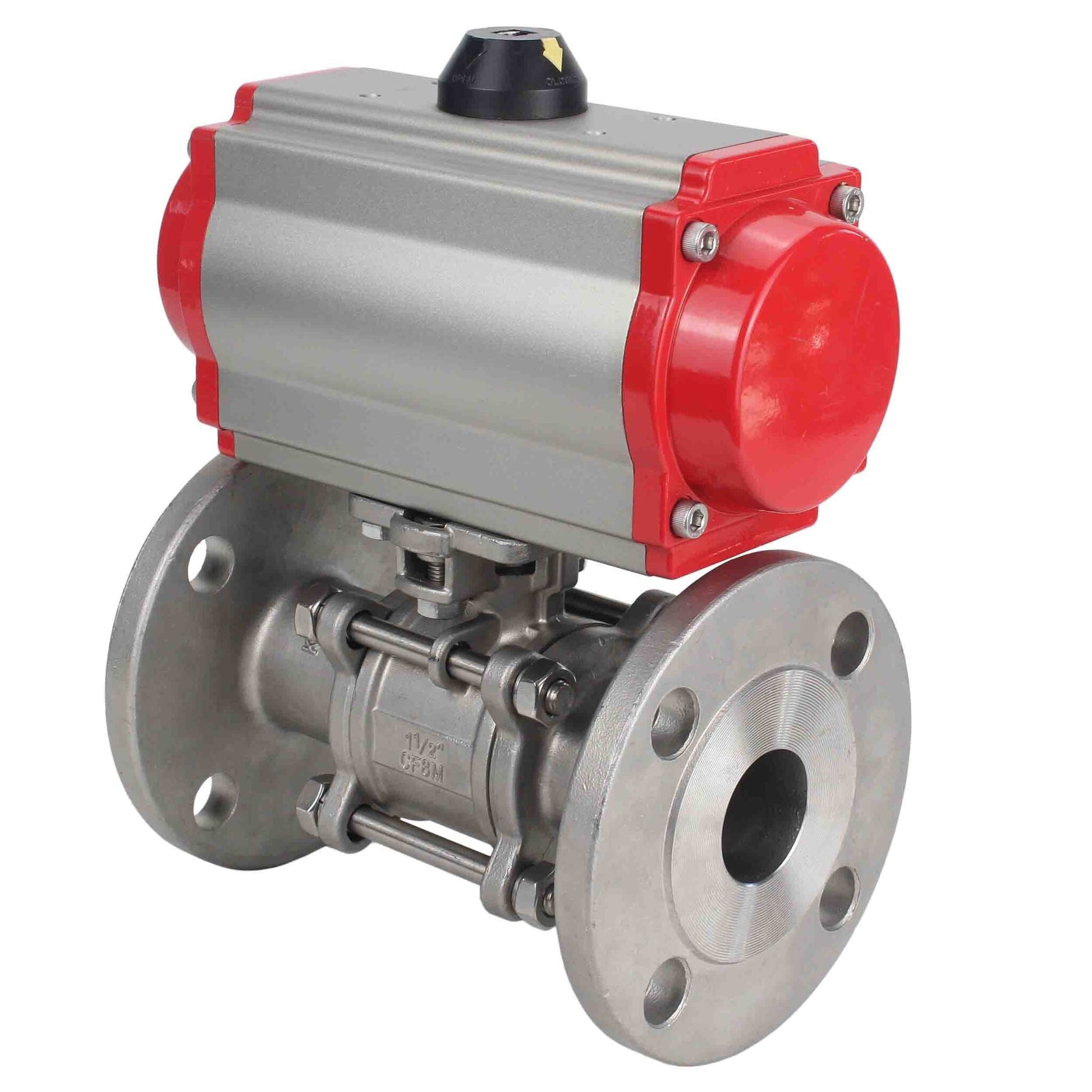

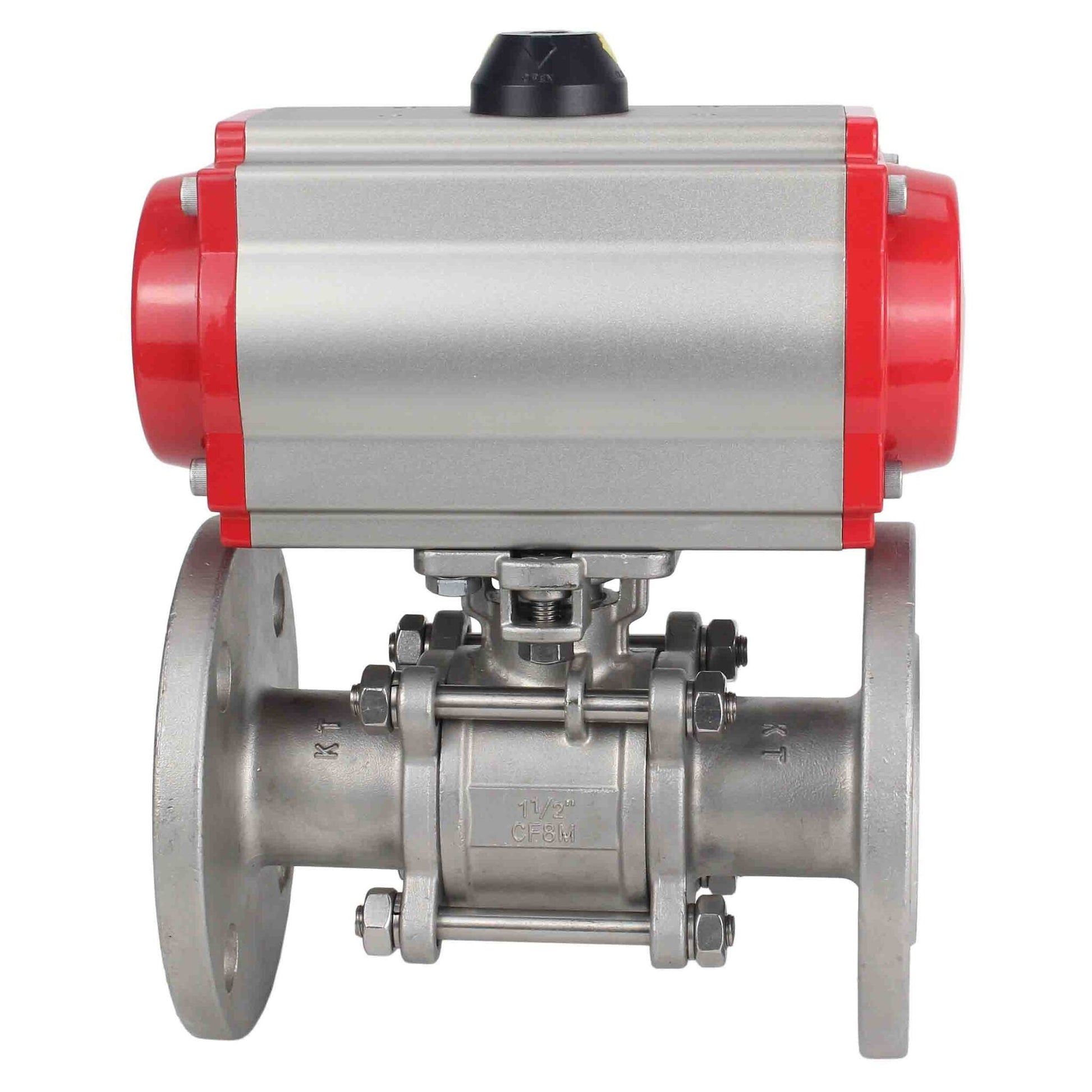

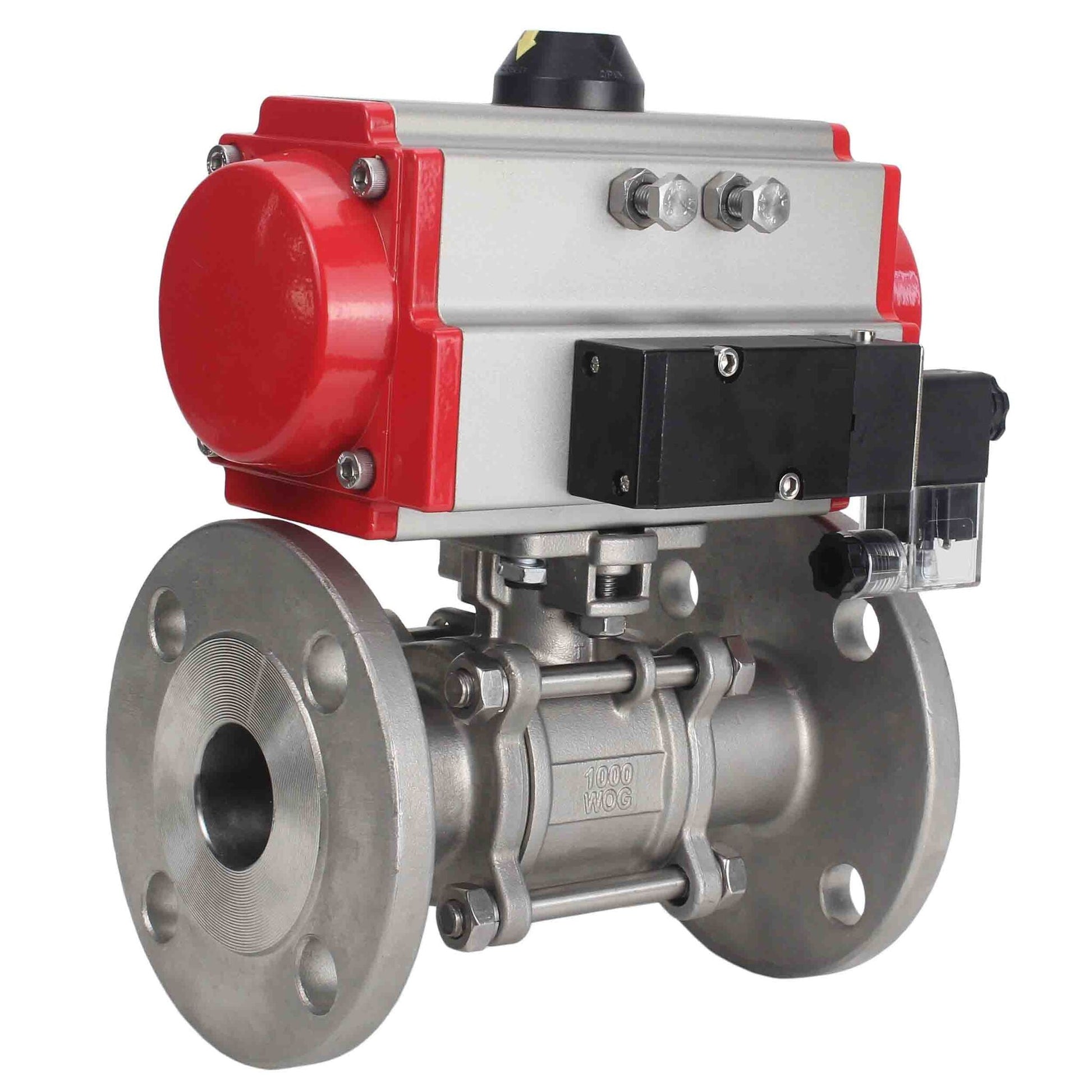

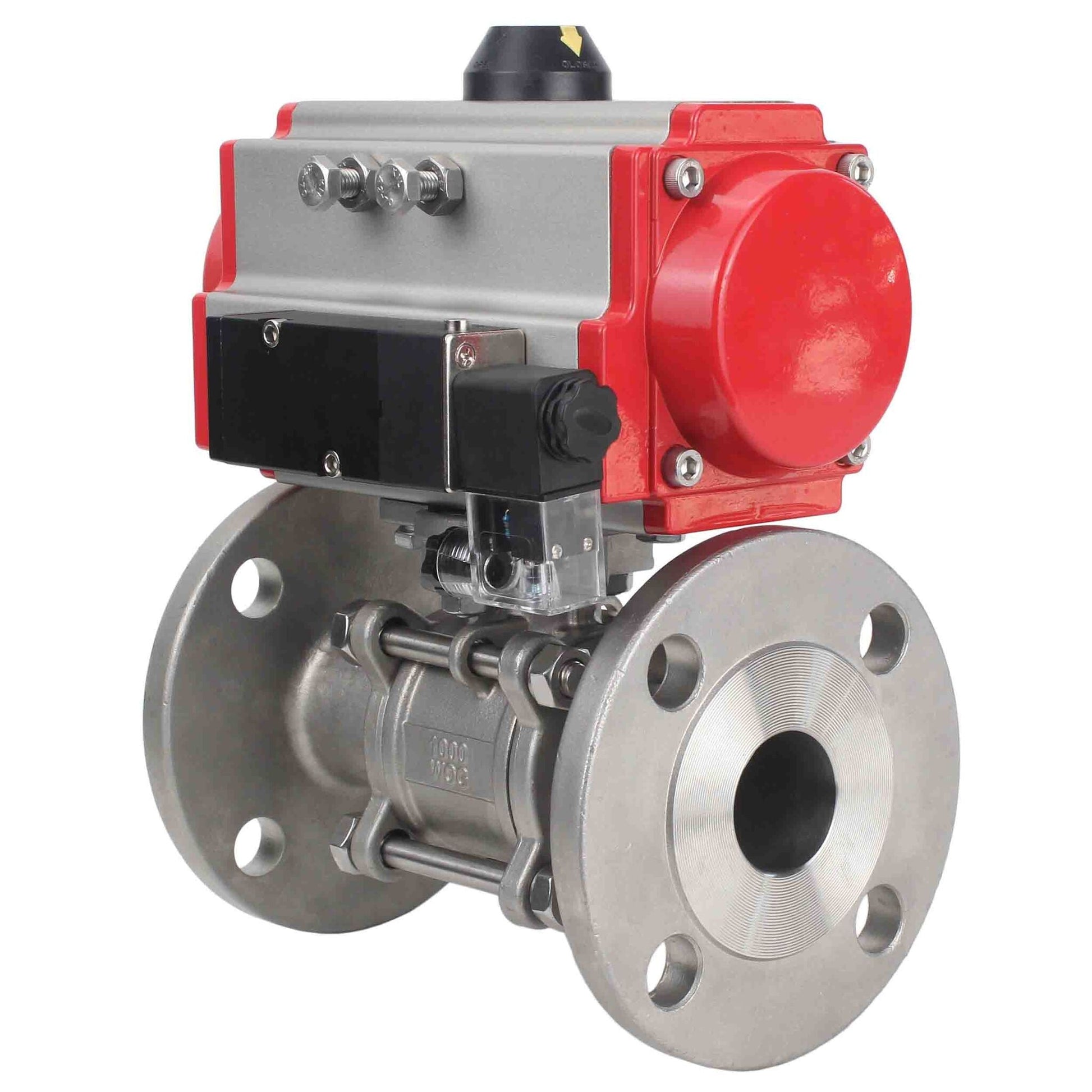

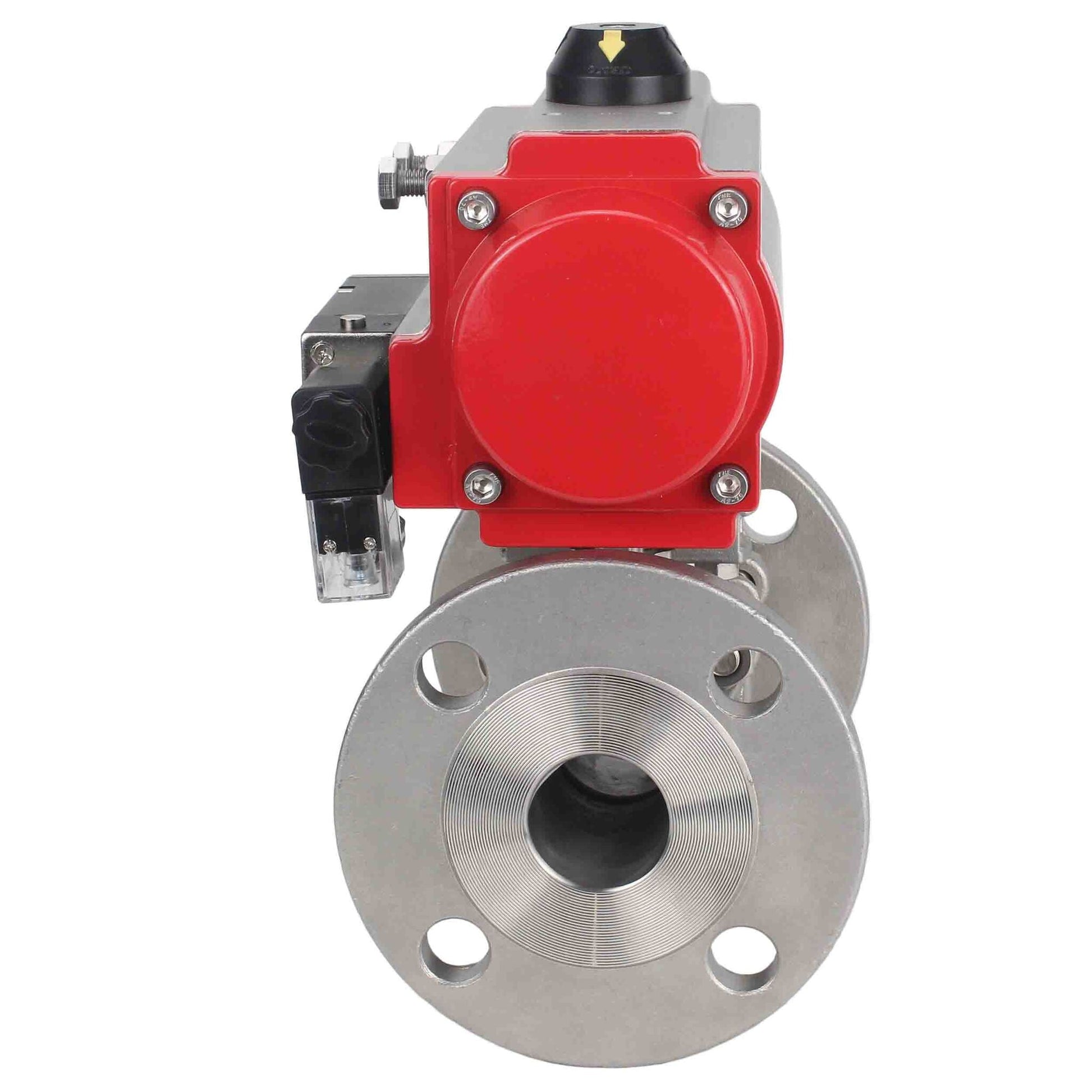

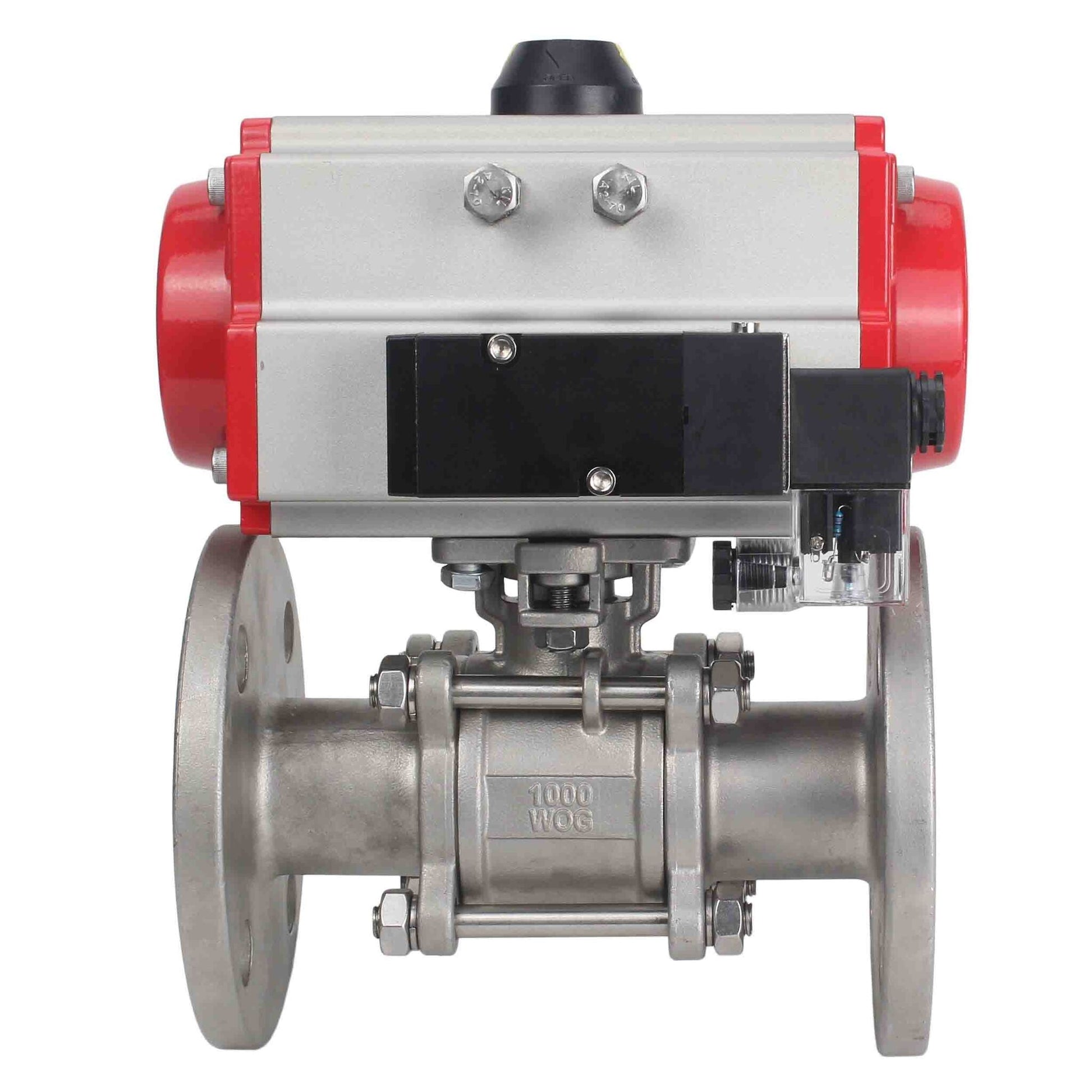

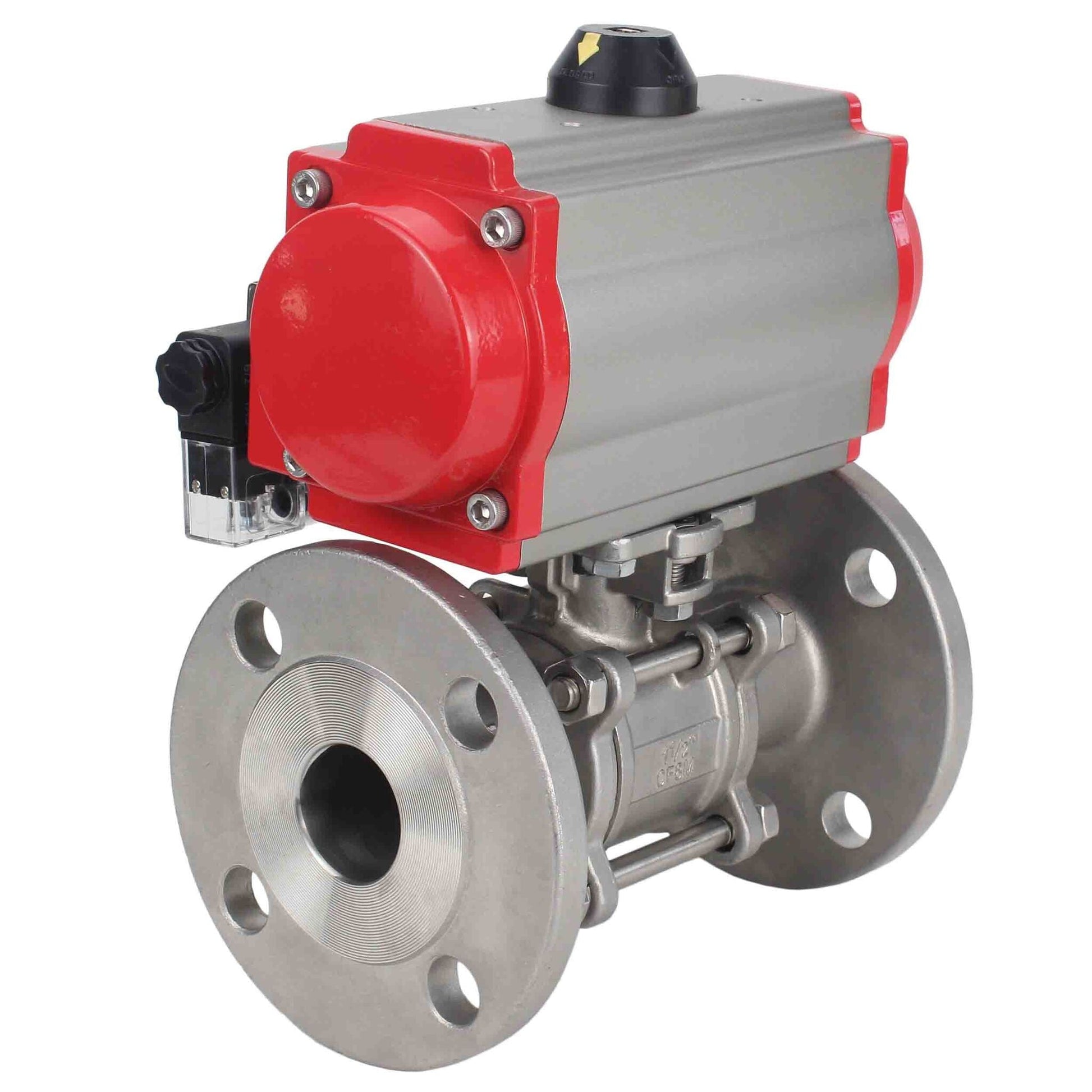

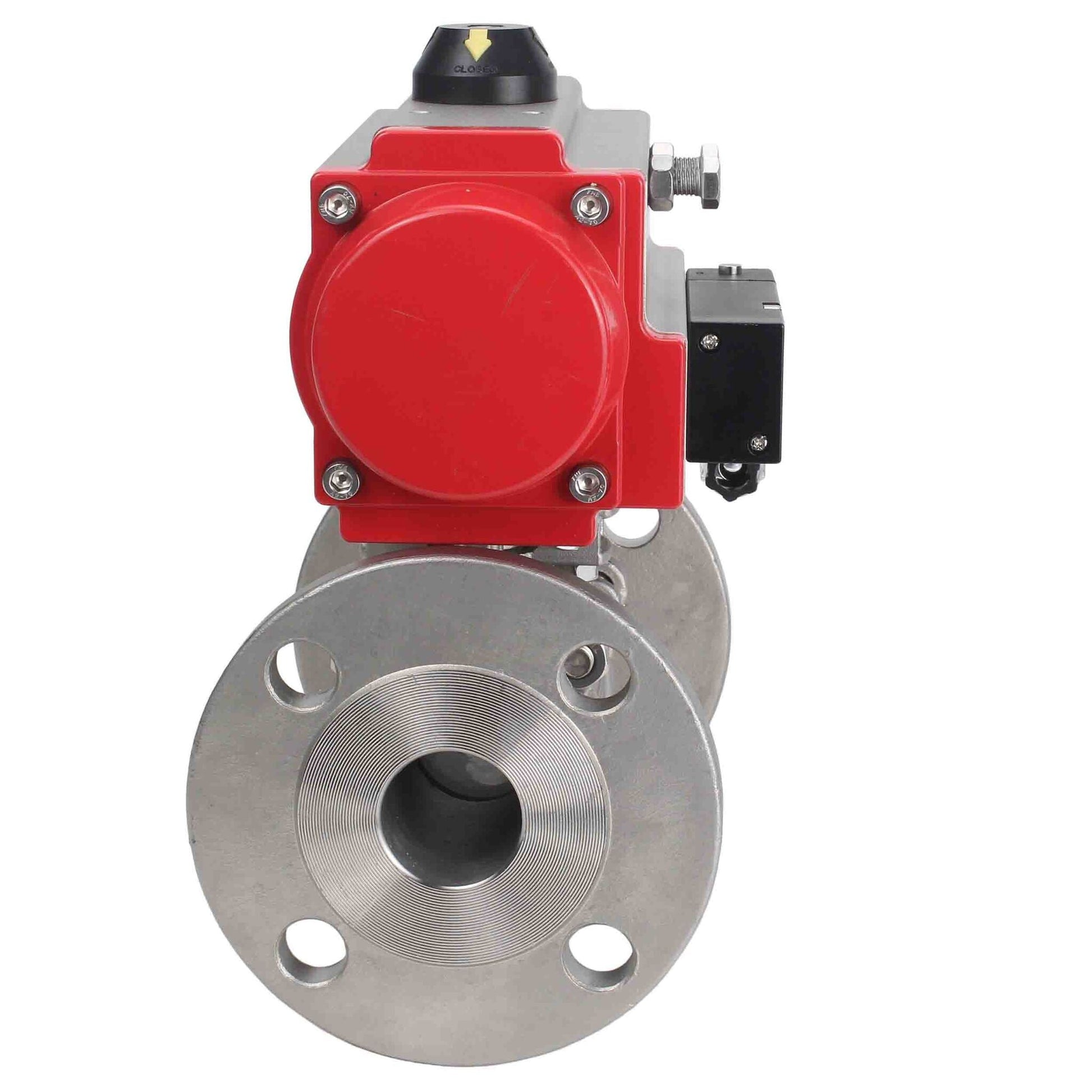

Ball valve detail DNOVA BV3131P(3pc)-FP-F-ISO-H PA-DA 4M310-08 220V
Material specification of ball valve DNOVA BV3131P(3pc)-FP-F-ISO-H PA-DA 4M310-08 220V:
| № | Name | Material | Quantity |
| 1 | Frame | SS304/SS316 | 1 |
| 2 | Ball valve | SS304/SS316 | 1 |
| 3 | Bolt | SS201/SS304 | 4-6 |
| 4 | screw | SS201/SS304 | 6-12 |
| 5 | Sealing | PTFE | 1 |
| 6 | Stock | SS304/SS316 | 1 |
| 7 | Seal | SS201/SS304 | 1 |
| 8 | Lid | WCB/CF8/CF8M | 2 |
| 9 | Saddle rings | PTFE | 2 |
| 10 | Thrust washer | PTFE | 1 |
| 11 | screw | SS201/SS304 | 1 |
| 12 | Lever | SS201/SS304 | 1 |
| 13 | Handle shell | PVC | 1 |
| 14 | Stopper | SS201/SS304 | 1 |
Overall and installation dimensions of ball valve DNOVA BV3131P(3pc)-FP-F-ISO-H PA-DA 4M310-08 220V:
| DN | d, mm | D, mm | L1, mm | L±1.5, mm | H, mm |
| 15 | 15 | 95 | 153 | 130 | 98 |
| 20 | 20 | 105 | 153 | 150 | 98 |
| 25 | 25 | 115 | 153 | 160 | 98 |
| 32 | 32 | 140 | 153 | 180 | 98 |
| 40 | 40 | 150 | 174 | 200 | 115 |
| 50 | 50 | 165 | 216 | 230 | 135 |
| 65 | 65 | 185 | 279 | 290 | 160 |
| 80 | 80 | 200 | 279 | 310 | 160 |
| 100 | 100 | 234 | 308 | 350 | 193 |
| 100 22х22, F10 | 100 | 220 | 268 | 350 | 153 |
Sketch of ball valve DNOVA BV3131P(3pc)-FP-F-ISO-H PA-DA 4M310-08 220V
Pneumatic actuator DNOVA
Parameters of pneumatic actuator DNOVA:
- Pneumatic actuator type - double acting
- Working pressure of pneumatic drive - 6.0 bar
- Drive rotation angle - 90°
- Drive adjustment range - 5°
- Country of origin - China
- Operating environment - indoor and outdoor
- Position indicator - open/closed
- Coating - All internal and external parts have an anti-corrosion coating
Pneumatic distributor 4M310
Main parameters of pneumatic valves
| Design | spool type |
| Nominal pressure PN, MPa (kg/cm2) | 1,2 (12) |
| Working pressure, bar | 1.5…8 |
| Working environment | filtered compressed air |
| Ambient temperature t, ⁰C | from +5 to +50 |
| Response frequency | 5 cycles/s |
| Manual duplication | There is |
| Degree of protection | IP 65 |
| Fastening | through through holes in the body |
| Body material | anodized aluminum |
| Response time | 0.05 sec. |
Passports and certificates
Data sheet for DNOVA DA/SA double-acting pneumatic actuator with return springs
Specifications
Delivery
