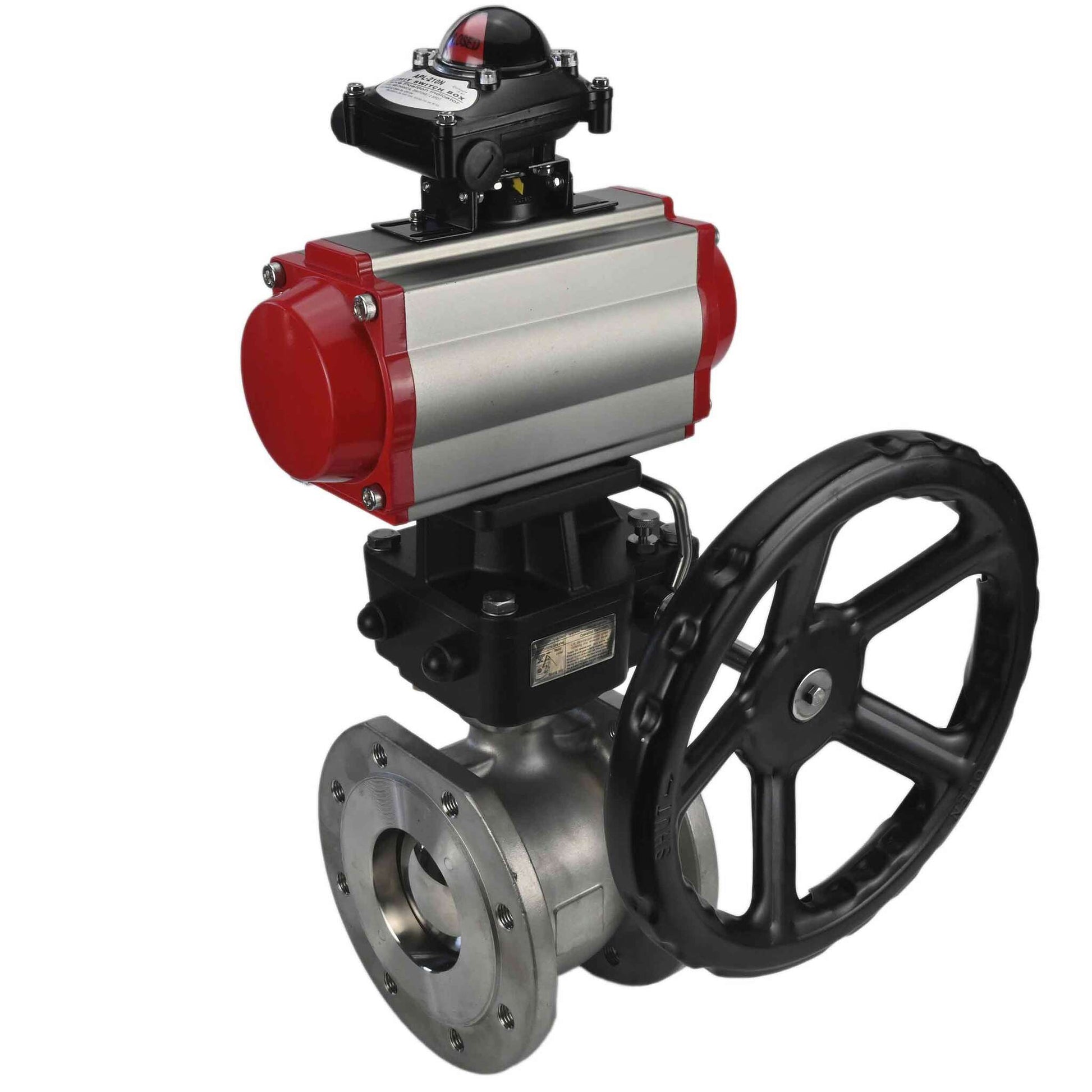

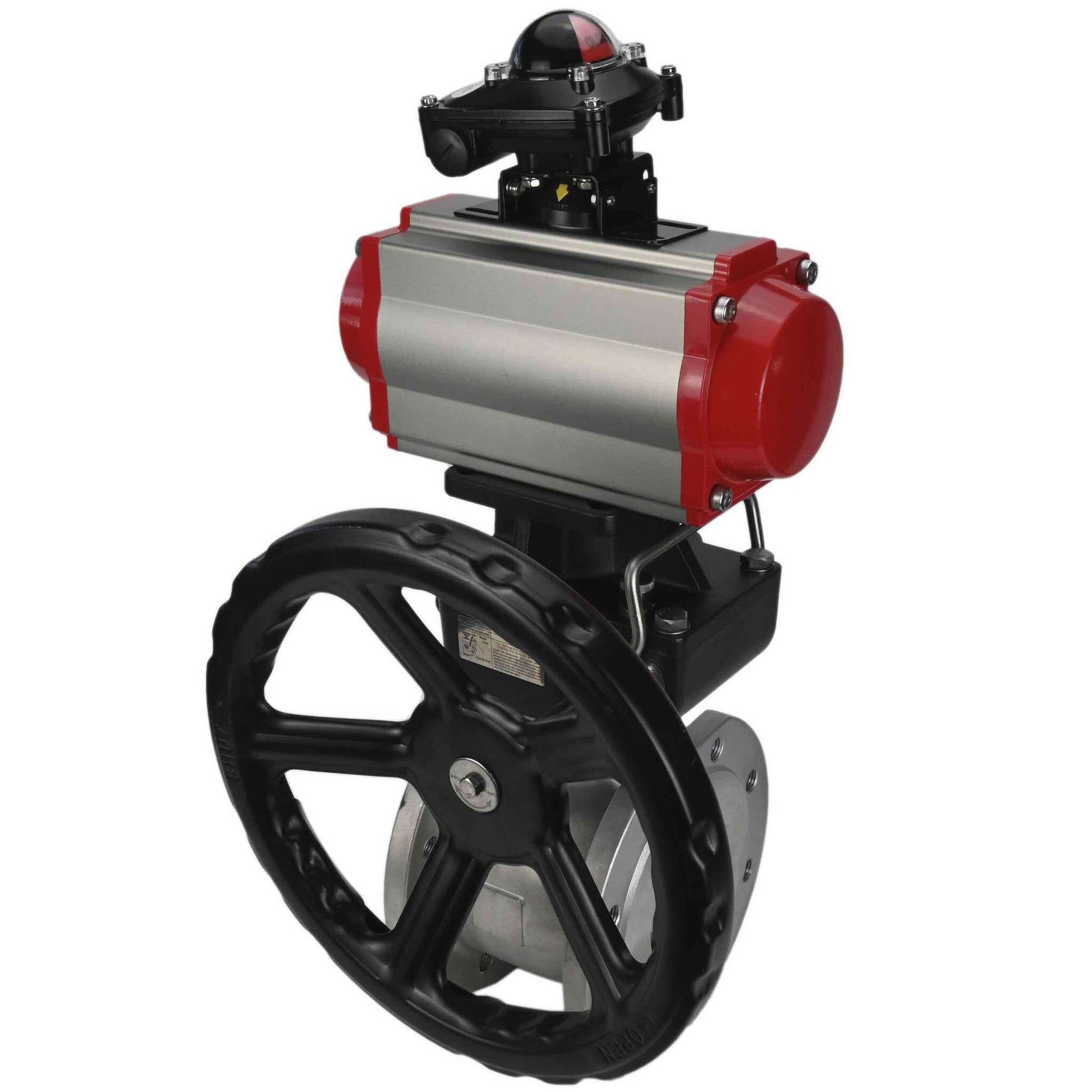

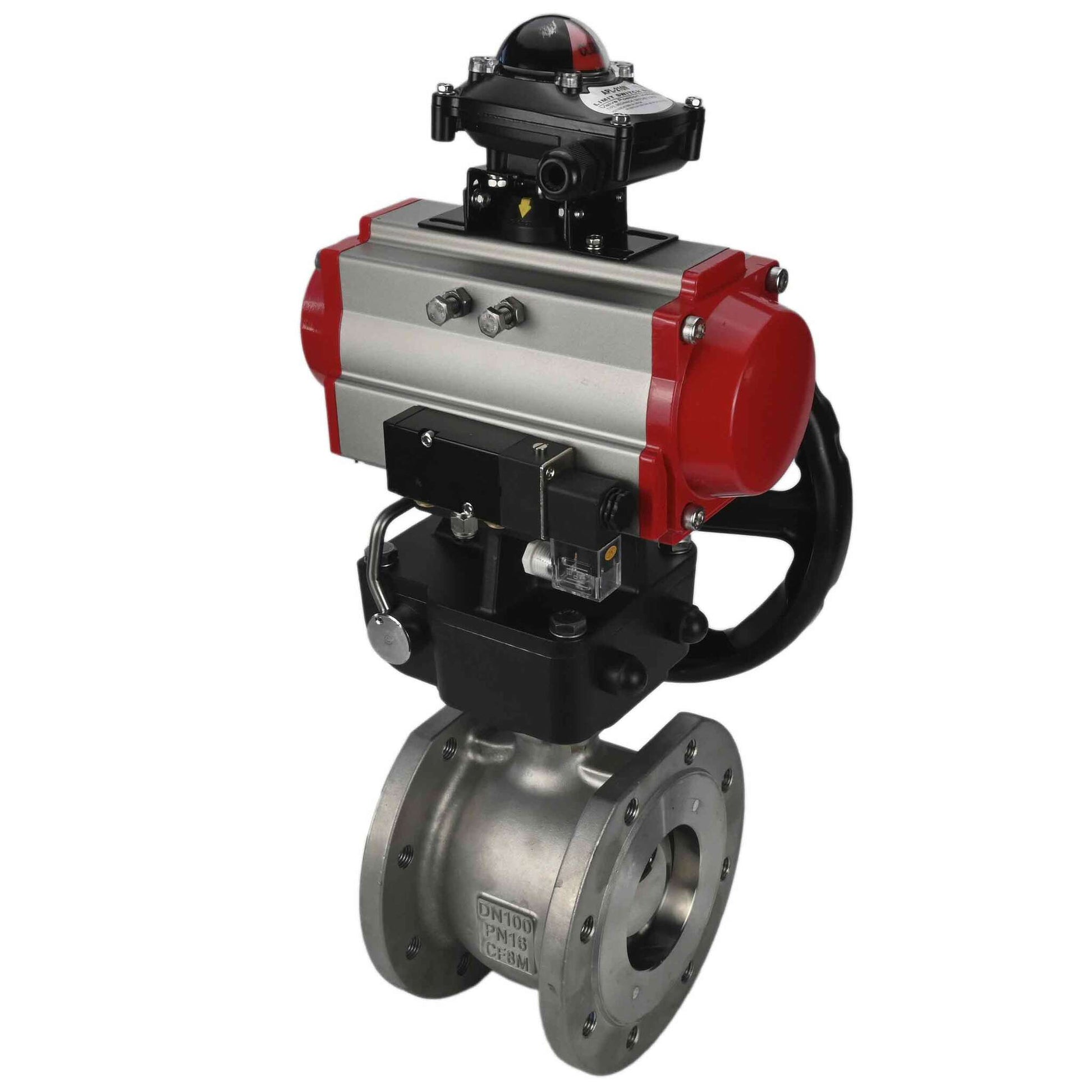

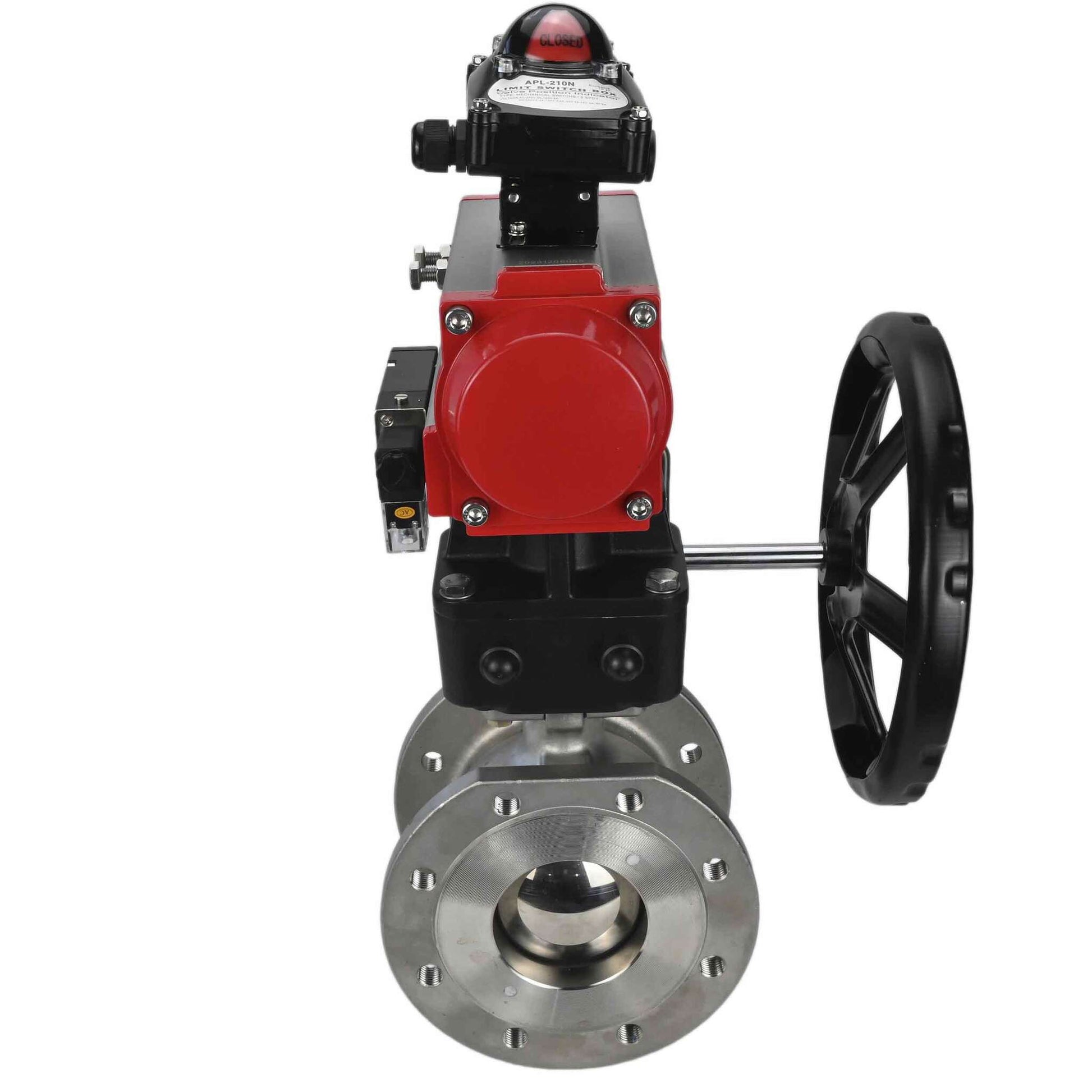

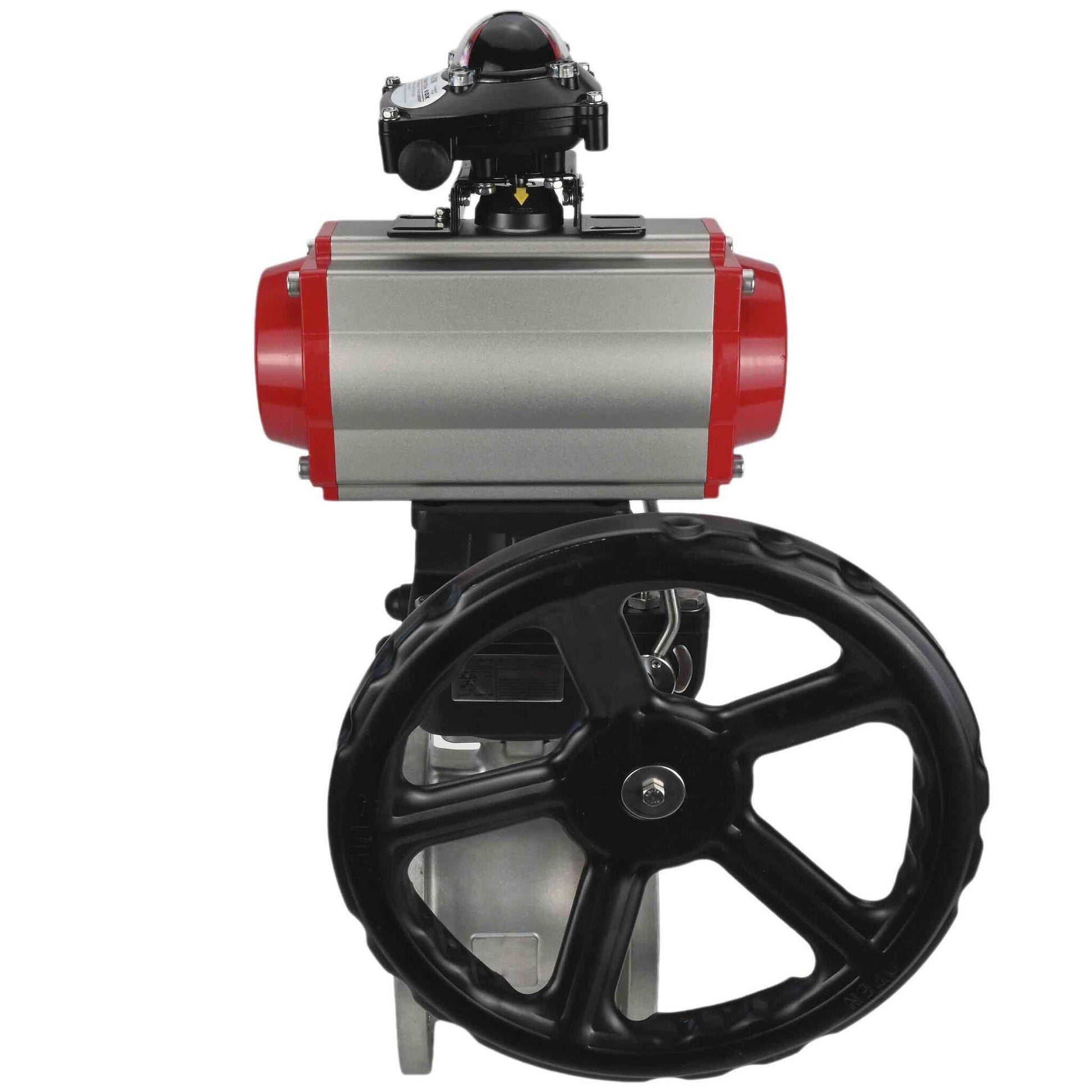

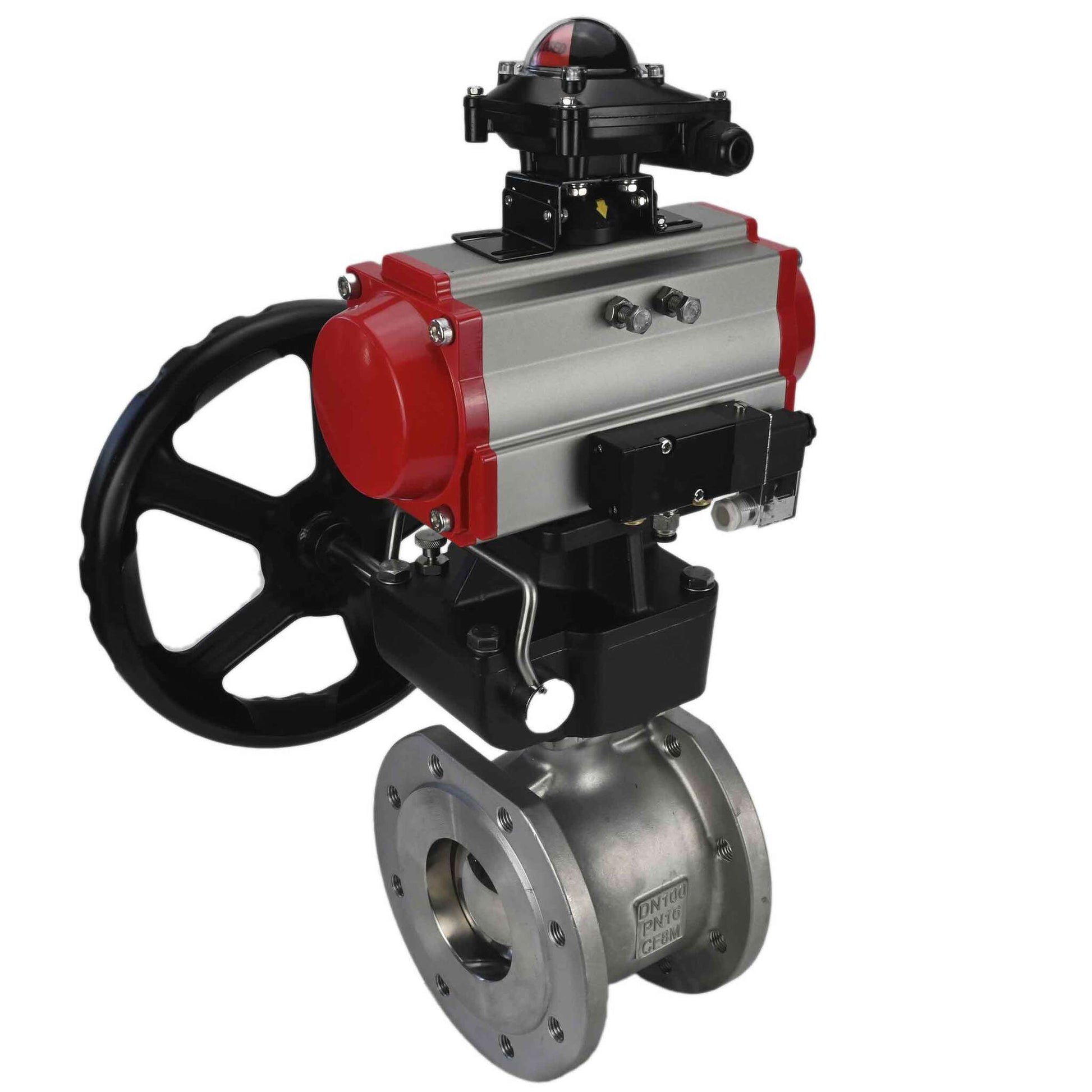

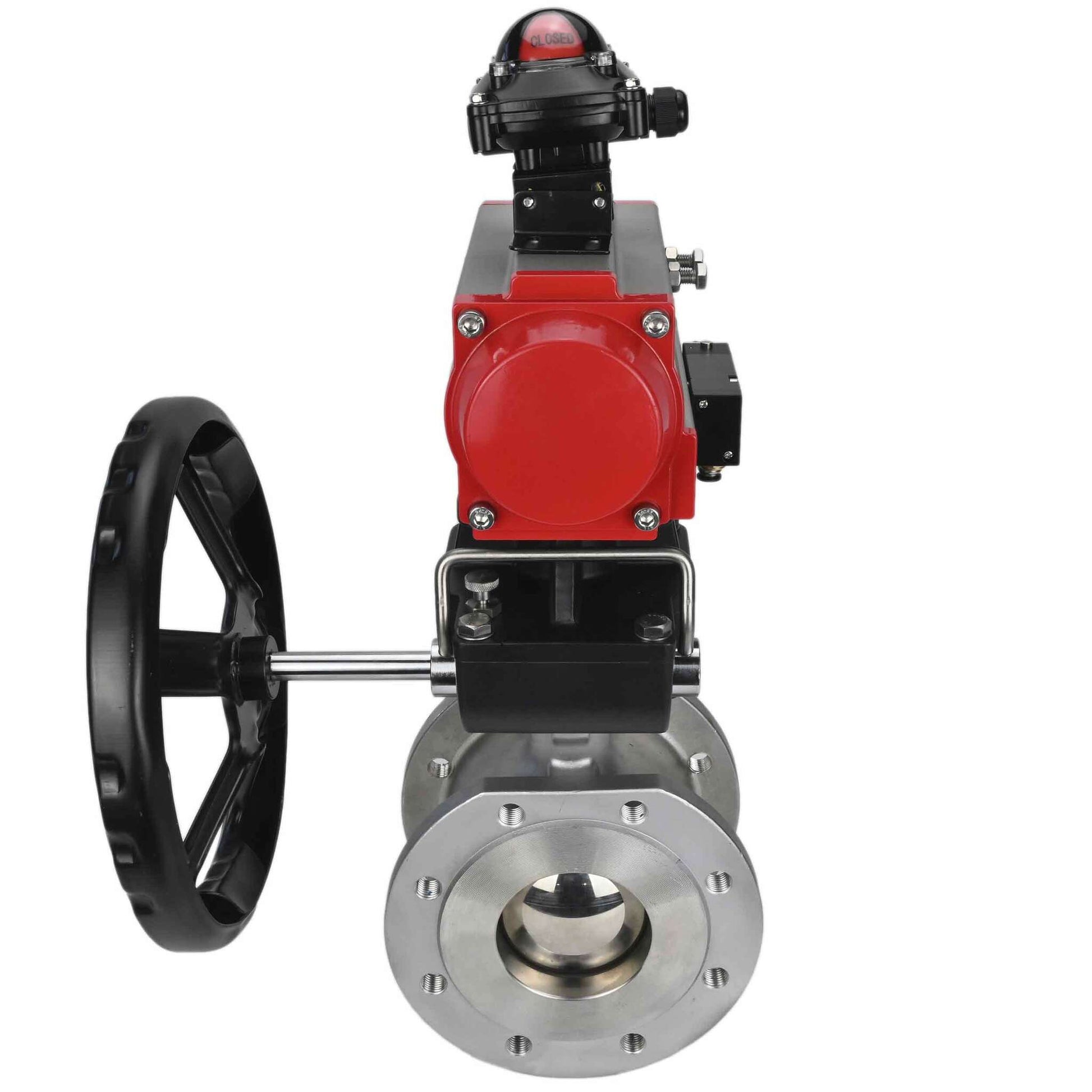

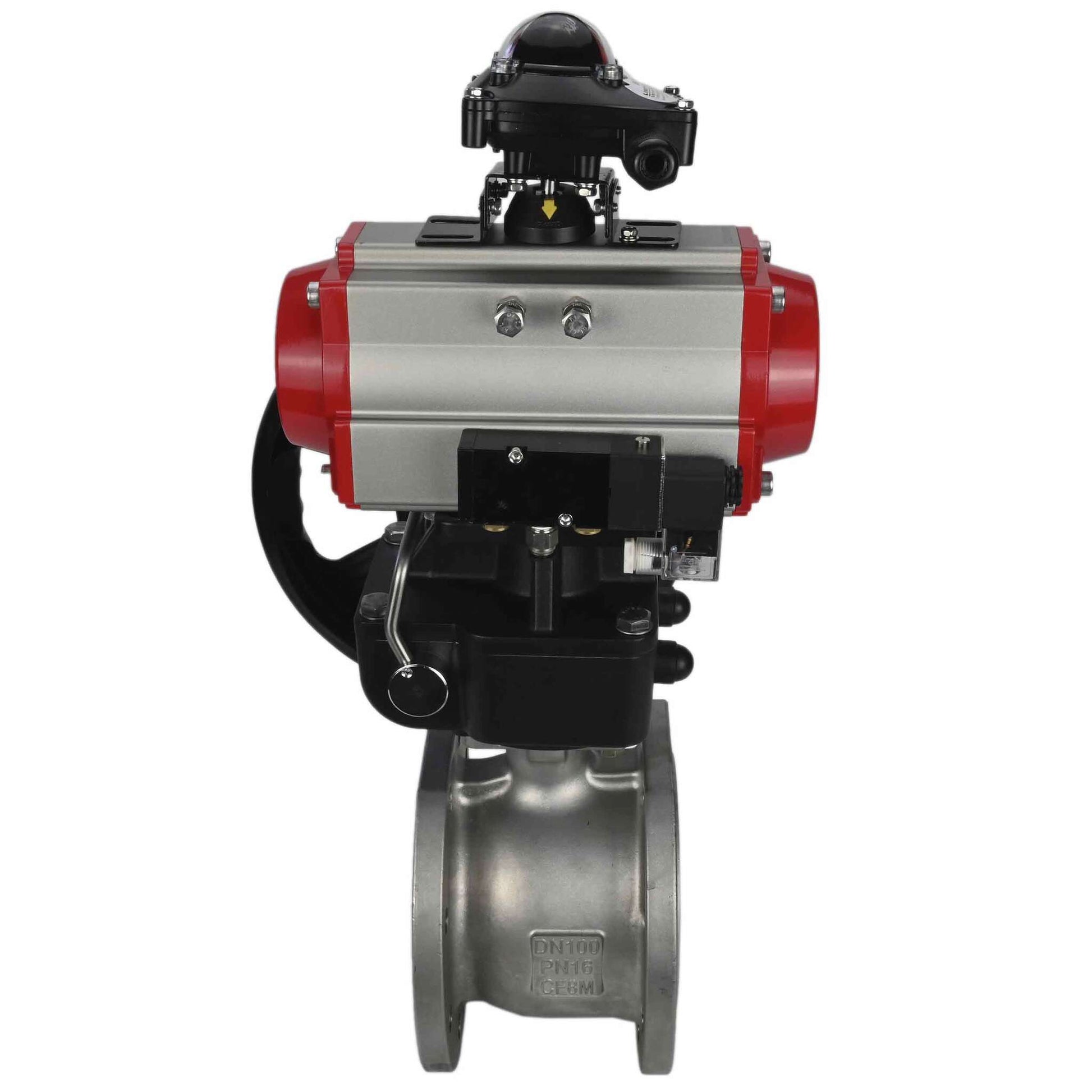

Stainless steel ball valve DNOVA kchfp-DNOVA-da-hdm-4m310-24v-apl-210n, body material - stainless steel AISI 316, ball material - stainless steel AISI 316, seal - PTFE, pneumatic actuator operated

From $91.06 USD
From $91.06 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.

Dimensions

DN, mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300
L, mm 114 120 125 130 140 150 170 180 190 325 345 400 450 500
H, mm 50 55 60 65 70 80 95 105 120 206 223 215 215 215
W, mm 112 112 136 195 195 195 265 265 265 750 750 1000 1000 1000
D, mm 89 98 108 117 127 152 178 191 229 250 285 340 405 460
f, mm 2 2 2 2 2 2 2 2 2 3 3 3 3 4
N-ØM 4- Ø 16 4- Ø 16 4- Ø 16 4- Ø 16 4- Ø 16 4- Ø 19 4- Ø 19 4- Ø 19 8- Ø 19 8- Ø 18 8- Ø 22 12- Ø22 12- Ø24 12- Ø26

Sketch of HDM gearbox (handwheel)

Reducer (manual doubler) HDM for pneumatic actuators, for 1/4 turn valve is used for controlling ball valve DNOVA-KShFP.316.200 series, when it is necessary to achieve compactness of the installed equipment, as well as at high opening/closing forces of the valve.

Wiring diagram of the limit switch unit

The limit switch unit in standard version has a position indicator of the closing element (OPEN/CLOSED), IP67 weatherproof housing, standard shaft and stainless steel mounting bracket.

Specifications

Country of origin
China
Port opening
Full Port
Configuration
Two-way
Body material
Stainless steel AISI 316
Material ball
Stainless steel AISI 316
Material ball seal
PTFE
Maximum allowable temperature
200 °C
Connection type
Flanged
Control type
Pneumatic actuator
Operating environment
Water, Air, Oil Products
Applications
Water Supply, Heat Supply
Voltage
24 V
Valve feedback
Yes
Explosion-proof
No
Torque
3523 Nm
Electropneumatic positioner
No
Pneumatic actuator
Yes
Manual override
Yes
Limit switches
Yes
Control signal
ON/OFF

Delivery

The cost and delivery time for your order depend on several factors, including the specific product you are ordering, the quantity, and the country of destination. Each product may have different manufacturing lead times and shipping requirements, which can affect the overall delivery schedule.

To get the most accurate and up-to-date information on delivery costs and timelines, we recommend contacting our sales managers. They will be happy to provide you with a detailed quote and estimated delivery time based on your specific requirements.

Please feel free to reach out to us for any questions or further assistance regarding your order.
