How it works

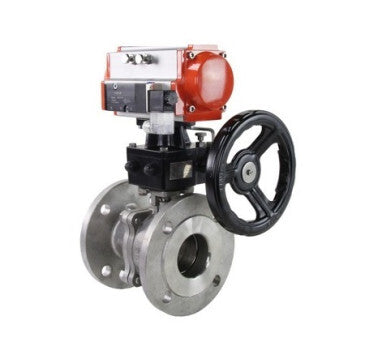

Spring-return rotary actuator
Two-way ball valve
5/2 single-solenoid pilot
The number that matters
Max. medium temperature
200°C
The highest medium temperature this valve is rated for.
Construction
Parts and materials
Applications
Media and industries
- Water
- Air
- Oil Products
- Heat Supply
Ball valve is used as a shut-off valve in heat supply systems, water supply systems, steam, fuel, and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), which are non-aggressive to the valve materials. The use of ball valves as control valves is not allowed.
Double-acting pneumatic rotary actuators, pneumatic rotary actuators with return springs are designed to automate the process of controlling industrial shut-off valves - gate valves, ball valves. DNOVA pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts have an anti-corrosion coating.
- Port opening
- Full Port
- Configuration
- Two-way
- Body material
- Stainless steel AISI
- Material ball seal
- PTFE
- Maximum allowable temperature
- 200 °C
- Connection type
- Flanged
- Control type
- Pneumatic actuator
- Operating environment
- Water, Air, and Oil Products
- Applications
- Heat Supply
- Voltage
- 220 V
- Valve feedback
- No
- Explosion-proof
- No
- Torque
- 272 Nm
- Pneumatic actuator
- Yes
- Manual override
- Yes
- Limit switches
- No
- Country of origin
- China
Production. Usually 7–14 business days after you approve the quotation and pay. Made-to-specification items are confirmed in the quotation.
Freight. Not charged at checkout. A manager quotes air and sea freight to your port or airport, and nothing ships until you approve the price and the freight.
To North America. From approval and payment to the destination port or airport: air 14–24 days, sea 32–60 days. Estimates, not guarantees.
Terms. EXW Ningbo or FOB Ningbo Port; CIF on request. The agreed term is written on the Proforma Invoice.
