Description

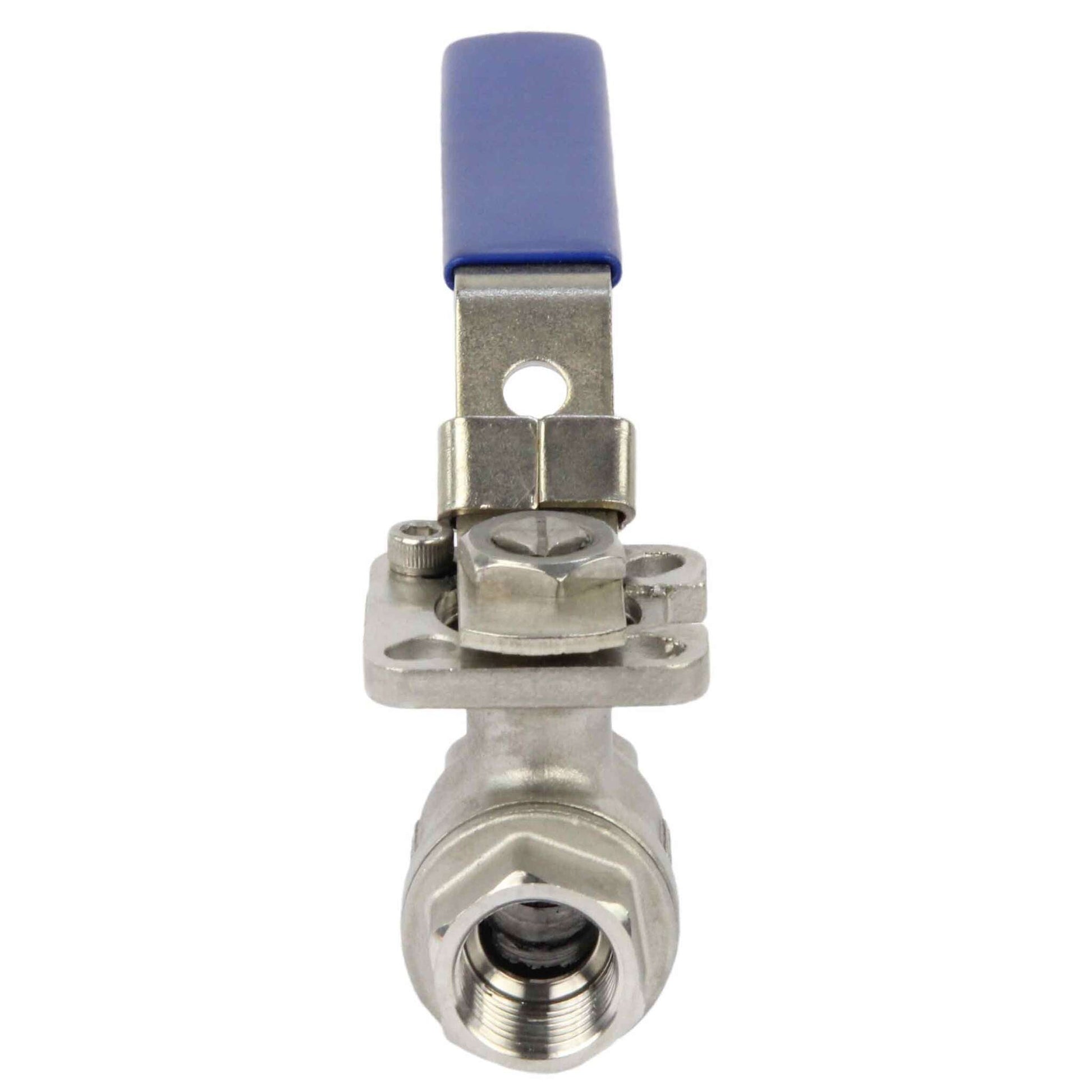

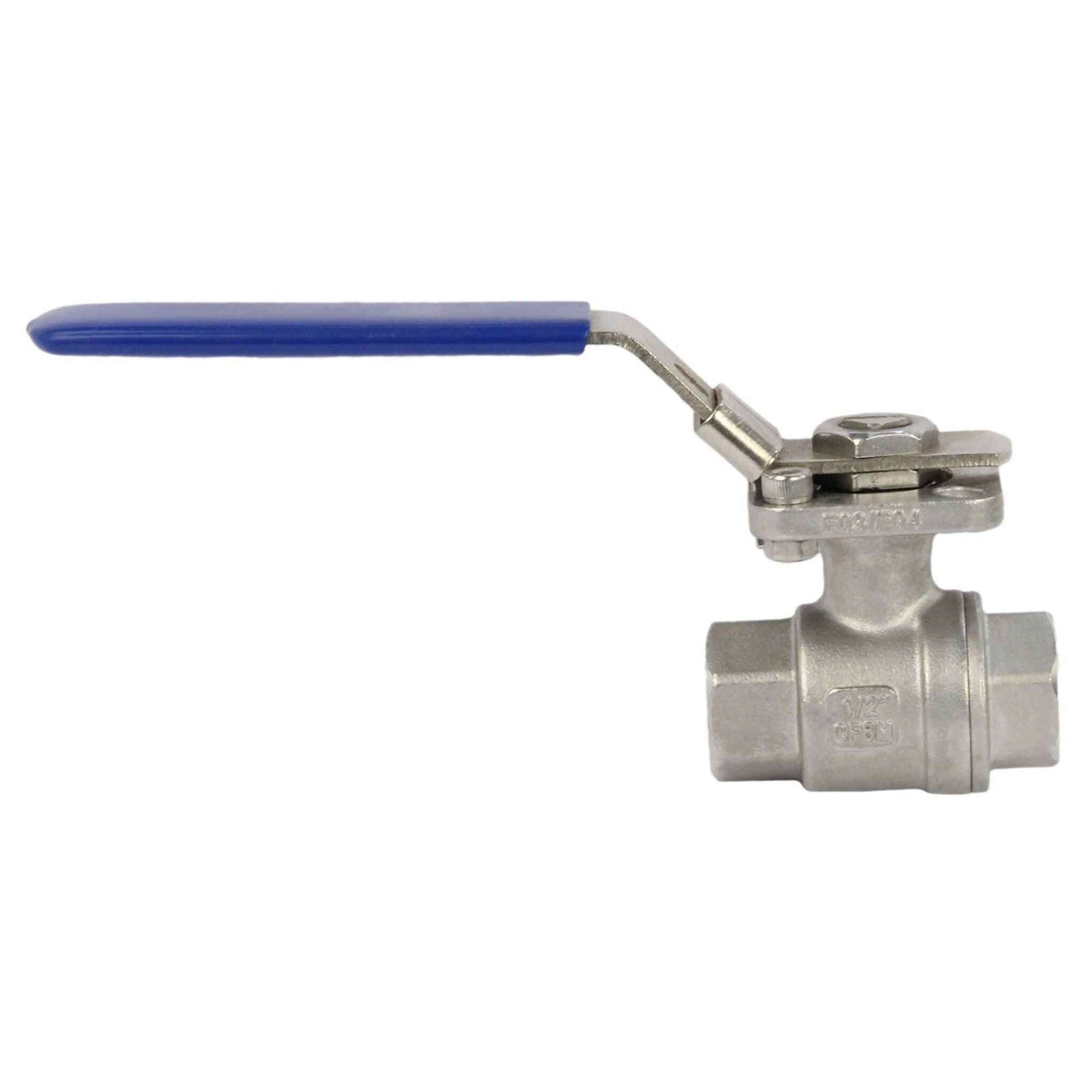

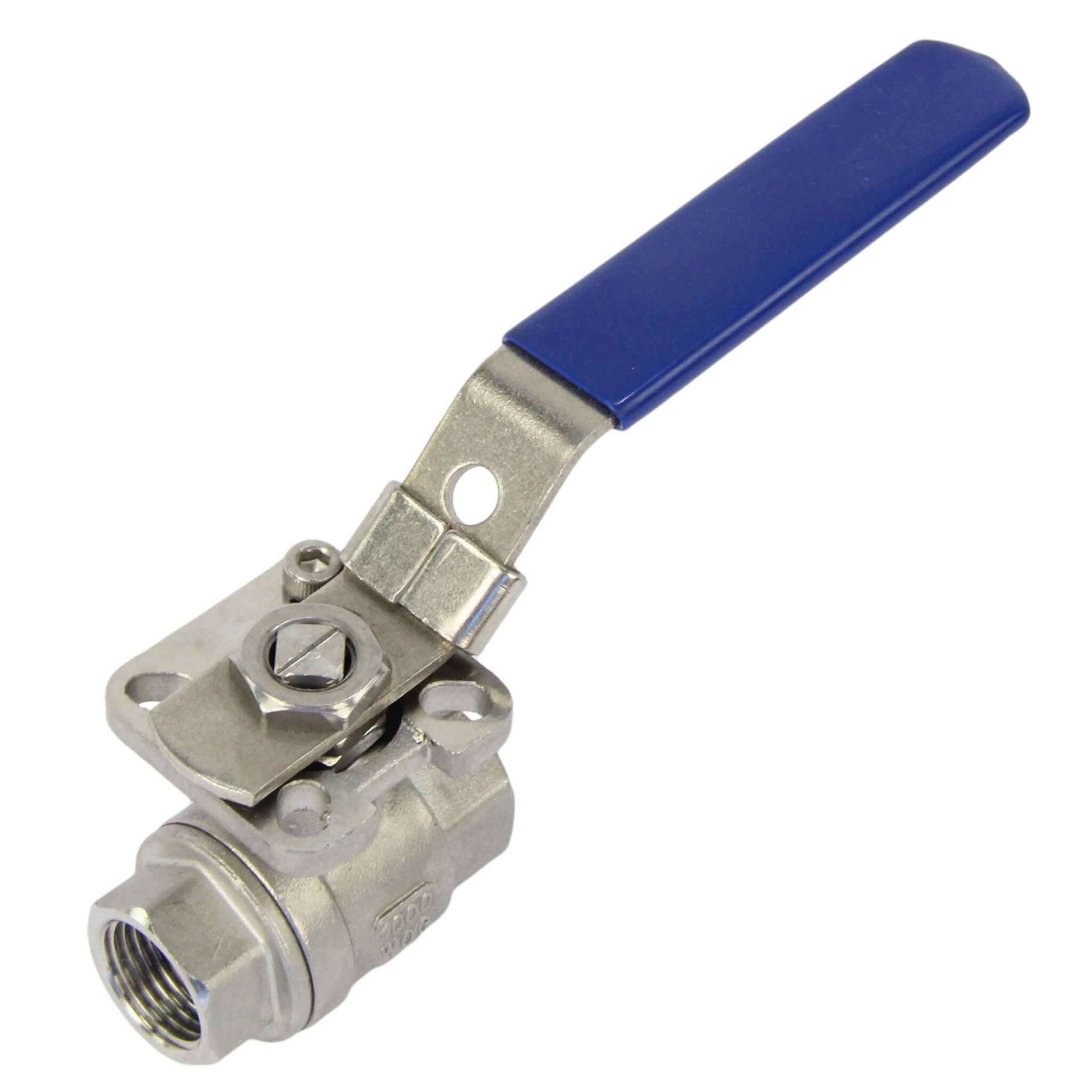

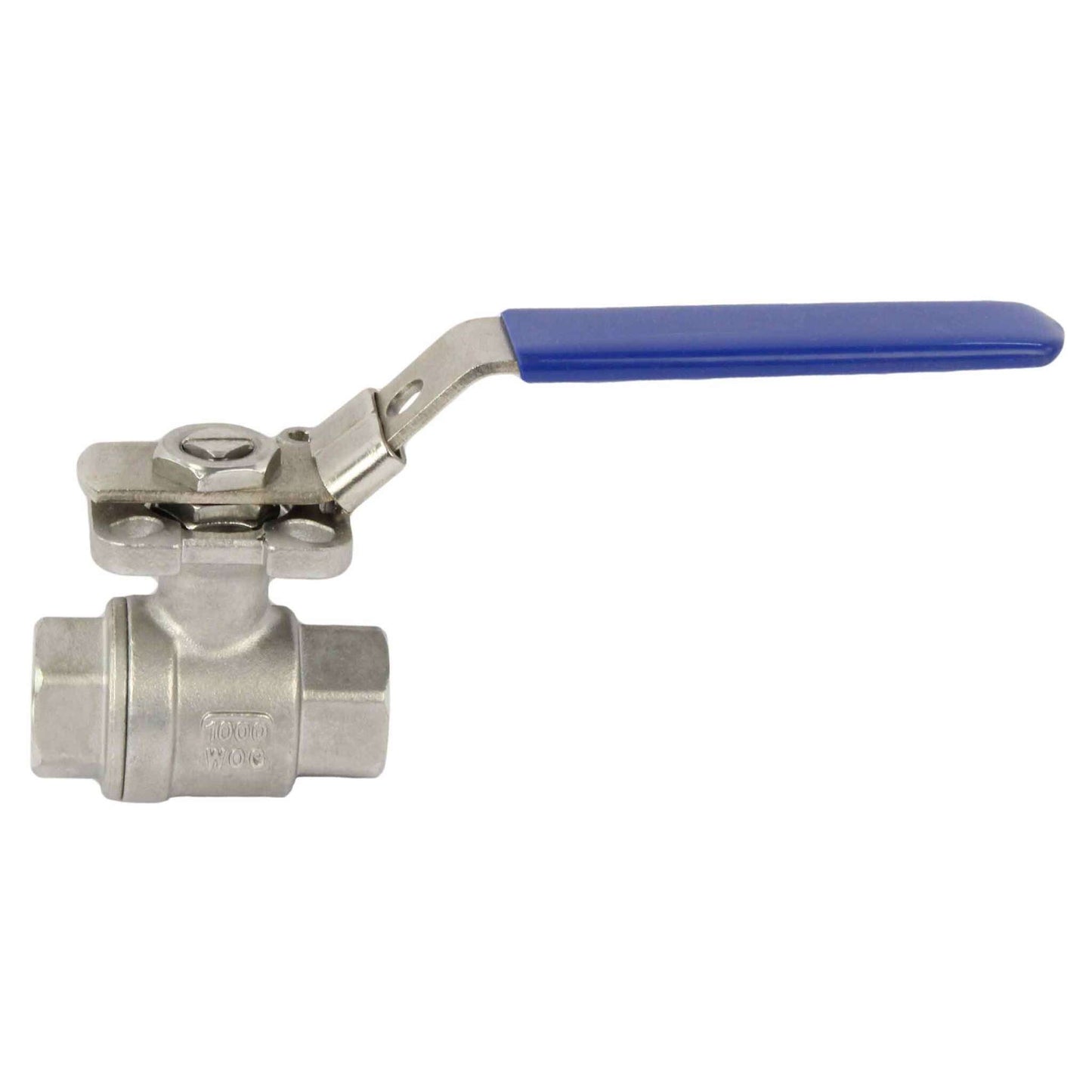

Stainless steel ball valve DNOVA BV.T.Fp.316.230-ISO PN63 is used as shut-off valves in heat supply systems, water supply, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of cranes of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the crane. The use of ball valves as control valves is not allowed.
Ball valve overall dimensions DNOVA BV3232P(2pc)-FP-T-ISO-H PN63, full port, Threaded connection, with ISO 5211 mounting pad and handle
| DN | Ød | L | H | H1 | Stem | Thread | ISO flange | Weight |
| 10 | 10 | 63 | 34 | 68 | 9x9 | 3/8" | F03, F04 | 0,435 |
| 15 | 15 | 58 | 37 | 68 | 9x9 | 1/2" | F03, F04 | 0.40 |
| 20 | 20 | 66 | 40 | 75 | 9x9 | 3/4" | F03, F04 | 0.53 |
| 25 | 24 | 72 | 54 | 88 | 11x11 | 1" | F04, F05 | 0.930 |
| 32 | 32 | 83 | 60 | 94 | 11x11 | 1 1/4" | F04, F05 | 1,195 |
| 40 | 38 | 95 | 70 | 118 | 14x14 | 1 1/2" | F05, F07 | 1,710 |
| 50 | 49 | 110 | 68 | 125 | 14x14 | 2" | F05, F07 | 2,22 |
| 65 | 64 | 147 | 94.5 | 143 | 17x17 | 2 1/2" | F07, F10 | 4,485 |
| 80 | 76 | 169 | 103.5 | 152 | 17x17 | 3" | F07, F10 | 5,97 |
| 100 | 98 | 204 | 122 | 169 | 19x19 | 4" | F07, F10 | 8,835 |
Ball Valve Detail Sketch DNOVA BV3232P(2pc)-FP-T-ISO-H PN63, full port, Threaded connection, with ISO 5211 mounting pad and handle
Ball valve component materials DNOVA BV3232P(2pc)-FP-T-ISO-H PN63, full port, Threaded connection, with ISO 5211 mounting pad and handle
| № | Part name | Material |
| 1, 6 | Body | steel 316 |
| 2, 4 | Ball seal | PTFE |
| 3 | Char | steel 316 |
| 5 | O-ring | PTFE |
| 7 | Stem | steel 316 |
| 8 | Stem seal | VITON |
| 9 | Stem nut | steel 316 |
| 10 | Handle | stainless steel |
Ball Valve Detail Sketch DNOVA BV3232P(2pc)-FP-T-ISO-H PN63, full port, Threaded connection, with ISO 5211 mounting pad and handle
