Description

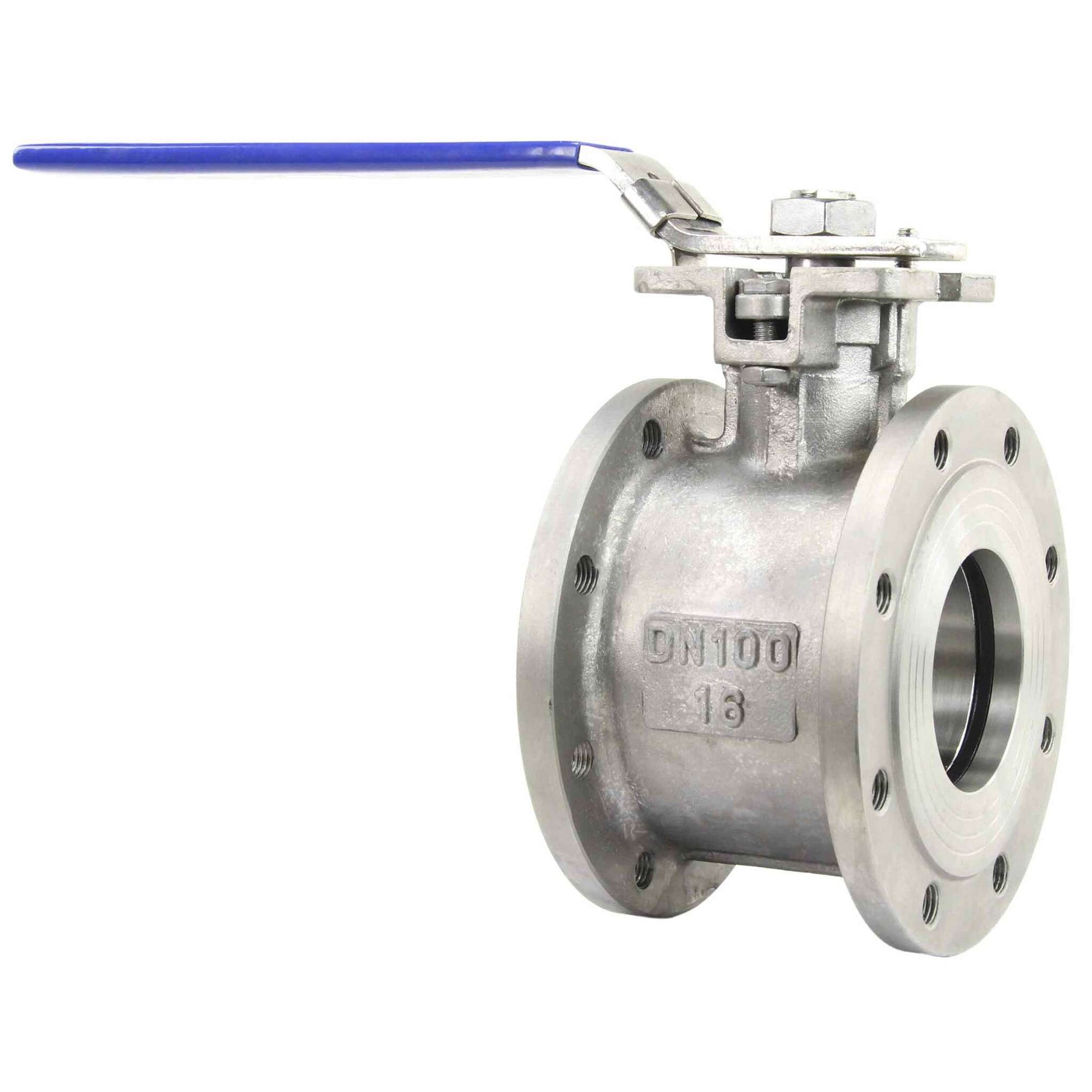

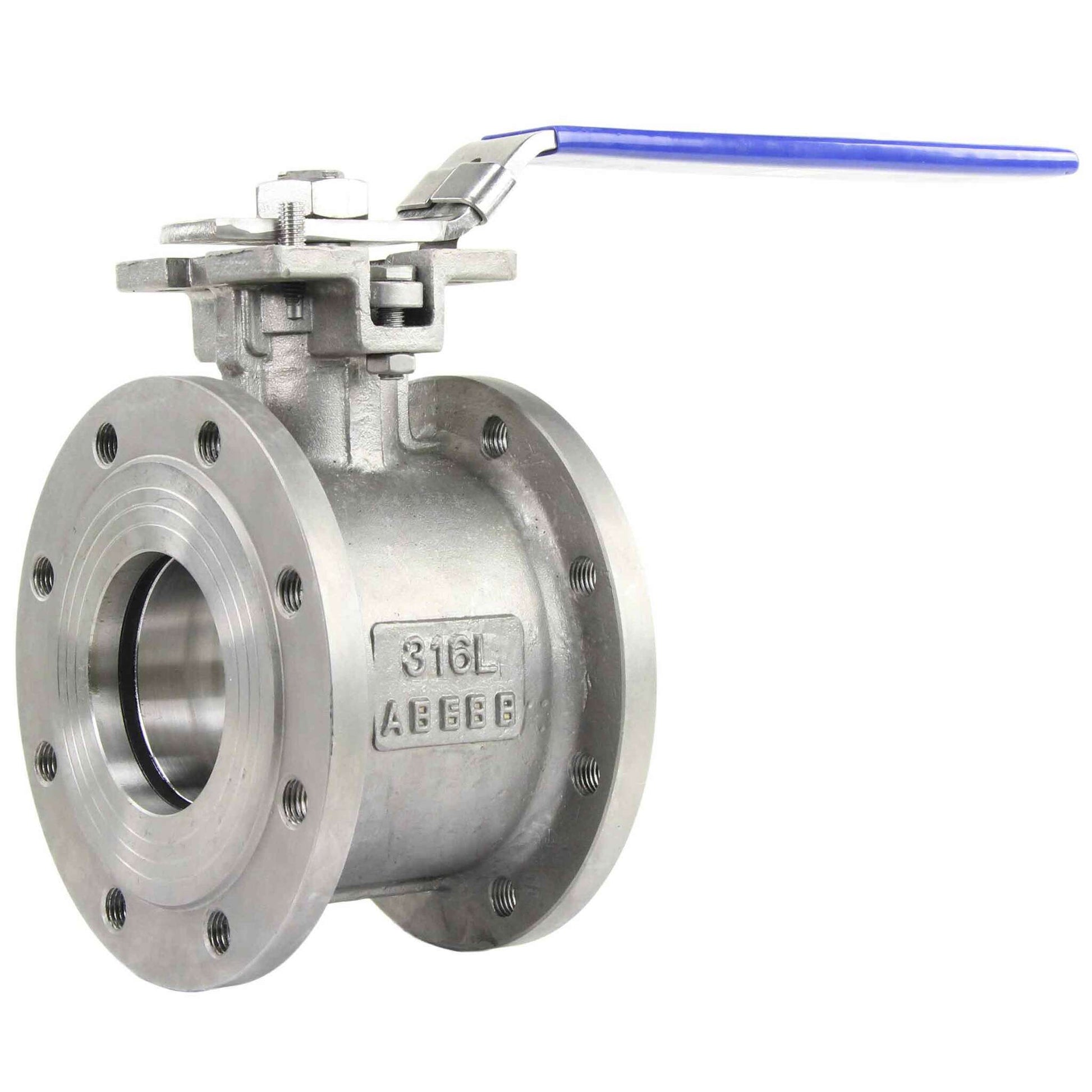

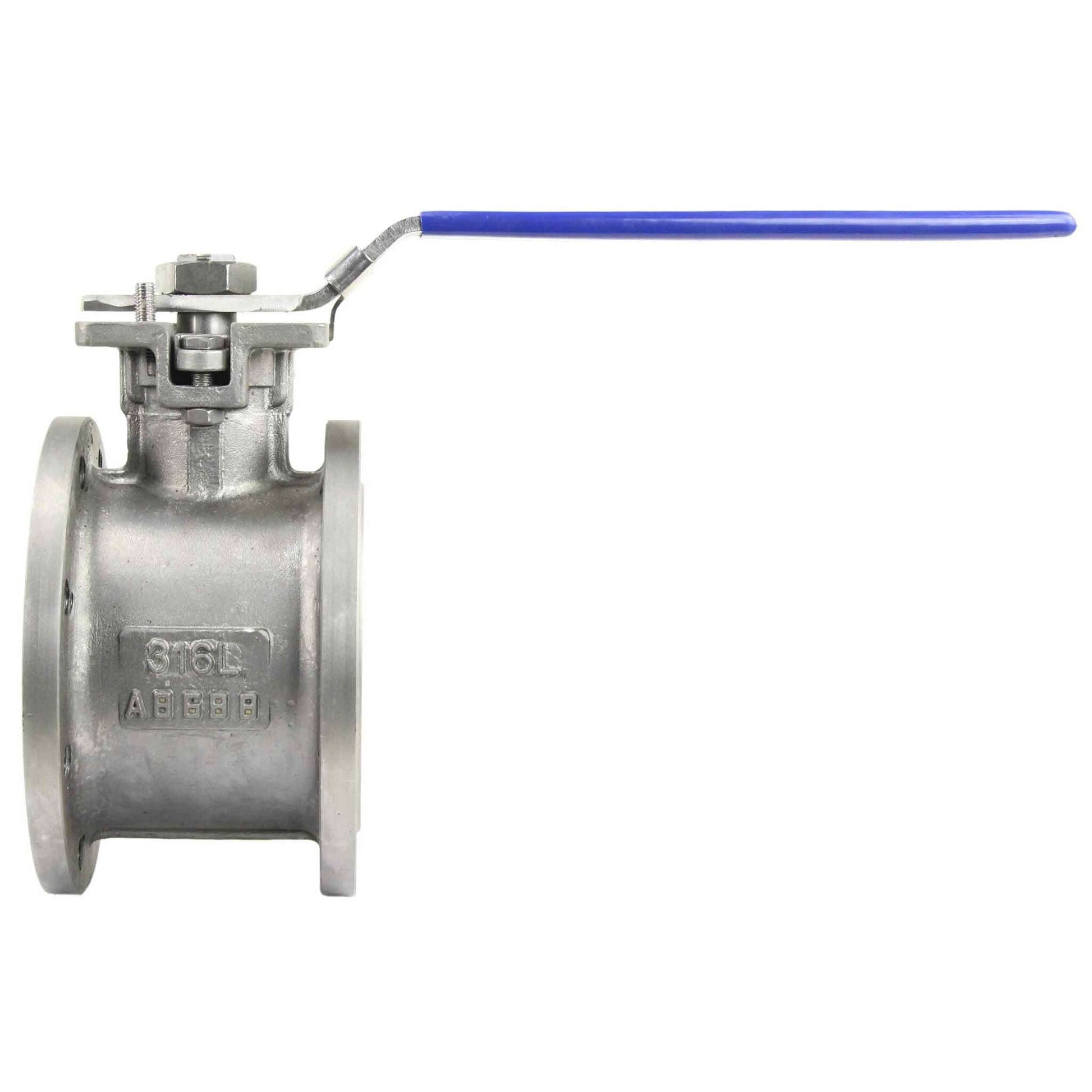

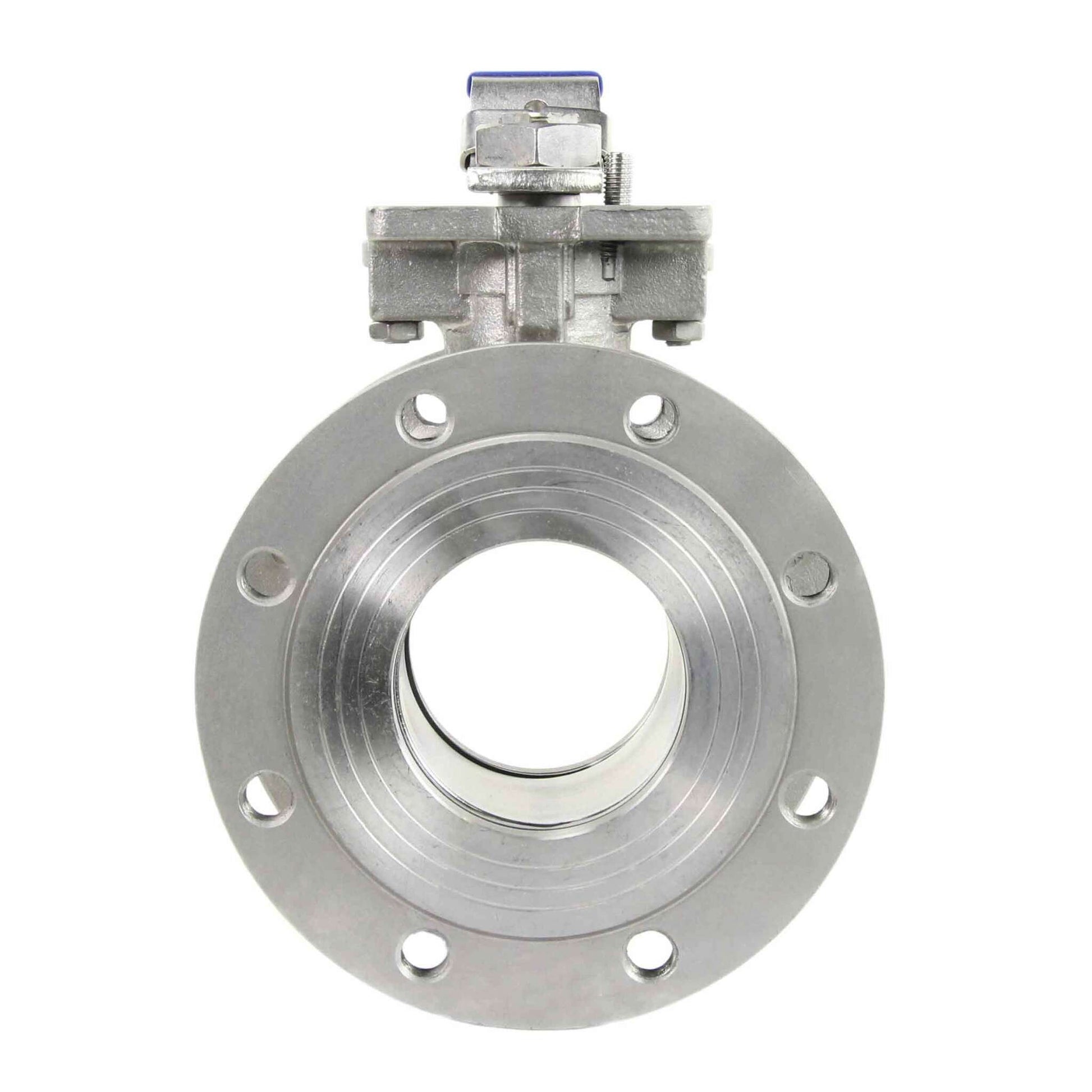

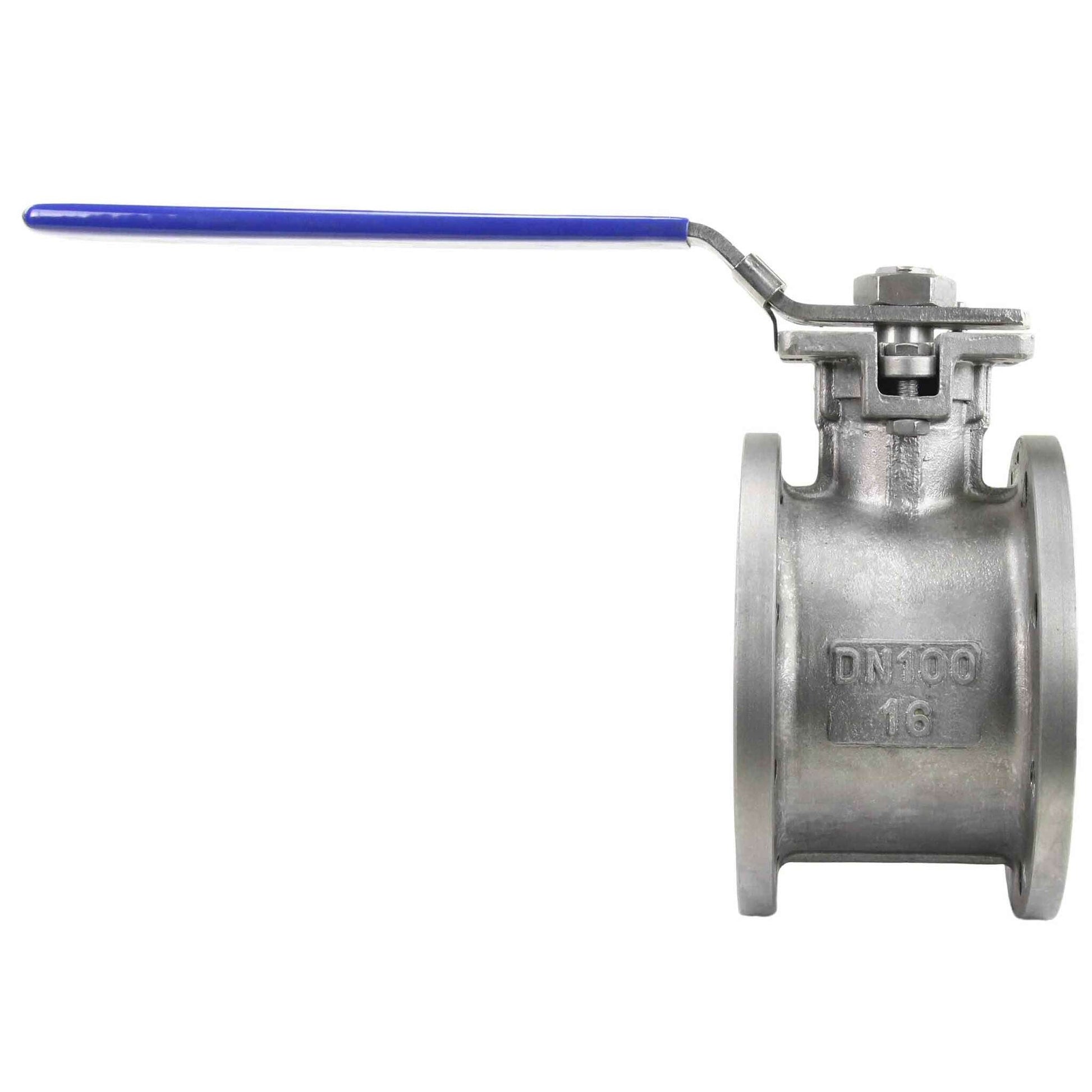

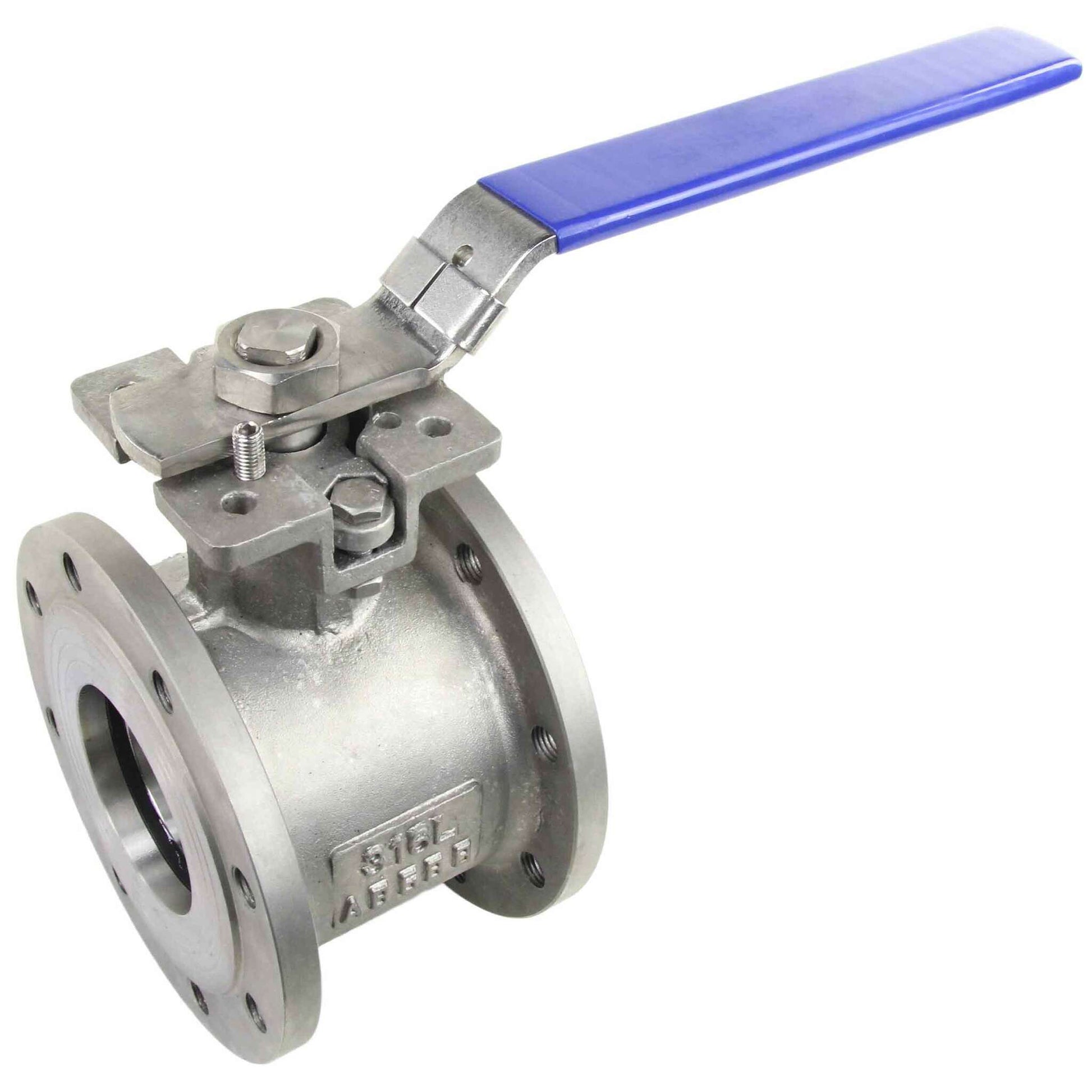

Stainless steel ball valve DNOVA BV3232P-FP-Fb-ISO-H PN16, full port, compact flanged connection Class 150, with ISO 5211 mounting pad and handle is used as shut-off valves in water supply systems, heat supply, fuel, steam and pneumatic systems with neutral gases and compressed air. Installation of cranes of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the crane. It is not allowed to use ball valves as control valves.
Technical specifications DNOVA BV3232P-FP-Fb-ISO-H stainless steel ball valves PN16, full bore, compact flange connection class 150, with mounting pad and handle to ISO 5211:
| Nominal diameter DN, mm | 15 - 100 |
| Nominal pressure PN, bar | 16 |
| Ambient temperature, ⁰C | from -50 to +200 |
| Working medium | water, steam, oil products and other liquid or gaseous media neutral to the materials used |
| Connection to pipeline | interflange |
| Control type | manual (handle) |
| Ball passage | full bore without constriction |
| Complement | electric or pneumatic actuator can be installed (ISO 5211-2001) |
Dimensions and dimensions of DNOVA BV3232P-FP-Fb-Fb-ISO-H PN16 stainless steel ball valves, full bore, compact flange connection class 150, with mounting pad and handle to ISO 5211
| Model | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 | DN65 | DN80 | DN100 |
| d, mm | 15 | 20 | 25 | 32 | 36 | 46 | 58 | 73 | 90 |
| D2, mm | 45 | 58 | 68 | 78 | 88 | 102 | 122 | 138 | 158 |
| D1, mm | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 180 |
| D, mm | 95 | 105 | 115 | 140 | 150 | 165 | 185 | 200 | 220 |
| T, mm | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 |
| C, mm | 14 | 16 | 16 | 16 | 16 | 18 | 18 | 20 | 20 |
| N-MM | 4-M12 | 4-M12 | 4-M12 | 4-M16 | 4-M16 | 4-M16 | 4-M16 | 8-M16 | 8-M16 |
| L, mm | 42 | 48 | 50 | 60 | 65 | 80 | 110 | 120 | 150 |
| H, mm | 70 | 86 | 93 | 101 | 121 | 129 | 140 | 157 | 180 |
| W, mm | 130 | 130 | 165 | 165 | 190 | 190 | 255 | 315 | 325 |
| SxS, mm | 9x9 | 9x9 | 11x11 | 11x11 | 14x14 | 14x14 | 17x17 | 17x17 | 17x17 |
| A, mm | 50 | 50 | 50 | 50 | 70 | 70 | 102 | 102 | 102 |
| B, mm | 36 | 36 | 42 | 42 | 50 | 50 | 70 | 70 | 70 |
| IS05211 | F03/F05 | F03/F05 | F04/F05 | F04/F05 | F05/F07 | F05/F07 | F07/F10 | F07/F10 | F07/F10 |
Ball Valve Detail Sketch DNOVA BV3232P-FP-Fb-ISO-H PN16, full port, compact flanged connection Class 150, with ISO 5211 mounting pad and handle
Parts and materials table for DNOVA BV3232P-FP-Fb-ISO-H stainless steel ball valves PN16, full bore, compact flange connection, class 150, with mounting pad and handle to ISO 5211:
| № | Parts | Material |
| 1 | Nut | Steel 304 |
| 2 | Handle | Steel 201+PVC |
| 3 | Washer | Steel 304 |
| 4 | Locking ring | Steel 304 |
| 5 | Thrust washer | Steel 304 |
| 6 | Gland washer | Steel 304 |
| 7 | Gland | PTFE |
| 8 | Stop gasket | PTFE |
| 9 | Rod | Steel 316 |
| 10 | Ball cover | Steel 316 |
| 11 | Ball | Steel 316 |
| 12 | Ball seal | PTFE |
| 13 | Gasket | PTFE |
| 14 | Body | Steel 316 |
Ball Valve Detail Sketch DNOVA BV3232P-FP-Fb-ISO-H PN16, full port, compact flanged connection Class 150, with ISO 5211 mounting pad and handle
Specifications
