Description

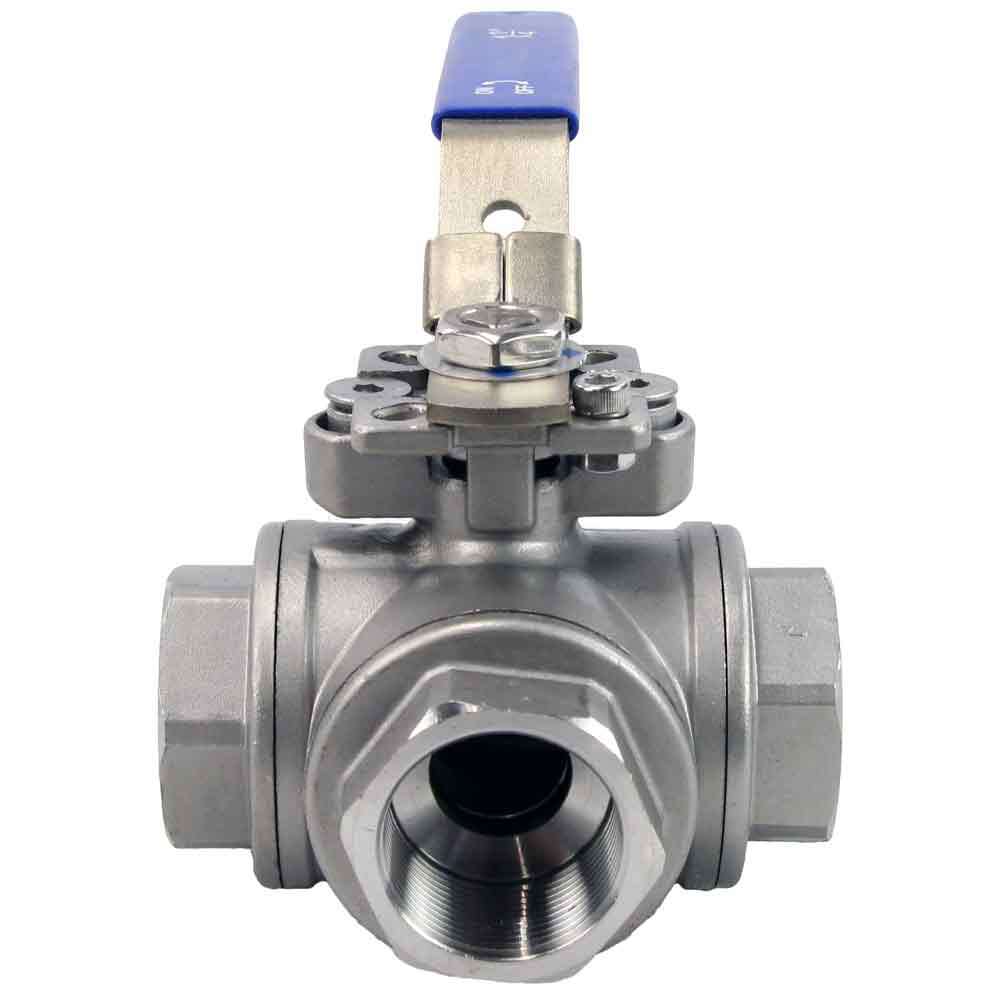

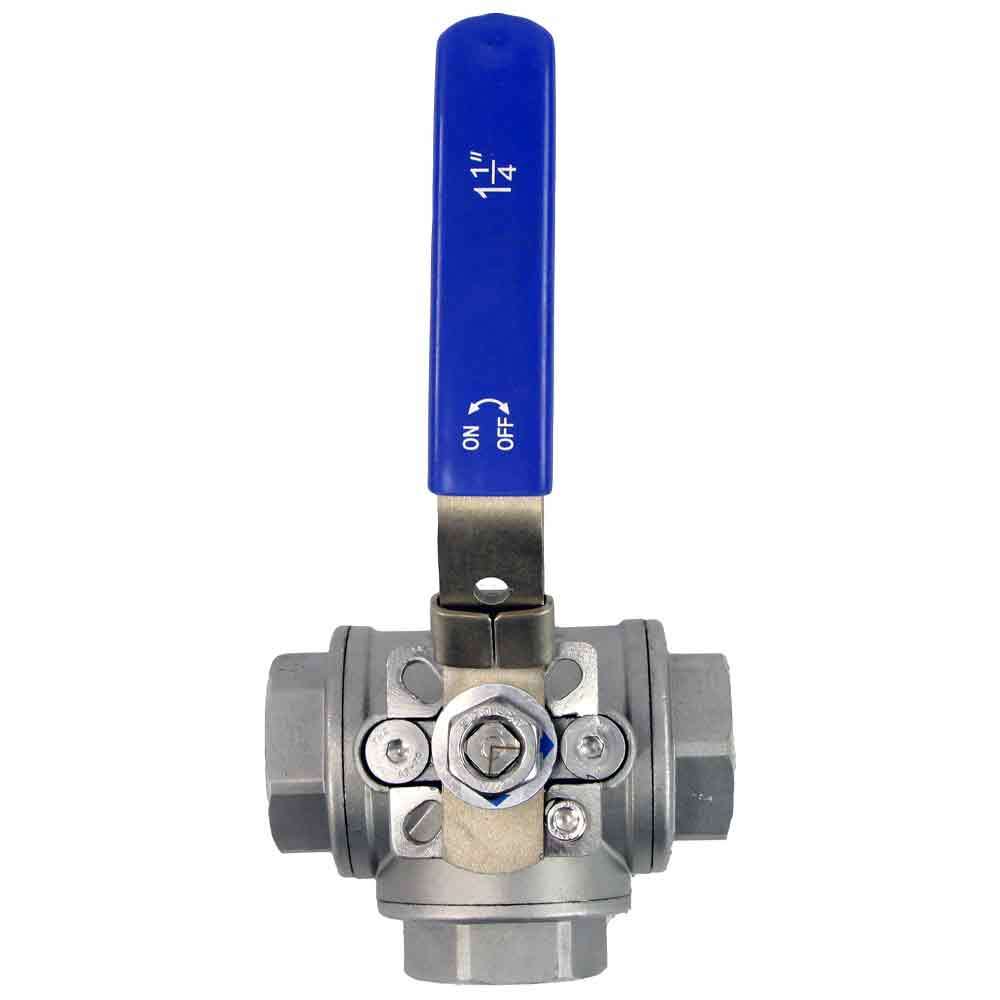

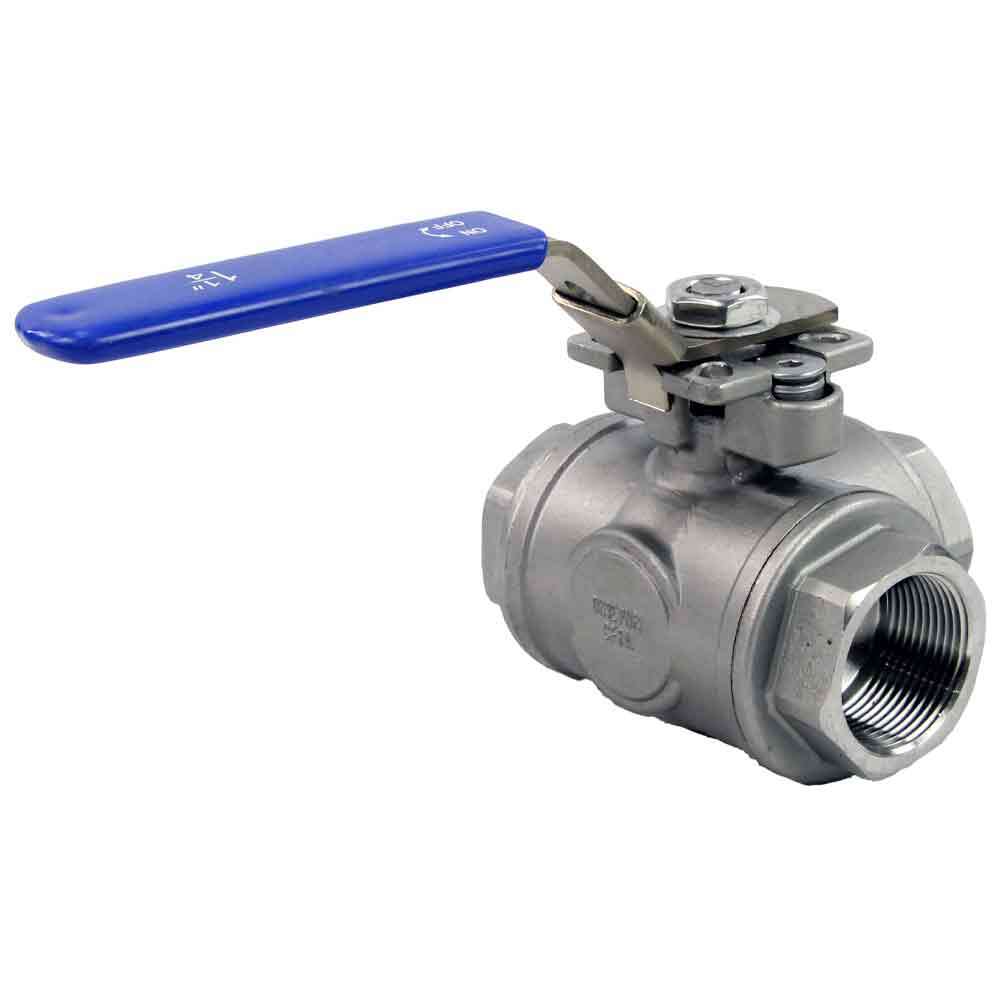

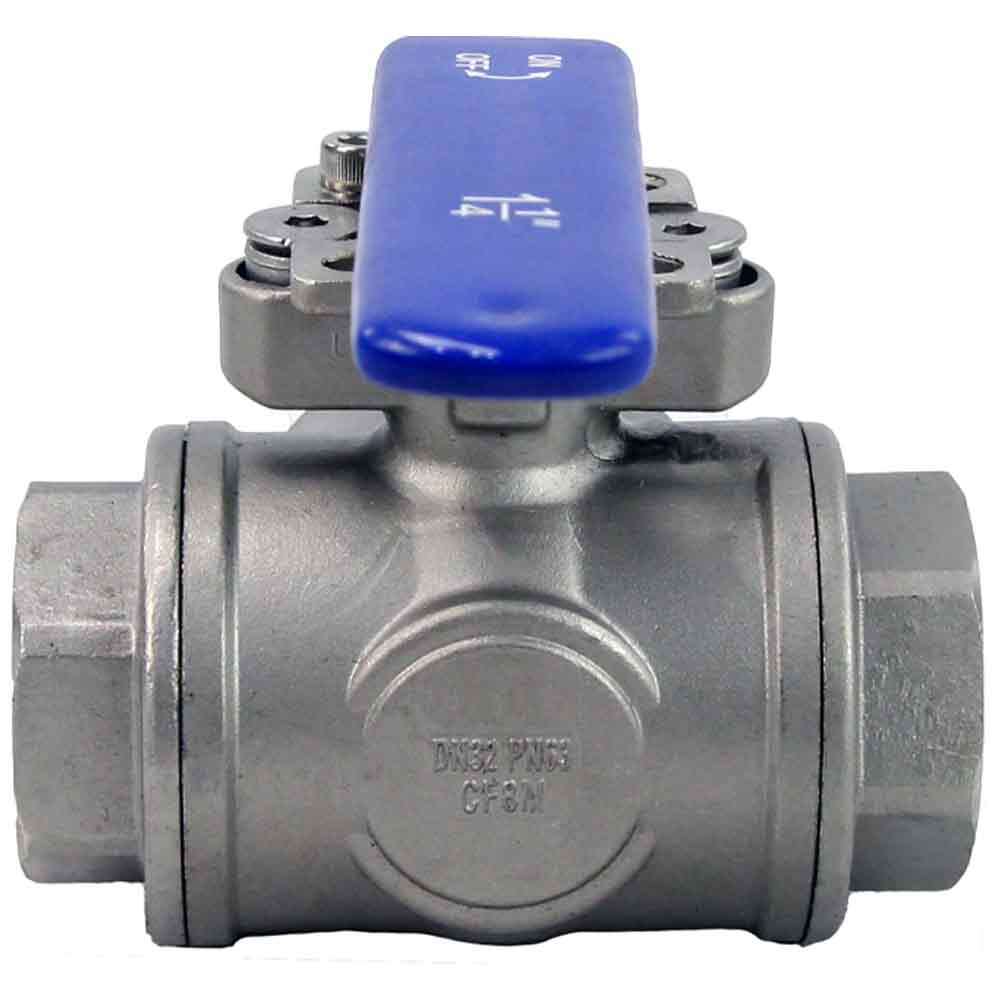

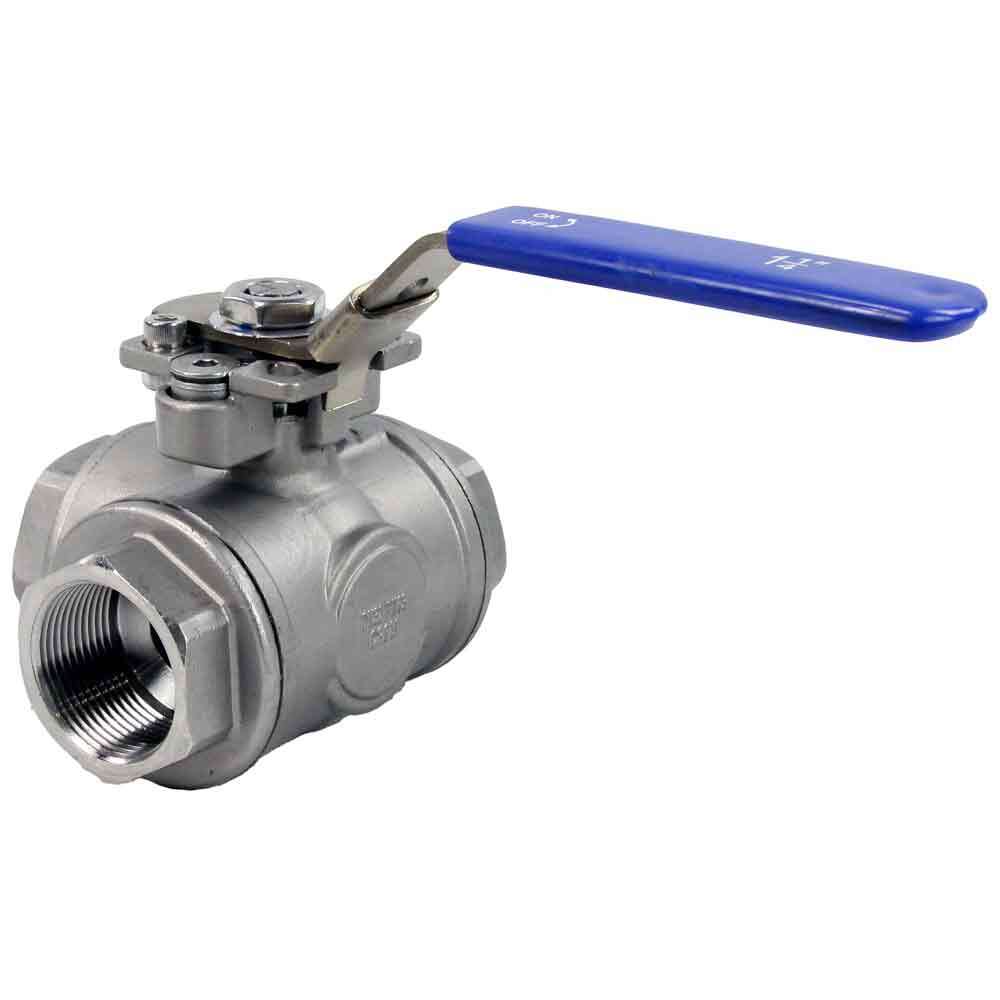

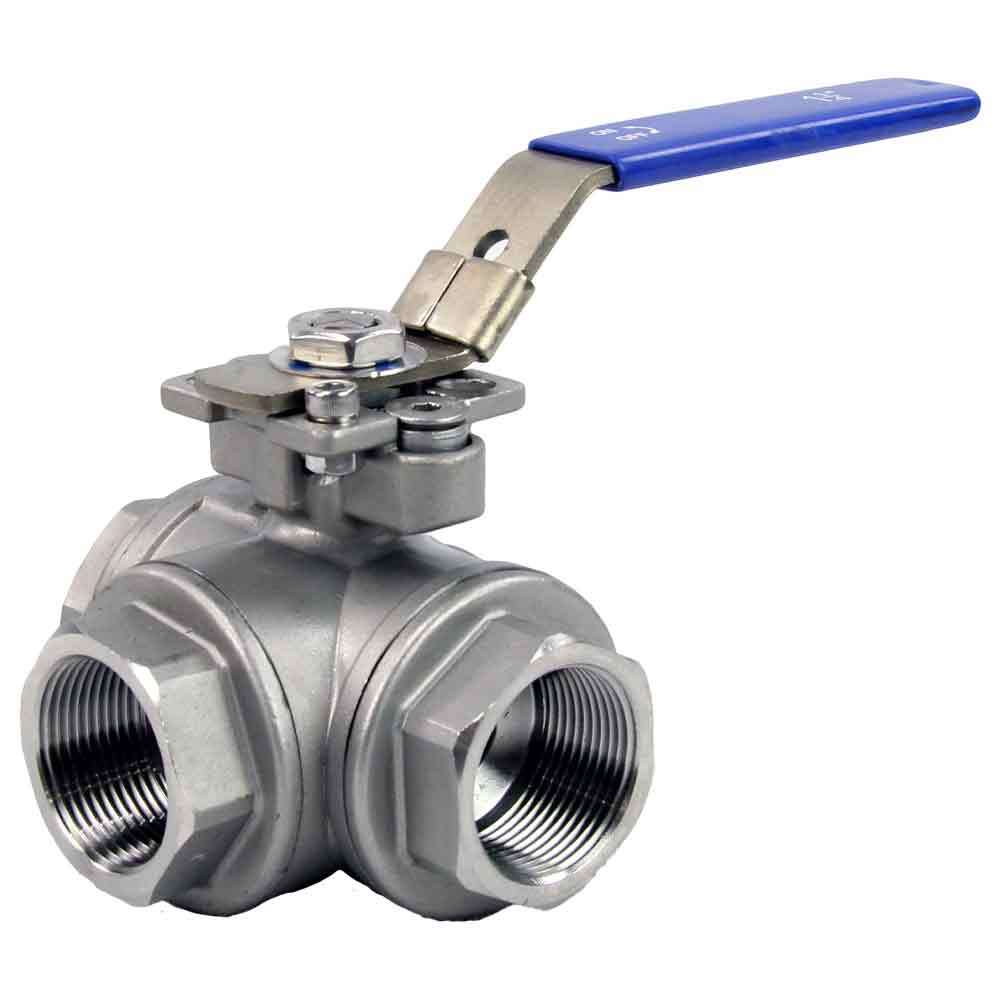

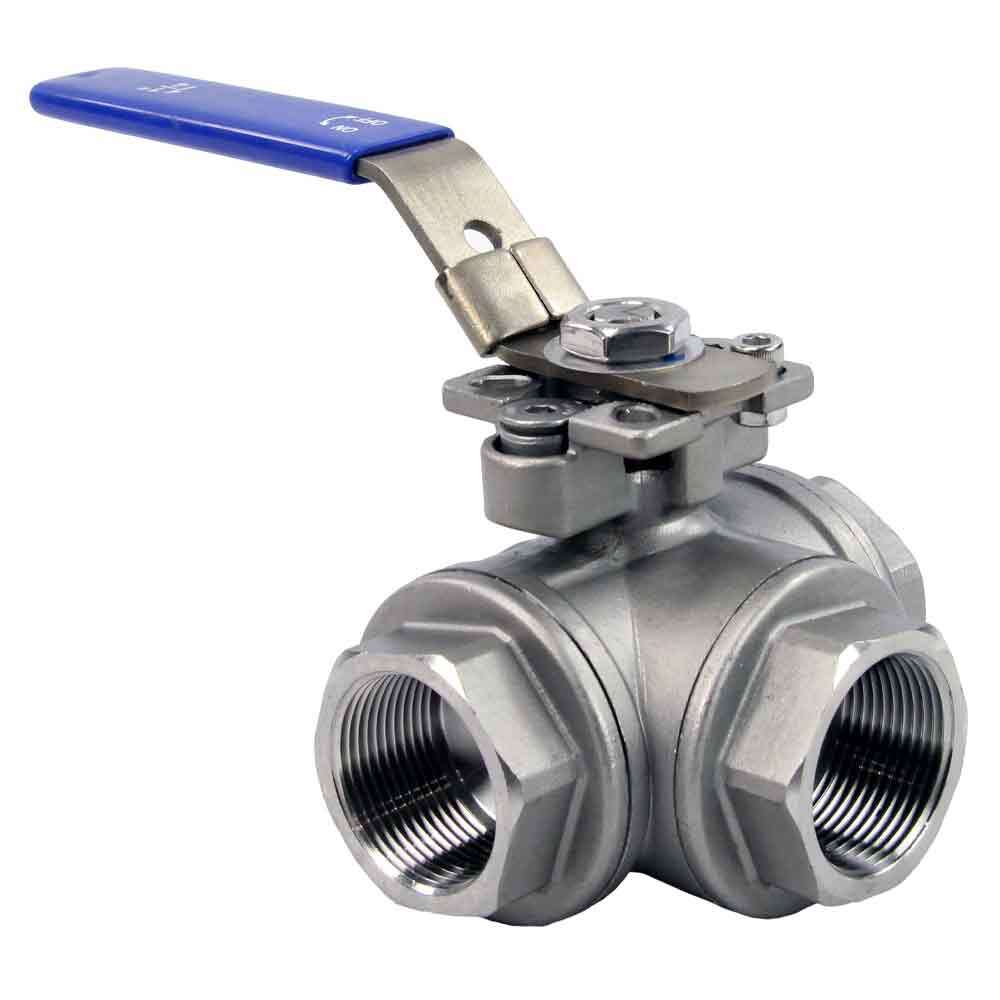

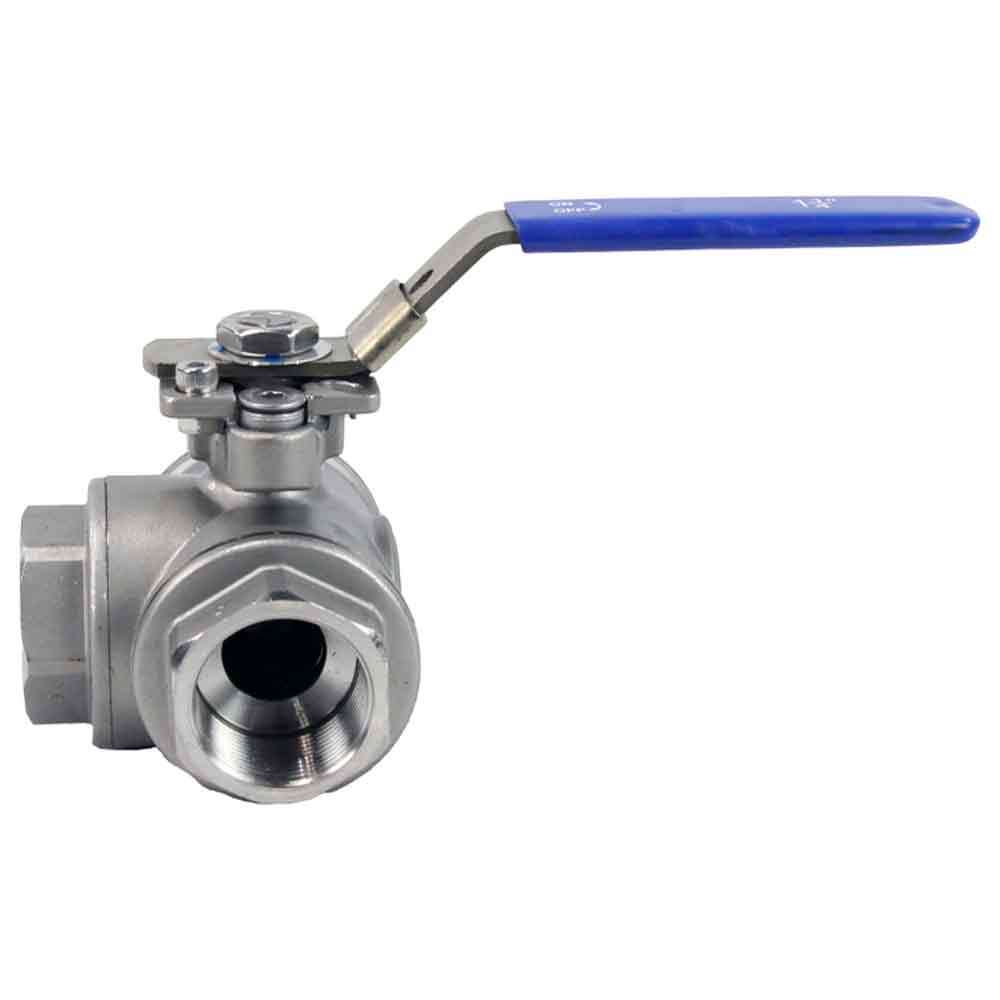

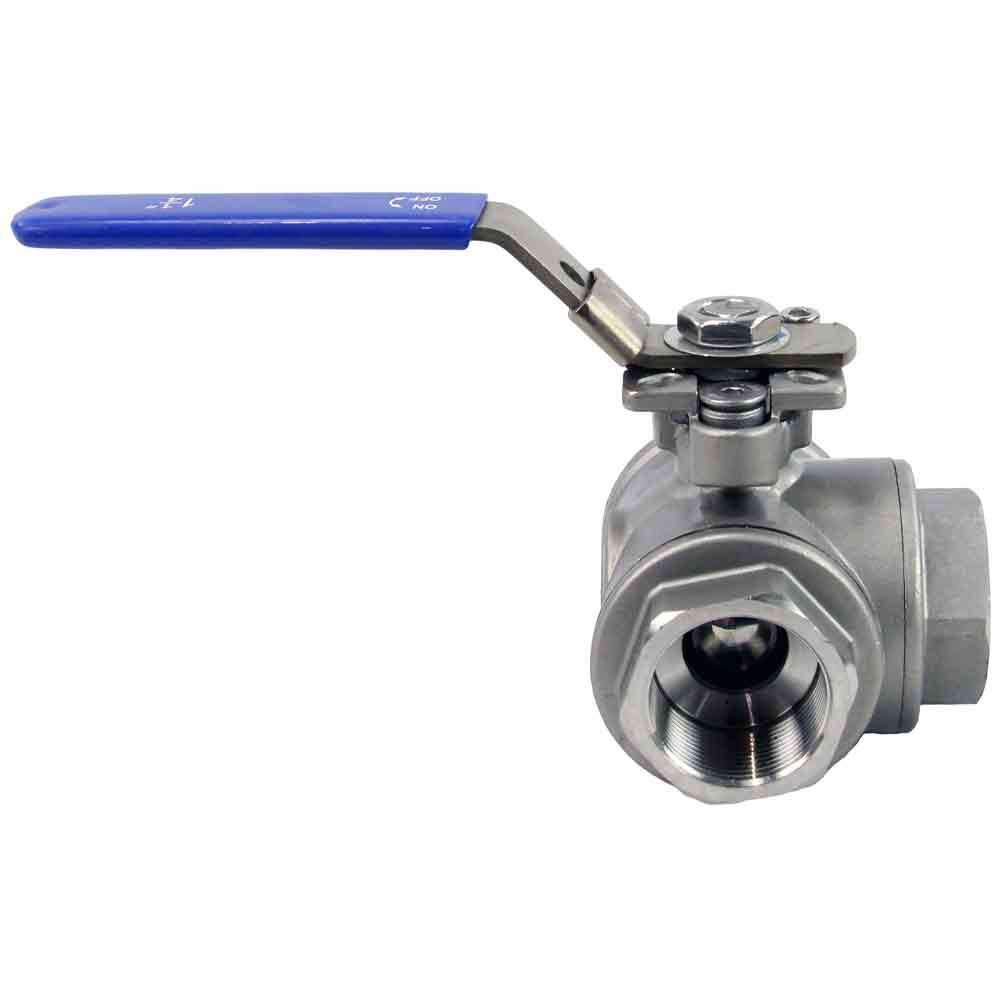

Stainless steel ball valve DNOVA RP.SS316.200.MM 986 psi with ISO 5211 mounting pad and handle is used as a shut-off valve in heat and water supply systems, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are non-aggressive to the materials of the valve.
Ball valve overall dimensions DNOVA RP.SS316.200.MM 986 psi with ISO 5211 mounting pad and handle
Ball Valve Detail Sketch DNOVA RP.SS316.200.MM 986 psi with ISO 5211 mounting pad and handle
| DN | D | L±1.5 | L1 | H1 | H | T | C | ISO 5211 | Weight T-type |
| 10 | 10 | 71 | 55 | 13 | 56 | 100 | 9 | F03/F04 | 0,580 |
| 15 | 12 | 71 | 55 | 13 | 55 | 131 | 9 | F03/F04 | 0,565 |
| 20 | 15 | 82 | 63 | 10 | 73 | 131 | 9 | F03/F04 | 0,805 |
| 25 | 18 | 98 | 72 | 13 | 78,5 | 167 | 11 | F04/F05 | 1,190 |
| 32 | 25 | 118 | 92 | 12 | 90 | 167 | 11 | F04/F05 | 2,215 |
| 40 | 32 | 122 | 100 | 20 | 115 | 193 | 14 | F05/F07 | 3,380 |
| 50 | 38 | 150 | 119 | 19 | 122 | 193 | 14 | F05/F07 | 4,505 |
| 65 | 50 | 178 | 142 | 20 | 138 | 242 | 17 | F07/F10 | 6,870 |
| 80 | 64 | 202 | 163 | 18 | 163 | 150 | 17 | F07/F10 | 9,670 |
| 100 | 78 | 231 | 192 | 25 | 192 | 154 | 17 | F07/F10 | 13,725 |
Ball valve component materials DNOVA RP.SS316.200.MM 986 psi with ISO 5211 mounting pad and handle
Ball Valve Detail Sketch DNOVA RP.SS316.200.MM 986 psi with ISO 5211 mounting pad and handle
| № | Part name | Material | Quantity |
| 1 | Cover | SS316 | 3 |
| 2 | Saddle rings | PPL | 4 |
| 3 | Connection gasket | PTFE/RPTFE | 3 |
| 4 | thrust washer | PTFE/RPTFE | 1 |
| 5 | Sealing | PTFE/RPTFE | 1 |
| 6 | Stem | S304 / S316 | 1 |
| 7 | gland | SS304 | 1 |
| 8 | Nut | SS304 | 2 |
| 9 | bolt ball | S304 / S316 | 1 |
| 10 | Body | SS316 | 1 |
| 11 | Handle | S304 | 1 |
| 12 | Handle shell | PVC | 1 |
| 13 | Stopper | SS304 | 1 |
