Description

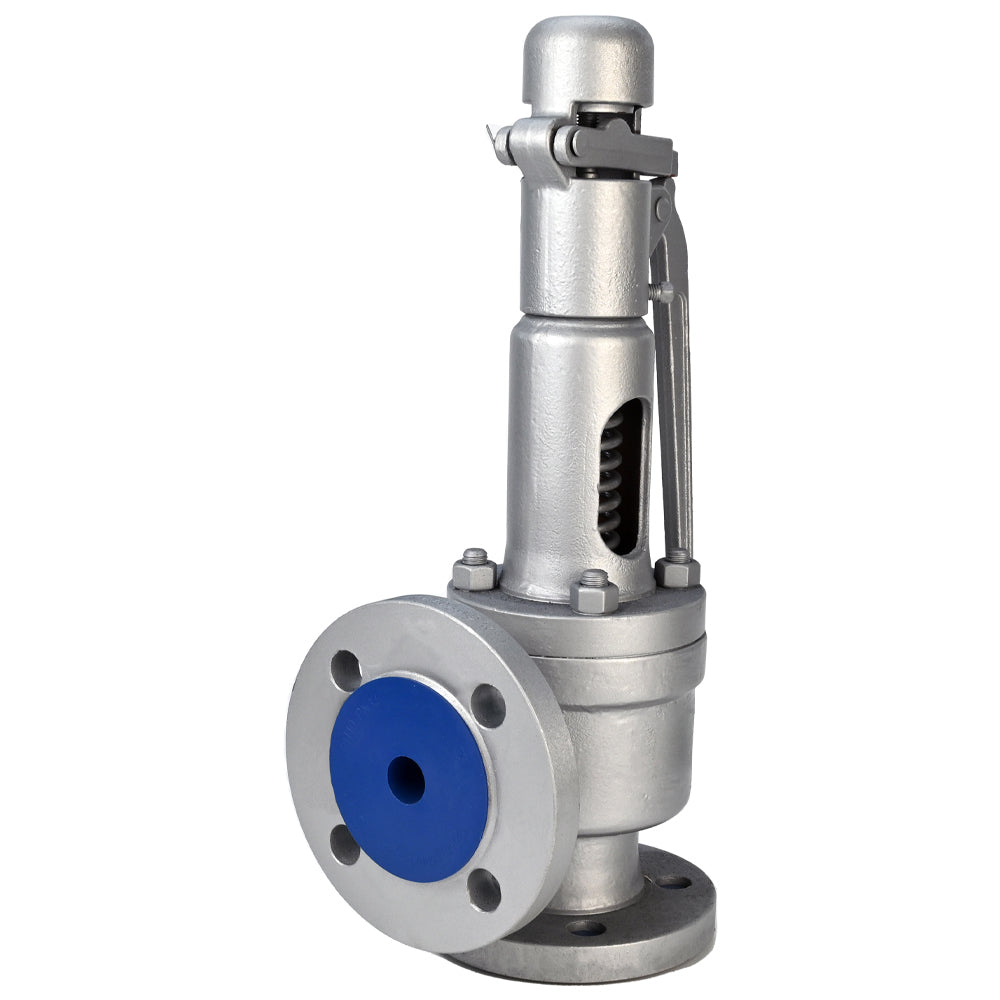

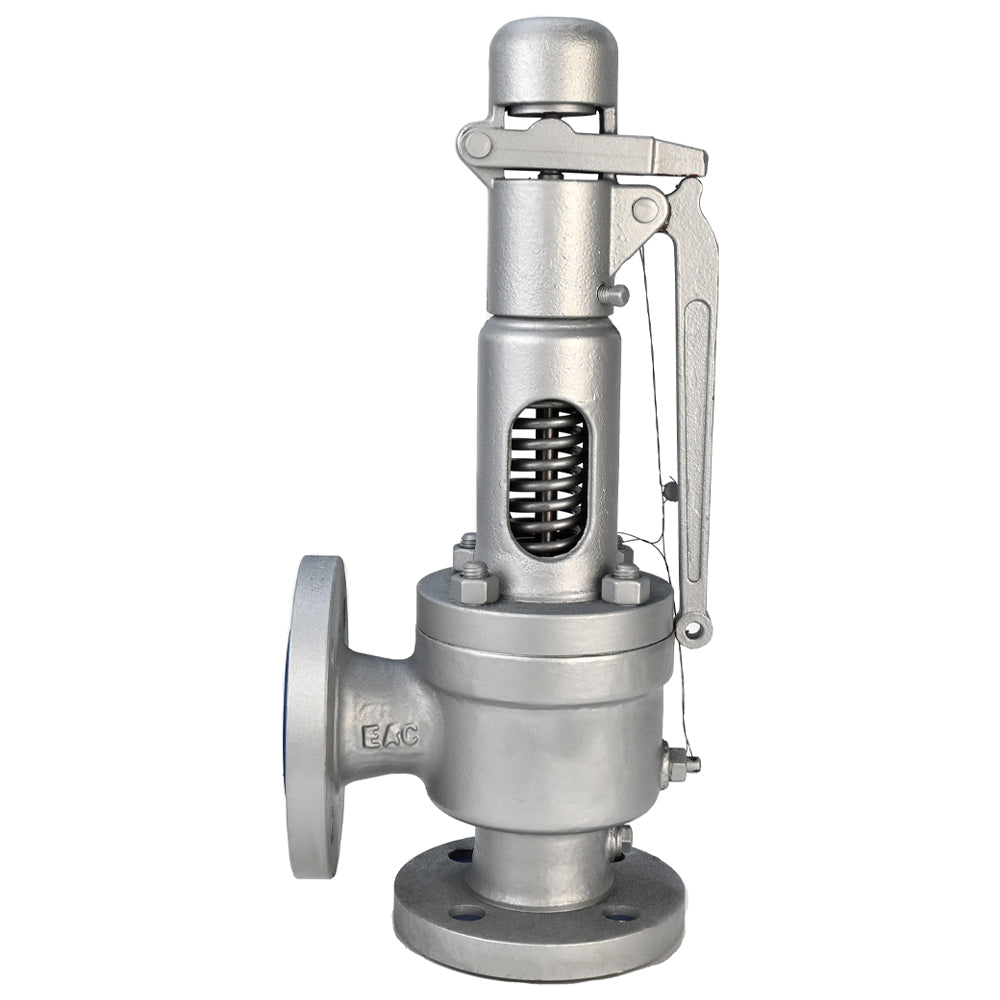

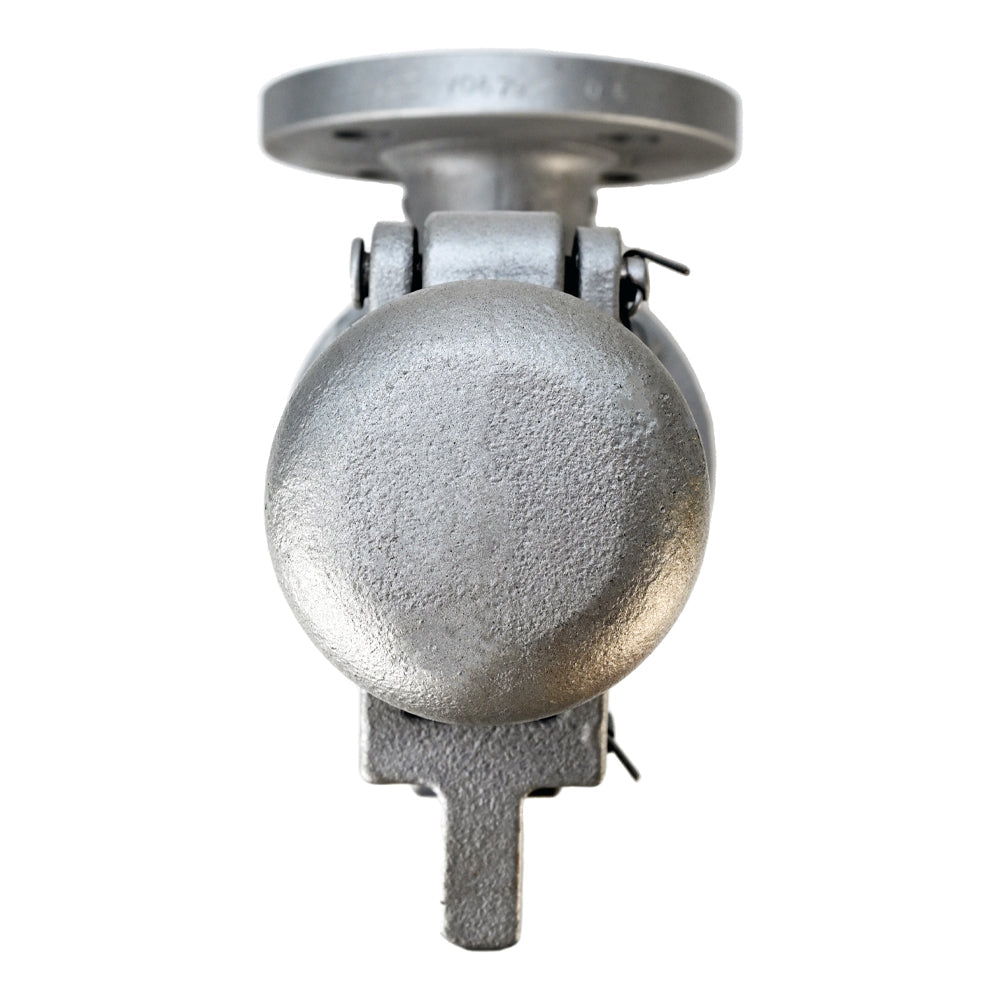

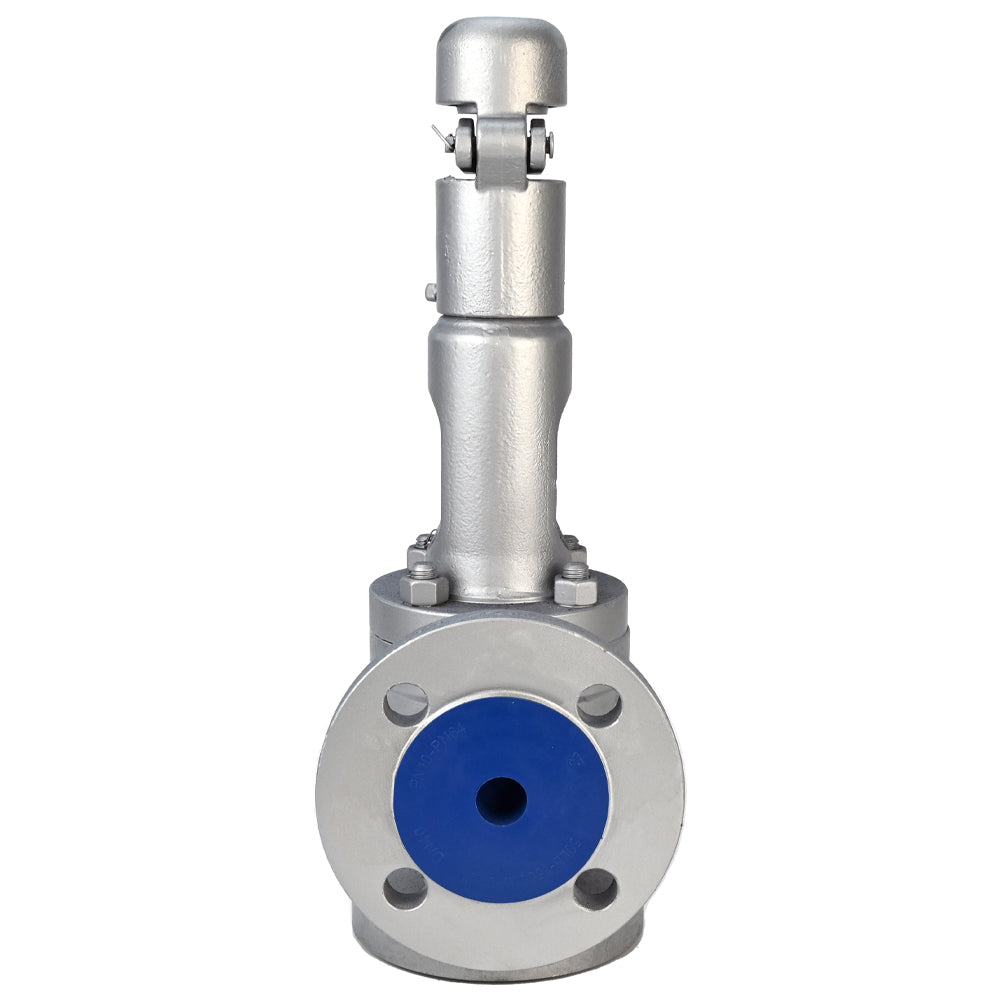

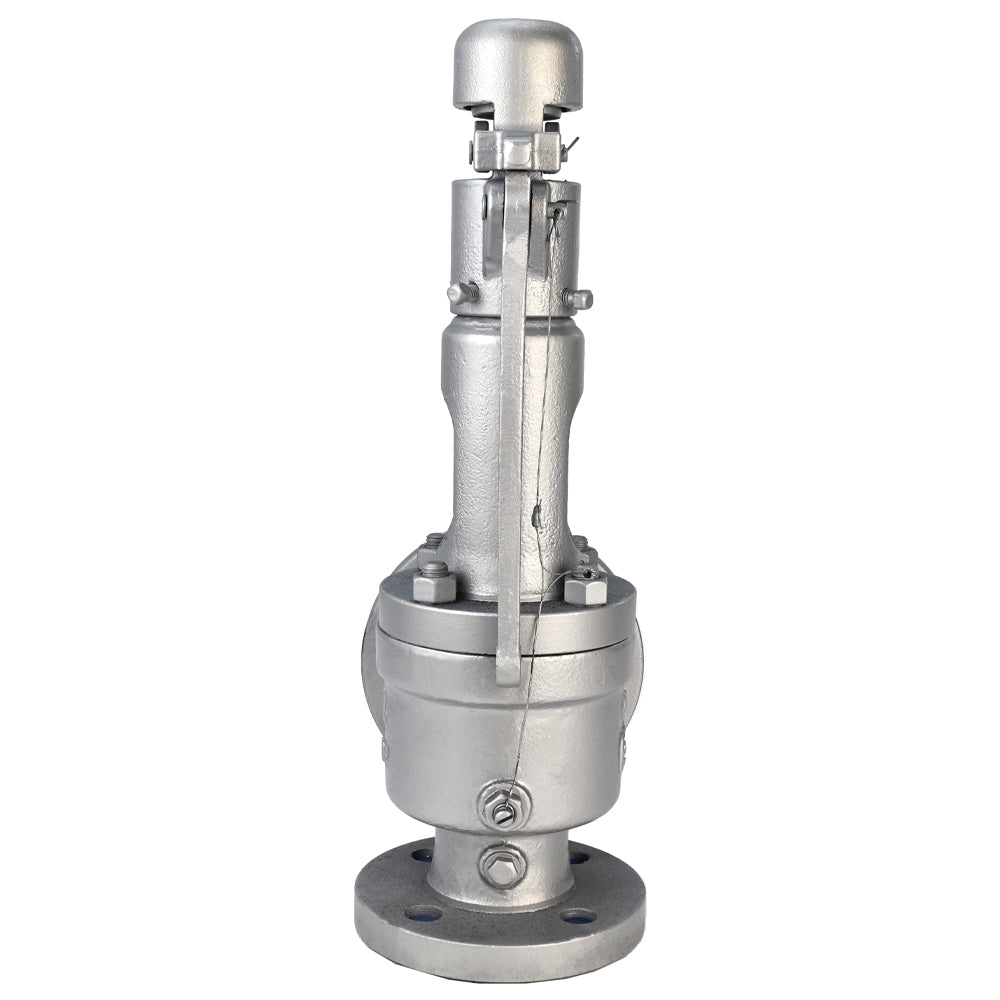

A spring safety valve is a device used to automatically reduce excess pressure in systems, preventing it from exceeding established safety limits. It consists of a valve, a spring, and a setting that determines the valve's opening pressure.
When the pressure in the system reaches a certain level, the spring activates, opening the valve and allowing excess pressure to escape, preventing damage to equipment or the system due to overpressure. Spring safety valves are widely used in various industrial and technical systems to ensure their safety and reliability.
Technical data of safety valves DNOVA VR3430M-F DN25x32/300x400 PN16
| Nominal diameter DN, mm |
25-300 (inlet); 32-400 (outlet) |
| Working pressure PN, bar | 16 |
| Setting pressure ranges, bar |
0.6÷1; 1÷1.6; 1.6÷2.5; 2.5÷4; 4÷6; 6÷8; 8÷10; 10÷13; 13÷16 |
| Allowable pressure behind the valve, bar | 16 |
| Temperature of working environment t, ⁰C | ≤300 |
| Working environment | water, steam, air |
| Connection to the pipeline | flanged |
| Body material | WCB steel |
| Seal material | steel 20X13 |
| Application areas | heating and water supply systems; compressed air pipelines; steam plants; industrial pipelines |
Sketch of dimensions of safety valves DNOVA VR3430M-F DN25x32/300x400 PN16
Weight and dimensions of safety valves DNOVA VR3430M-F DN25x32/300x400 PN16
| D.N. | ØD1, mm | ØD2, mm | ØD3, mm | b, mm | f, mm | n-Ød, mm | L, mm |
| 25 | 115 | 85 | 65 | 14 | 2 | 4-14 | 110 |
| 32 | 140 | 100 | 78 | 16 | 2 | 4-18 | 115 |
| 40 | 150 | 110 | 85 | 16 | 3 | 4-18 | 120 |
| 50 | 165 | 125 | 100 | 16 | 3 | 4-18 | 135 |
| 65 | 185 | 145 | 120 | 18 | 3 | 4-18 | 160 |
| 80 | 200 | 160 | 135 | 20 | 3 | 8-18 | 170 |
| 100 | 220 | 180 | 155 | 20 | 3 | 8-18 | 195 |
| 125 | 250 | 210 | 185 | 22 | 3 | 8-18 | 210 |
| 150 | 285 | 240 | 210 | 24 | 3 | 8-23 | 255 |
| 200 | 340 | 295 | 265 | 26 | 3 | 12-23 | 300 |
| 250 | 405 | 355 | 320 | 30 | 3 | 12-26 | 350 |
| 300 | 460 | 410 | 375 | 30 | 4 | 12-26 | 380 |
| DN ' | ØD1', mm | ØD2', mm | ØD3', mm | b ', mm | f ', mm | n-Ød ', mm | L1, mm |
| 32 | 140 | 100 | 78 | 16 | 2 | 4-18 | 95 |
| 40 | 150 | 110 | 85 | 16 | 3 | 4-18 | 100 |
| 50 | 165 | 125 | 100 | 16 | 3 | 4-18 | 110 |
| 65 | 185 | 145 | 120 | 18 | 3 | 4-18 | 120 |
| 80 | 200 | 160 | 135 | 20 | 3 | 8-18 | 135 |
| 100 | 220 | 180 | 155 | 20 | 3 | 8-18 | 135 |
| 125 | 250 | 210 | 185 | 22 | 3 | 8-18 | 175 |
| 150 | 285 | 240 | 210 | 24 | 3 | 8-23 | 190 |
| 200 | 340 | 295 | 265 | 26 | 3 | 12-23 | 230 |
| 250 | 405 | 355 | 320 | 30 | 3 | 12-26 | 260 |
| 300 | 460 | 410 | 375 | 30 | 4 | 12-26 | 320 |
| 400 | 580 | 525 | 485 | 36 | 4 | 16-30 | 350 |
| DN - DN' | H, mm | Area of the flow channel, mm2 | Weight, kg |
| 25-32 | 315 | 177 | 11 |
| 32-40 | 315 | 314 | 13 |
| 40-50 | 325 | 491 | 15 |
| 50-65 | 335 | 804 | 20 |
| 65-80 | 420 | 1256 | 30 |
| 80-100 | 435 | 1963 | 32 |
| 100-125 | 565 | 3317 | 60 |
| 125-150 | 640 | 5024 | 75 |
| 150-200 | 665 | 7850 | 90 |
| 200-250 | 800 | 12266 | 160 |
| 250-300 | 975 | 17663 | 360 |
| 300-400 | 1170 | 24041 | 630 |
Sketch of detailing of safety valves DNOVA VR3430M-F DN25x32/300x400 PN16
Materials of parts of safety valves DNOVA VR3430M-F DN25x32/300x400 PN16
| Item No. | Part name | Material |
| 1 | Frame | WCB steel |
| 2 | Adjusting screw | steel 20X13 |
| 3 | Disk | steel 20X13 |
| 4 | Guide bushing | steel 20X13 |
| 5 | Lid | WCB steel |
| 6 | Spring | steel 50KhFA |
| 7 | Lever | steel 20X13 |
