Description
Solenoid valve is a special device designed to conveniently control the flow of the working medium. This process is carried out in the pipeline under pressure.
In a normally closed solenoid valve, the closed position is maintained if no control voltage is applied to its induction coil. When voltage is applied to the coil, the normally closed valve opens and allows the process medium to flow through. When the control voltage is switched off, the valve closes automatically and blocks the medium flow in the pipeline.
Characteristics of DNOVA VS631-NF-NC-24VDC-PA DAR solenoid valves:
| DN, m | Passage diameter, inch | Flow capacity, m3/hour | Working pressure, bar |
| 25 | 1" | 12 | 10 |
| 32 | 1 1/4" | 24 | 10 |
| 40 | 1 1/2" | 30 | 10 |
| 50 | 2" | 48 | 10 |
| 65 | 2 1/2" | 52 | 10 |
| 80 | 3" | 82 | 10 |
| 100 | 4" | 128 | 10 |

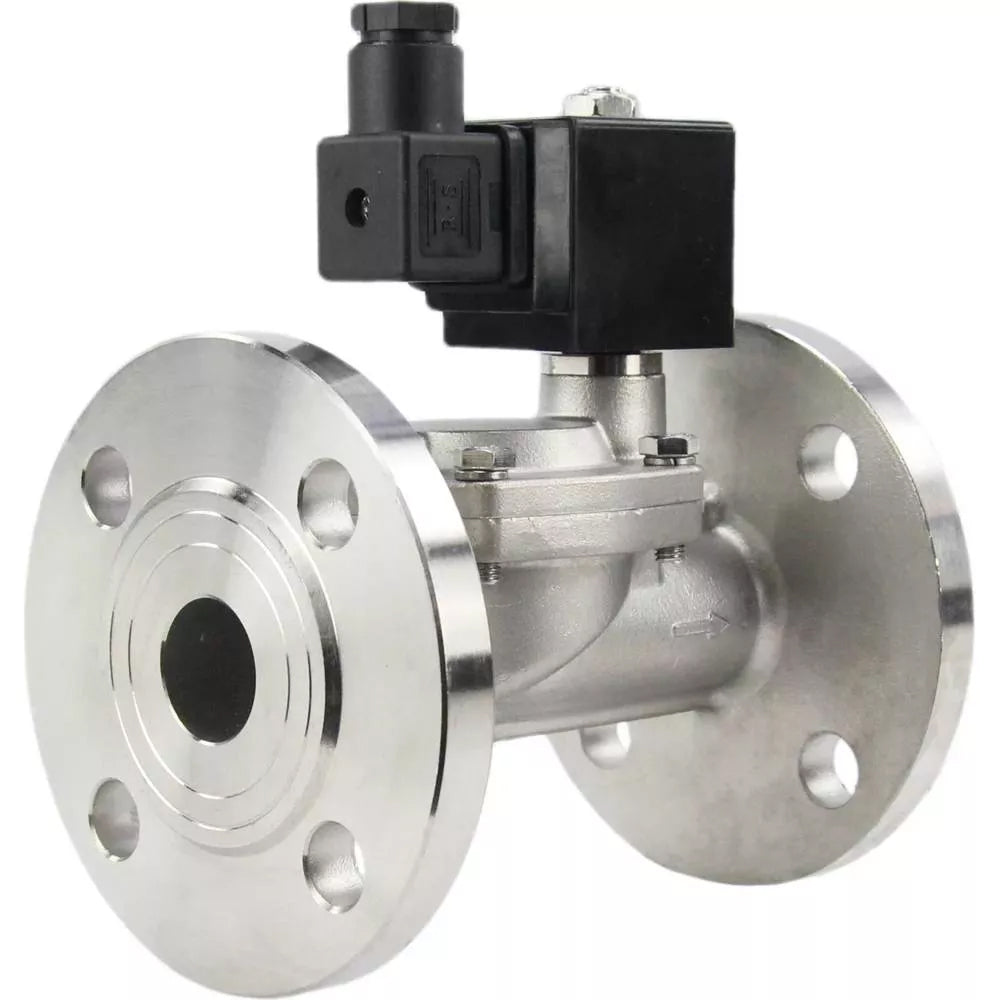

Solenoid valve DNOVA VS631-NF-NC-24VDC-PA, body material - stainless steel AISI 304, seal - NBR, normally closed, coil - 24V DAR
Overall and installation dimensions of solenoid valves VS631-NF-NC-24VDC-PA DAR:
| DN, mm | Passage diameter, inch | L, mm | D, mm | H, mm | K, mm | d, mm | C, mm | f, mm | n - Ø, pcs-mm | Weight, kg |
| 25 | 1" | 141 | 115 | 165 | 85 | 65 | 16 | 3 | 4 - Ø14 | 2.9 |
| 32 | 1 1/4" | 158 | 145 | 185 | 100 | 76 | 18 | 3 | 4 - Ø18 | 4.4 |
| 40 | 1 1/2" | 173 | 150 | 196 | 110 | 84 | 18 | 3 | 4 - Ø18 | 5.1 |
| 50 | 2" | 204 | 165 | 200 | 125 | 99 | 20 | 3 | 4 - Ø18 | 7.7 |
| 65 | 2 1/2" | 256 | 185 | 248 | 145 | 118 | 20 | 3 | 4 - Ø18 | 12.5 |
| 80 | 3" | 277 | 200 | 268 | 160 | 132 | 20 | 3 | 4 - Ø18 | 15.3 |
| 100 | 4" | 350 | 220 | 290 | 180 | 156 | 22 | 3 | 4 - Ø18 | 23.2 |
Sketch of dimensions and dimensions Solenoid valve DNOVA VS631-NF-NC-24VDC-PA, body material - stainless steel AISI 304, seal - NBR, normally closed, coil - 24V DAR
