Description

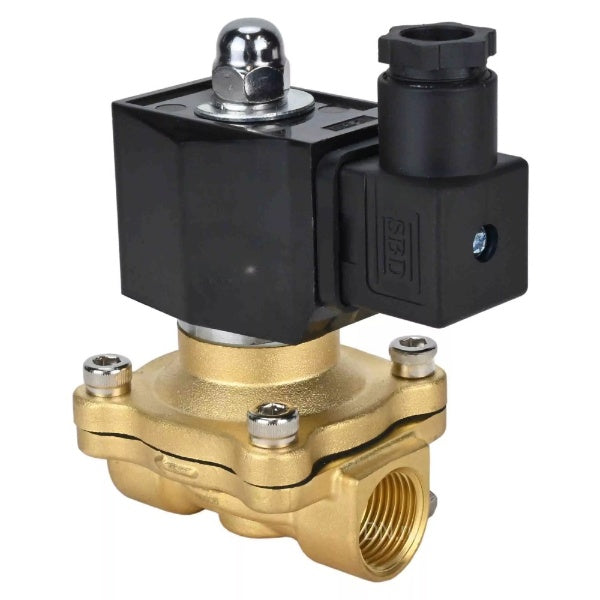

In a normally closed solenoid valve, the closed position is maintained if no control voltage is applied to the solenoid coil. When voltage is applied to the coil, the normally closed valve opens and allows the medium flow to pass through. When the control voltage is switched off, the valve closes automatically and cuts off the flow of medium in the pipeline. Solenoid valves are used in automobiles, specialty vehicles, water pipes and auto irrigation and heating systems. They are also widely used in industry to regulate and control the transportation of a variety of liquids and gases.
Main technical data and characteristics
| Parameter | Value |
|---|---|
| Nominal diameter, DN | 6–50 |
| Nominal pressure, bar | 10 |
| Operating pressure, bar | 0–7 |
| Working medium | Air, light oil, water |
| Medium temperature, °C | NBR: from -5 to +80; VITON: from -10 to +150; EPDM: from -5 to +90 |
| Ambient temperature, °C | from -5 to +80 |
| Seal material | NBR, VITON, EPDM |
| Connection | Threaded |
| Body material | Brass or stainless steel AISI 304 |
| Valve type | Direct-acting |
| Coil supply voltage, V | 220VAC – AC 220V; 24VDC – DC 24V; 24VAC – AC 24V |
| Valve configuration | Normally closed / normally open |
| Coil shape | Cubic |
| Kinematic viscosity of medium | <20 CST |
| Average service life (cycles) | 600,000 (with non-aggressive medium and moderate pressure/temperature) |
Dimensions and dimensions DNOVA VS300-ET-NC-24VAC solenoid valves, body material - brass, seal - EPDM, normally closed, coil - 24 VAC:
| DN | B, mm | C, mm | D, mm | Weight, kg |
| 6 | 30 | 75 | 40.5 | 0,33 |
| 8 | 30 | 75 | 40.5 | 0,32 |
| 10 | 57 | 110 | 66 | 0,7 |
| 15 | 57 | 110 | 66 | 0,7 |
| 20 | 57 | 115 | 70 | 0,74 |
| 25 | 73 | 122 | 99 | 1,1 |
| 32 | 90.5 | 167 | 124 | 2 |
| 40 | 90.5 | 167 | 124 | 2,2 |
| 50 | 124 | 186 | 164 | 3,1 |
Dimensional sketch VS300-ET-NC-24VAC, body material - Brass, seal - EPDM, normally closed, coil - 24 VAC
