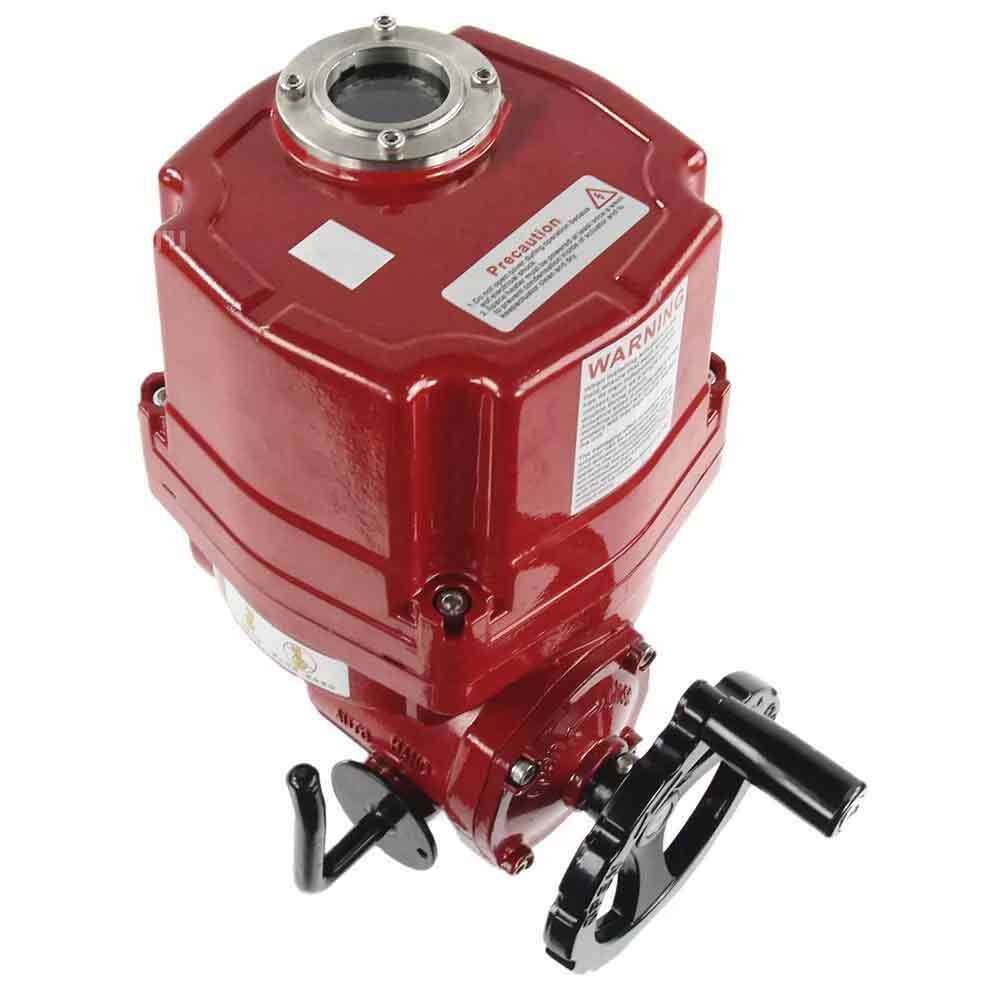

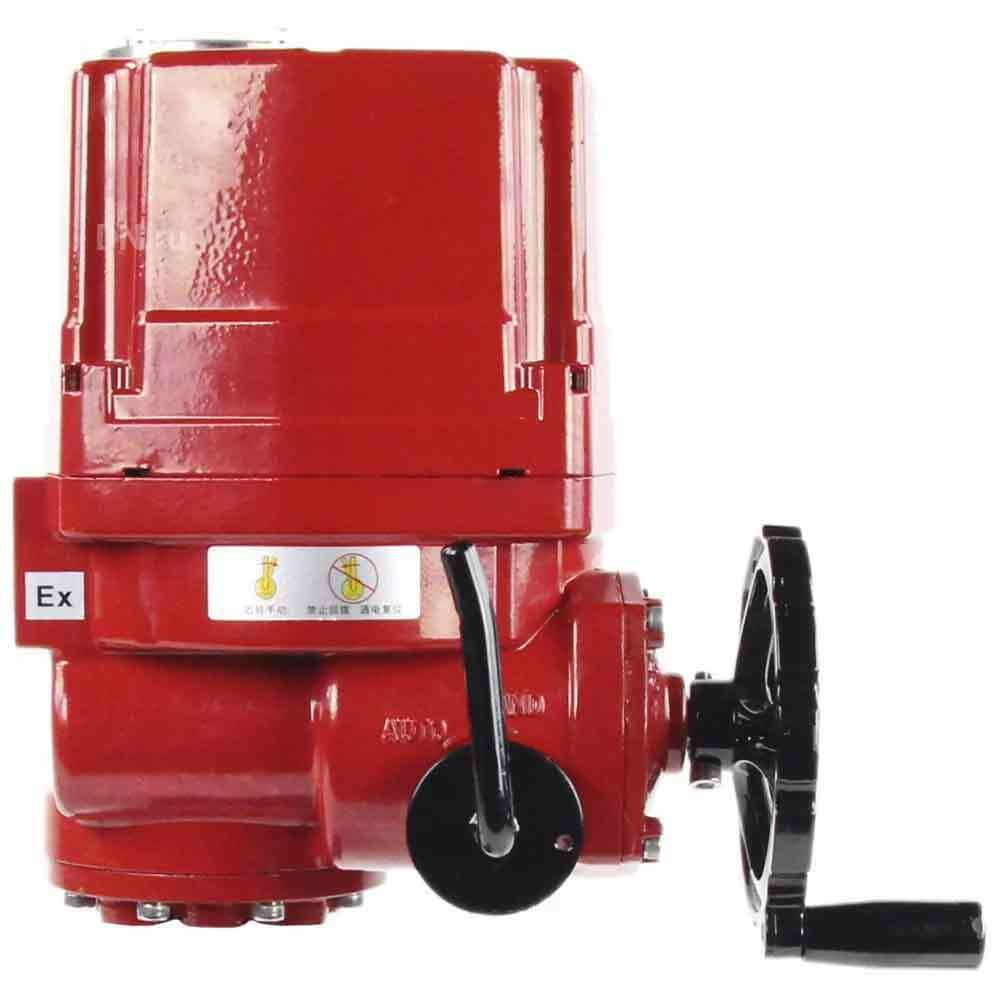

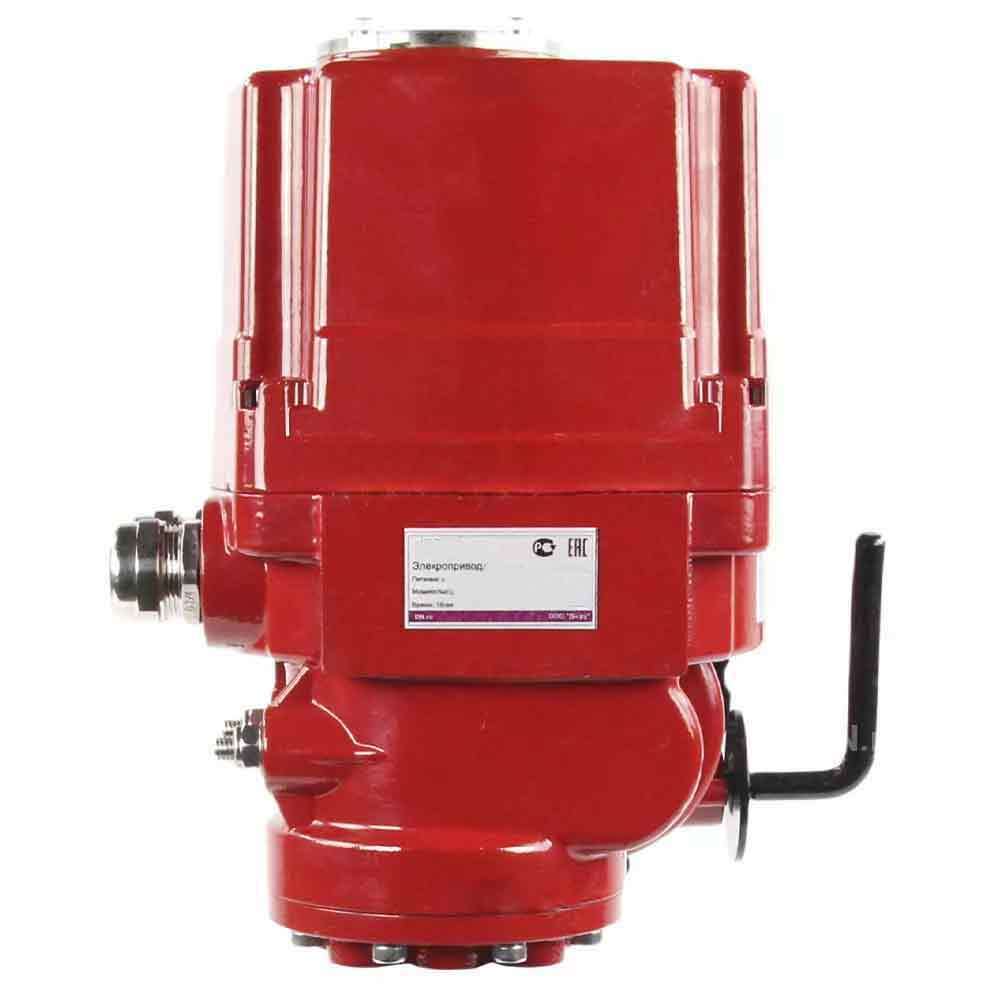

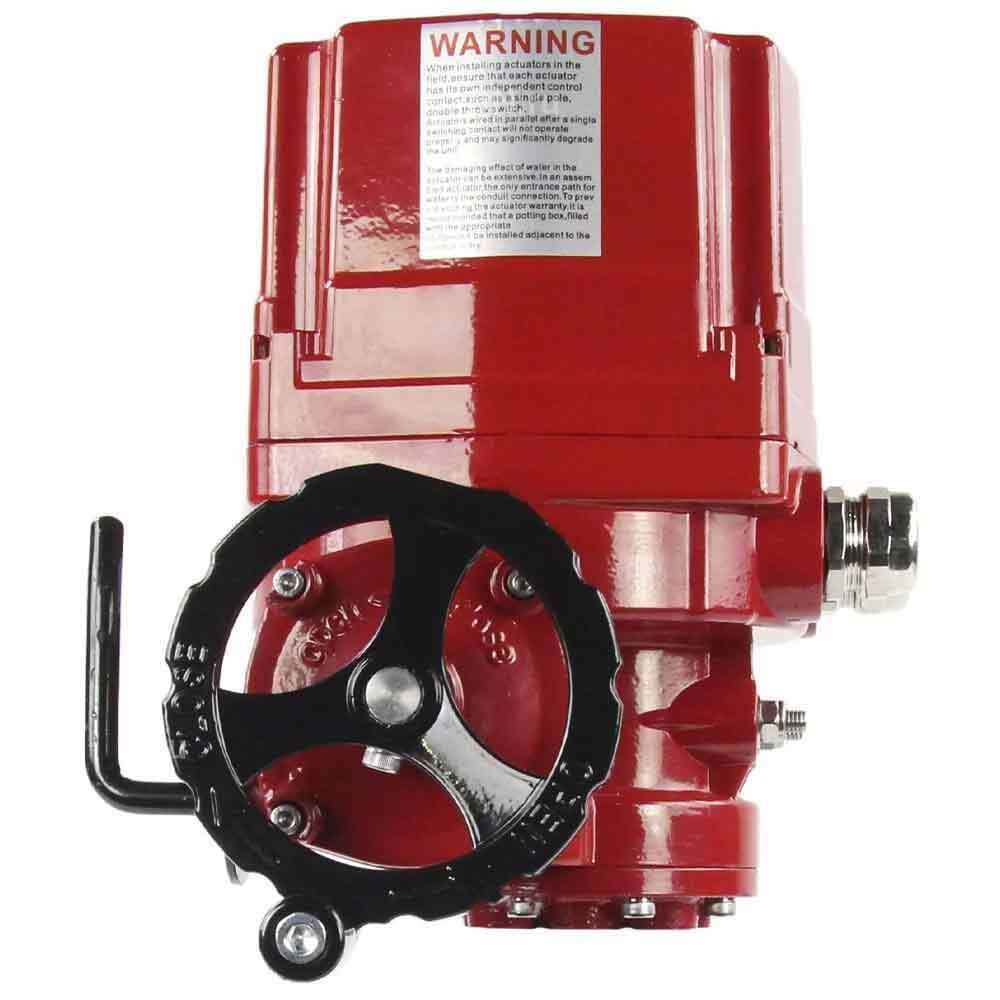

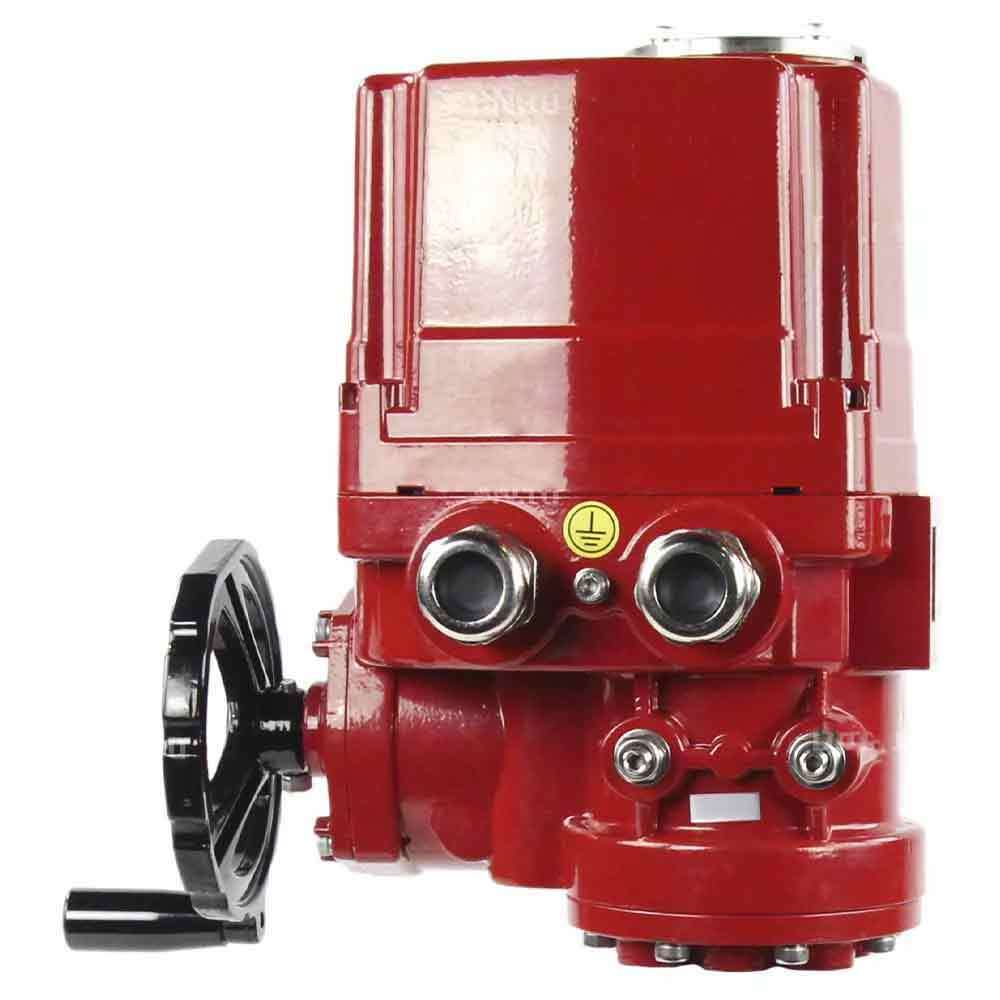

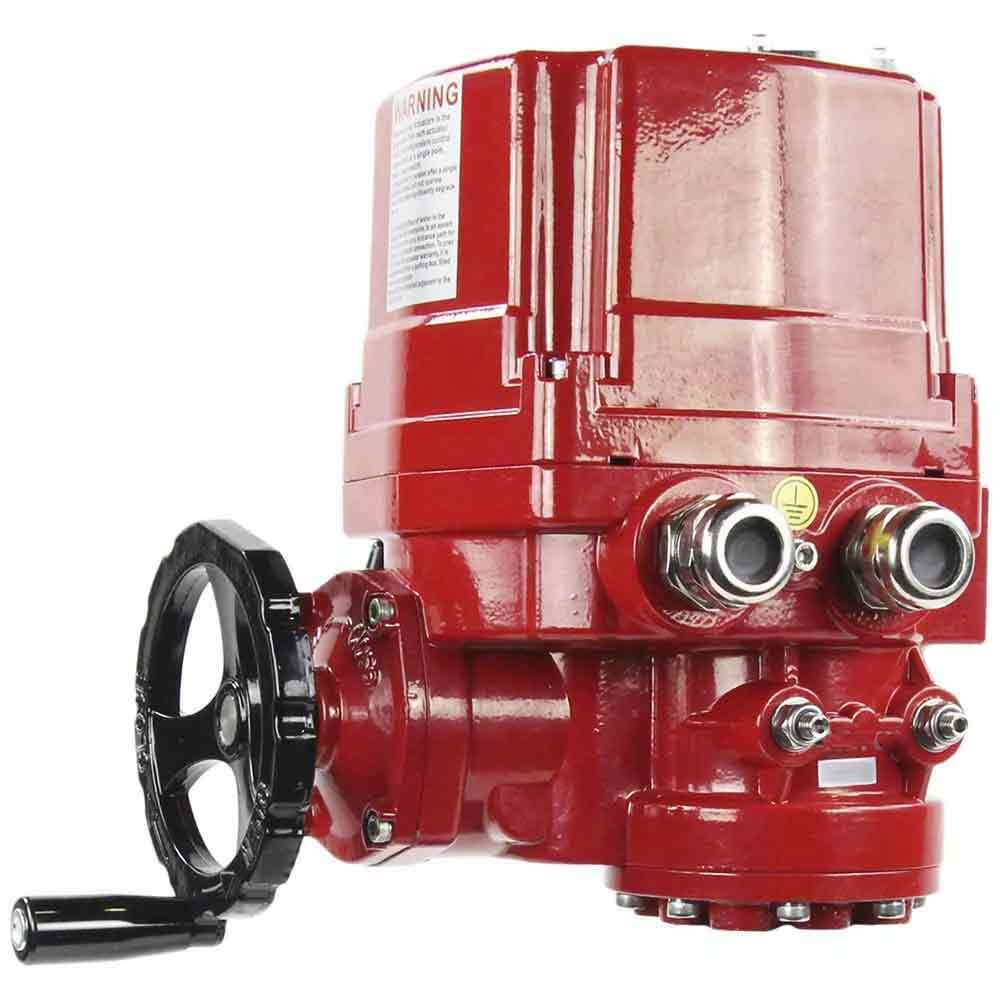

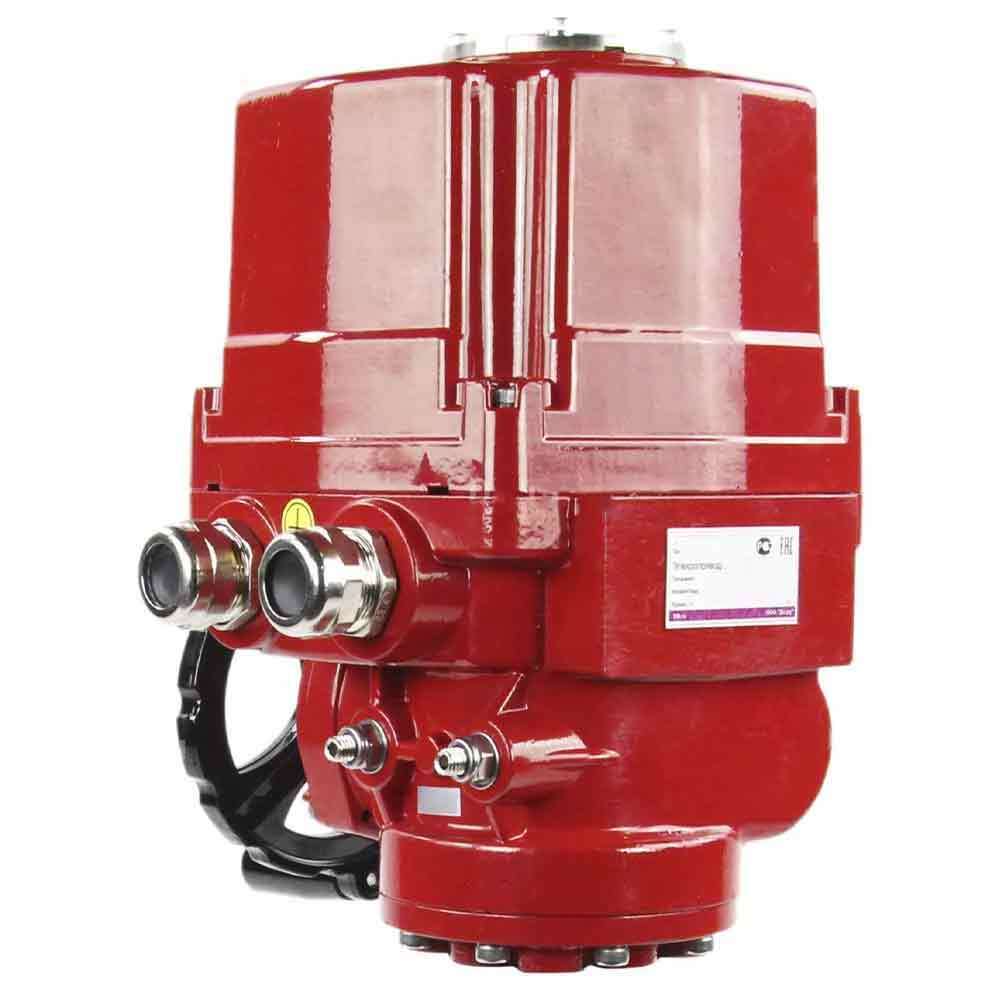

Quarter-turn electric actuator DNOVA EX-010-200 24V

From $164.04 USD
From $164.04 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

Quarter-turn electric actuator DNOVA EX-010-200 24V is used in industrial explosive areas to control butterfly valves, ball valves and other quarter-turn valves with ambient temperatures from -20°...+60°C. The case is equipped with a heater (7-10W 220 V) and has the following degrees of protection: IP67, NEME 4 and 6, Anti-corrosion coating. Explosion protection standard ExdIICT4. The electric drive is equipped with an asynchronous motor with a squirrel-cage rotor, automatic locking of the electric drive position and a manual override. Electric drive control type ON / OFF. The electric drive stroke is 90° with an adjustment range of ±10°. Cable connection 2 x M18. Power is supplied by alternating voltage 24 V with a frequency of 50 Hz.

Main technical characteristics of the actuator DNOVA EX-010-200 24V

Torque, Nm Operating time, sec Power,
W		 Current, A Weight, kg Turns of the handwheel
100 16 25 1,05 11,0 10
150 16 40 1,67 11,5 11
200 20 40 1,67 14,0 11
300 26 60 2,5 19,5 13,5
400 26 90 3,75 20,0 13,5
500 26 120 5,0 20,5 13,5
600 43 120 5,0 32,0 16,5
1000 43 200 8,34 32,5 16,5
2000 85 200 8,34 55,0 49,5

Drive dimensions DNOVA EX 24V

Model W K K1 A B D

mm
100 160 70 230 Ø90 Ø70 Ø50
150 160 70 230 Ø90 Ø70 Ø50
200 160 80 250 Ø120 Ø102 Ø70
300 160 72 298 Ø150 Ø102 Ø70
500 160 72 298 Ø150 Ø102 Ø70
800 160 104 296 Ø180 Ø125 Ø102
1000 160 104 296 Ø180 Ø125 Ø102
1600 160 104 296 Ø210 Ø165 Ø125
2000 160 104 296 Ø210 Ø165 Ø125

Electrical diagram of actuator DNOVA EX 100-150 24V

Electrical diagram of actuator DNOVA EX 200-2000 24V

Specifications

Country of origin
China
Actuator cycle time
16s
Explosion-proof
Yes
Thermal protection
Yes
Type of electric actuator
Quarter-turn
Feedback sensor
Limit switches
Control signal
ON/OFF
Shaft shape rod
20 mm
Shaft shape square
14х14 mm
ISO - flange type
F05,F07
Rated current consumption
1.05 A
Power consumption
25 W
Supply voltage
24 V
