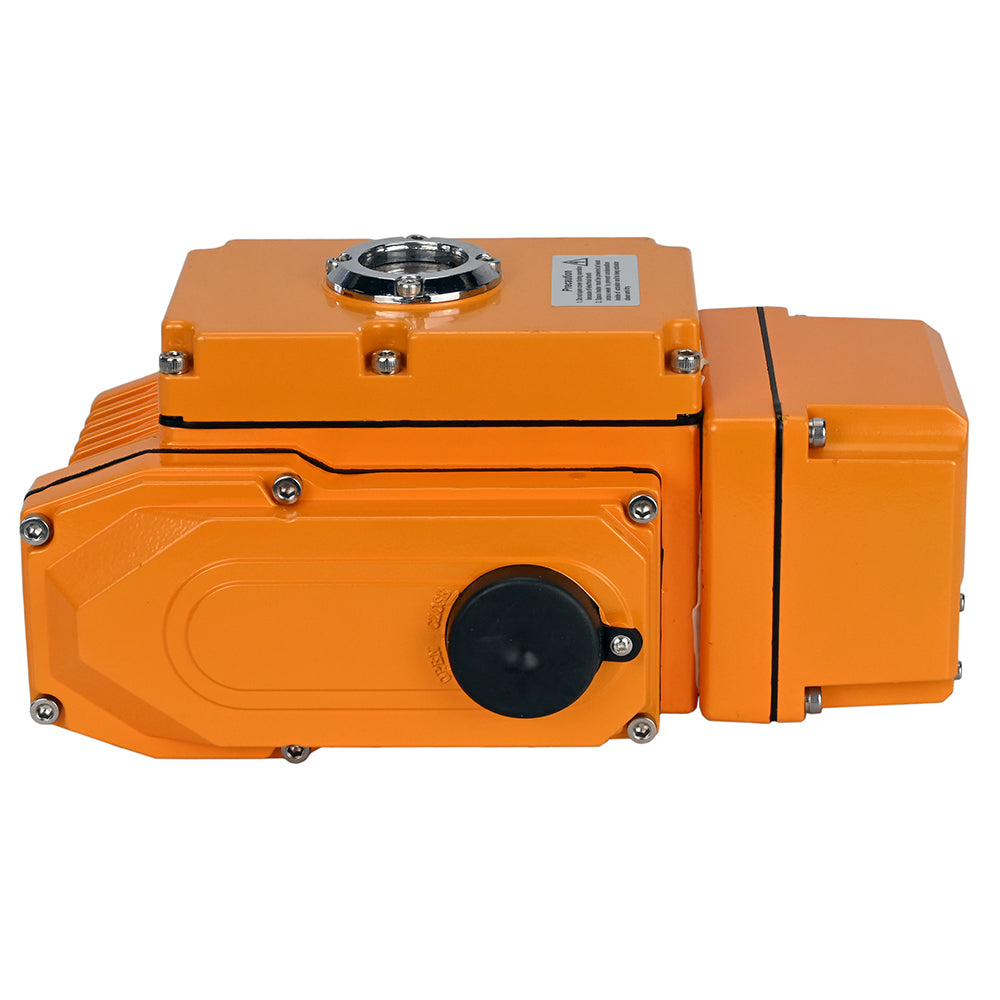

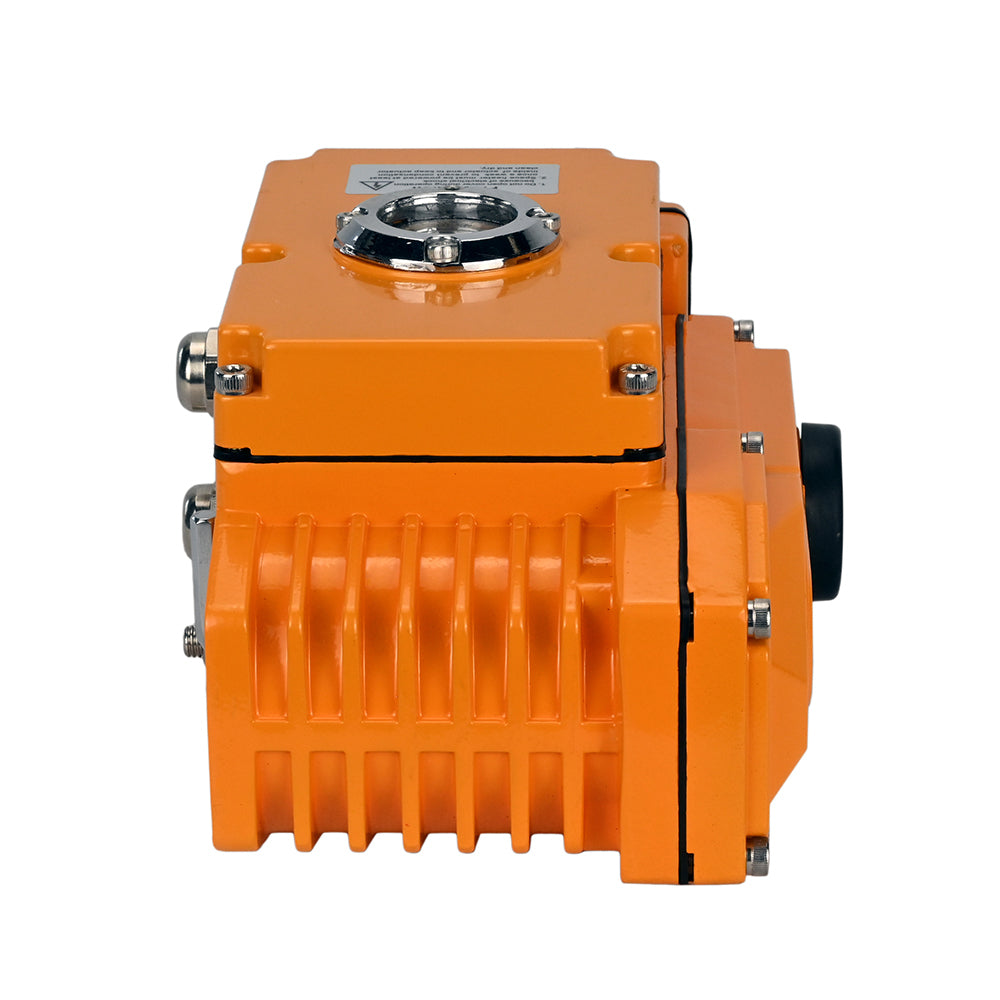

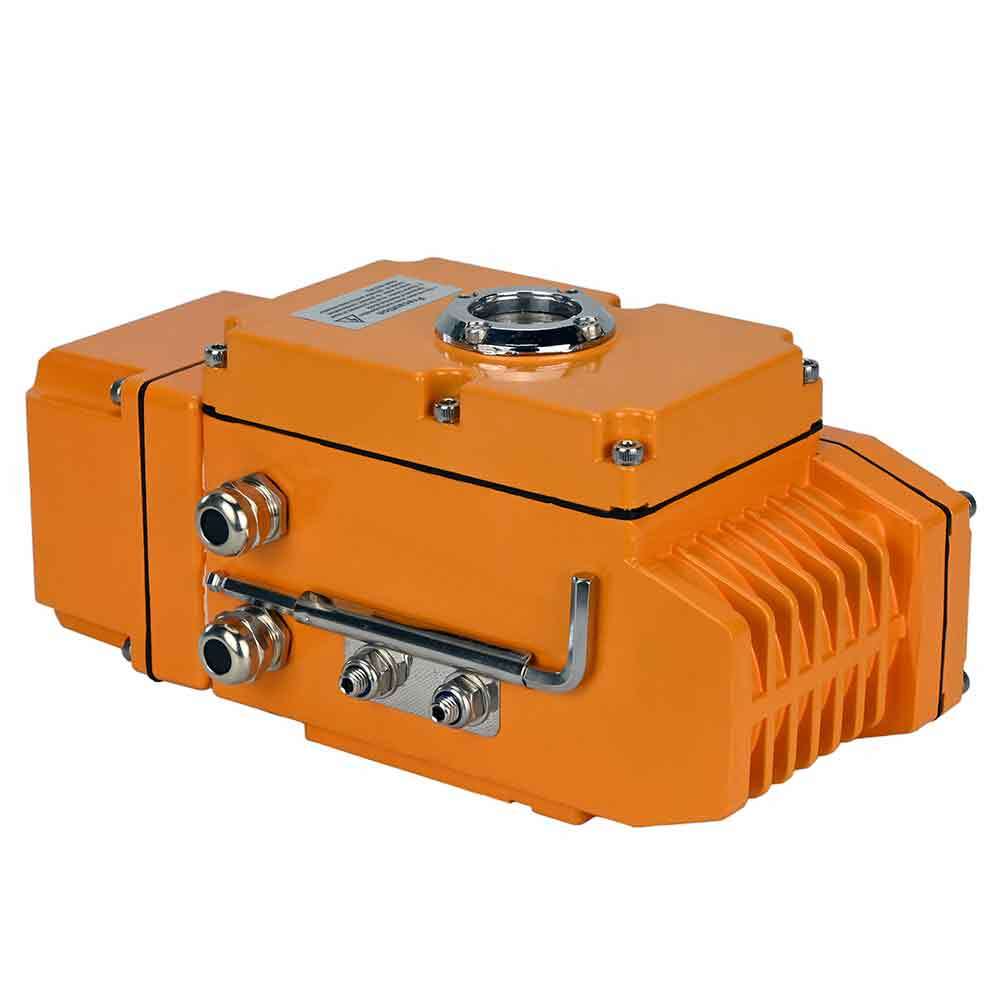

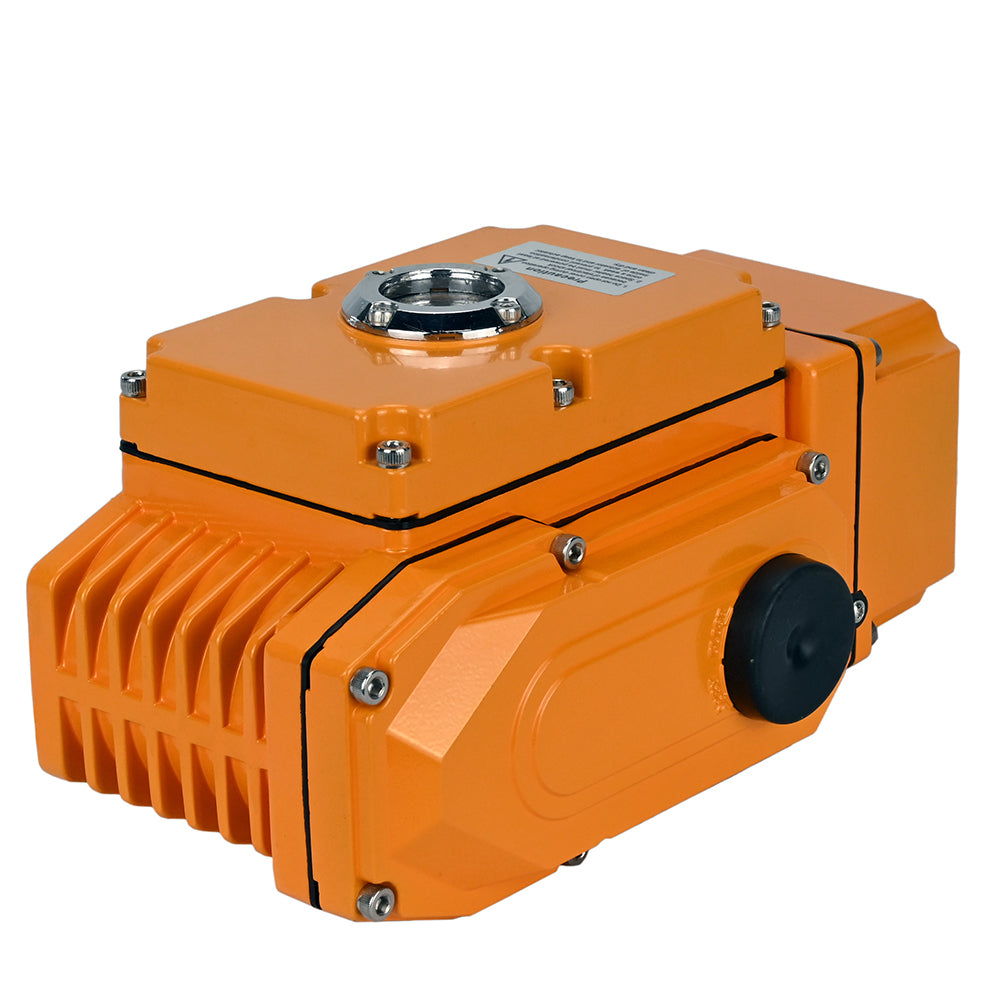

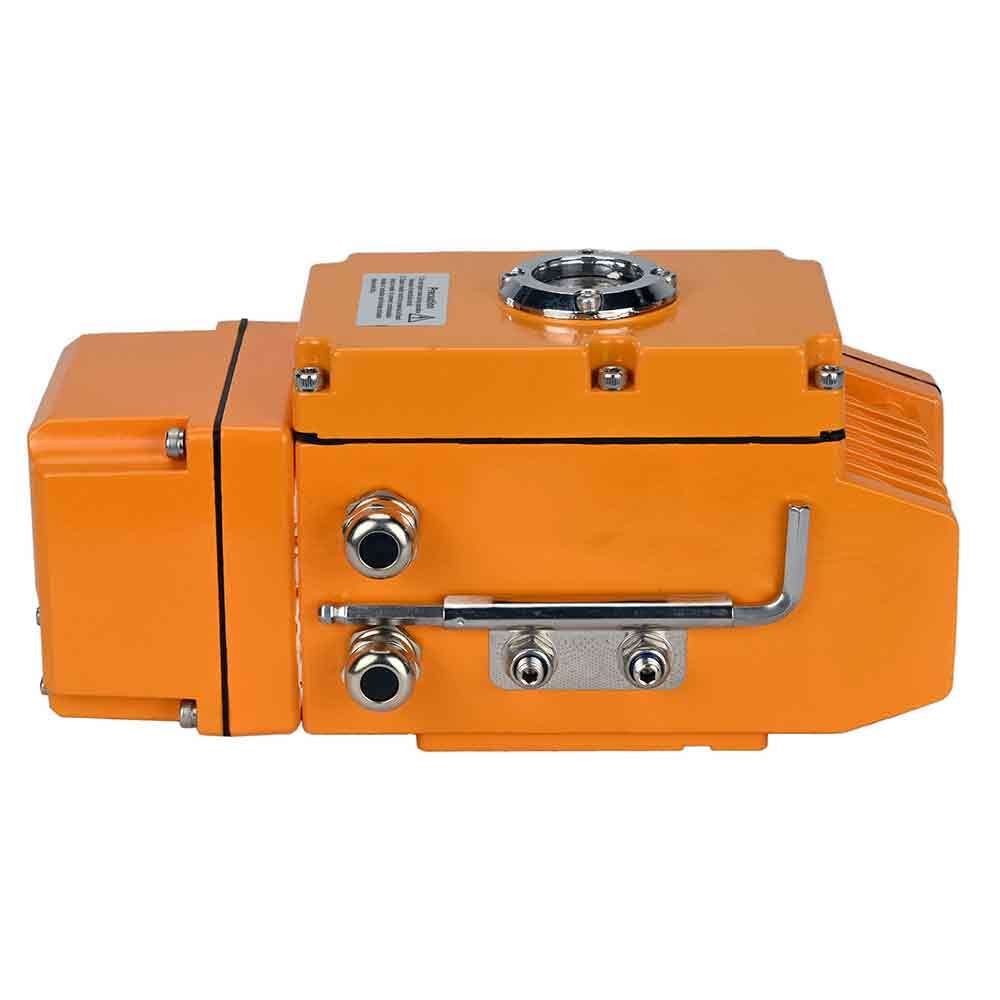

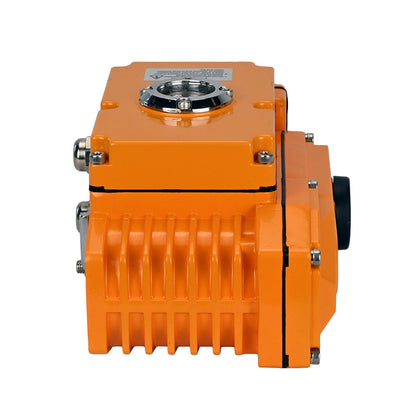

Quarter-turn electric actuator DNOVA QT 005-040 220V with feedback sensor and 0-10 V input control signal

From $105.88 USD
From $105.88 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

Quarter-turn electric actuator DNOVA 005-040 220V with feedback sensor and 0-10 V input control signal is designed for remote and local control of valves. It is widely used in the gas, oil, metallurgical and food industries, housing and communal services, etc. with ambient temperature from -4…+158°F. The case is equipped with a heater (7-10W 110V) and has the following degrees of protection: IP67, NEME 4 and 6, anti-corrosion coating. Mounting dimensions comply with the international standard ISO05211 / DIN3337. The electric drive is equipped with a squirrel-cage induction motor, automatic position locking of the electric drive, mechanical handle, thermal protection, vibration protection X Y Z 10g (0.2-34 Hz, 30 minutes) and is designed for operation in intermittent duty S2. Actuator stroke 90° with adjustment range ±10°. Restriction of the course of the electric drive - trailer switches. Power is supplied by alternating voltage 220V.

Overall and installation dimensions of the actuator DNOVA 005-040 220V with feedback sensor and 0-10 V input control signal

003 005 008 010 015 030 040 060
X 123 160 188 189 189 268 268 268
Y 123 146 145 163 163 212 212 255
Z 113 121 127 129 129 164 164 164
FA F50 F70 F70 F70 F70 F125 F125 F125
N-B 4-M6 4-M8 4-M8 4-M8 4-M8 4-M12 4-M12 4-M12
N-D 8-M5 4-M6 4-M6 4-M6 4-M6 8-M10 8-M10 4-M10
E 50 66 100 100 100 140 140 140
F 50 66 90 90 90 130 130 130
G - 114 114 114 114 114 114 114
H - 40 40 40 40 40 40 40
I - 100 150 100 100 100 100 150
M x M 11 x 11 14 x 14 14 x 14 17 x 17 17 x 17 22 x 22 22 x 22 27 x 27

Dimensional sketch of the actuator DNOVA 005-040 220V with feedback sensor and 0-10 V input control signal

Drive design DNOVA 005-040 220V with feedback sensor and 0-10 V input control signal

№ Part name
1 output shaft
2 cable lock
3 mechanical stop
4 hand wrench
5 body
6 Modular box
7 cover
8 viewing window
9 dust protection

Drive detail sketch DNOVA 005-040 220V with feedback sensor and 0-10 V input control signal

Specifications

Country of origin
China
Explosion-proof
No
Thermal protection
No
Type of electric actuator
Quarter-turn
Feedback sensor
Limit switches, 0-10 V
Control signal
0-10 V
Shaft shape rod
13 mm
Shaft shape square
11х11mm, 14х14 mm
ISO - flange type
F05,F07
Rated current consumption
0.25 A
Power consumption
10 W
Supply voltage
220 V
