Description

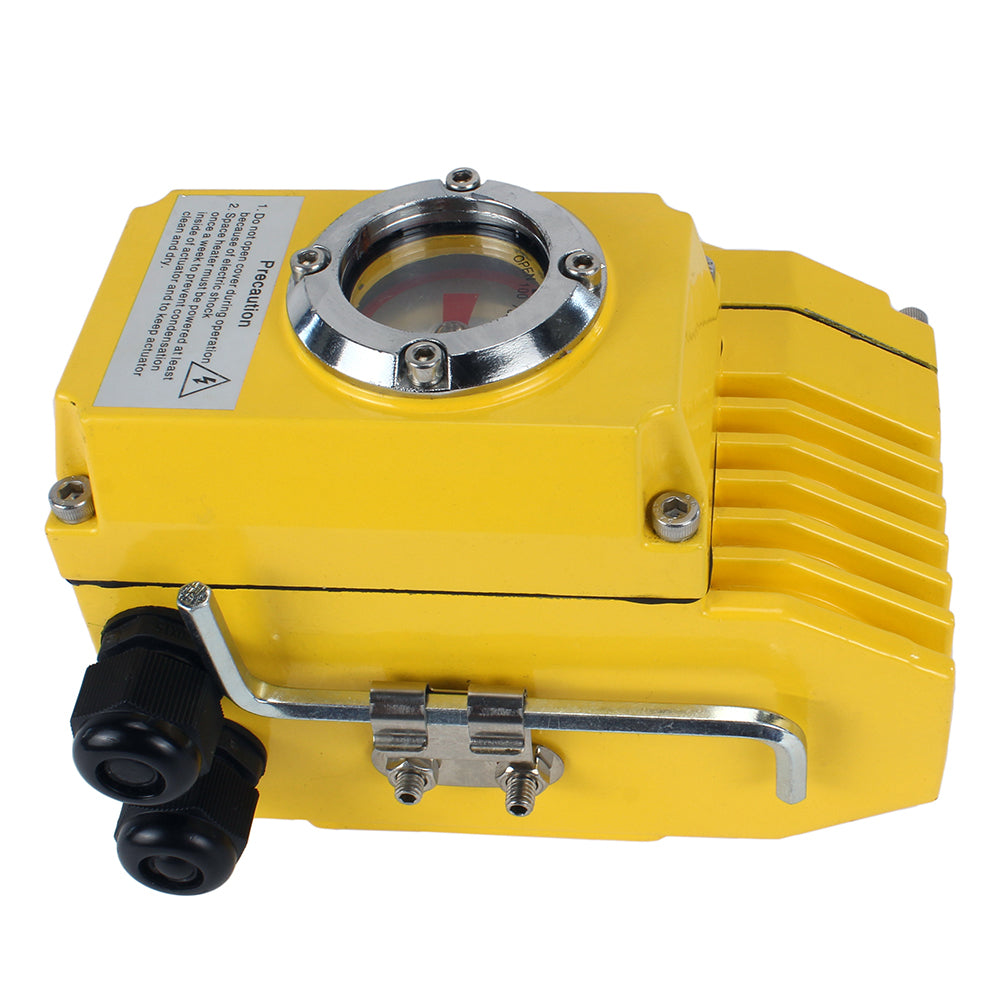

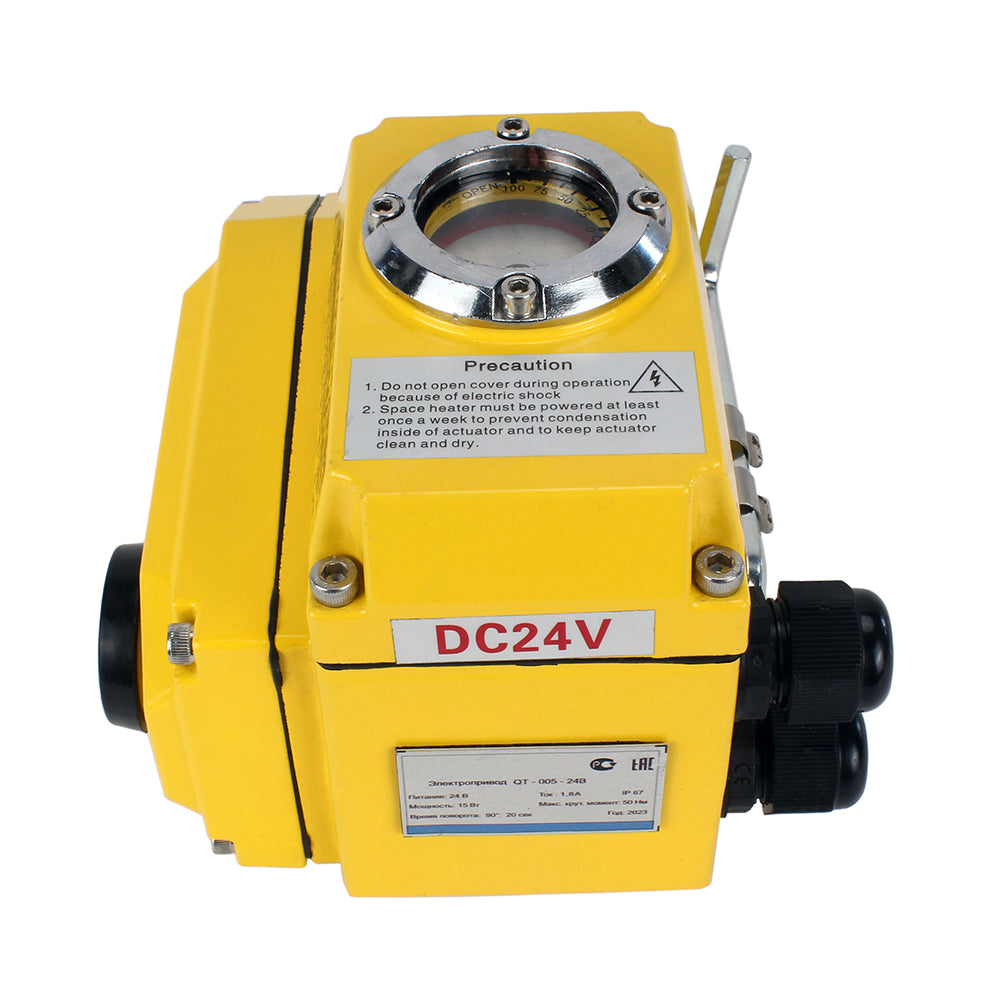

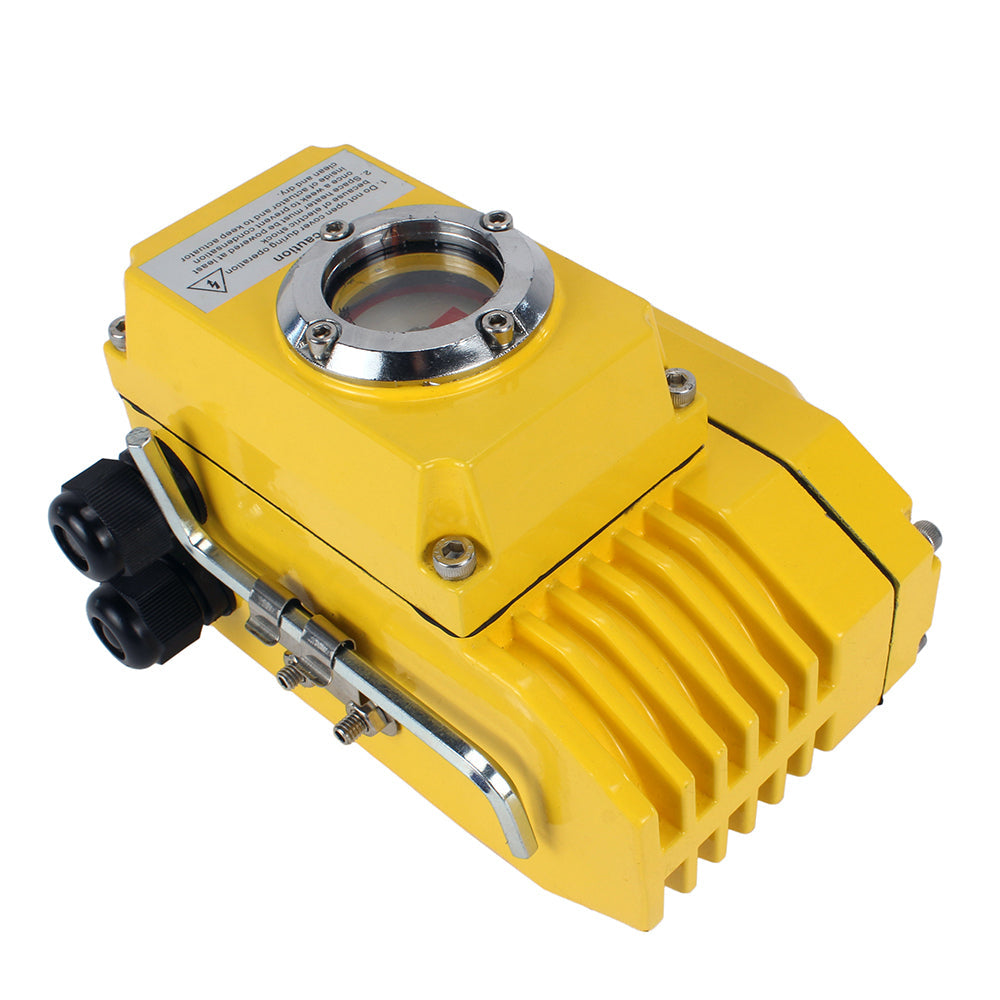

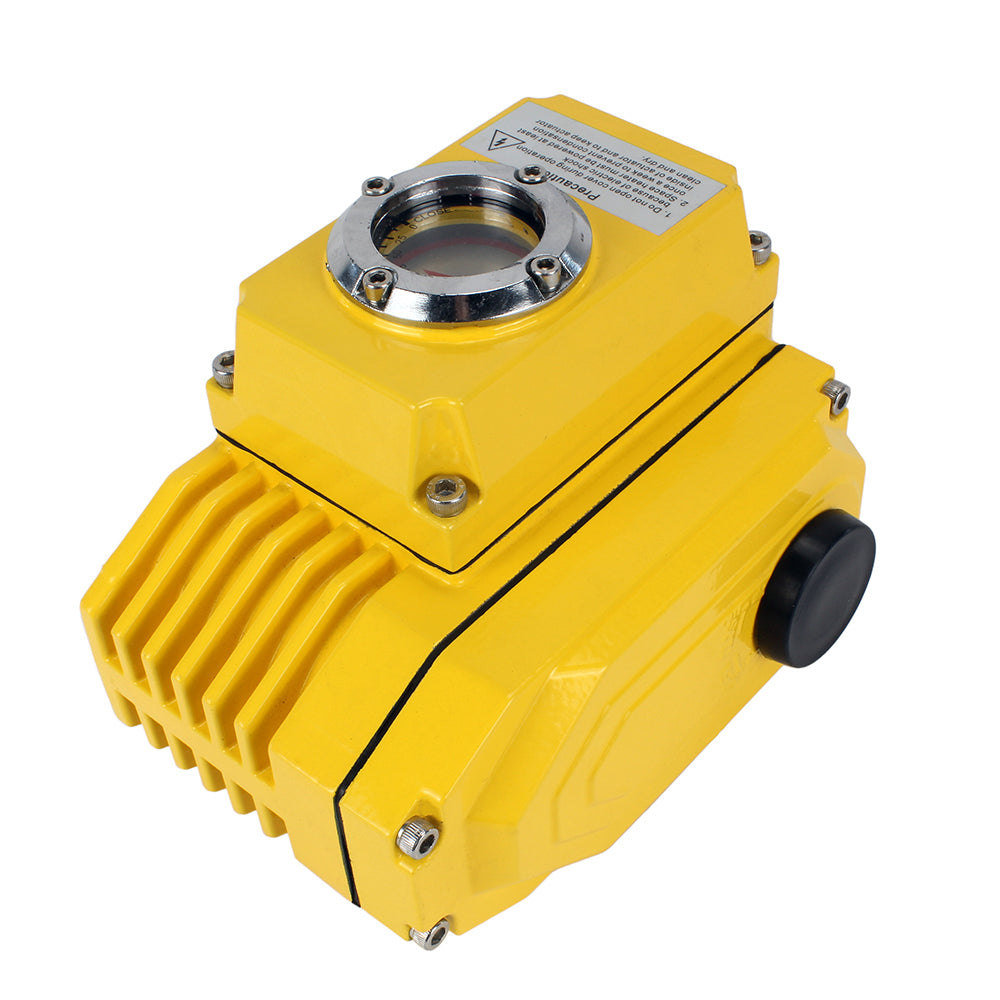

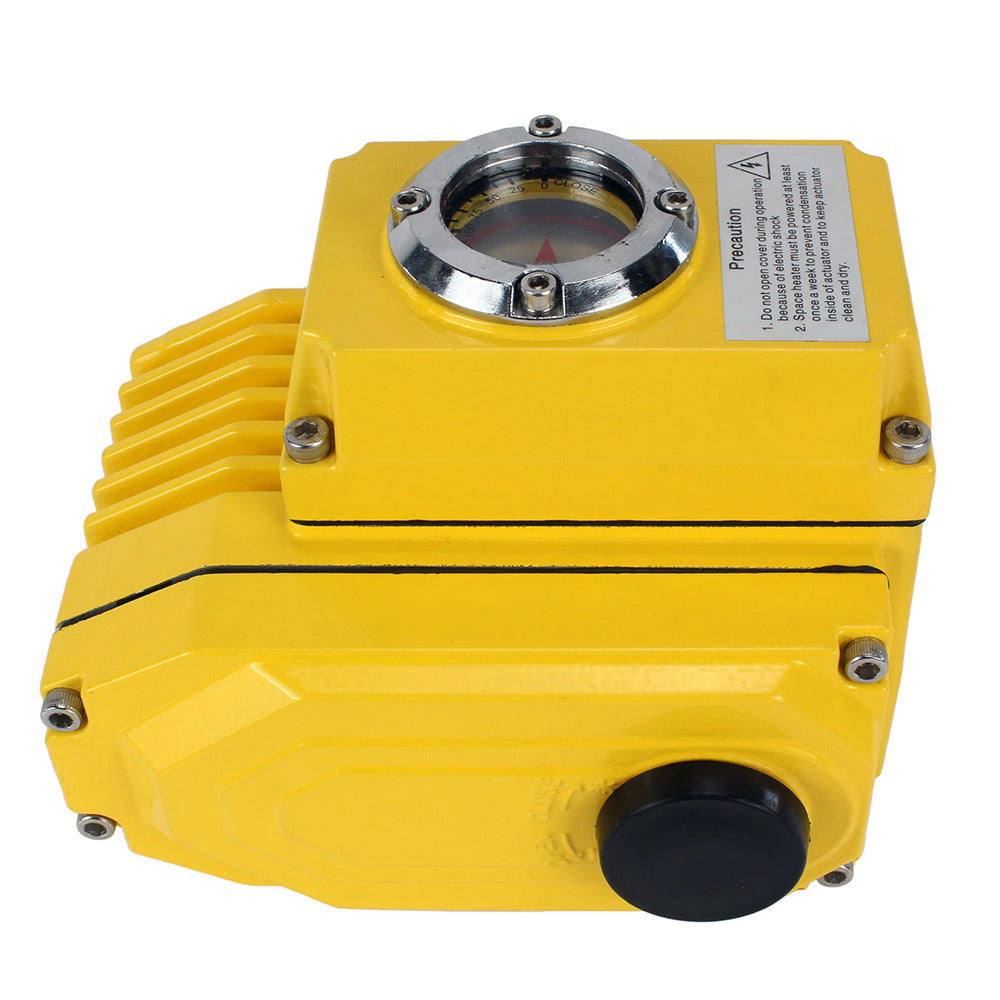

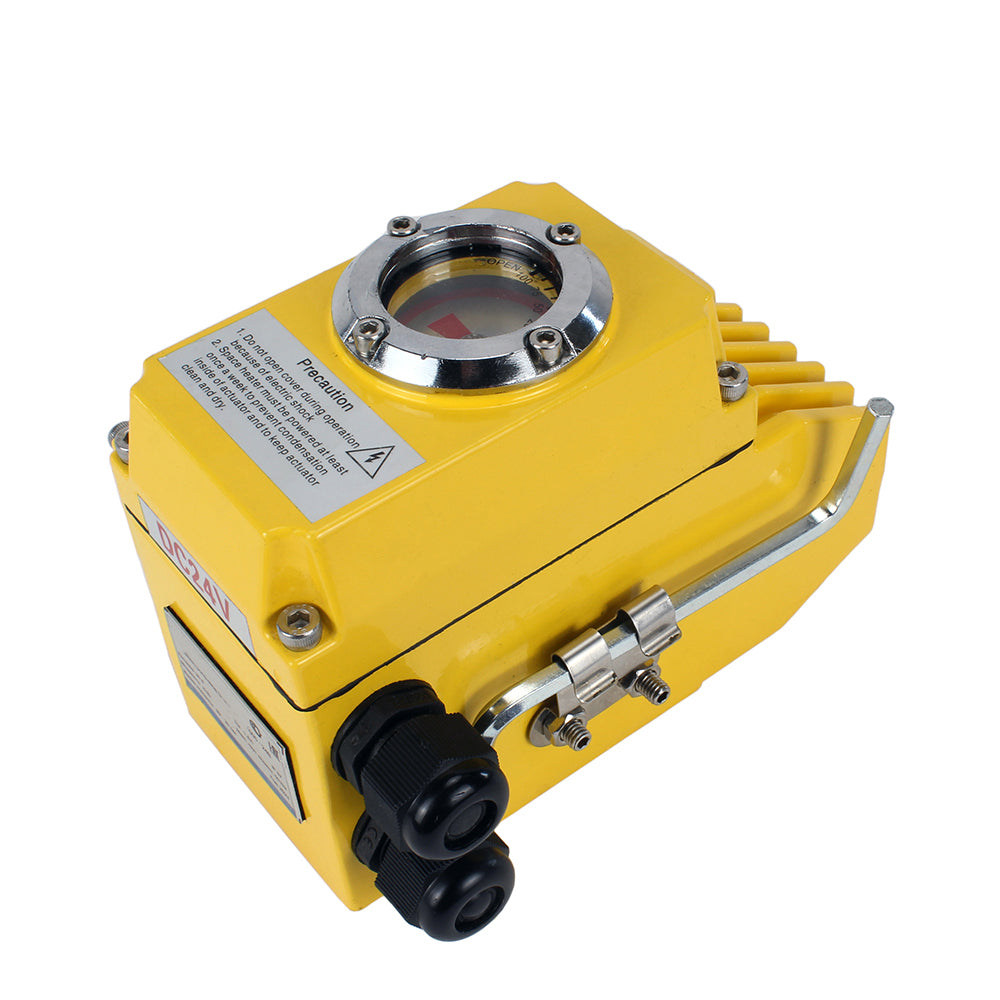

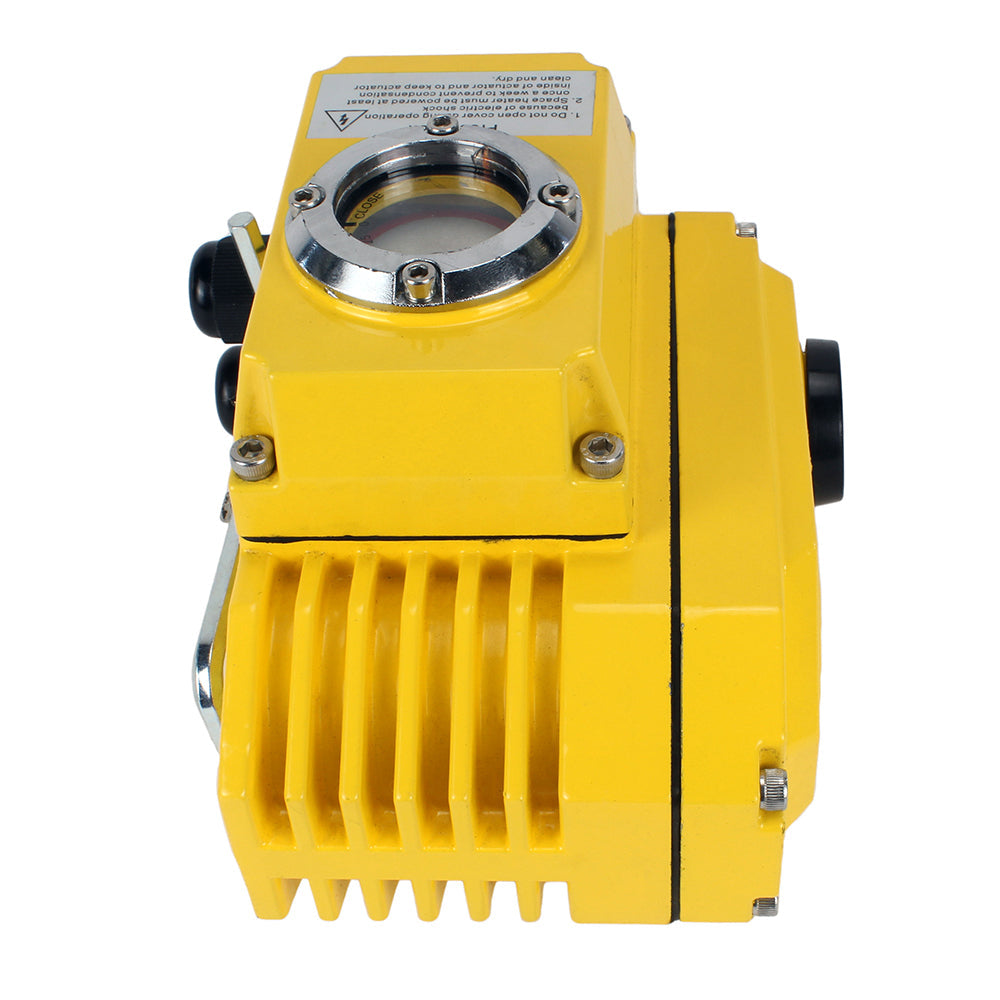

Electric quarter-turn actuators DNOVA are designed for remote and local control of shut-off valves. It is widely used in the gas, oil, metallurgical and food industries, in housing and communal services, etc. with an ambient temperature of -20°...+70°C. The housing is equipped with a heater (7-10W 220V) and has the following degrees of protection: IP67, NEME 4 and 6, anti-corrosion coating. The installation dimensions comply with the international standard ISO05211 / DIN3337. The electric drive is equipped with an asynchronous motor with a short-circuited rotor, automatic locking of the position of the electric drive, a mechanical handle, thermal protection, vibration protection X Y Z 10g (0.2-34 Hz, 30 minutes) and is designed to operate in a repeatedly short-term S2 mode. The stroke of the electric drive is 90° with an adjustment range of ± 10°. Limitation of the electric drive stroke - limit switches. Cable connection 2 x M18. The power supply is provided with a constant voltage of 24 V.
Main technical characteristics DNOVA 003 24 V
| Drive model | Torque | Operating time | Power | Current | Weight | Stem size square |
| 30 blue | 30 | 25 | 25 | 0,1 | 1,2 | 11 |
| 30 | 30 | 20 | 9 | 0,15 | 2,1 | 11 |
| 50 | 50 | 30 | 10 | 0,25 | 3,6 | 14 |
| 80 | 80 | 30 | 10 | 0,25 | 3,6 | 17 |
| 100 | 100 | 30 | 15 | 0,35 | 4,6 | 17 |
| 150 | 150 | 40 | 15 | 0,33 | 4,6 | 17 |
| 400 | 400 | 60 | 45 | 0,33 | 13,8 | 27 |
Drive dimensions DNOVA 003 24 V
| model | L | H | A |
| 30 | 140 | 118 | 109 |
| 50 | 166 | 122 | 118 |
| 80 | 200 | 128 | 133 |
| 100 | 200 | 128 | 133 |
| 150 | 200 | 128 | 133 |
| 200 | 269 | 155 | 174 |
| 300 | 269 | 155 | 174 |
| 400 | 269 | 155 | 174 |
Drive sketch DNOVA 003 24 V
Drive design DNOVA 003 24V:
| № | Part name |
| 1 | output shaft |
| 2 | cable lock |
| 3 | mechanical stop |
| 4 | hand wrench |
| 5 | body |
| 6 | cover |
| 7 | viewing window |
| 8 | dust protection |
Drive detail sketch DNOVA 003 24V
Specifications
