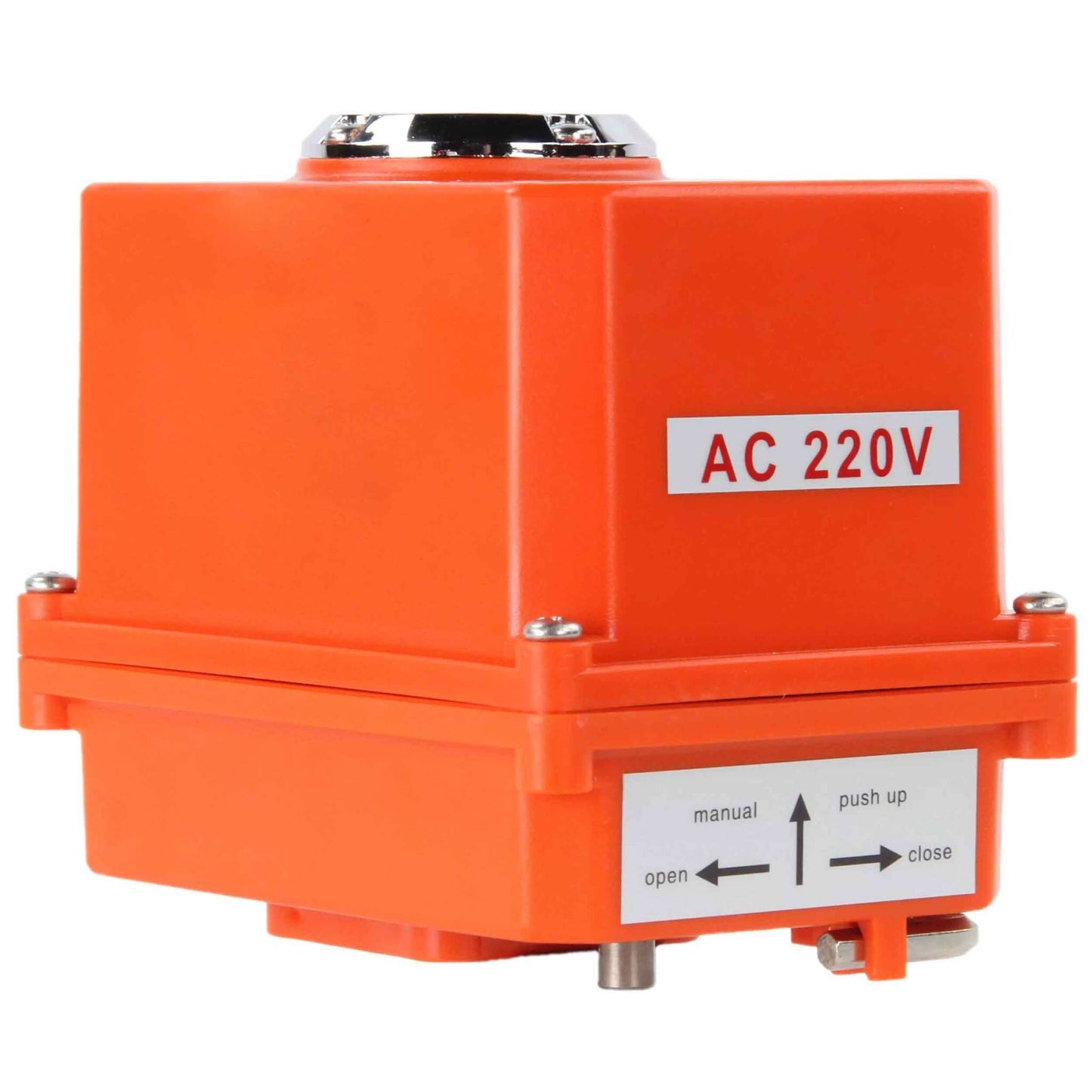

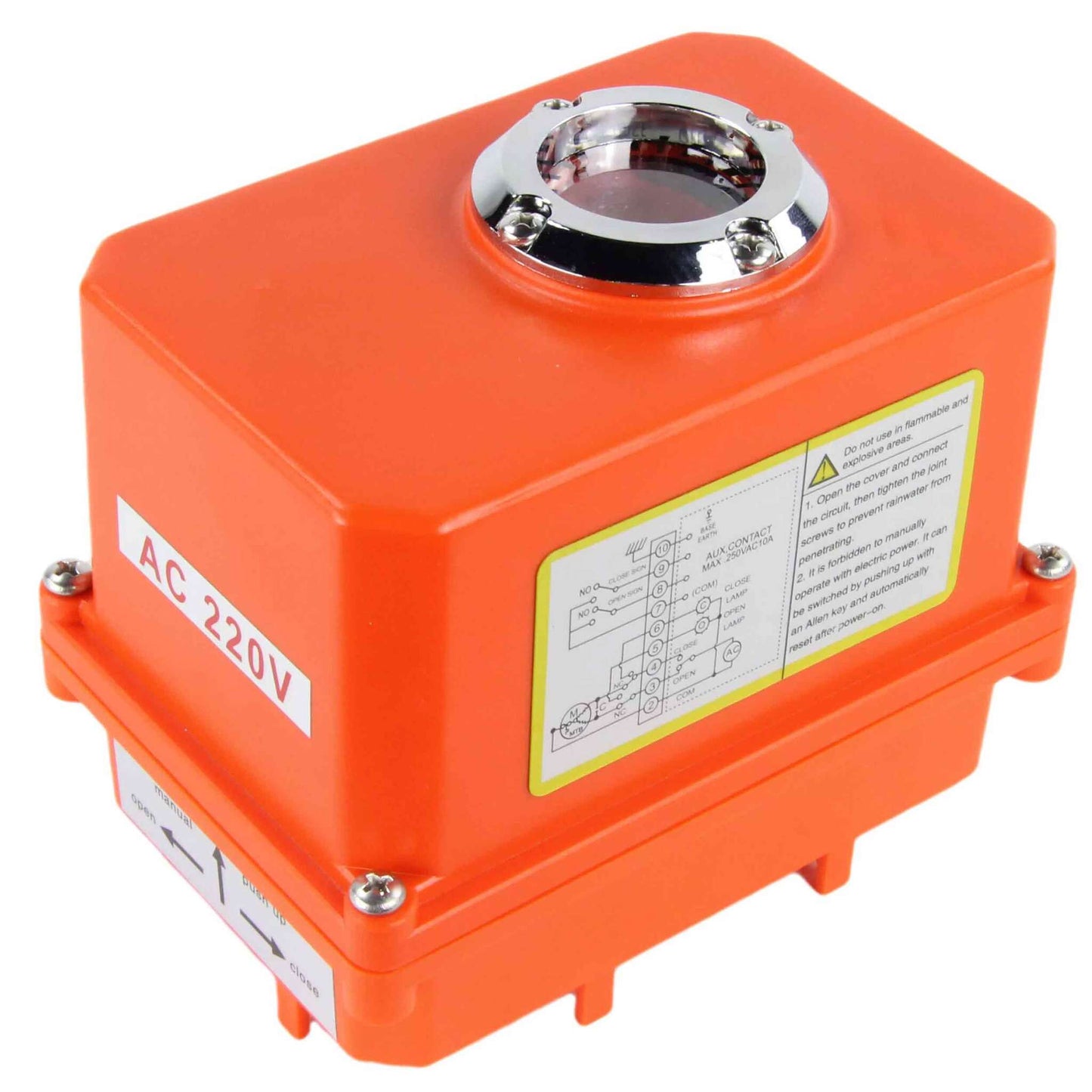

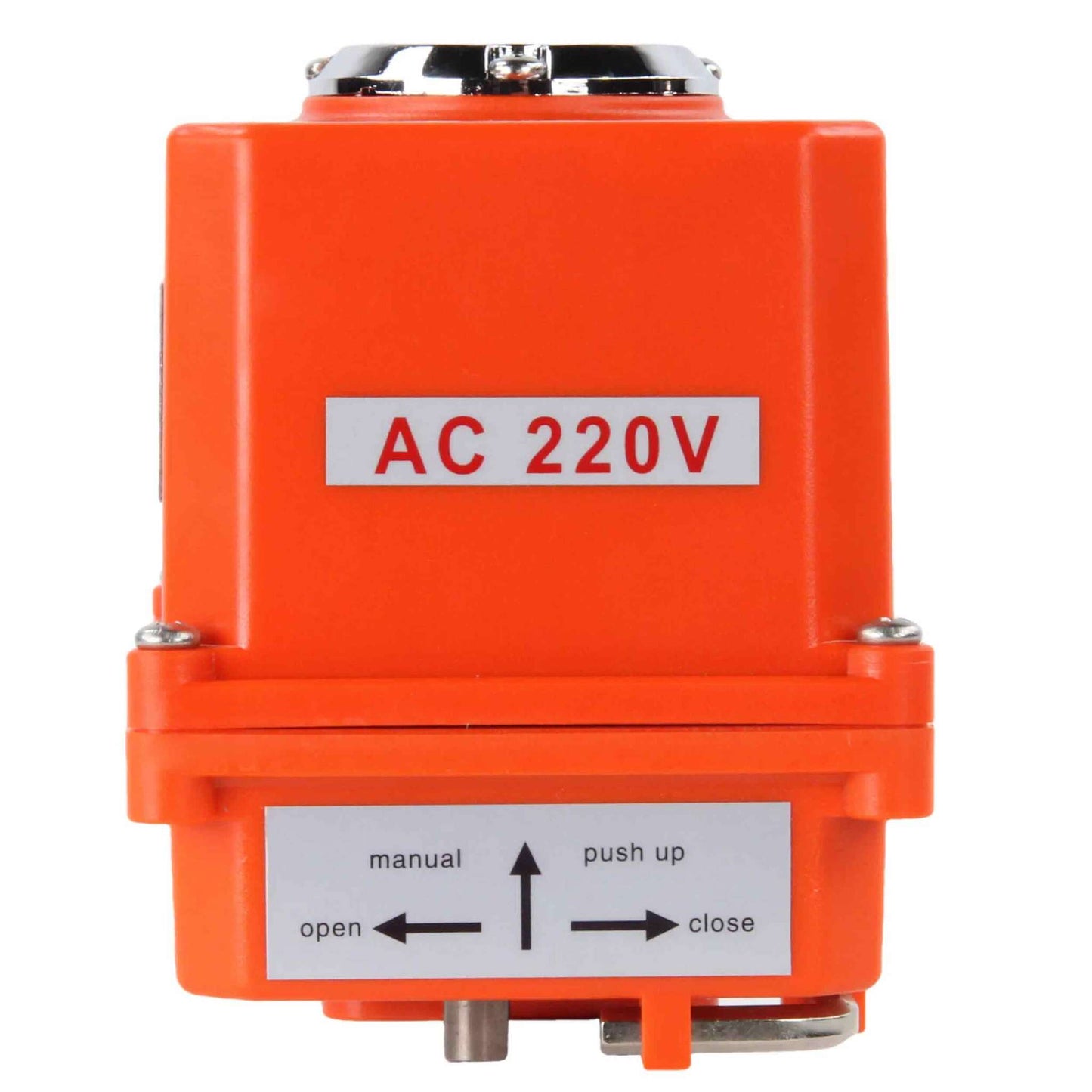

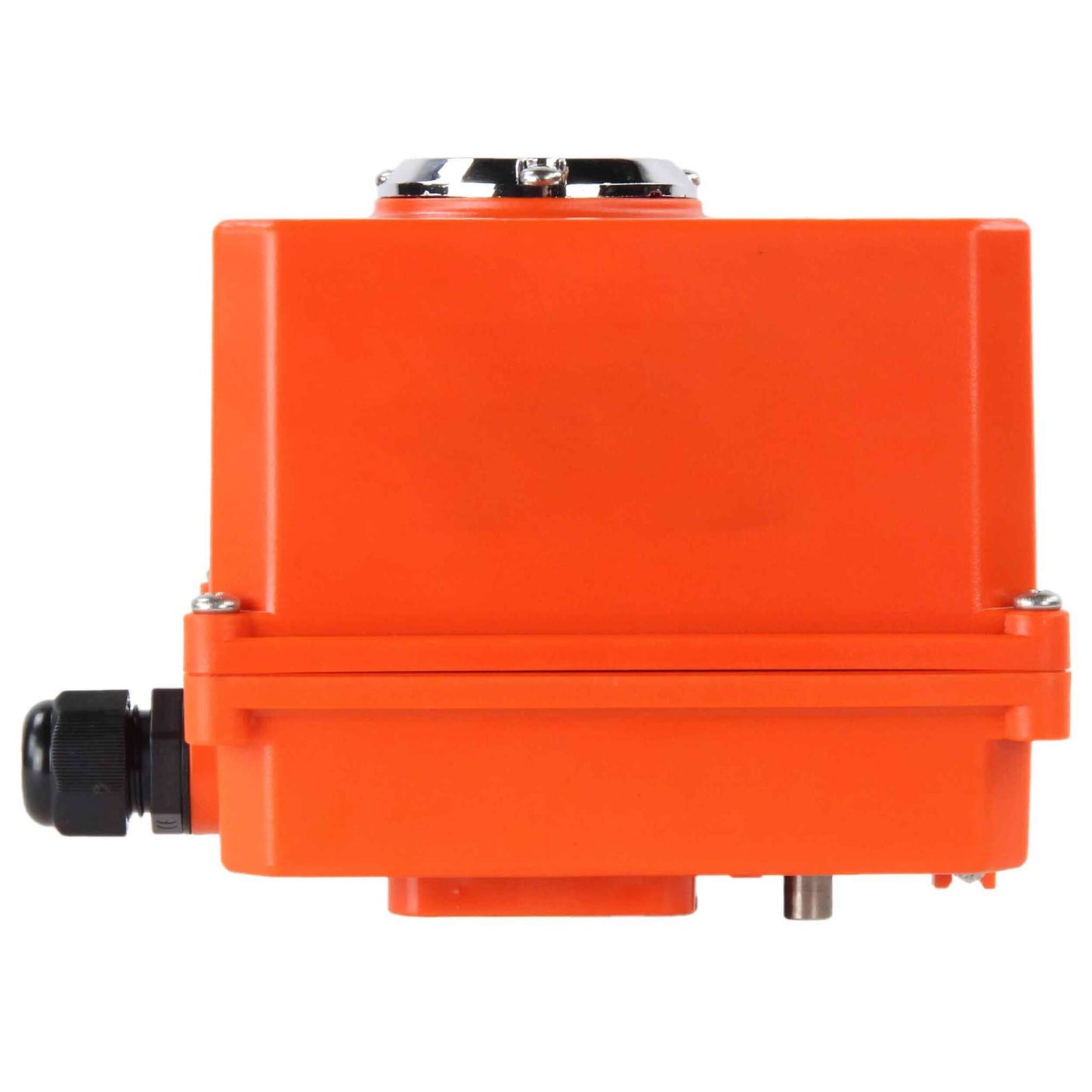

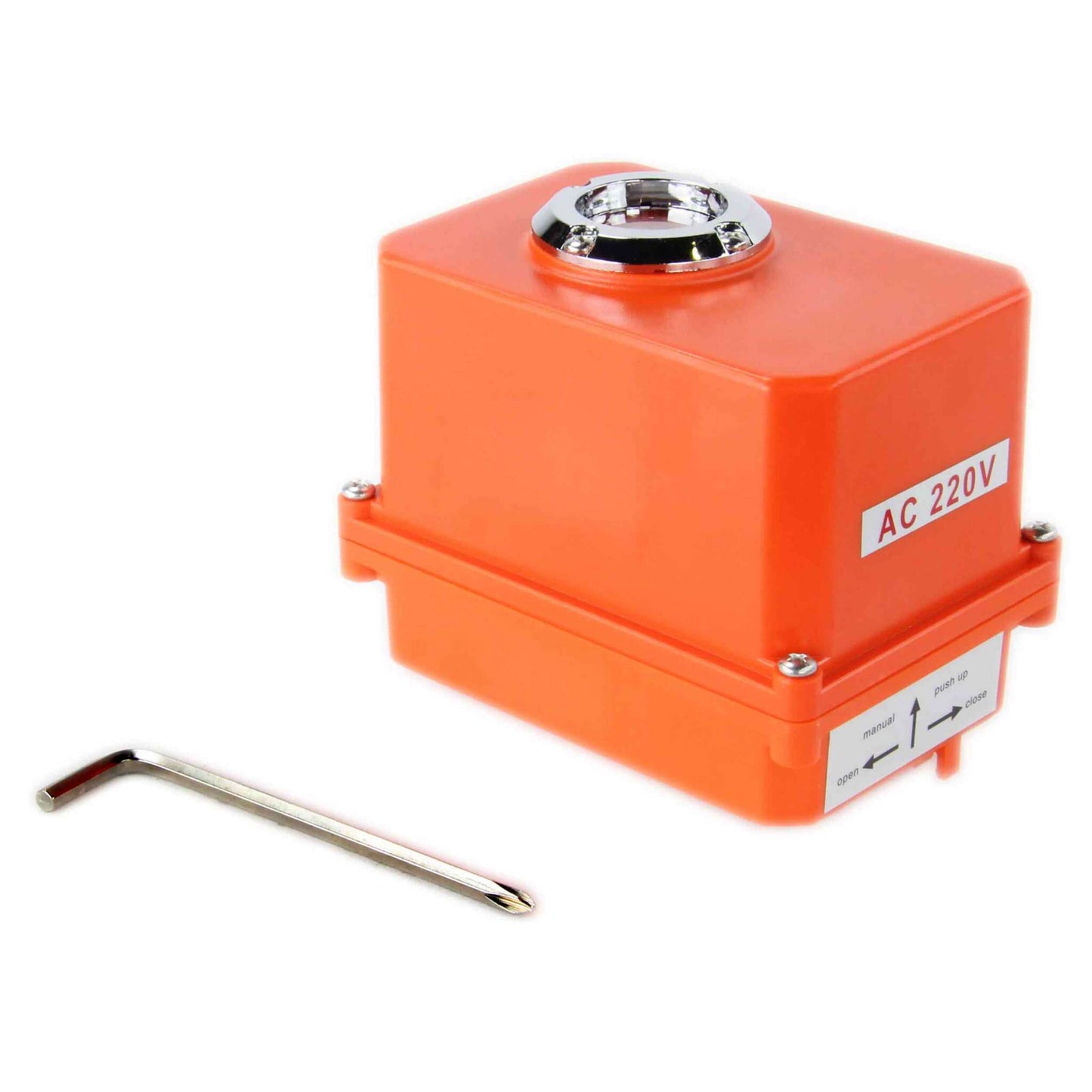

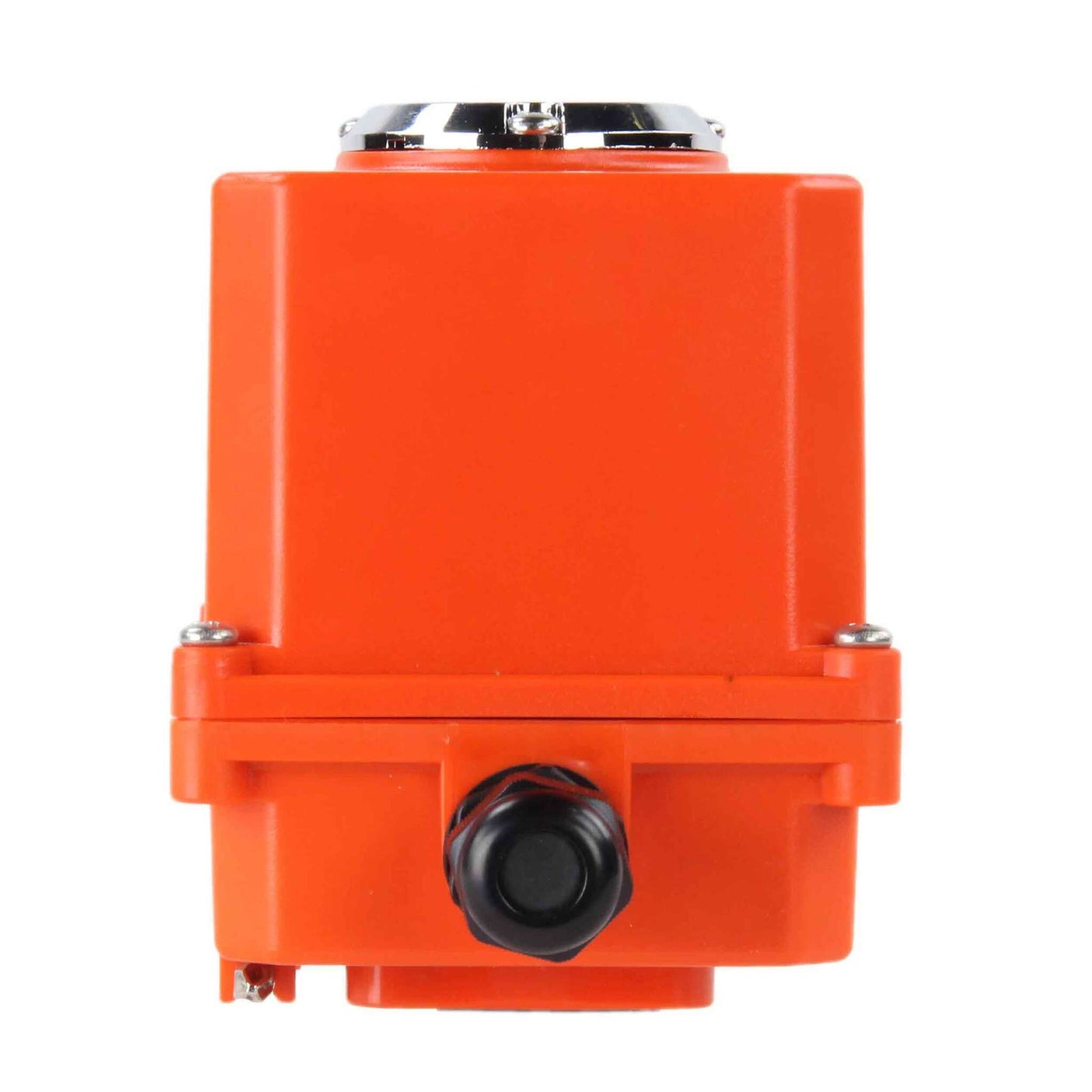

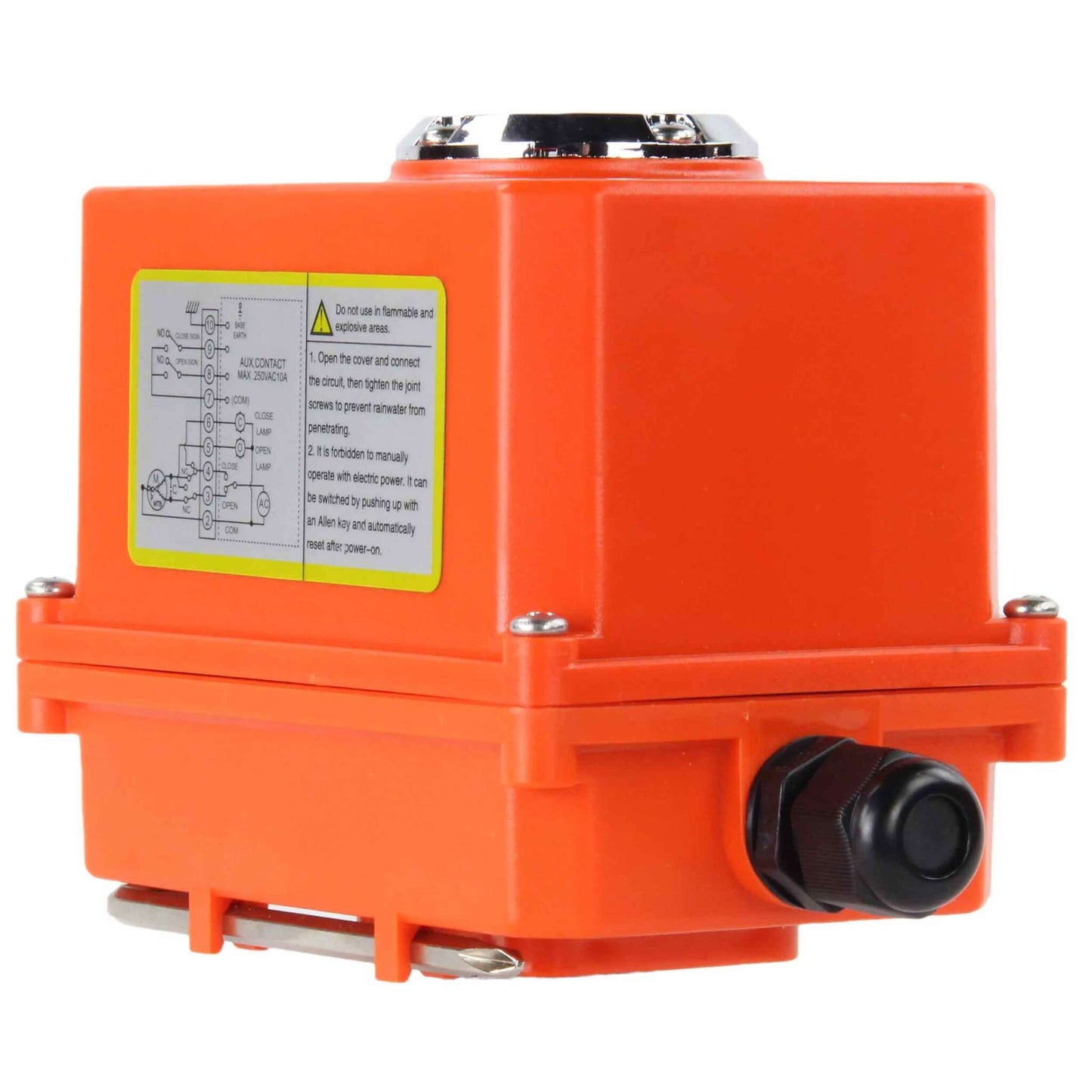

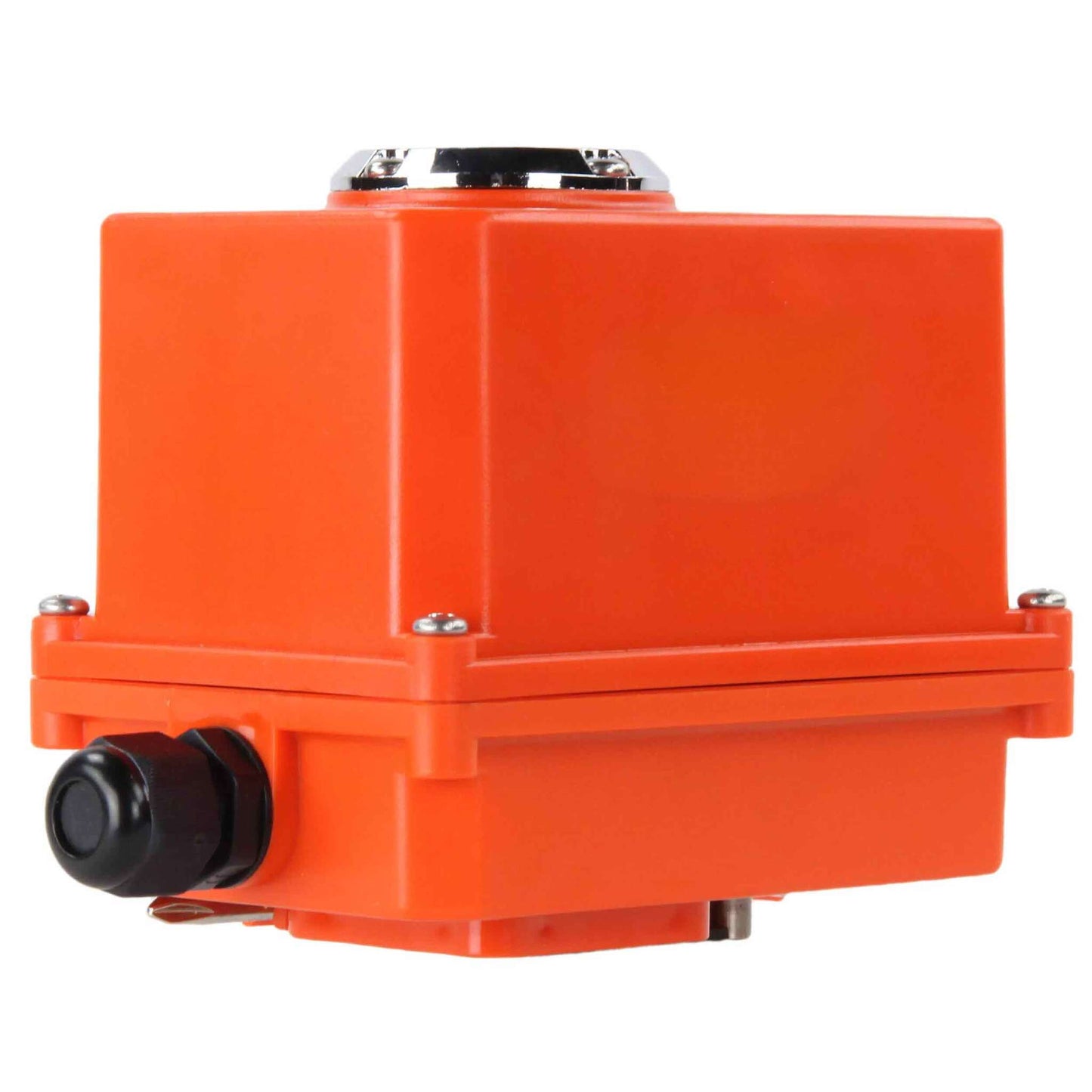

Quarter-turn electric actuator DNOVA QT MINI 003 220 V

From $25.06 USD
From $25.06 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

Electric quarter-turn actuators are designed for remote and local control of shut-off pipeline valves having a quarter-turn shut-off valve. They are used in various branches of national economy: in gas, oil, metallurgy, food industry, housing and communal services, etc. The actuators are installed directly on pipeline valves. The mounting dimensions comply with the international standard ISO 5211. Four microswitches are used to limit the output shaft travel to the end positions of the valve actuator. The actuators are designed for operation in repeated-short-time mode S2 with a switching time of 10 minutes.



Main technical characteristics:

Actuator model Nominal current, A Nominal power, W Torque, Nm Cycle time (rotation by 90°), sec
QT-003 0,2 20 30 5-15
QT-005 0,24 15 50 20
QT-008 0,32 30 80 25
QT-015 0,35 30 - 25
QT-020 0,48 90 - 45
QT-060 0,92 90 - 45
QT-100 1,2 100 - 45



Specifications

Country of origin
China
Actuator cycle time
20s
Explosion-proof
No
Thermal protection
No
Type of electric actuator
Quarter-turn
Feedback sensor
Limit switches
Control signal
ON/OFF

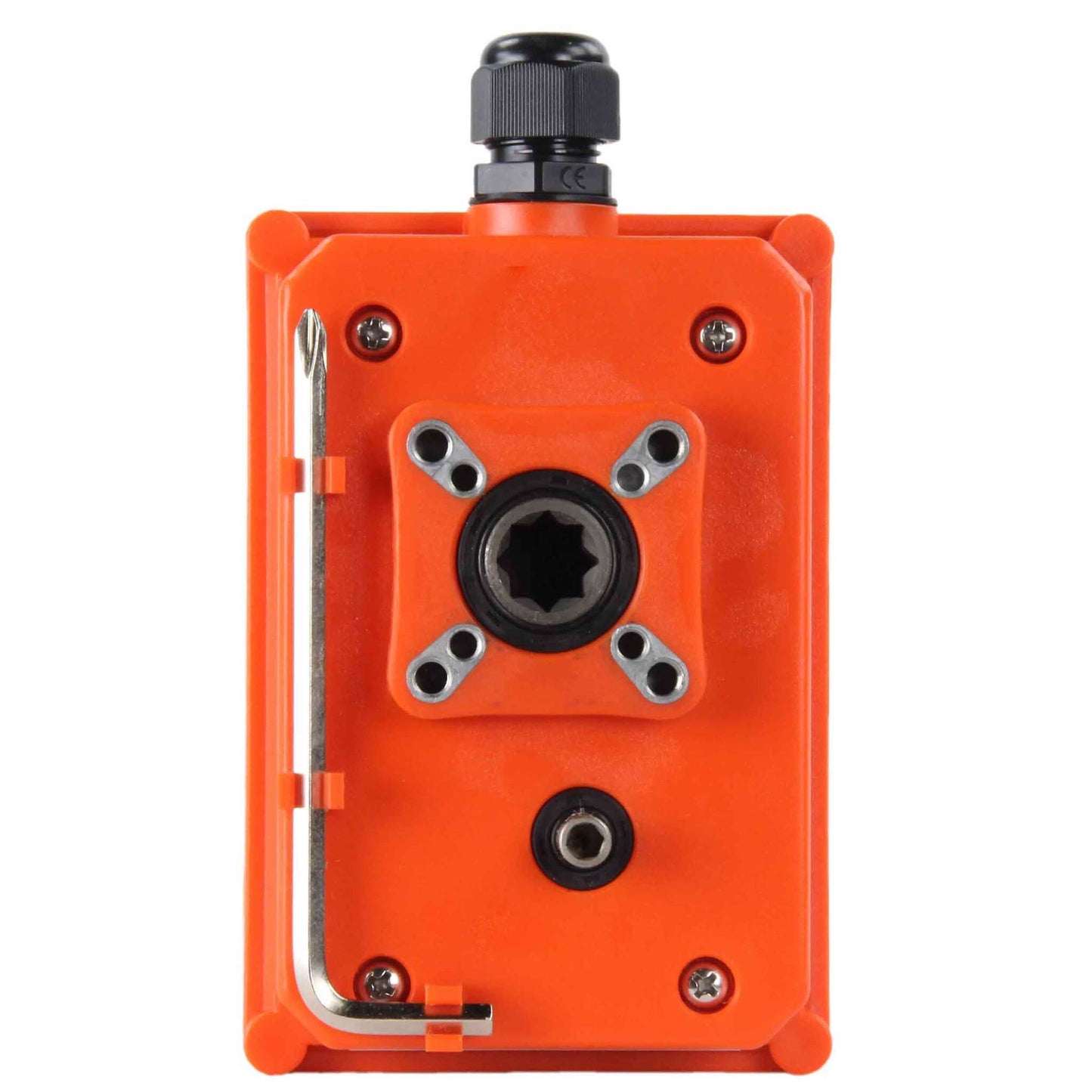

Shaft shape square
11х11mm
ISO - flange type
F03,F05
Rated current consumption
0.2 A
Power consumption
20 W
Supply voltage
220 V
