Description
The pneumatic shut-off valve is designed for quickly shutting off the flow of working medium in a pipeline, which is especially important in emergency situations or for quickly isolating equipment.
The electropneumatic intelligent positioner is designed to adjust the valve travel using automatic control algorithm and PWM control technology.
Technical characteristics of pneumatic shut-off valves DNOVA VSP3232PV-T-1PNC, body - stainless steel SS316, threaded, Y-shaped, with electropneumatic intelligent positioner EIP-1500 (stroke 5-25 mm):
| Name | Value |
| Marking | VSP3232PV-T-1PNC with EFI-1500 (stroke 5-25mm) |
| Nominal diameter | 15 - 100 mm |
| Nominal pressure | 16/25 bar |
| Type of control | pneumatic actuator |
| Connection type | coupling (threaded) |
| Working medium | water, steam and liquids compatible with the valve materials of construction |
| Direction of medium flow | arrow on valve body |
| Maximum kinematic viscosity of the medium | 600 mm2/s |
| Control characteristic | linear |
| Design | normally closed |
| Areas of application | heating and water supply systems, industrial pipelines |
| Operating medium temperature | from -40 to 220 °C |
| Ambient temperature | from -10 to +60 °C |
| Average service life | 10 000 000 closing/opening cycles |

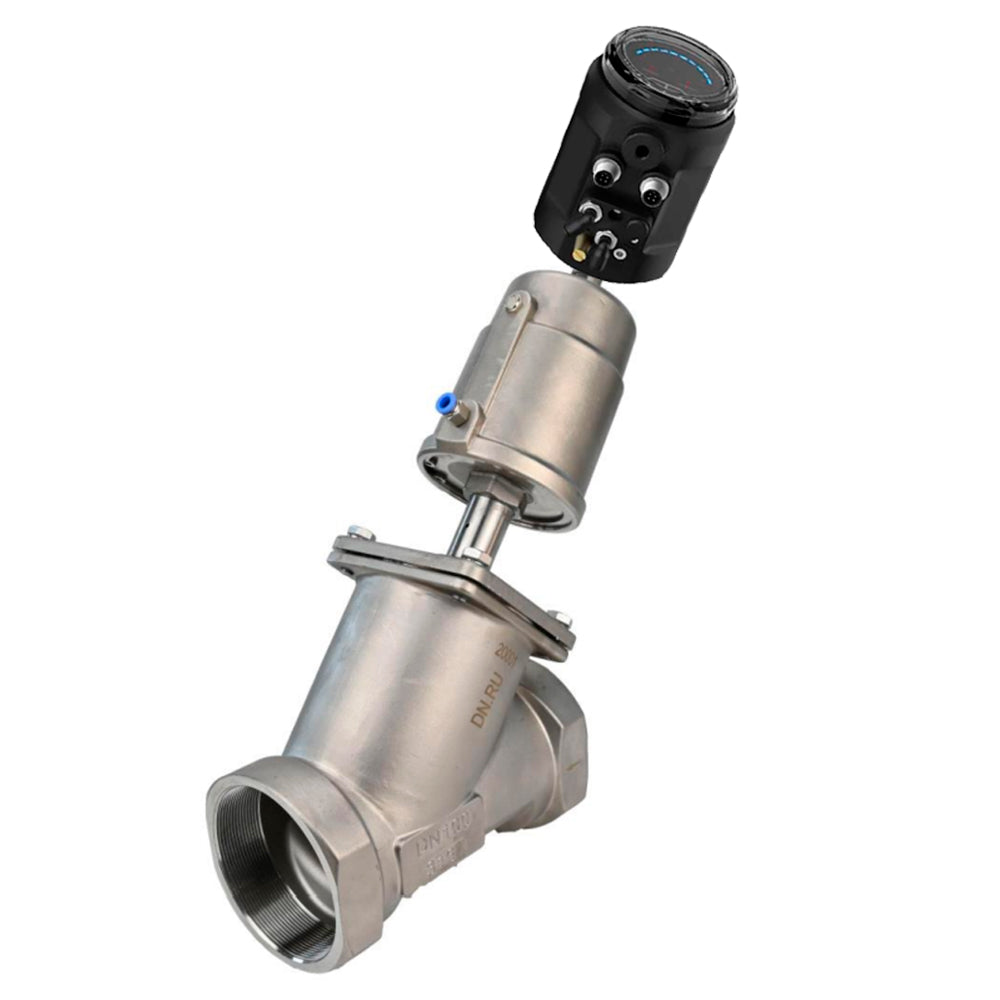

Pneumatic shut-off valves DNOVA VSP3232PV-T-1PNC, body - stainless steel SS316, threaded, Y-shaped, with electropneumatic intelligent positioner EIP-1500 (stroke 5-25 mm)
Technical characteristics of electropneumatic intelligent positioner EIP-1500 stroke range 5-25mm:
| Parameter | Value |
|---|---|
| Housing material | Polycarbonate (PC); Silicone (SI); Plastic PA6-GF30 |
| Enclosure protection rating | IP66 |
| Visual indication | Display with LED indicators |
| Linear stroke range | 5–25 mm |
| Electrical connection parameters | 24VDC ±10%; ≥1A |
| Power-off state | Return to initial position |
| Air supply pressure | 3–7 bar |
| Control medium | Neutral gas, air according to DIN ISO 8573-1 quality class 3 |
| Pneumatic connection | G1/4 (inner diameter Ø6 mm) |
| Electrical connection | M12, 4-pin, D-coded (cable Ø 4–6 mm) |
| Ambient temperature | 0 to +80 °C |
| Vibration resistance | 100 Hz |
| Weight | 0.14 kg |
| Average service life | 10 years |
Electropneumatic intelligent positioner EIP-1500 stroke range 5-25mm
Overall and installation dimensions of pneumatic shut-off valves DNOVA VSP3232PV-T-1PNC, body - stainless steel SS316, threaded, Y-shaped, with electropneumatic intelligent positioner EIP-1500 (stroke 5-25 mm):
| DN | L, mm | D | A, mm | H, mm | B, mm | K | Weight, kg |
| 15 | 68 | G 1/2″ | 136 | 135 | 62 | G 1/8″ | 1.2 |
| 20 | 75 | G 3/4″ | 144 | 139 | 62 | G 1/8″ | 1.4 |
| 25 | 90 | G 1″ | 168 | 167 | 76 | G 1/8″ | 2.3 |
| 32 | 115 | G 1 1/4″ | 190 | 180 | 76 | G 1/8″ | 3.5 |
| 40 | 115 | G 1 1/2″ | 193 | 181 | 96 | G 1/8″ | 4 |
| 50 | 135 | G 2″ | 290 | 246 | 117 | G 1/4″ | 6.5 |
| 65 | 185 | G 2 1/2″ | 325 | 263 | 117 | G 1/4″ | 8.9 |
| 80 | 210 | G 3″ | 360 | 295 | 163 | G 1/4″ | 15 |
| 100 | 232 | G 4″ | 401 | 384 | 185 | G 1/4″ | 23 |
Sketch of dimensions of pneumatic shut-off valves DNOVA VSP3232PV-T-1PNC, body - stainless steel SS316, threaded, Y-shaped, with electropneumatic intelligent positioner EIP-1500 (stroke 5-25 mm)
Overall and installation dimensions of electropneumatic positioner EIP-1500 stroke range 5-25mm for actuators with linear motion:
| D1, mm | D2, mm | D3, mm | A, mm | B, mm | C, mm | E, mm | F, mm | G |
| 100 | 86 | 8 | 162 | 139 | 124 | 15 | 11.5 | M26x1.5 |
Sketch of electropneumatic positioner EIP-1500 stroke range 5-25mm with linear motion
Materials of parts of pneumatic shut-off valves DNOVA VSP3232PV-T-1PNC, body - stainless steel SS316, threaded, Y-shaped, with electropneumatic intelligent positioner EIP-1500 (stroke 5-25 mm):
| № | Part name | Material |
| 1 | Body | CF8M steel |
| 2 | Plunger | CF8M steel |
| 3 | Plug seal | PTFE |
| 4 | Valve cover | CF8M steel |
| 5 | Spring | 60Si2MnA steel |
| 6 | Actuator cover | CF8M steel |
| 7 | Actuator housing | CF8M steel |
| 8 | Indicator cover | plastic |
| 9 | Spring | 60Si2MnA steel |
| 10 | Piston | aluminum alloy AD31 |
| 11 | Piston seal | VITON |
| 12 | V-shaped piston seal | VITON |
| 13 | O-ring | NBR |
| 14 | Rod | CF8M steel |
| 15 | Stem seal | PTFE |
| 16 | Valve cover seal | PTFE |
Material sketch of pneumatic shut-off valves DNOVA VSP3232PV-T-1PNC, body - stainless steel SS316, threaded, Y-shaped, with electropneumatic intelligent positioner EIP-1500 (stroke 5-25 mm)
The main units of electropneumatic intelligent positioner EIP-1500 stroke range 5-25mm:
| № | Name | Quantity |
| 1 | Protective cover | 1 pc |
| 2 | Enclosure | 1 pc |
| 3 | Electrical connectors | 2 pcs |
| 4 | Pneumatic connectors | 2 pcs |
| 5 | Connection to IM | 1 pc |
Sketch of electropneumatic intelligent positioner EIP-1500 stroke range 5-25mm
