Description

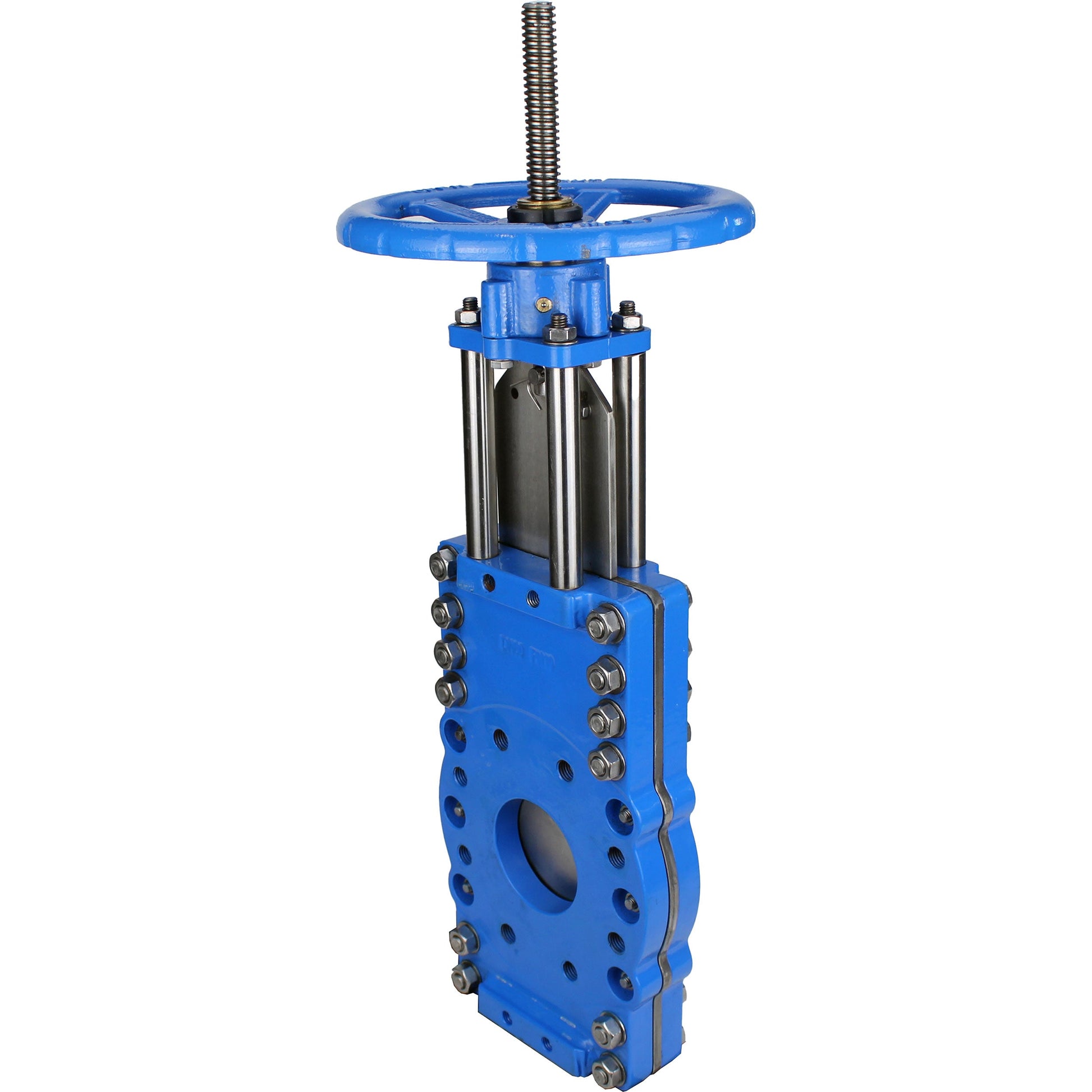

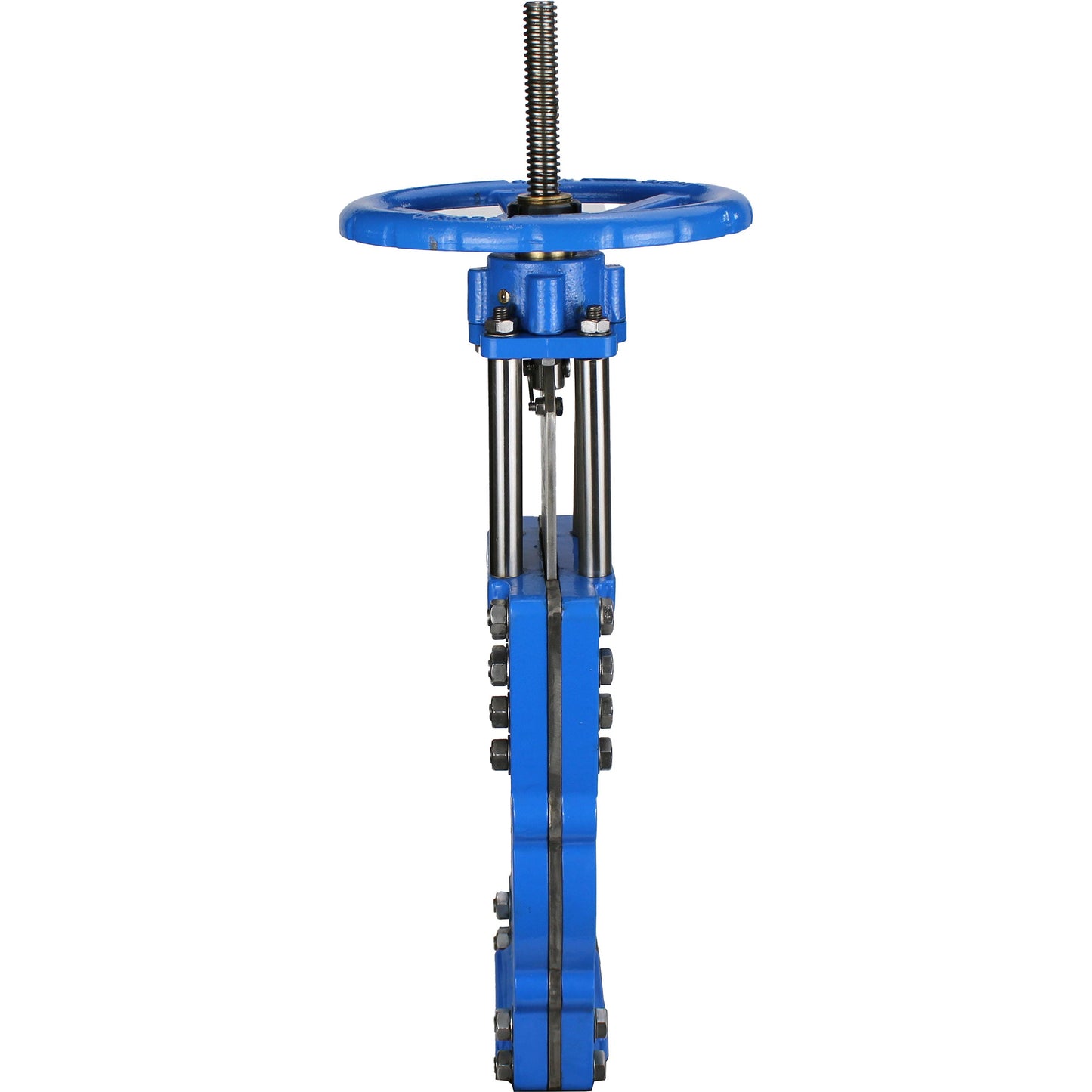

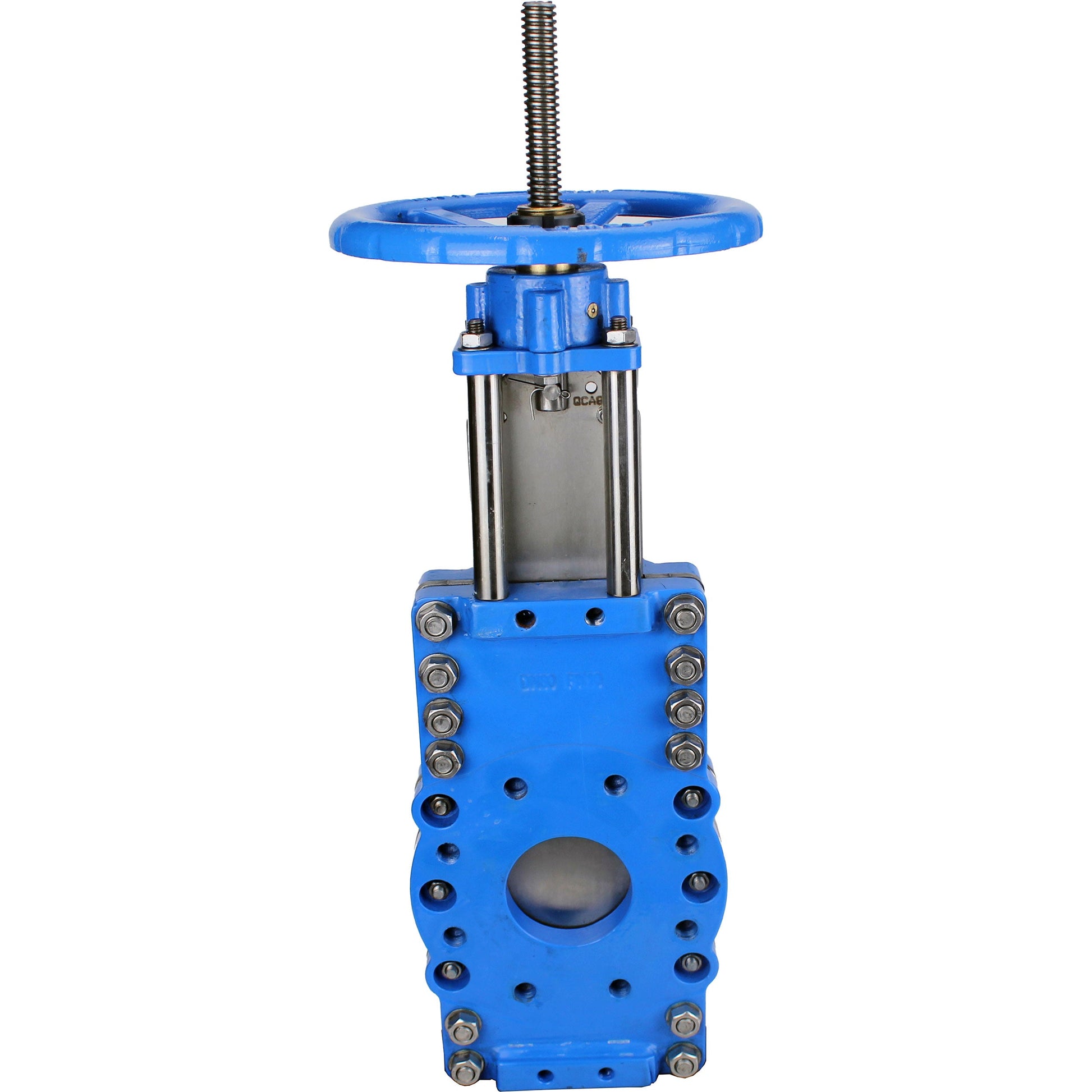

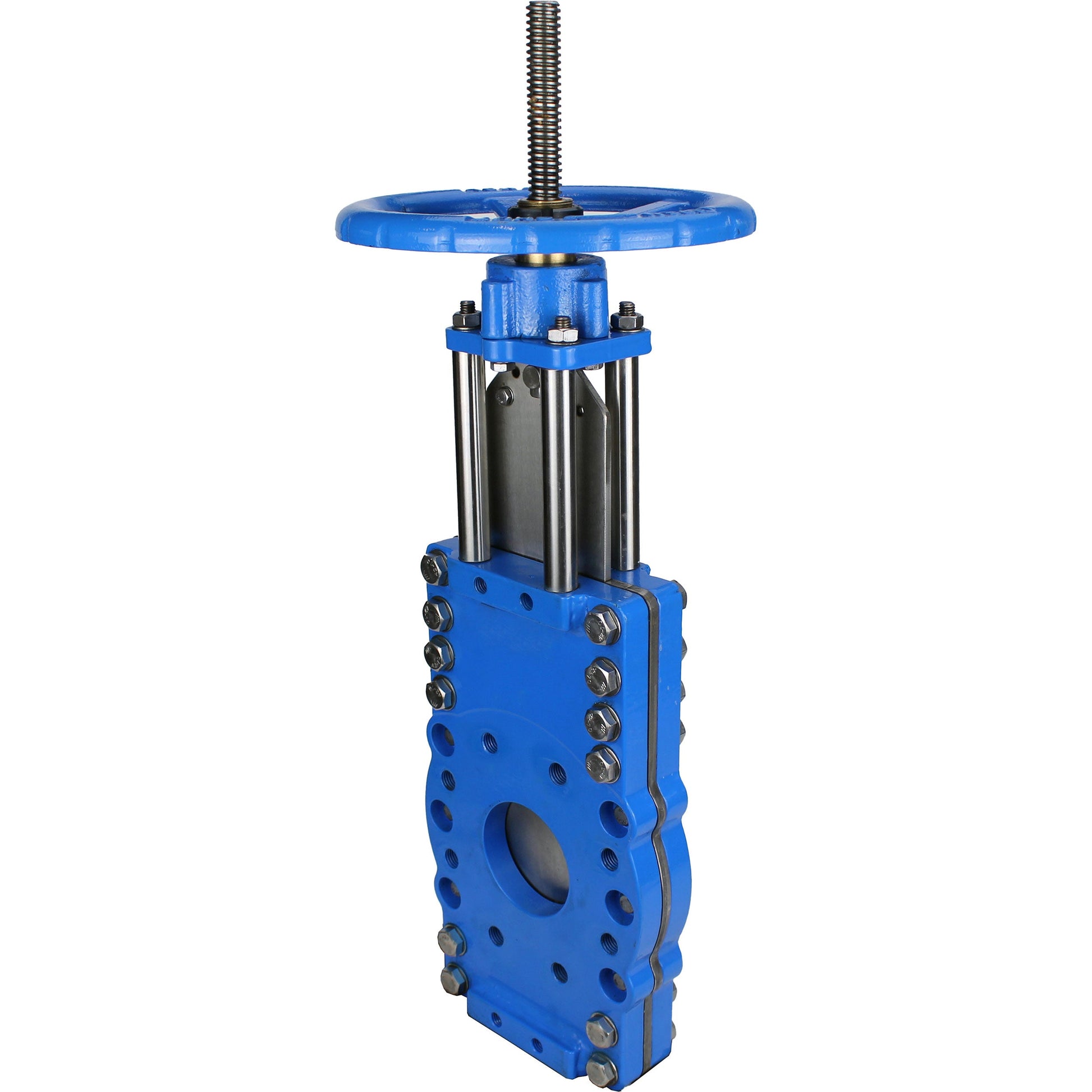

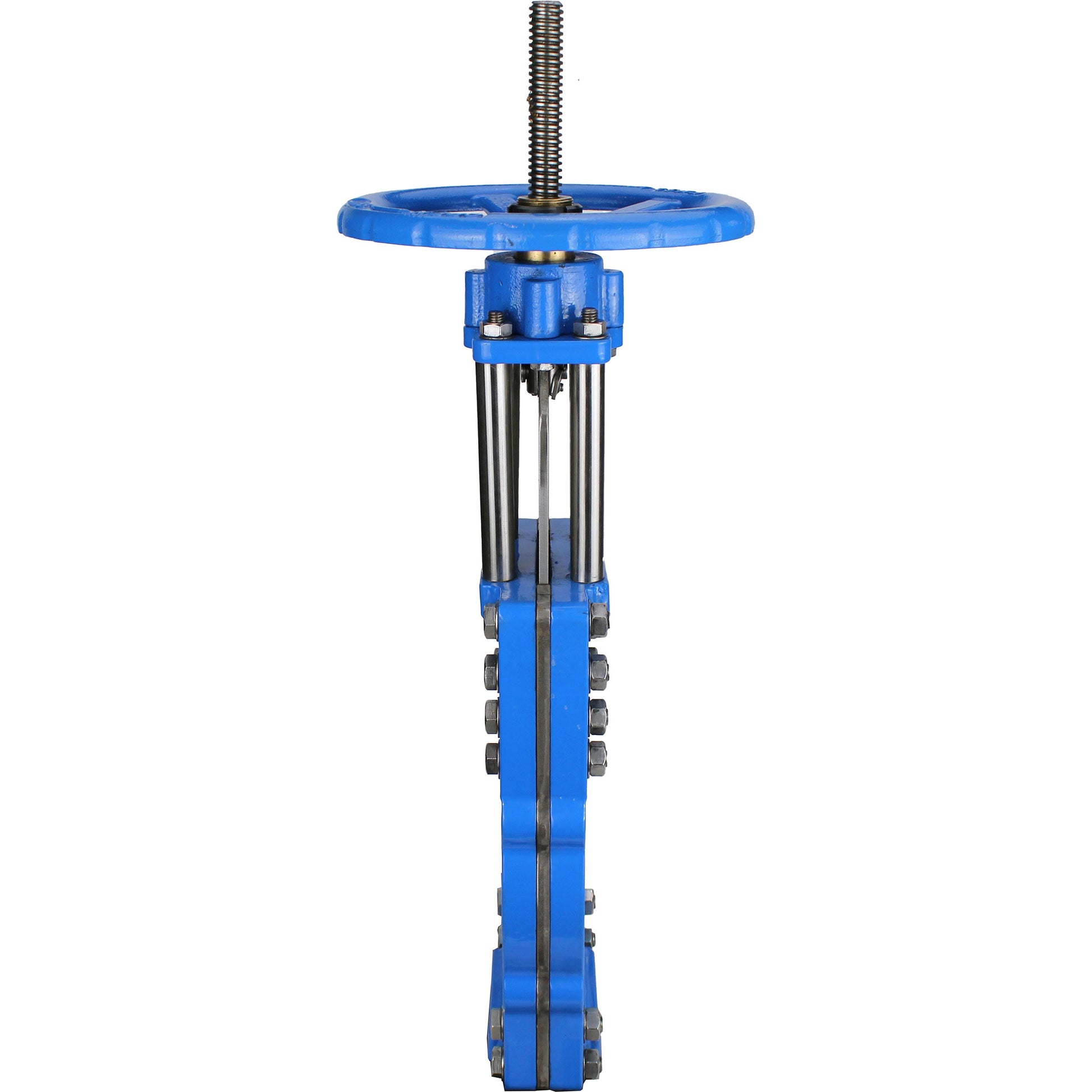

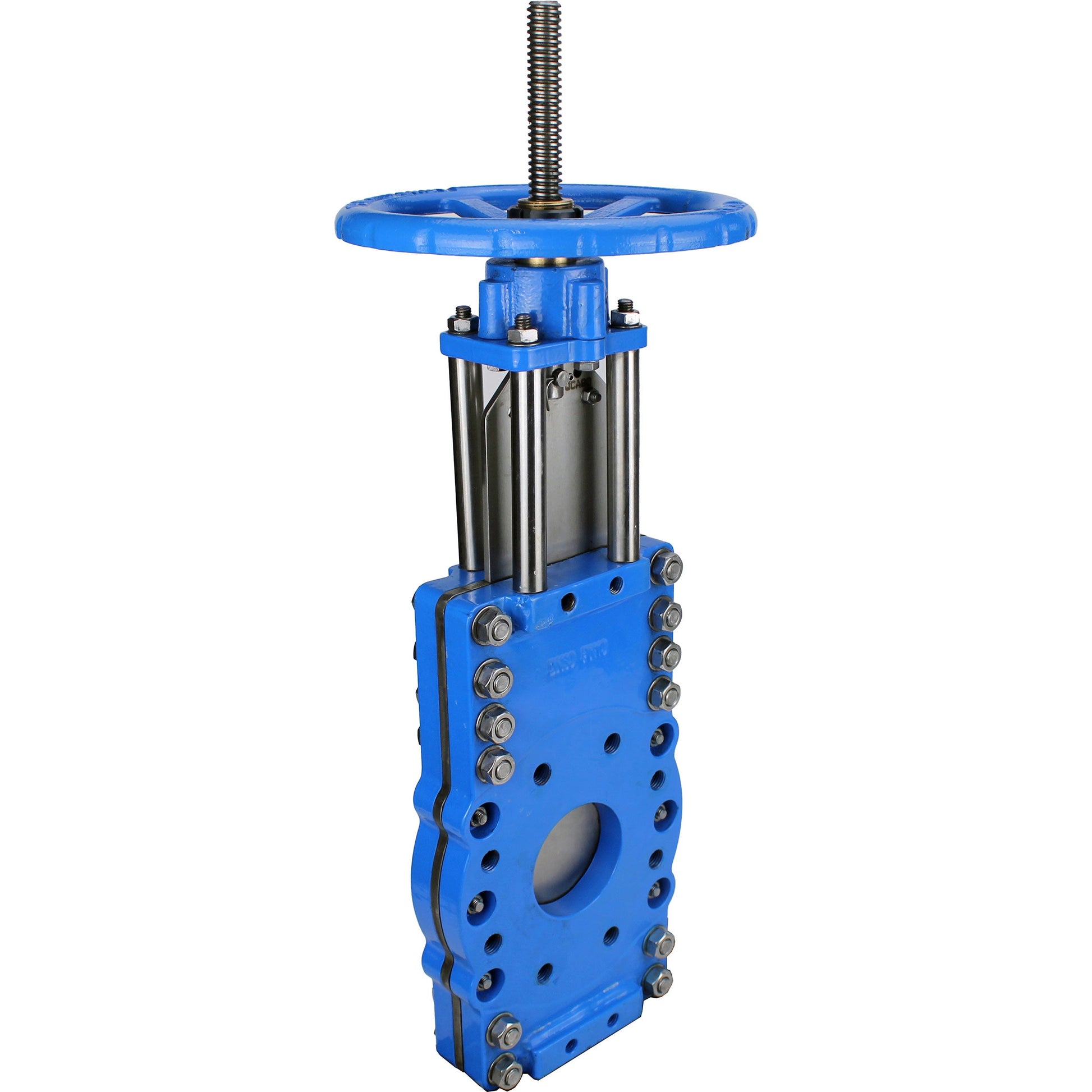

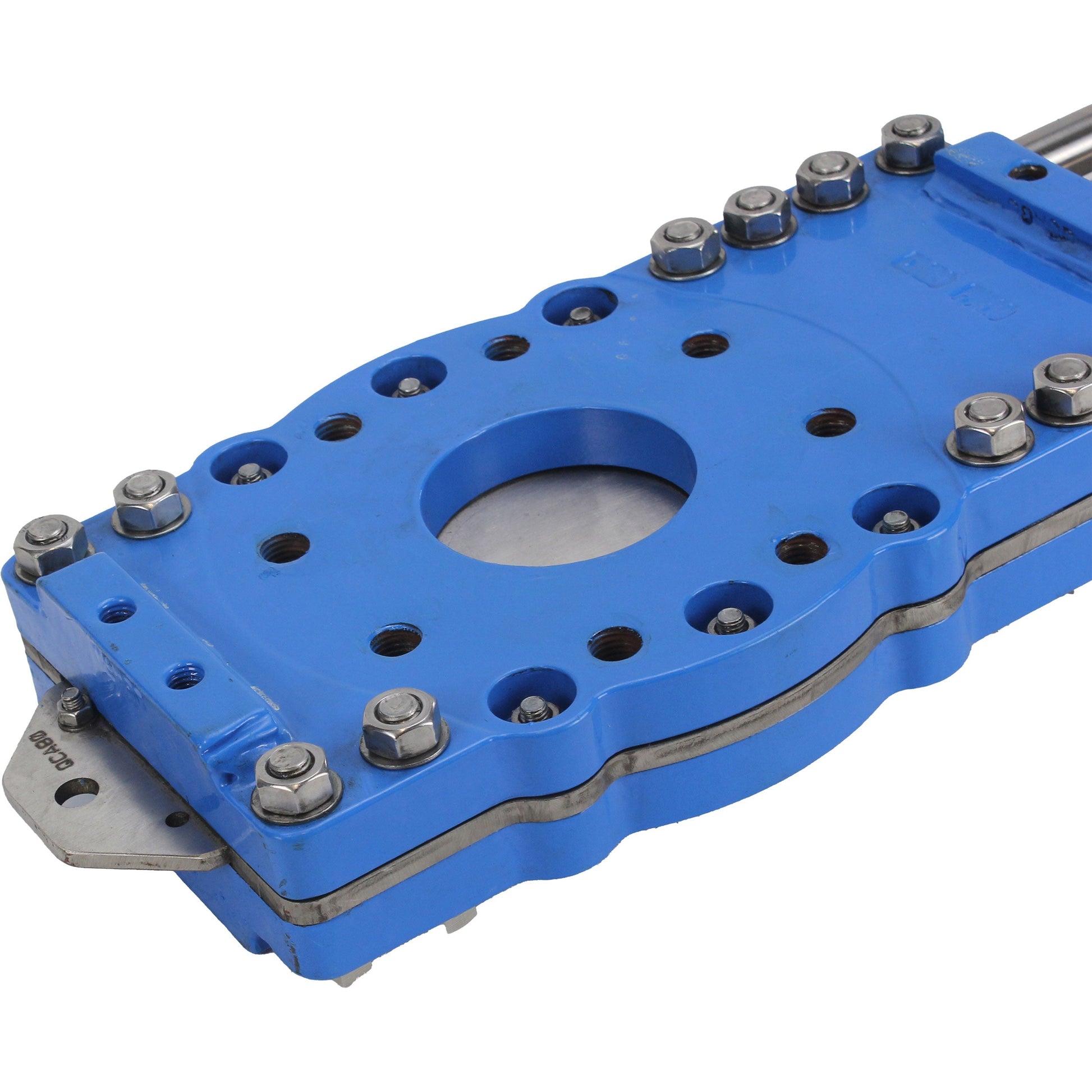

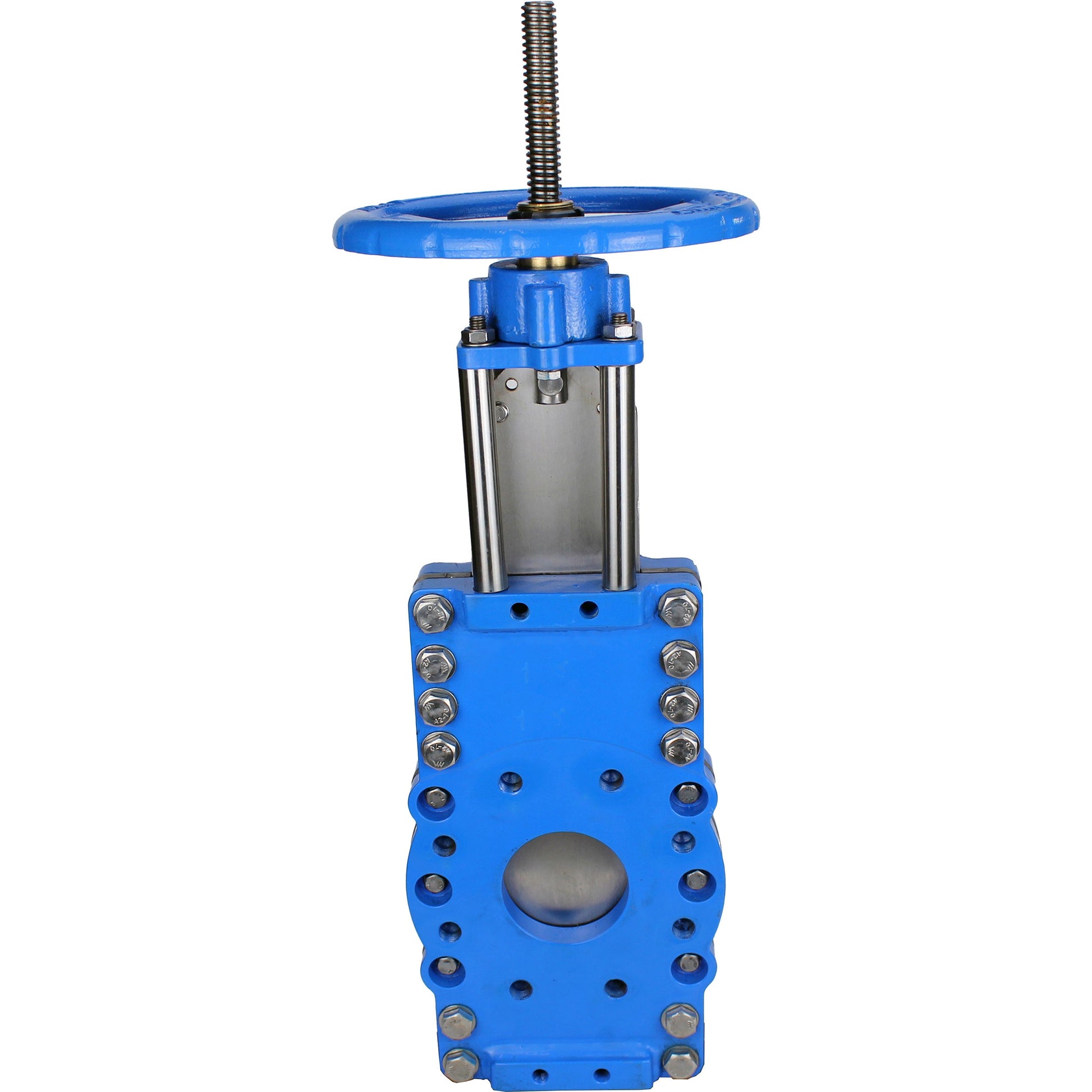

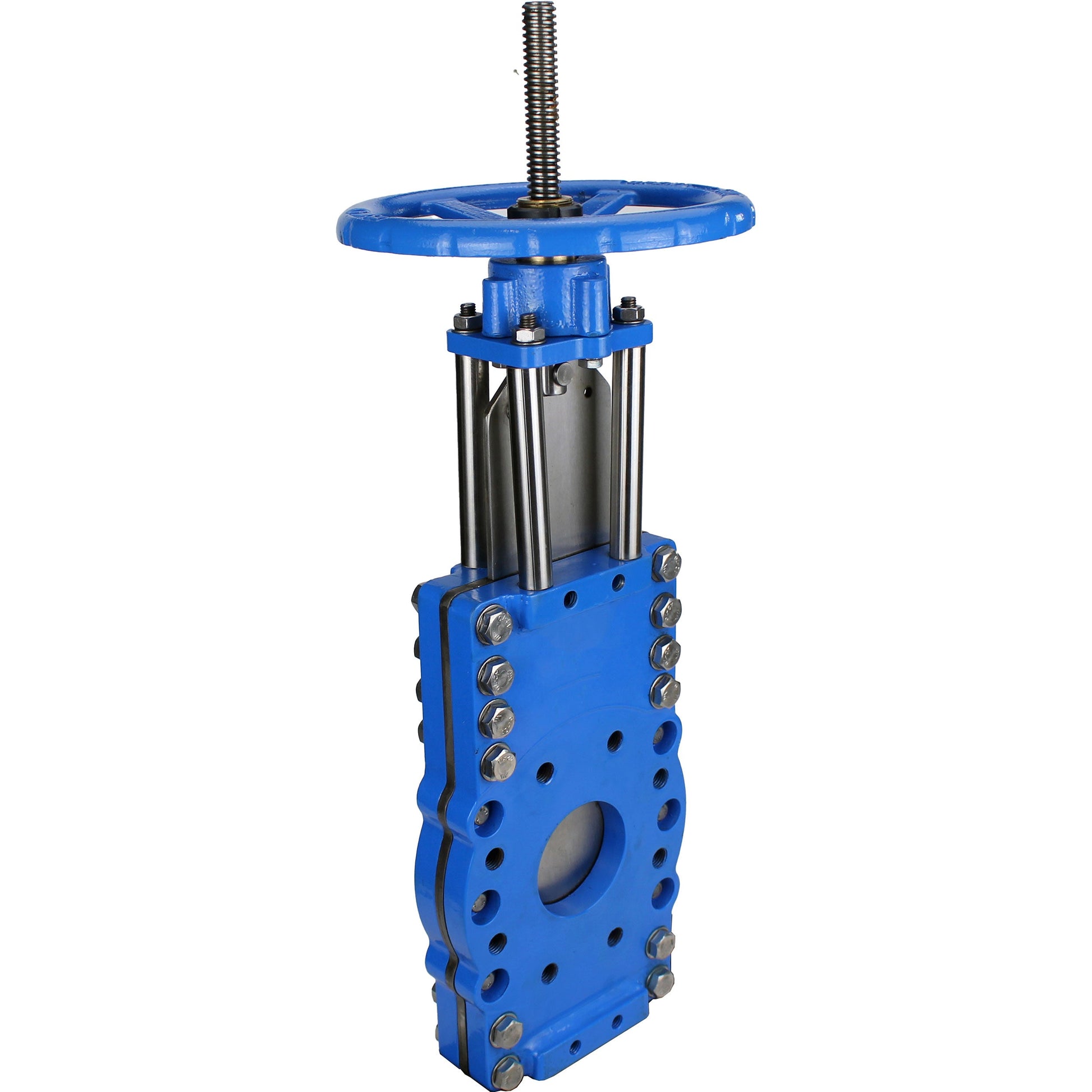

Gate gate valve with through knife DNOVA GVKRT3431N-2W-Fb-S DN50 Ru16 carbon steel, interflanged with hand wheel is designed for installation on the pipeline as a shut-off device and regulating the flow of medium with a high concentration of solid particles. It can also be used in gravity feed systems of solid and powdery substances, as the cutting edge of the knife allows cutting off high density flows.
Main technical characteristics of gate valves with through knife DNOVA GVKRT3431N-2W-Fb-S, body material - carbon steel A216, knife material - stainless steel AISI 304, seal - NBR, handwheel
| Nominal diameter DN, mm | 50÷200 |
| Nominal pressure of the gate valve, bar |
DN50÷100 – 16 DN200 – 10 |
| Temperature of the working medium t, ⁰C | from -30 to +110 |
| Working medium | liquids with a suspended solids content of up to 20%; viscous media, powders, cellulose and wood pulp (pulp concentration from 5% to 20%), waste paper, ash and highly concentrated sludge |
| Direction of medium flow | bilateral |
| Tightness class | B |
| Control type | steering wheel |
| Connection to the pipeline | wafer |
| Nominal pressure of flanges, bar | DN50÷100 – 10/16 DN200 – 10 |
| Body material | carbon steel WCB |
| Gate material | stainless steel AISI 304 |
| Application areas | pulp and paper and mining industries; areas where equipment operability is required at high concentrations of solids in the working environment |
| Average service life, years | 10 |
| Average resource, closing/opening cycles |
20 000÷50 000 |
Dimensions and installation dimensions of gate valves with through knife DNOVA GVKRT3431N-2W-Fb-S, body material - carbon steel A216, knife material - stainless steel AISI 304, seal - NBR, handwheel
| Model | Size | |||||||
| DN | L | D | D1 | D2 | H1 | N-Th | T | |
| DN50 | 50 | 48 | 165 | 125 | 99 | 283 | 4 – M16 | 12 |
| DN80 | 80 | 51 | 200 | 160 | 132 | 385 | 8 – M16 | 12 |
| DN100 | 100 | 51 | 220 | 180 | 156 | 447 | 8 – M16 | 12 |
| DN200 | 200 | 70 | 340 | 295 | 266 | 721 | 8 – M20 | 16 |
Dimensional sketch of gate valves with through knife DNOVA GVKRT3431N-2W-Fb-S, body material - carbon steel A216, knife material - stainless steel AISI 304, seal - NBR, handwheel
Materials of through-blade gate valves DNOVA GVKRT3431N-2W-Fb-S, body material - carbon steel A216, knife material - stainless steel AISI 304, seal - NBR, handwheel
| № | Name | Material |
| 1 | Case | Carbon steel A216 Gr WCB/25L |
| 2 | Schieber | Carbon steel AISI/SS 304/08X18H10 |
| 3 | Guide seal | NBR |
| 4 | Guide seal | NBR |
| 5 | Rack | steel Q235 |
| 6 | Stem | steel 2Cr13 |
| 7 | Head end of the rack | cast iron GGG40 |
| 8 | Nut | brass |
| 9 | Helm | cast iron GGG40 |
| 10 | Valve stem connection unit | steel Q235 |
Material sketch of gate valves with through knife DNOVA GVKRT3431N-2W-Fb-S, body material - carbon steel A216, knife material - stainless steel AISI 304, seal - NBR, handwheel
