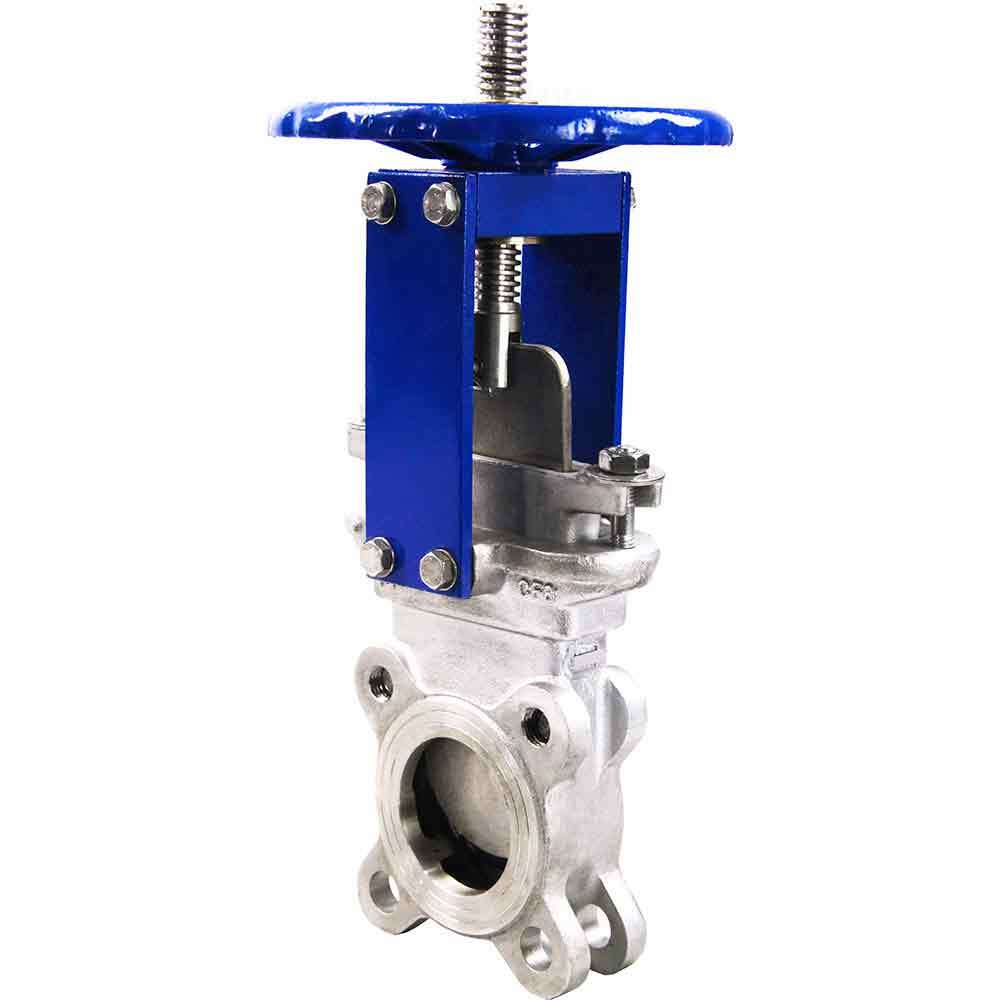

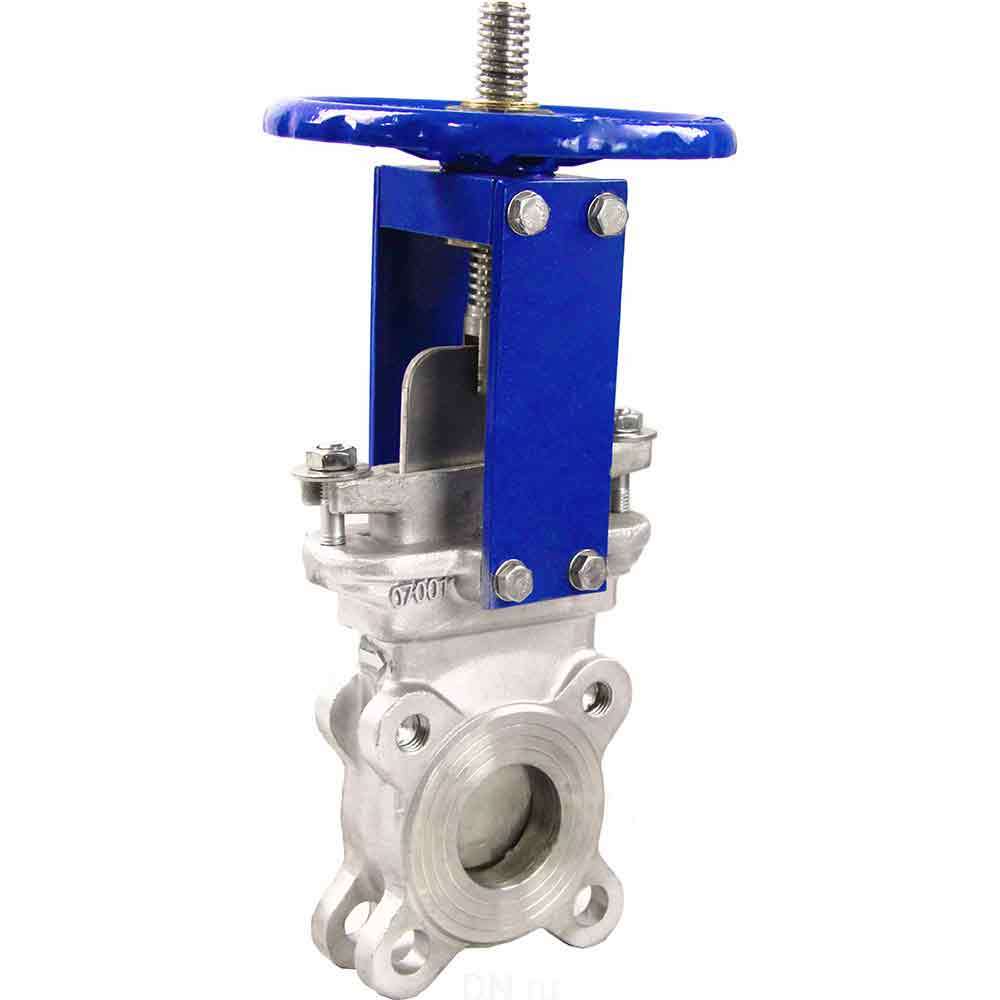

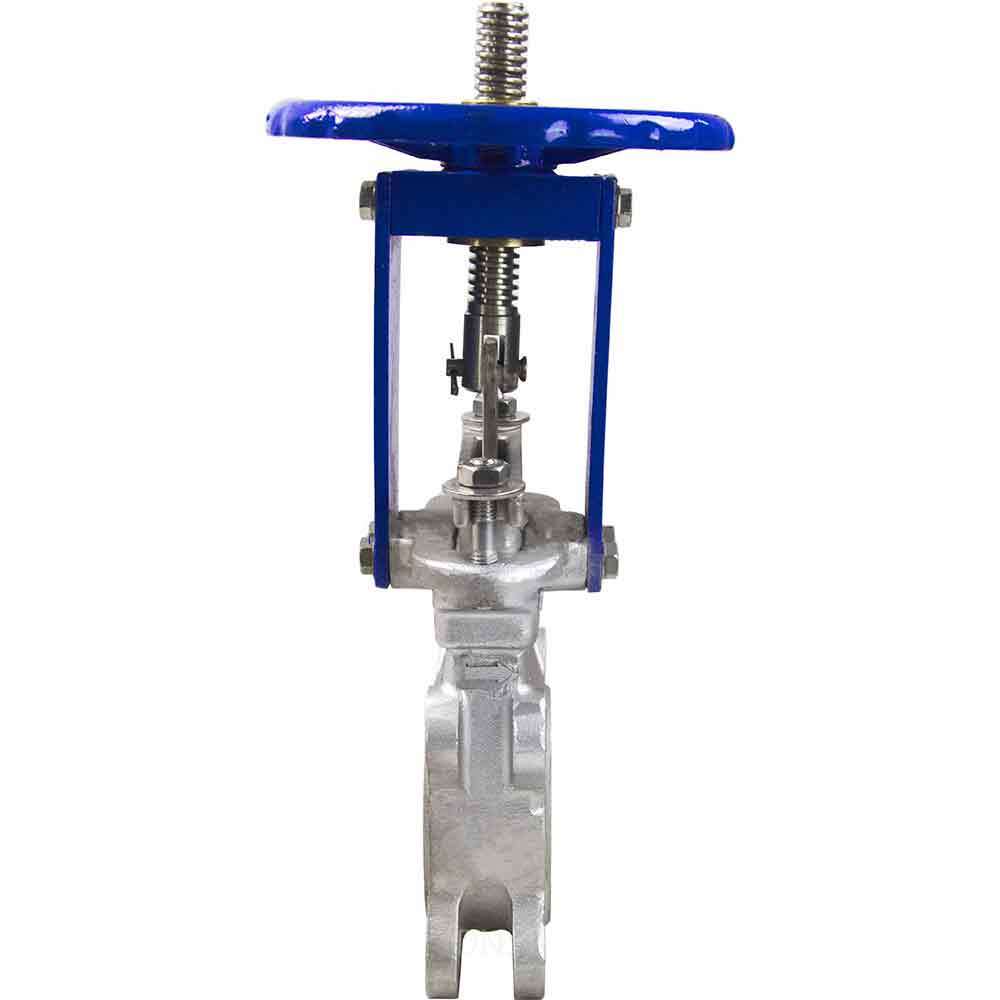

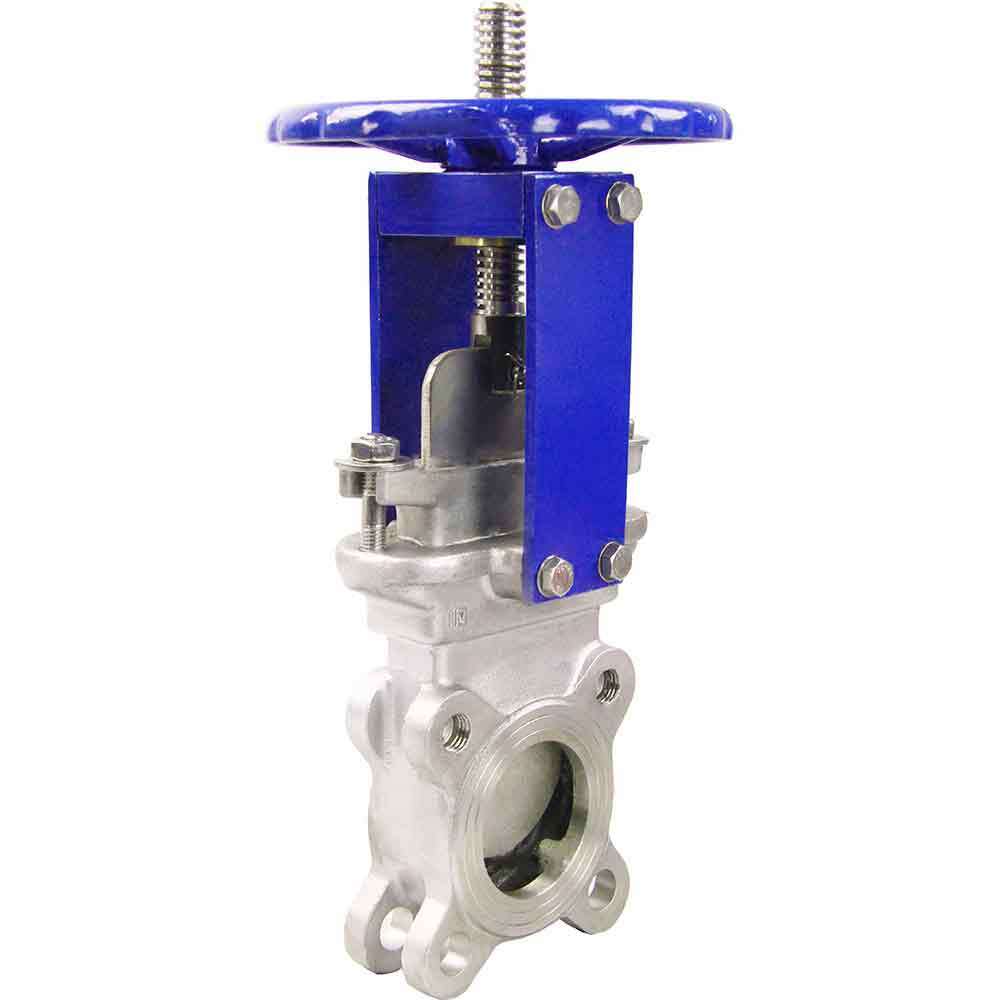

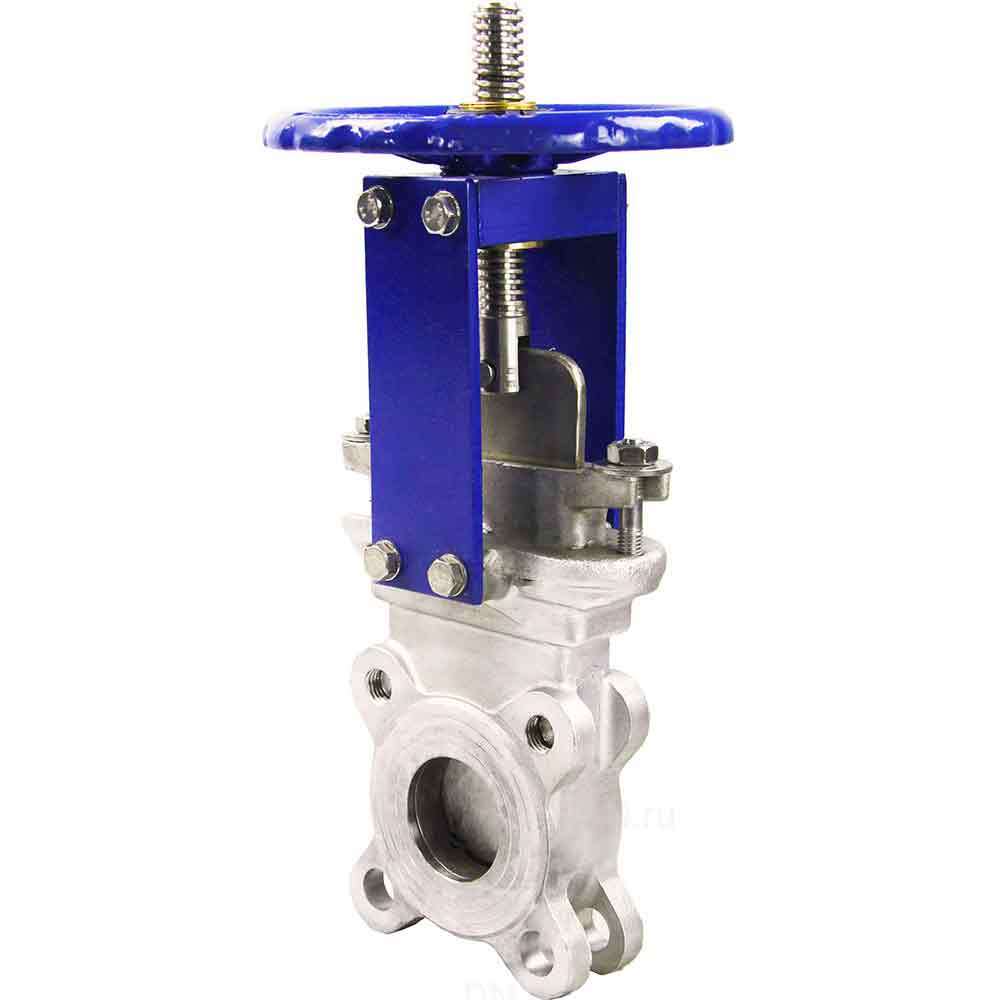

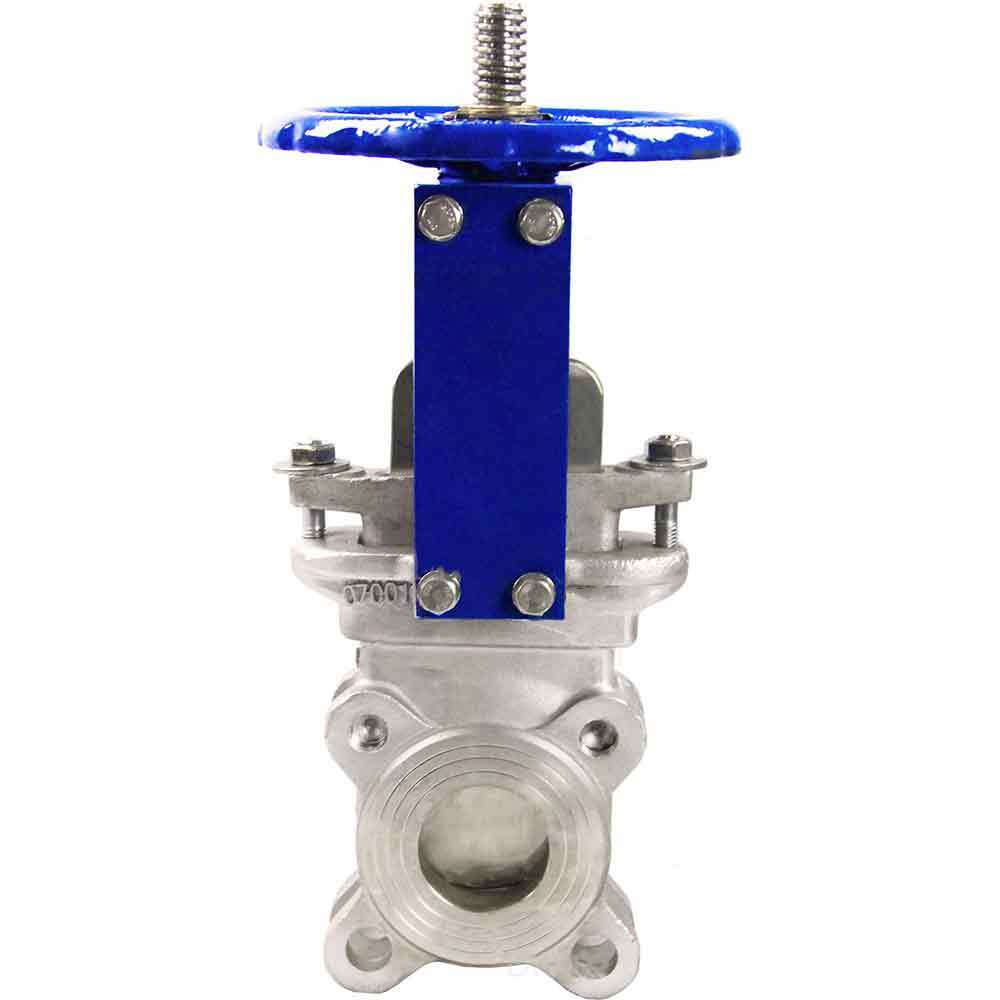

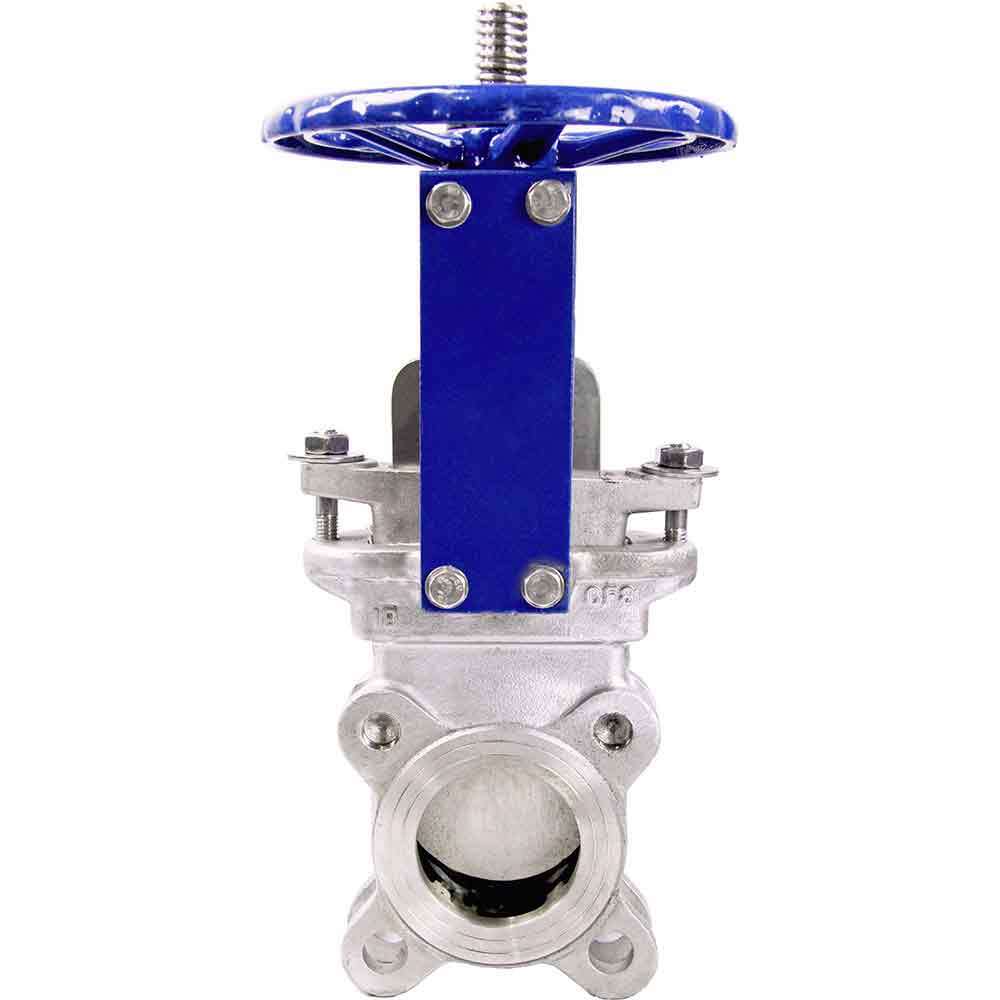

Knife gate valve DNOVA SS316-SS316-EPDM-1W-W, body material - stainless steel AISI 316, knife material - stainless steel AISI 316, seal - EPDM, handwheel operated

From $73.84 USD
From $73.84 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

Knife gate valves are a specific type of gate valve that are typically used in industries for handling tough solids and slurries. Named for their shape, knife gate valves have a sharp, knife-like gate that can cut through viscous or solid material in the flow. They are commonly used in wastewater treatment plants, paper mills, mining operations, and food industries, among others. Their primary function is to start or sop a flow or adjust its volume, but they do not control the pressure or flow rate.





Weight and dimensional parameters of gate valves DNOVA SS316-SS316-EPDM-1W-W

DN L D D1 N - Th Weight, kg
50 48 160 125 4-M16 8
65 48 180 145 4-M16 11
80 51 195 160 8-M16 12
100 51 215 180 8-M16 15
125 57 245 210 8-M16 24
150 57 280 240 8-M20 35
200 70 335 295 8-M20 50
250 70 390 350 12-M20 64
300 76 440 400 12-M20 80



Dimension sketch of gate valves DNOVA SS316-SS316-EPDM-1W-W





Valve component materials DN.ru SS316-SS316-EPDM-1W-W

№ Part name Material
1 Case steel 316
2 Schieber steel 316
3-4 Bolt / nut steel 304
5 padding PTFE + graphite
6 gland steel 304
7-9 Bolt / washer / nut steel 304
10 Stem steel 304
11 staple steel A3
12 Main bracket steel A3
13 Bearing ZChSnSb10-6
14 Helm cast iron GGG40
15 Sealing EPDM



Detail sketch of gate valves DNOVA SS316-SS316-EPDM-1W-W

Specifications

Country of origin
China
Body material
Stainless steel AISI 316
Stopper Material
Stainless steel AISI 316/1.4401
Maximum allowable temperature
95 °C
Connection type
Compact flanged
Control type
Handwheel
Gate valve type
Knife Gate Valve
Nominal pressure
10 bar
Type of seal
EPDM

Delivery

The cost and delivery time for your order depend on several factors, including the specific product you are ordering, the quantity, and the country of destination. Each product may have different manufacturing lead times and shipping requirements, which can affect the overall delivery schedule.

To get the most accurate and up-to-date information on delivery costs and timelines, we recommend contacting our sales managers. They will be happy to provide you with a detailed quote and estimated delivery time based on your specific requirements.

Please feel free to reach out to us for any questions or further assistance regarding your order.

Variant Variant total Quantity Price Variant total
DN50 / 10 barD040-07627
DN50 / 10 barD040-07627
$73.84/ea		 $0.00
$73.84/ea $0.00
DN65 / 10 barD040-07628
DN65 / 10 barD040-07628
$89.13/ea		 $0.00
$89.13/ea $0.00
DN80 / 10 barD040-07629
DN80 / 10 barD040-07629
$103.50/ea		 $0.00
$103.50/ea $0.00
DN100 / 10 barD040-07630
DN100 / 10 barD040-07630
$126.05/ea		 $0.00
$126.05/ea $0.00
DN125 / 10 barD040-07631
DN125 / 10 barD040-07631
$165.26/ea		 $0.00
$165.26/ea $0.00
DN150 / 10 barD040-07632
DN150 / 10 barD040-07632
$215.68/ea		 $0.00
$215.68/ea $0.00
DN200 / 10 barD040-07633
DN200 / 10 barD040-07633
$329.02/ea		 $0.00
$329.02/ea $0.00
DN250 / 10 barD040-07634
DN250 / 10 barD040-07634
$449.16/ea		 $0.00
$449.16/ea $0.00
DN300 / 10 barD040-07635
DN300 / 10 barD040-07635
$567.81/ea		 $0.00
$567.81/ea $0.00
