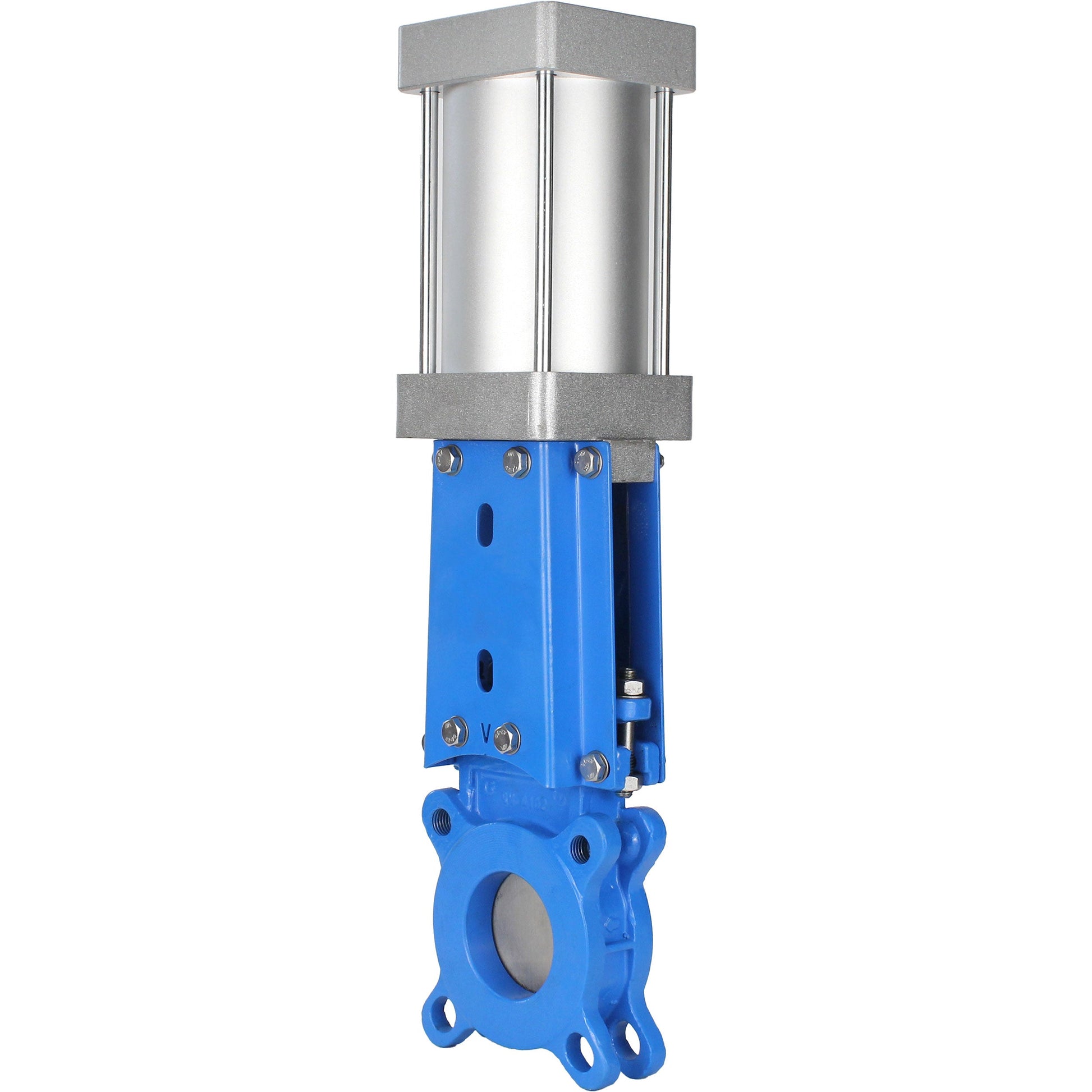

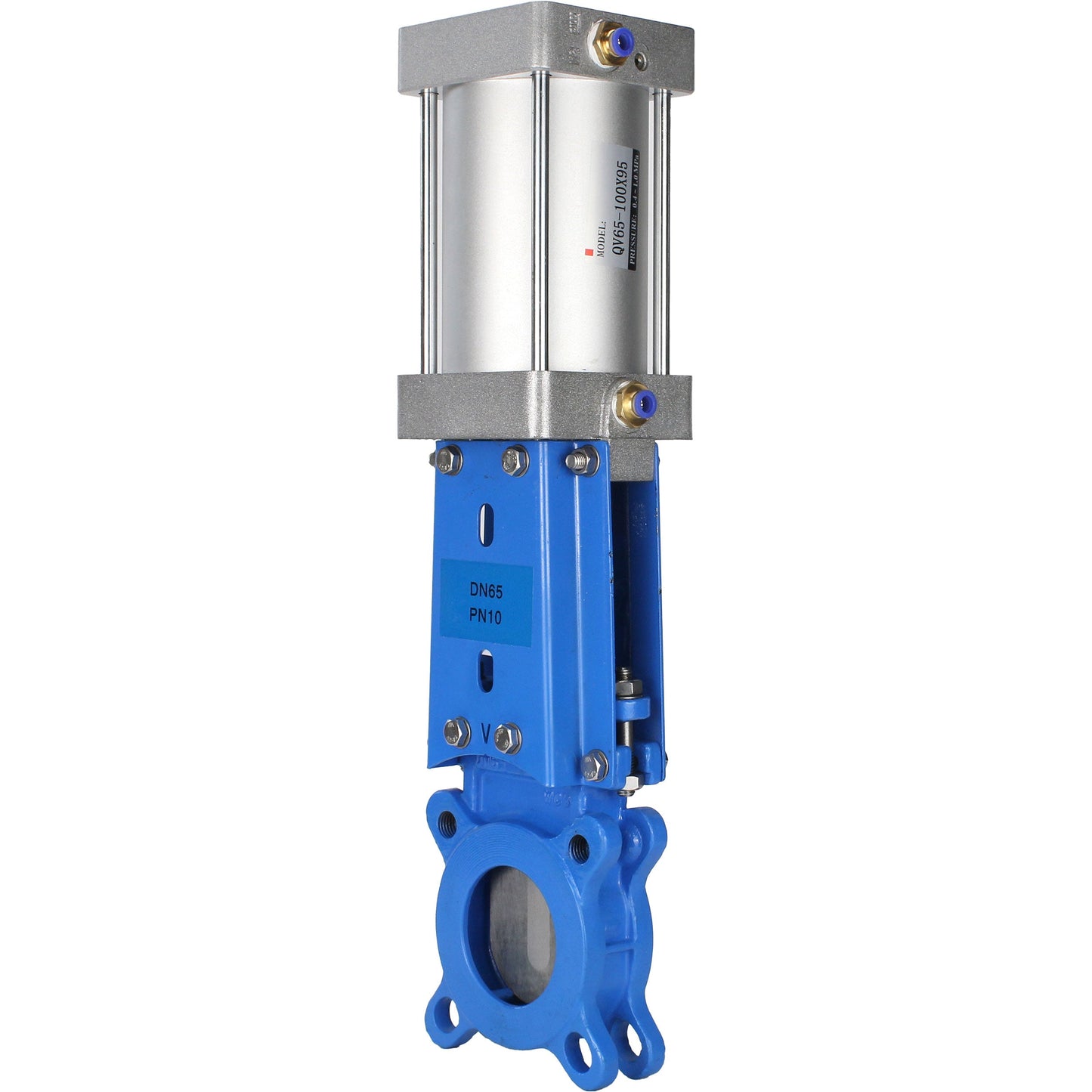

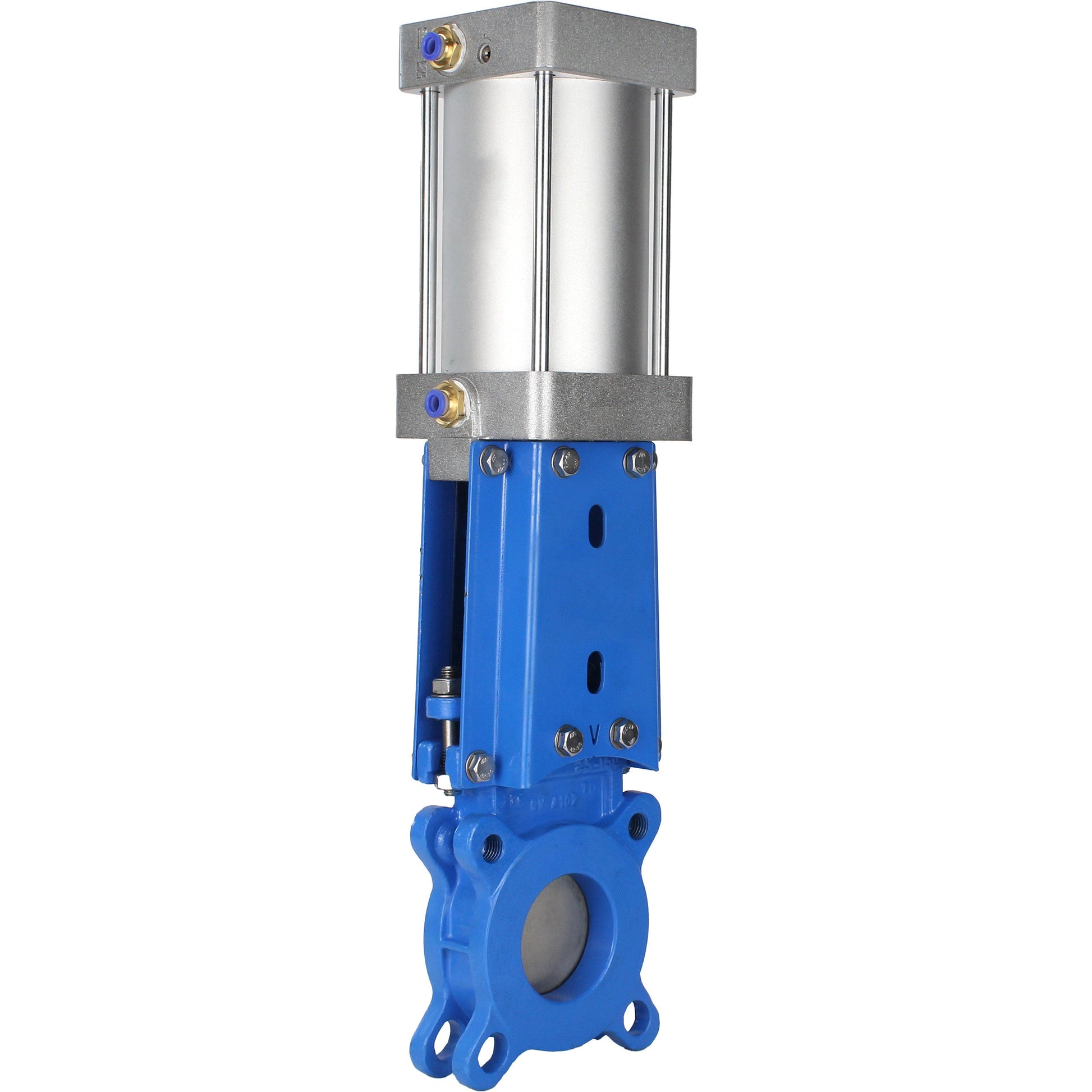

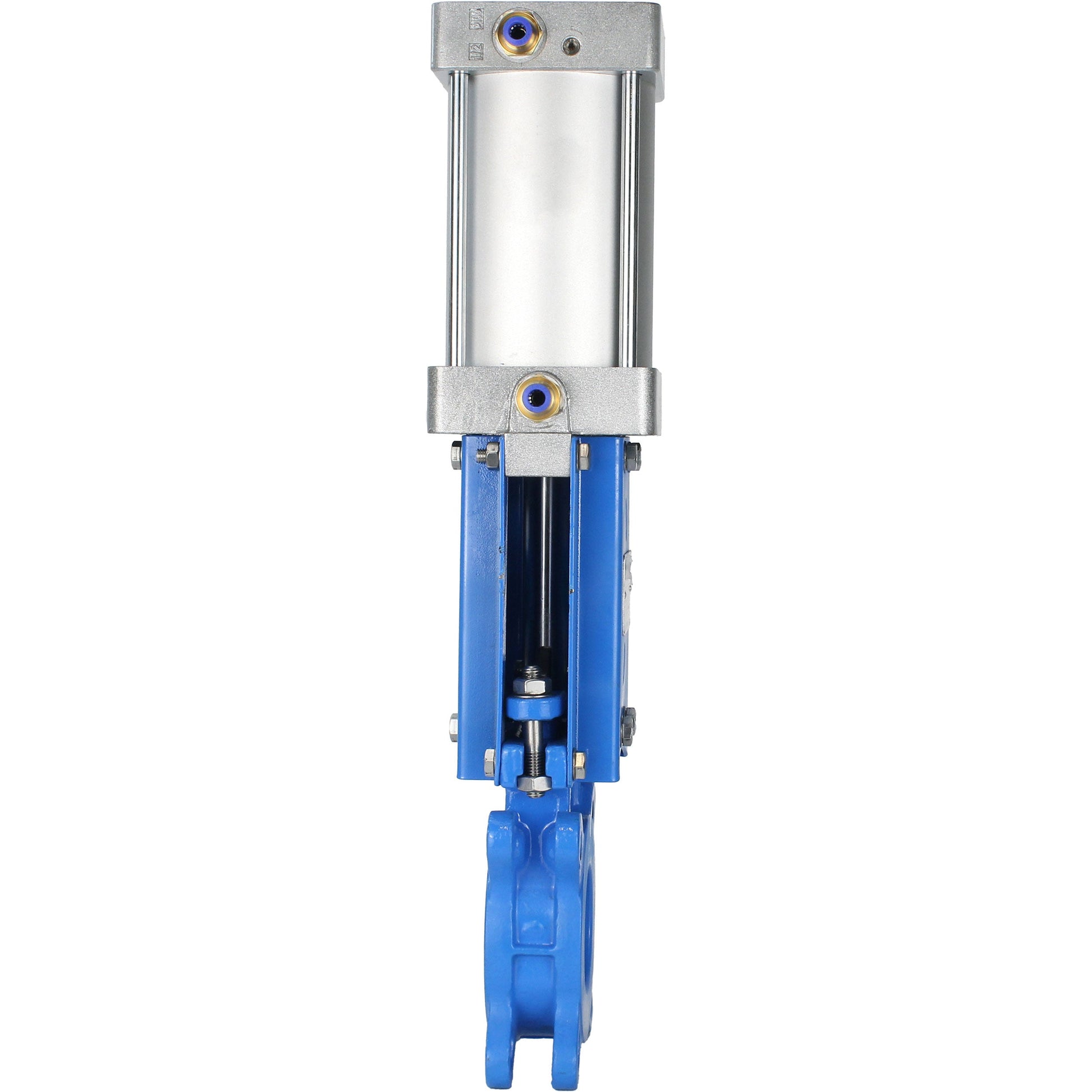

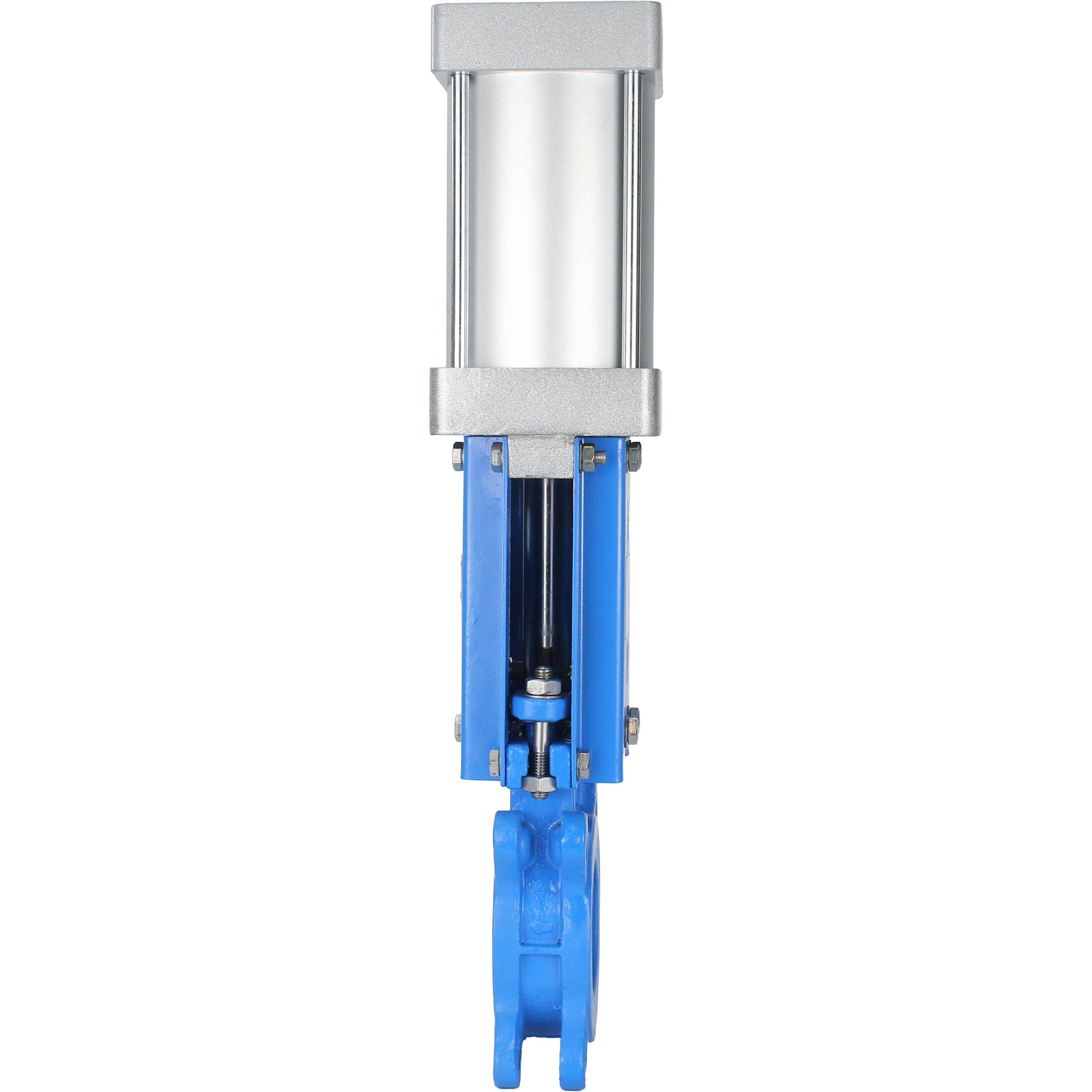

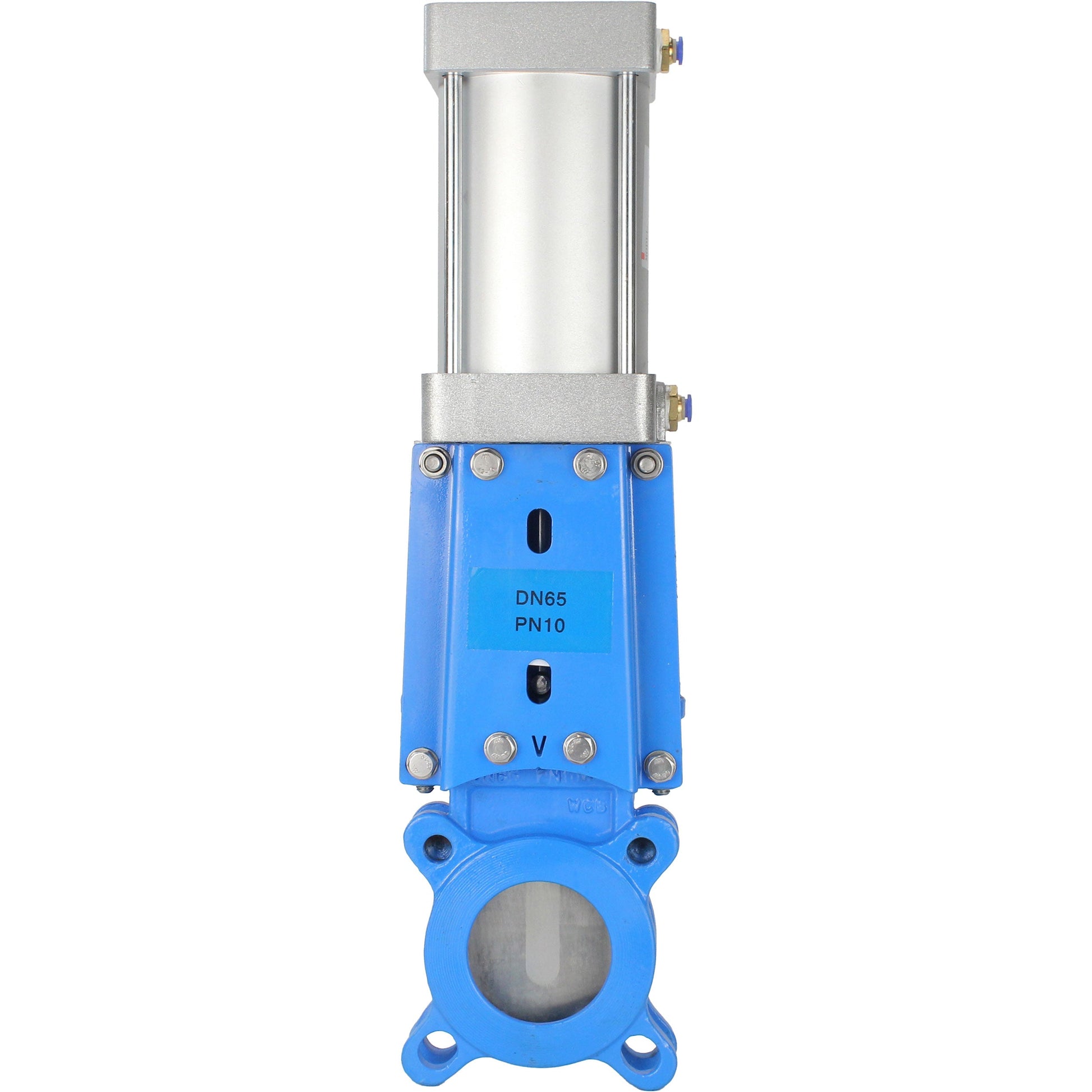

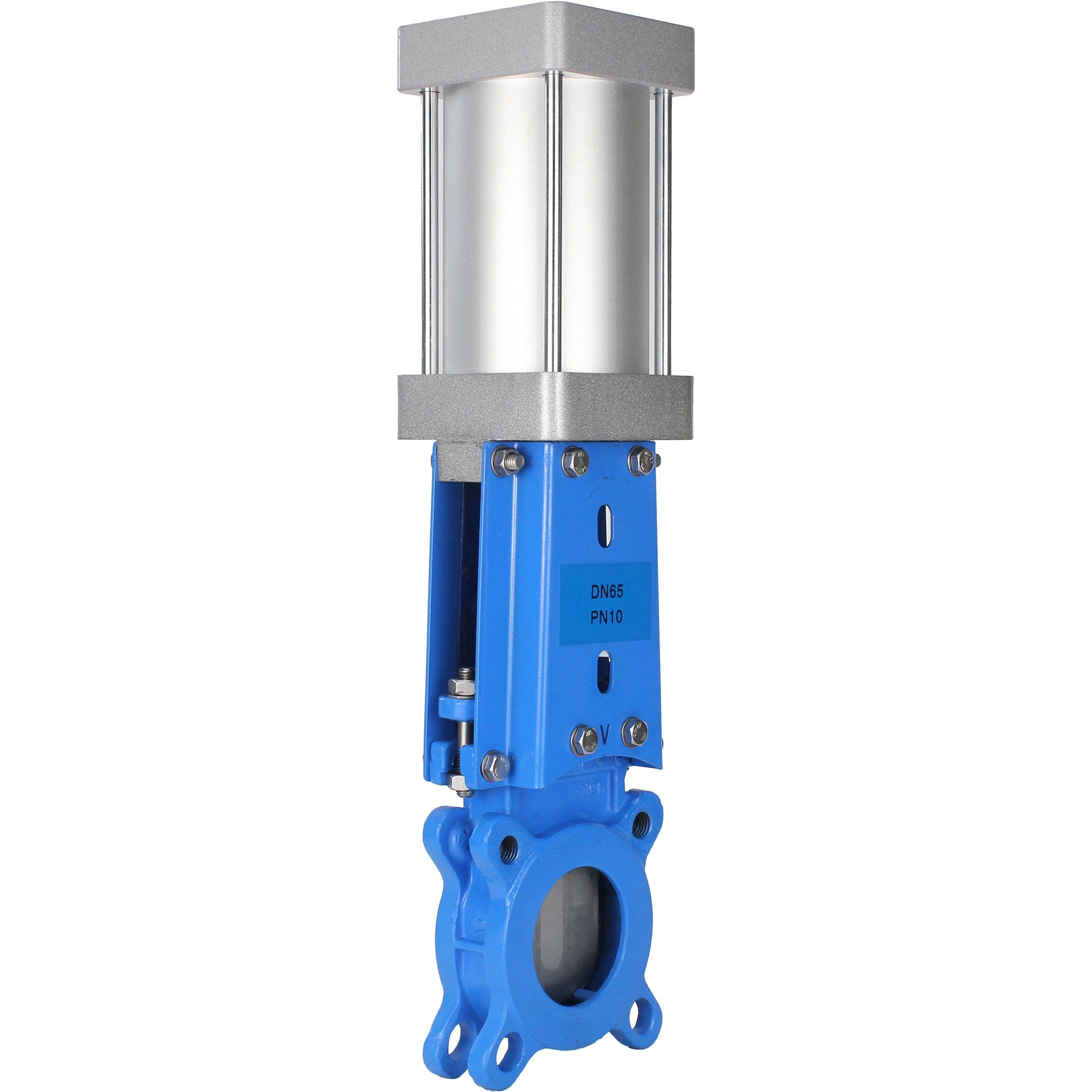

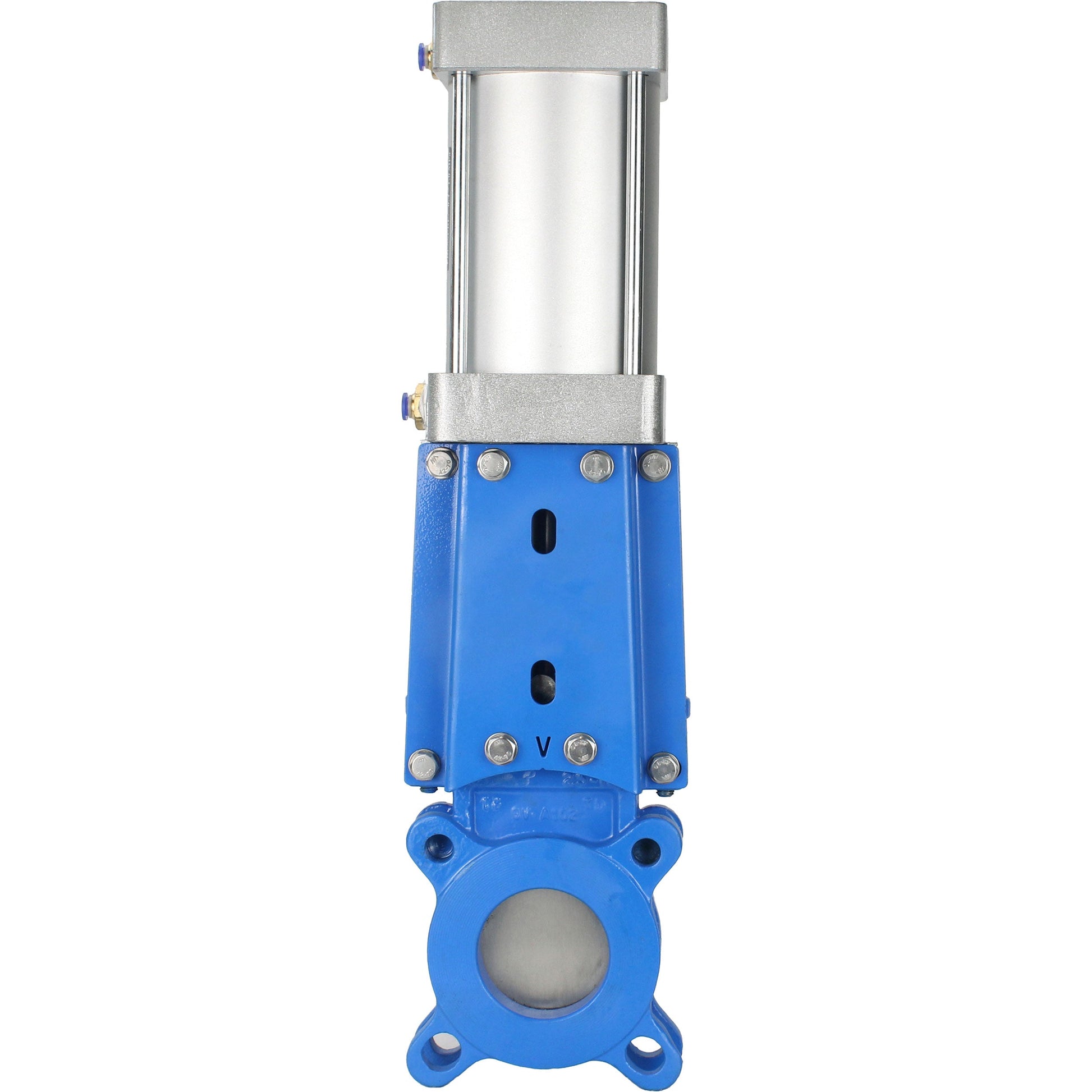

Knife gate valve DNOVA GVKR3131M-1W-Fb-2P, body material - stainless steel AISI 304, knife material - stainless steel AISI 304, seal - metal, pneumatic actuator

From $90.85 USD
From $90.85 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

The gate valve is designed for installation on the pipeline as a shut-off device and regulation of the working medium flow in water supply systems (except for drinking water supply systems) and chemical industry.

The principle of operation of the gate valve is to move the gate (knife) perpendicular to the flow of medium. At full closing of the pipeline nominal bore diameter the flow is stopped, at partial closing the flow is regulated.

The principle of operation of pneumatic actuator is based on the movement of the built-in piston due to compressed air, which is supplied to the system from a compressor or tank.

Overall and installation dimensions DNOVA GVKR3131M-1W-Fb-2P knife gate gate valves, body material - stainless steel AISI 304, knife material - stainless steel AISI 304, seal - metal, pneumatic actuator:

DN L, mm D, mm D1, mm D2, mm D0, mm H1, mm T, mm d, mm ● O N-Th, mm G
50 48 165 125 99 100 417 12 18 2 2 4-M16 1/2″
65 48 185 145 118 100 460 12 18 2 2 4-M16 1/2″
100 51 220 180 156 100 600 12 18 2 6 8-M16 1/2″
125 57 250 210 184 100 628 14 18 2 6 8-M16 1/2″
150 57 285 240 211 125 780 14 23 2 6 8-M20 1/2″
200 70 340 295 266 125 880 18 23 4 8 12-M20 1/2″

Materials DNOVA GVKR3131M-1W-Fb-2P knife gate valves, body material - stainless steel AISI 304, knife material - stainless steel AISI 304, seal - metal, pneumatic actuator:

№ Part name Material
1 Body SS304 stainless steel
2 Lining EPDM
3 Steel ring stainless steel SS304
4 Schieber stainless steel SS304
5 Guide seal PTFE
6 Packing PTFE
7 Gland packing SS304 stainless steel
8 Patron WCB steel
9 Rod 45+Cr steel
10 Rack Q235 steel
11 Switch -
12 Rack head cast iron GGG40
13 Pneumatic cylinder -
14 Solenoid valve -
15 Filter -
16 Wedge stainless steel SS304

Specifications

Country of origin
China
Body material
stainless steel AISI 304
Stopper Material
stainless steel AISI 304
Maximum allowable temperature
500 °C
Connection type
Compact flanged
Control type
pneumatic actuator
Gate valve type
Knife Gate Valve
Nominal pressure
16 bar
Type of seal
Metal
