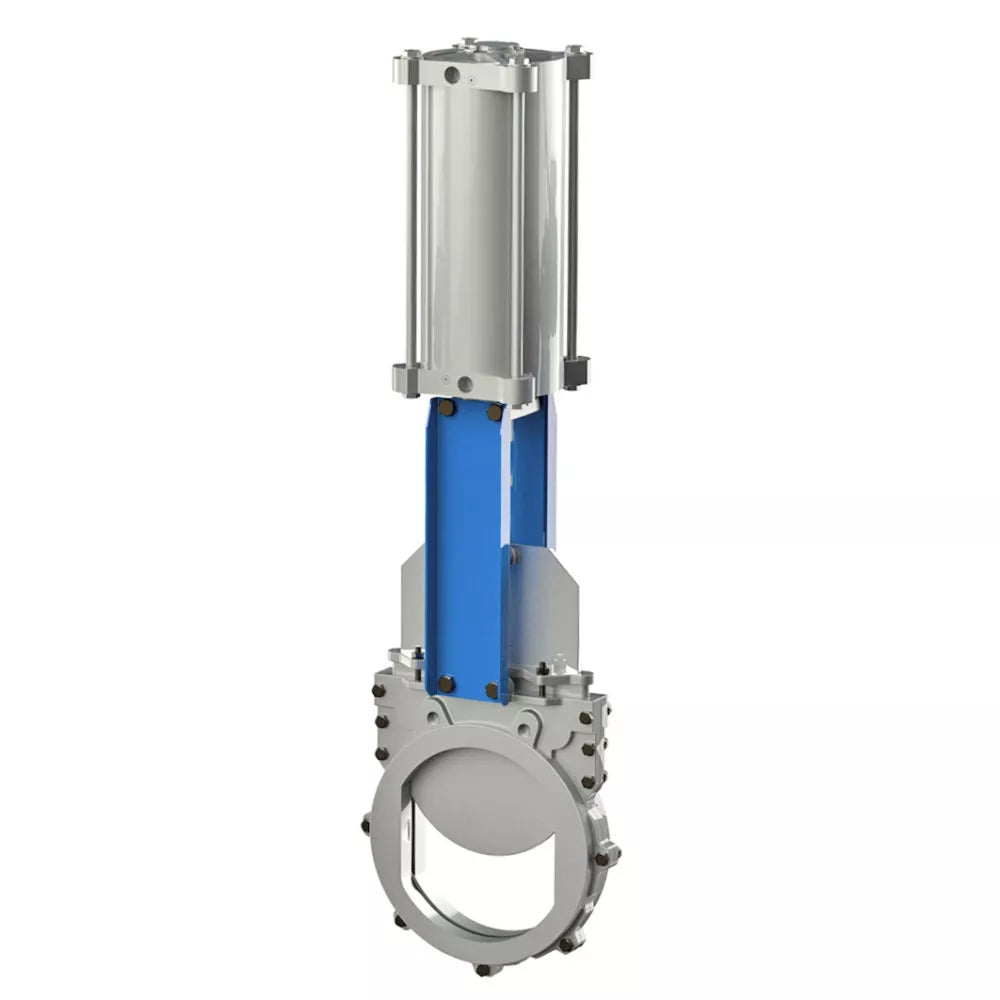

Description
The gate valve is designed to be installed on the pipeline as a shut-off device and regulate the flow of medium in water supply systems (except drinking water supply systems) and chemical industry.
The principle of operation of the gate valve is to move the gate (knife) perpendicular to the flow of medium. When the diameter of the nominal bore of the pipeline is completely blocked, the flow is stopped, and when it is partially blocked, the flow is adjusted.
The principle of operation of the pneumatic actuator is based on the movement of the built-in piston due to compressed air, which is supplied to the system from a compressor or tank.
Pneumatic actuator is based on the movement of the built-in piston by compressed air.
Dimensions and installation dimensions of gate valves DNOVA GVKR3131E-2W-Fb-2P, body material - stainless steel AISI 304, knife material - stainless steel AISI 304, seal - EPDM, pneumatic actuator
| Parameter | Model (Nominal diameter DN, mm) | |||
| DN100 | DN125 | DN150 | DN200 | |
| L | 51 | 57 | 57 | 70 |
| D | 220 | 250 | 285 | 340 |
| D1 | 180 | 210 | 240 | 295 |
| D2 | 156 | 184 | 211 | 266 |
| H1 | 743 | 855 | 969 | 1295 |
| G, inch | 1/2″ | 1/2″ | 1/2″ | 1/2″ |
| N-Th | 8-M16 | 8-M16 | 8-M20 | 12-M20 |
| T | 12 | 12 | 14 | 16 |
| Ød | 18 | 18 | 23 | 23 |
| ⚫, piece | 2 | 2 | 2 | 4 |
| ⊕, piece | 6 | 6 | 6 | 8 |
| Weight, kg | 12.5 | 16.7 | 23 | 31 |
Dimensional sketch of gate valves DNOVA GVKR3131E-2W-Fb-2P, body material - stainless steel AISI 304, knife material - stainless steel AISI 304, seal - EPDM, pneumatic actuator
Materials of gate valves DNOVA GVKR3131E-2W-Fb-2P, body material - stainless steel AISI 304, knife material - stainless steel AISI 304, seal - EPDM, pneumatic actuator
| № | Part name | Material |
| 1 | Case | stainless steel SS304 |
| 2 | Lining | EPDM |
| 3 | Schieber | stainless steel SS304 |
| 4 | Guide seal | PTFE |
| 5 | Seat seal | EPDM+steel |
| 6 | padding | PTFE |
| 7 | Gland packing | stainless steel SS304 |
| 8 | Stem | steel 45+Cí |
| 9 | Rack | steel Q235 |
| 10 | Switch | - |
| 11 | Pneumatic cylinder | - |
| 12 | Solenoid valve | - |
| 13 | Filter | - |
Material sketch of slide gate valves DNOVA GVKR3131E-2W-Fb-2P, body material - stainless steel AISI 304, knife material - stainless steel AISI 304, seal - EPDM, pneumatic actuator
