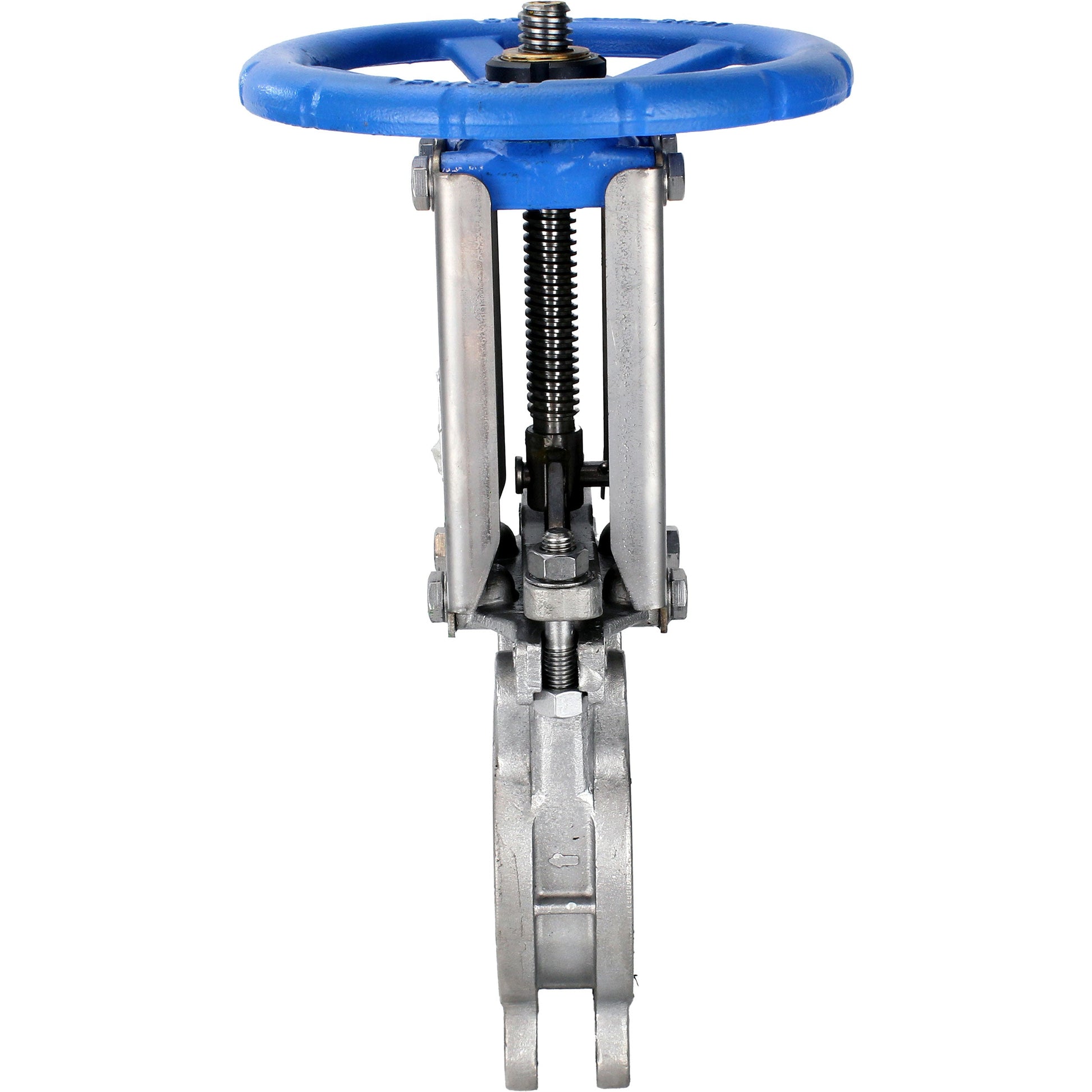

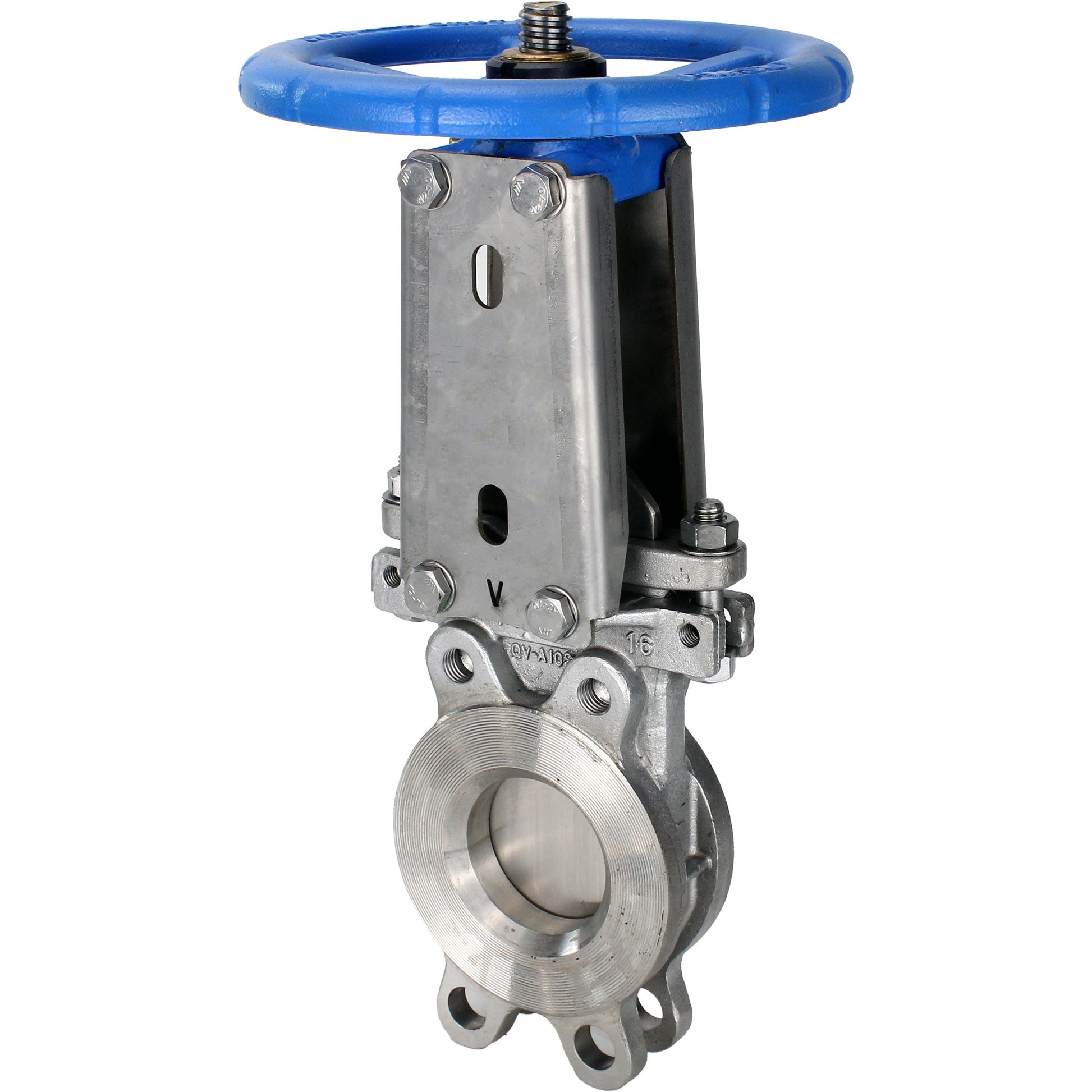

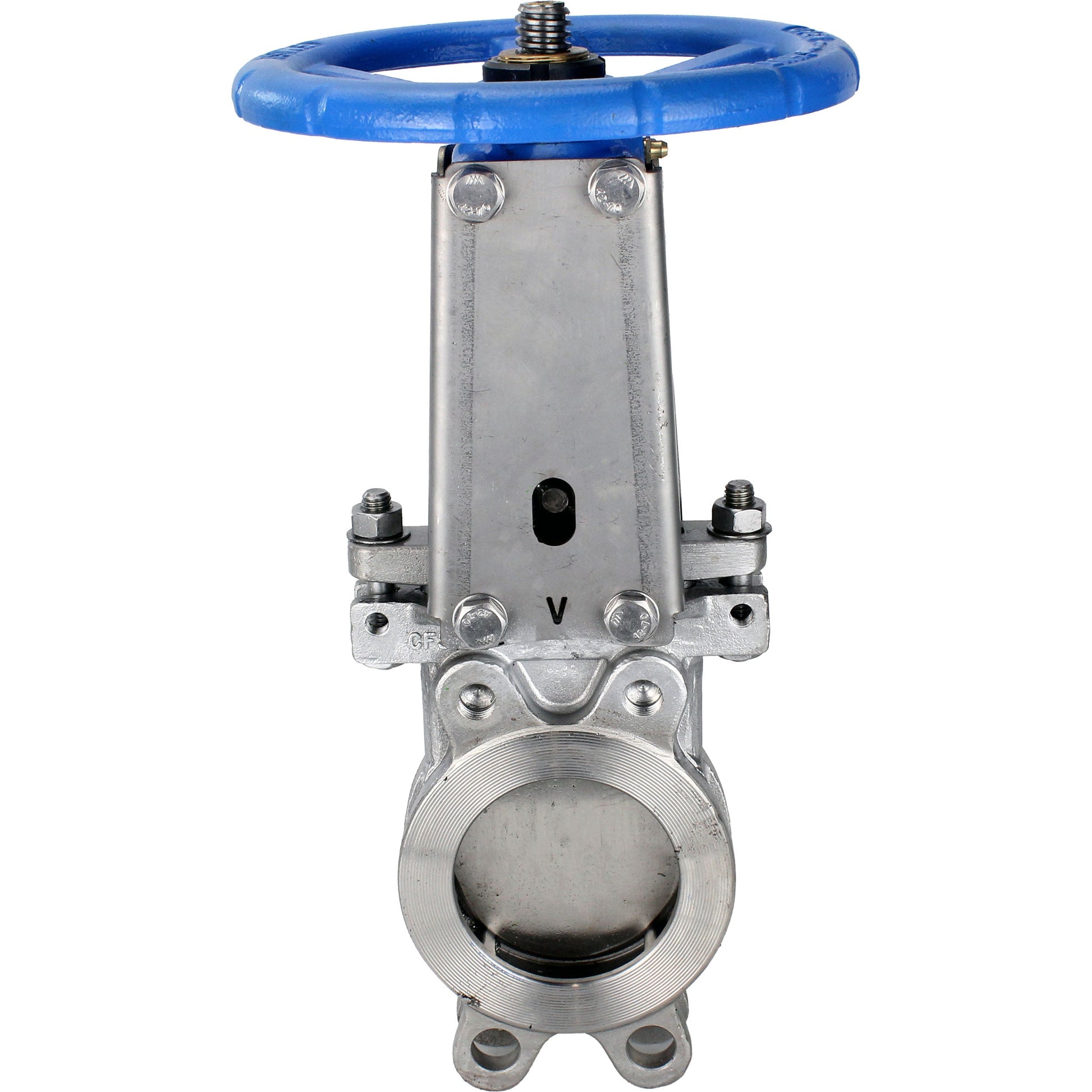

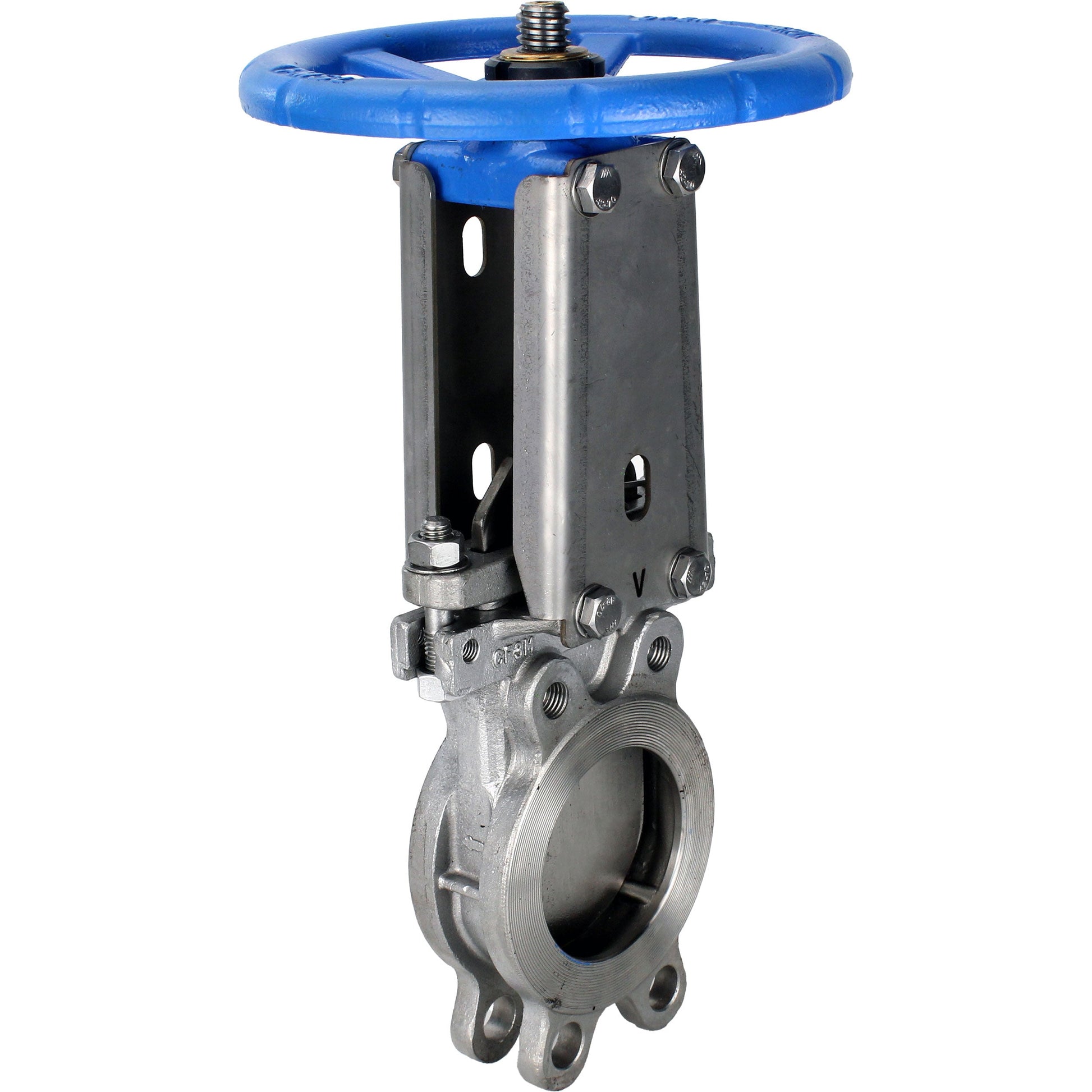

Knife gate valve DNOVA GVKR3131E-1W-Fb-S, body material - stainless steel AISI 304, knife material - stainless steel AISI 304, seal - EPDM, handwheel

From $64.54 USD
From $64.54 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

The gate valve is designed for installation on the pipeline as a shut-off device and regulation of medium flow in water supply systems (except drinking water supply) and chemical industry.

The operating principle of the gate valve is to move the gate (knife) perpendicular to the medium flow. At complete closing of the pipeline nominal bore diameter the flow is stopped, and at partial closing the flow is regulated.

Overall and installation dimensions of DNOVA GVKR3131E-1W-Fb-S gate valves, body material - stainless steel AISI 304, knife material - stainless steel AISI 304, seal - EPDM, handwheel:

DN L, mm D, mm D1, mm D2, mm D0, mm H1, mm T, mm d, mm N-Th, mm
50 48 165 125 99 180 292 12 18 4-M16
65 48 185 145 118 200 320 12 18 4-M16
80 51 200 160 132 200 348 12 18 8-M16
100 51 220 180 156 240 395 12 18 8-M16
125 57 250 210 184 260 450 14 18 8-M16
150 57 285 240 211 280 504 14 23 8-M20
200 70 340 295 266 300 617 18 23 8-M20
250 70 395 350 319 320 758 18 23 12-M20
300 76 445 400 370 350 857 20 23 12-M20

Materials DNOVA GVKR3131E-1W-Fb-S gate valves, body material - stainless steel AISI 304, knife material - stainless steel AISI 304, seal - EPDM, handwheel:

№ Part name Material
1 Body SS304 stainless steel
2 Seal EPDM
3 Ring SS304 stainless steel
4 Schieber SS304 stainless steel
5 Guide seal PTFE
6 Packing PTFE
7 Gland SS304 stainless steel
8 Patron WCB steel
9 Rod SS304 stainless steel
10 Rack Q235 steel
11 Hand wheel cast iron GGG40
12 Cover steel Q235
13 Wedge stainless steel SS304

Specifications

Country of origin
China
Body material
stainless steel AISI 304
Stopper Material
stainless steel AISI 304
Maximum allowable temperature
110 °C
Connection type
Compact flanged
Control type
handwheel
Gate valve type
Knife Gate Valve
Nominal pressure
10 bar
Type of seal
EPDM
