Description
The gate valve is designed to be installed on the pipeline as a shut-off device and regulate the flow of medium in water supply systems (except drinking water supply systems) and chemical industry.
The principle of operation of the gate valve is to move the gate (knife) perpendicular to the flow of medium. When the diameter of the nominal bore of the pipeline is completely blocked, the flow is stopped, and when it is partially blocked, the flow is adjusted.
The principle of operation of the pneumatic actuator is based on the movement of the built-in piston due to compressed air, which is supplied to the system from a compressor or tank.
Pneumatic actuator is based on the movement of the built-in piston by compressed air.

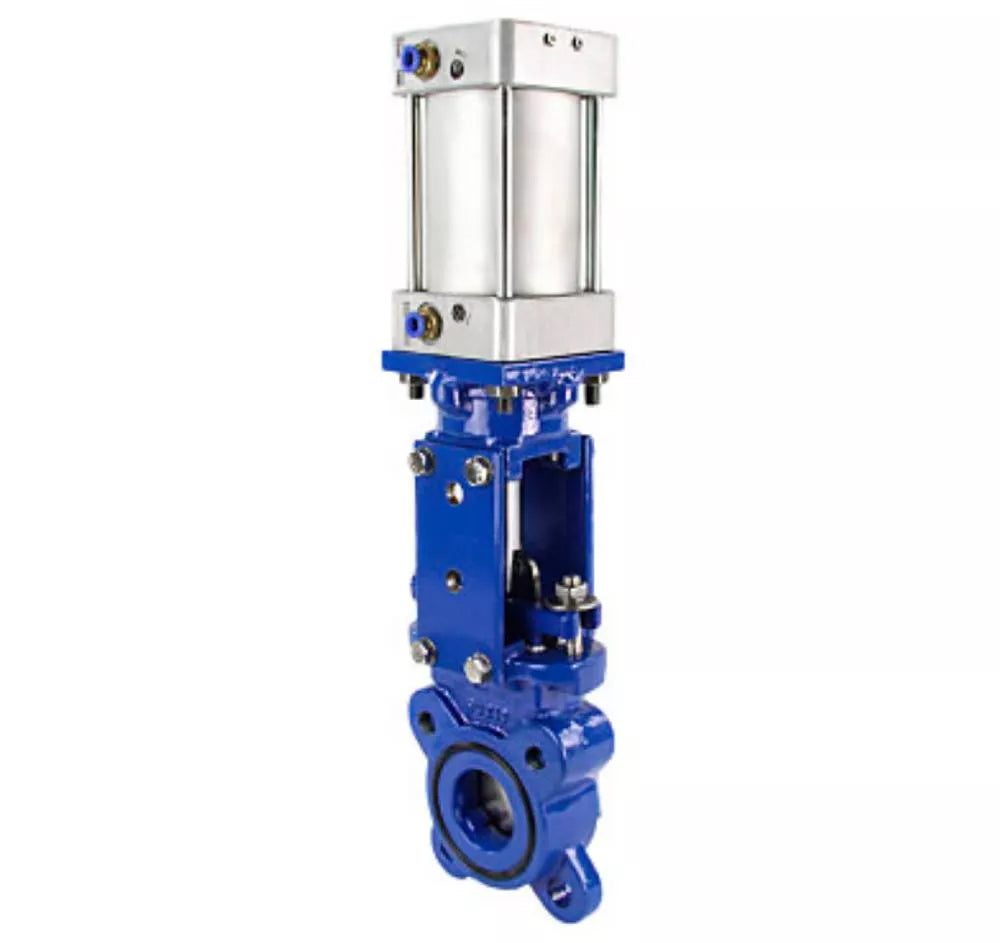

Overall and installation dimensions DNOVA GVKR1331N-2W-Fb-2P knife gate valves, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - EPDM, pneumatic actuator:
| DN | L, mm | D, mm | D1, mm | D2, mm | D0, mm | H1, mm | T, mm | d, mm | ● | O | N-Th, mm | G |
| 80 | 51 | 200 | 160 | 132 | 100 | 558 | 12 | 18 | 2 | 6 | 8-M16 | 1/2″ |
Materials DNOVA GVKR1331N-2W-Fb-2P knife gate gate valves, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - EPDM, pneumatic actuator:
| № | Part name | Material |
| 1 | Body | cast iron GGG40 |
| 2 | Sealing ring | NBR |
| 3 | Schieber | SS304 stainless steel |
| 4 | Guide seal | PTFE |
| 5 | Packing | PTFE |
| 6 | Gland packing | WCB steel |
| 7 | Pin | steel 45 |
| 8 | Patron | WCB steel |
| 9 | Rod | 2Cr13 steel |
| 10 | Rack | Q235 steel |
| 11 | Switch | - |
| 12 | Pneumatic cylinder | - |
| 13 | Solenoid valve | - |
| 14 | Filter | - |
