Description

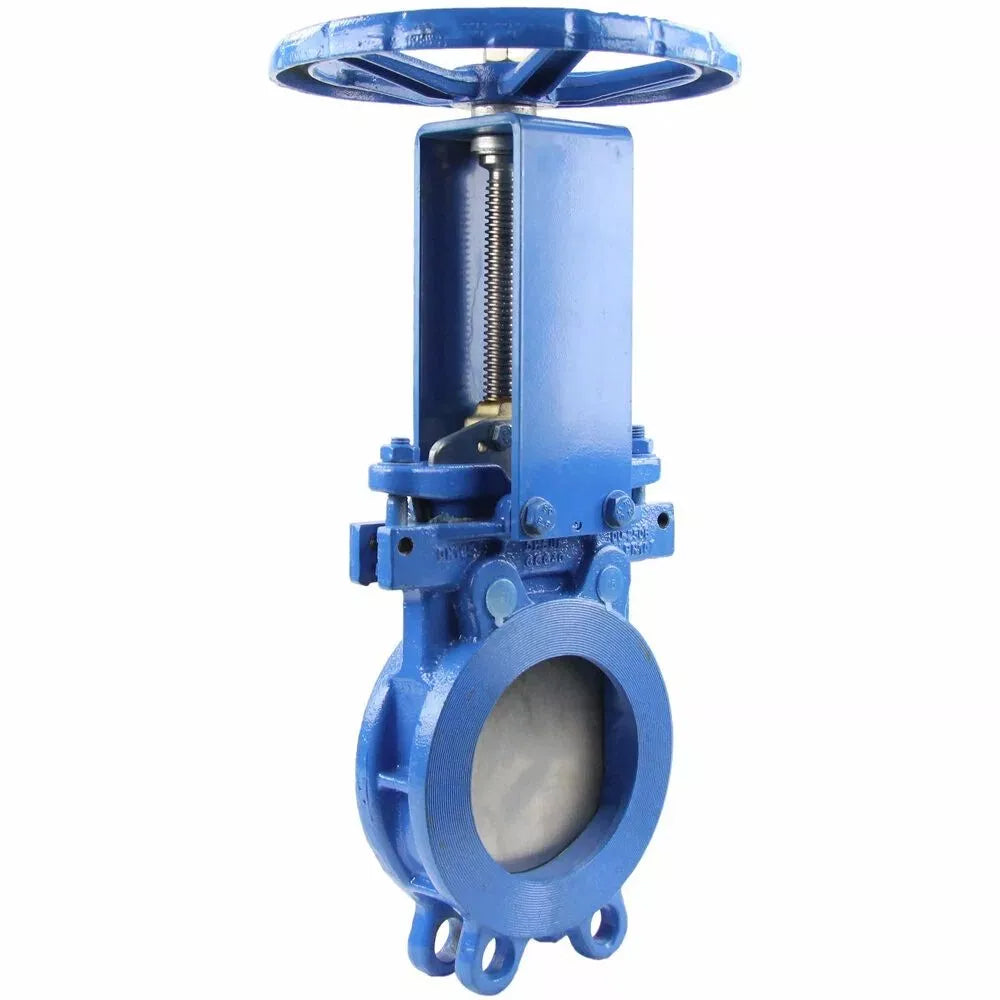

The gate valve is designed to be installed on the pipeline as a shut-off device and regulate the flow of medium in water supply systems (except drinking water supply systems) and chemical industry. The principle of operation of the gate valve is to move the gate (knife) perpendicular to the flow of medium. The flow is stopped when the diameter of the nominal bore of the pipeline is completely blocked, and adjusted when it is partially blocked.
Dimensions and installation dimensions of gate valves DNOVA GVKR1331E-2W-Fb-S, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - EPDM, handwheel
| Parameter | Model (Nominal diameter DN, mm) | ||
| DN65 | DN80 | DN150 | |
| L | 48 | 51 | 57 |
| D | 185 | 200 | 285 |
| D1 | 145 | 160 | 240 |
| D2 | 118 | 132 | 211 |
| D0 | 200 | 200 | 280 |
| H1 | 330 | 358 | 490 |
| N-Th | 4 – M16 | 8 – M16 | 8 – M20 |
| T | 12 | 12 | 14 |
| Ød | 18 | 18 | 23 |
| ⚫, piece | 2 | 2 | 2 |
| ⊕, piece | 2 | 6 | 6 |
| Weight, kg | 8.5 | 9.5 | 18.0 |
Dimensional sketch of gate valves DNOVA GVKR1331E-2W-Fb-S, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - EPDM, handwheel
Materials of gate valves DNOVA GVKR1331E-2W-Fb-S, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - EPDM, handwheel
| № | Part name | Material |
| 1 | Case | cast iron GGG40 |
| 2 | Seat seal | EPDM |
| 3 | Schieber | stainless steel SS304 |
| 4 | Guide seal | PTFE |
| 5 | padding | PTFE |
| 6 | Gland | steel WCB |
| 7 | pin | steel 45 |
| 8 | Patron | steel WCB |
| 9 | Stem | steel 2Cí13 |
| 10 | Rack | steel Q235 |
| 11 | Rack top plate | cast iron HT200 |
| 12 | Bearing | steel GCr15 |
| 13 | Nut | brass |
| 14 | Cover | steel Q235 |
| 15 | Helm | cast iron GGG40 |
Material sketch of slide gate valves DNOVA GVKR1331E-2W-Fb-S, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - EPDM, handwheel
