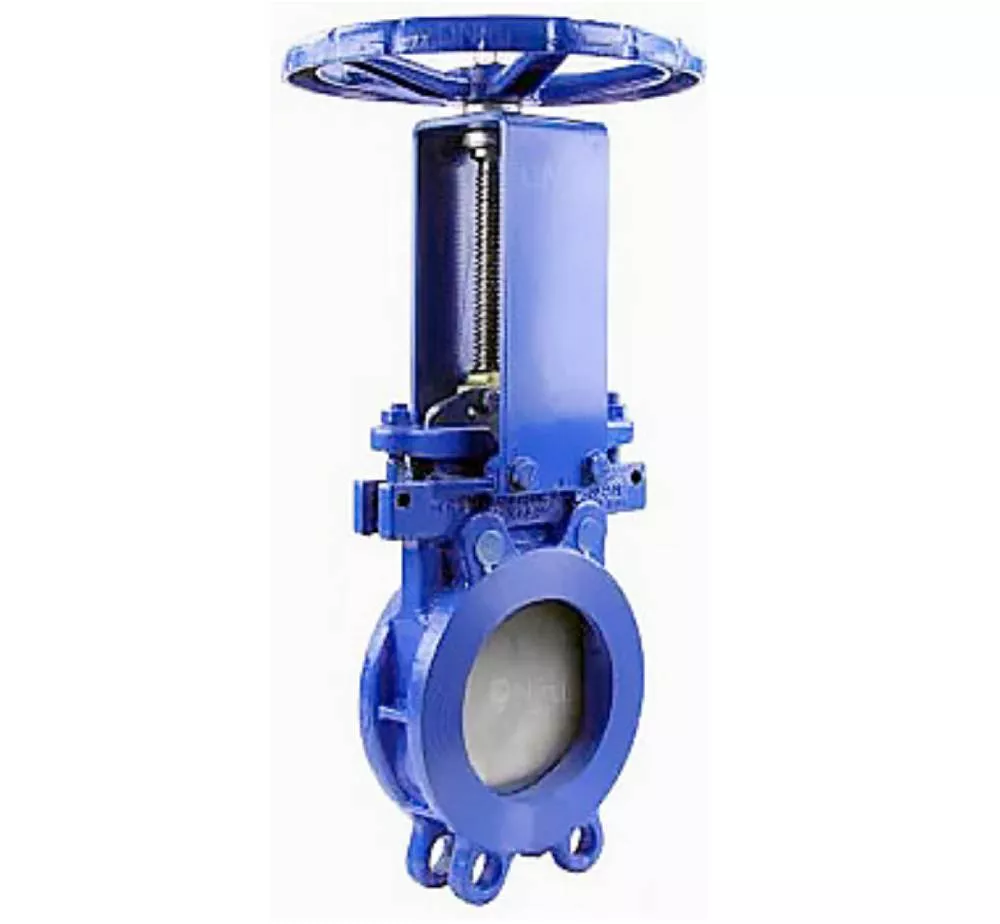

Description
The gate valve is designed to be installed on the pipeline as a shut-off device and regulate the flow of medium in water supply systems (except drinking water supply systems) and chemical industry.
The principle of operation of the gate valve is to move the gate (knife) perpendicular to the flow of medium. In case of complete closing of the pipeline bore diameter the flow is stopped, in case of partial closing the flow is regulated.
Dimensions and installation dimensions of gate valves DNOVA GVKN3431M-1W-Fb-S control - hand wheel
| Model | Size | |||||||||||
| DN | L | D | D1 | D2 | D0 | H1 | T | d | ● | O | N-Th | |
| DN80 10 bar | 80 | 51 | 200 | 160 | 132 | 200 | 320 | 12 | 18 | 4 | 4 | 8-M16 |
| DN100 10 bar | 100 | 51 | 220 | 180 | 156 | 240 | 358 | 12 | 18 | 4 | 4 | 8-M16 |
| DN125 10 bar | 125 | 57 | 250 | 210 | 184 | 260 | 395 | 12 | 18 | 4 | 4 | 8-M16 |
| DN150 10 bar | 150 | 57 | 285 | 240 | 211 | 280 | 450 | 14 | 23 | 4 | 4 | 8-M20 |
| DN200 10 bar | 200 | 70 | 340 | 295 | 266 | 300 | 532 | 16 | 23 | 4 | 4 | 8-M20 |
Dimensional sketch of gate valves DNOVA GVKN3431M-1W-Fb-S, body material - carbon steel, knife material - stainless steel AISI 304, seal - metal, handwheel operated
Materials of gate valves DNOVA GVKN3431M-1W-Fb-S, body material - carbon steel, knife material - stainless steel AISI 304, seal - metal, handwheel operated
| № | Part name | Material |
| 1 | Case | steel WCB |
| 2 | Schieber | stainless steel SS304 |
| 3 | Guide seal | PTFE |
| 4 | padding | PTFE |
| 5 | Gland packing | steel WCB |
| 6 | Nut | brass |
| 7 | Stem | steel 2Cr13 |
| 8 | Rack | steel Q235 |
| 9 | Bearing | steel GCr15 |
| 10 | Helm | cast iron GGG40 |
| 11 | cap | steel Q235 |
| 12 | Wedge | steel WCB |
Material sketch of slide gate valves DNOVA GVKN3431M-1W-Fb-S, body material - carbon steel, knife material - stainless steel AISI 304, seal - metal, handwheel operated
