Description

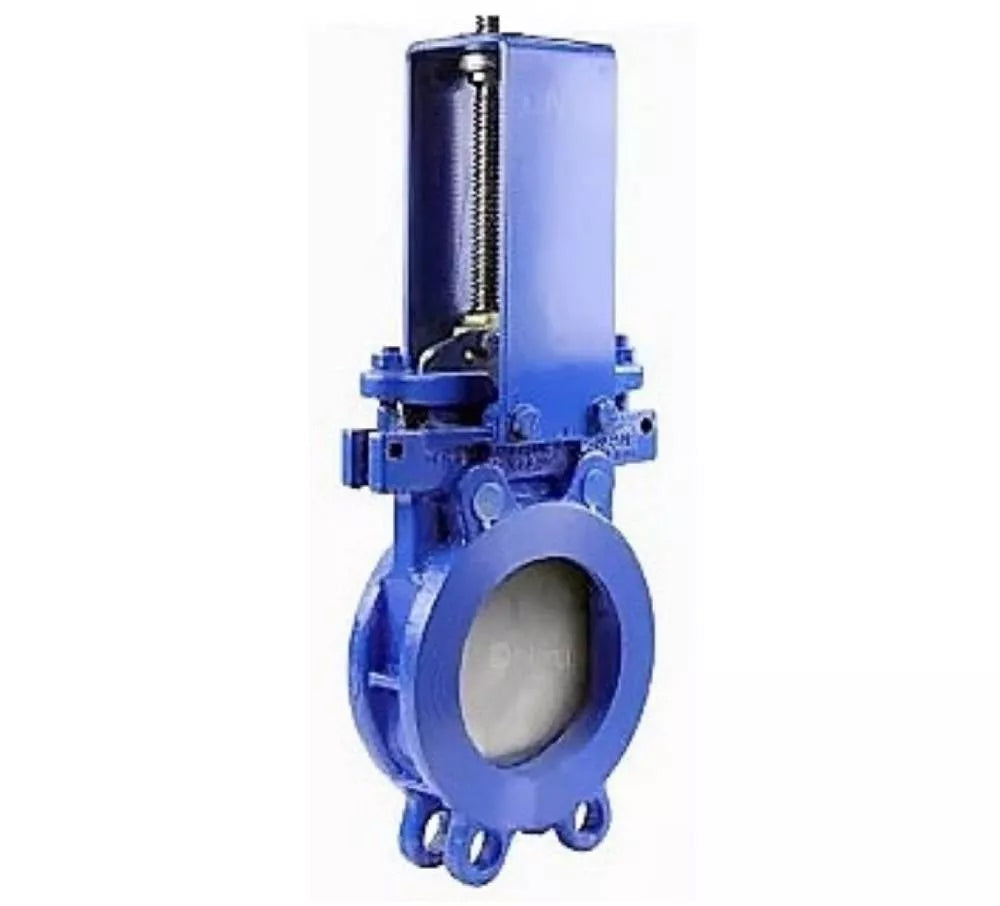

The gate valve is designed to be installed on the pipeline as a shut-off device and regulate the flow of medium in water supply systems (except drinking water supply systems) and chemical industry. The principle of operation of the gate valve is to move the gate (knife) perpendicular to the flow of medium. The flow is stopped when the diameter of the nominal bore of the pipeline is completely blocked, and adjusted when it is partially blocked.
В
Dimensions and dimensions of gate valves DNOVA GVKN1331N-2W-Fb-OST, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - PTFE, stem only
| Model | DN50 | DN65 | DN80 | DN100 | DN125 |
| DN | 50 | 65 | 80 | 100 | 125 |
| L | 48 | 48 | 51 | 51 | 57 |
| D | 165 | 185 | 200 | 220 | 250 |
| D1 | 125 | 145 | 160 | 180 | 210 |
| D2 | 99 | 118 | 132 | 156 | 184 |
| H1 | 273 | 298 | 325 | 363 | 403 |
| N-Th | 4-M16 | 8-M16 | 8-M16 | 8-M16 | 8-M16 |
| T | 12 | 12 | 12 | 12 | 12 |
| ⬤, piece | 2 | 2 | 2 | 2 | 2 |
| в—Ї, piece | 2 | 6 | 6 | 6 | 6 |
| d1 | 104 | 104 | 104 | 104 | 104 |
| d2 | 70 | 70 | 70 | 70 | 70 |
| d3 | 44 | 44 | 44 | 44 | 44 |
| d4 | 28 | 28 | 28 | 28 | 28 |
| h | 3 | 3 | 3 | 3 | 3 |
| h1 | 4 | 4 | 4 | 4 | 4 |
| n–Гd | 4-Г14 | 4-Г14 | 4-Г14 | 4-Г14 | 4-Г14 |
| Stem size | Tr 20x 4 LH | Tr 20x 4 LH | Tr 20x 4 LH | Tr 20x 4 LH | Tr 20x 4 LH |
| Model | DN150 | DN200 | DN250 | DN300 | DN400 |
| DN | 150 | 200 | 250 | 300 | 400 |
| L | 57 | 70 | 70 | 76 | 89 |
| D | 285 | 340 | 395 | 445 | 565 |
| D1 | 240 | 295 | 350 | 400 | 515 |
| D2 | 211 | 266 | 319 | 370 | 480 |
| H1 | 432 | 520 | 617 | 736 | 945 |
| N-Th | 8-M20 | 8-M20 | 12-M20 | 12-M20 | 16-M24 |
| T, mm | 14 | 16 | 16 | 16 | 20 |
| ⬤, piece | 2 | 2 | 4 | 4 | 10 |
| в—Ї, piece | 6 | 6 | 8 | 8 | 6 |
| d1 | 104 | 104 | 104 | 104 | 135 |
| d2 | 70 | 70 | 70 | 70 | 108 |
| d3 | 44 | 44 | 44 | 44 | 59 |
| d4 | 28 | 28 | 28 | 28 | 32 |
| h | 3 | 3 | 3 | 3 | 6 |
| h1 | 4 | 4 | 4 | 4 | 8 |
| n–Гd | 4-Г14 | 4-Г14 | 4-Г14 | 4-Г14 | 4-Г14 |
| Stem size | Tr 24x5 LH | Tr 24x5 LH | Tr 26x5 LH | Tr 26x5 LH | Tr 30x6 LH |
Sketch of dimensions and dimensions of gate valves DNOVA GVKN1331N-2W-Fb-OST, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - PTFE, stem only
В
В
Table of parts and materials of gate valves DNOVA GVKN1331N-2W-Fb-OST, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - PTFE, stem only
| в„– | Details | Material |
| 1 | Case | cast ironВ GGG40 |
| 2 | Seat seal | NBR |
| 3 | Schieber | stainless steel 304 |
| 4 | Guide seal | PTFE |
| 5 | Sealing | PTFE |
| 6 | Gland packing | steel WCB |
| 7 | pin | steel 45 |
| 8 | Patron | steel WCB |
| 9 | Stem | steel 2Cr13 |
| 10 | Rack | steel Q235 |
| 11 | Rack top plate | cast ironВ HT200 |
| 12 | Nut | brass |
| 13 | Bearing | steel GCr15 |
| 14 | nozzle | steel Q235 |
Sketch of parts and materials of gate valves DNOVA GVKN1331N-2W-Fb-OST, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - PTFE, stem only
