How it works

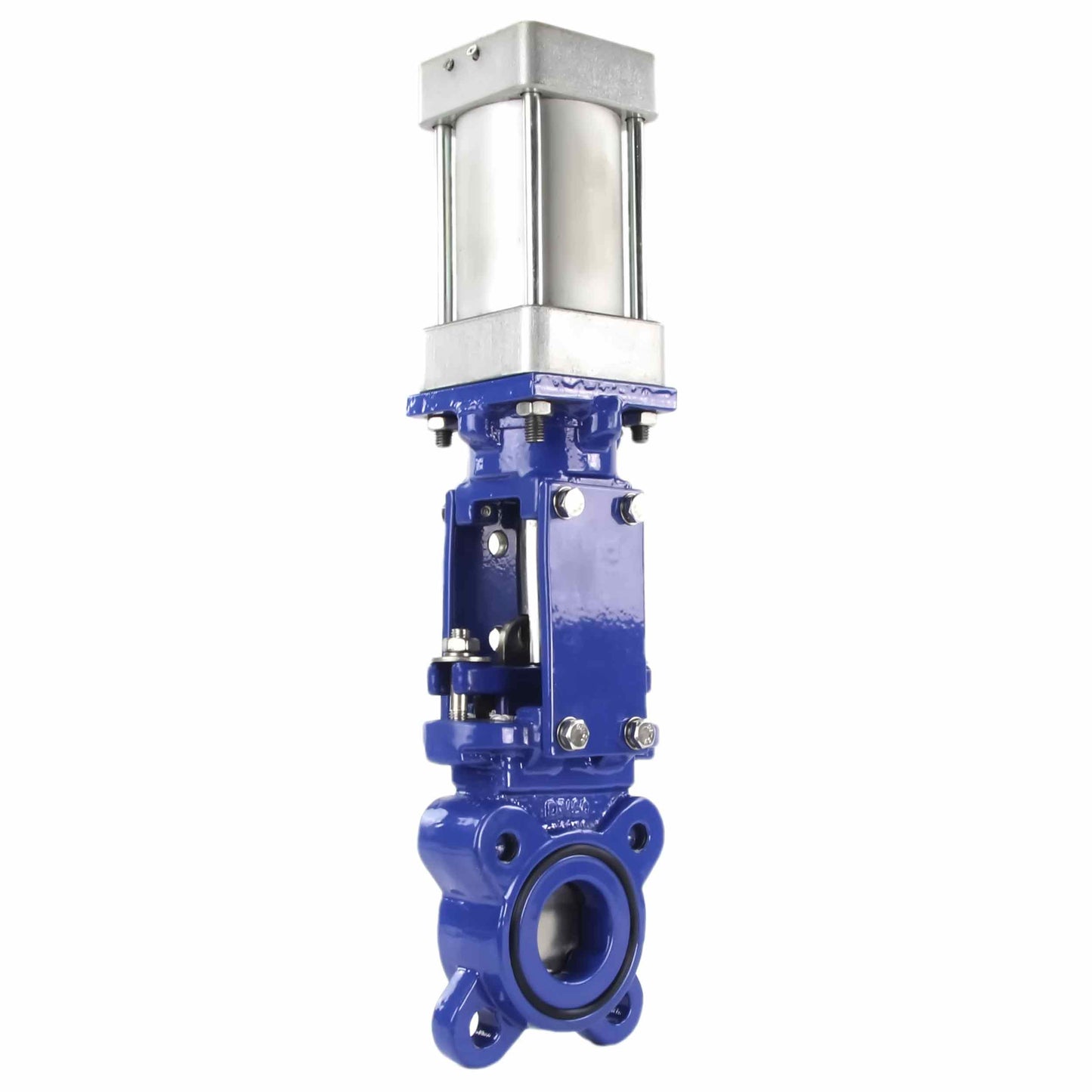

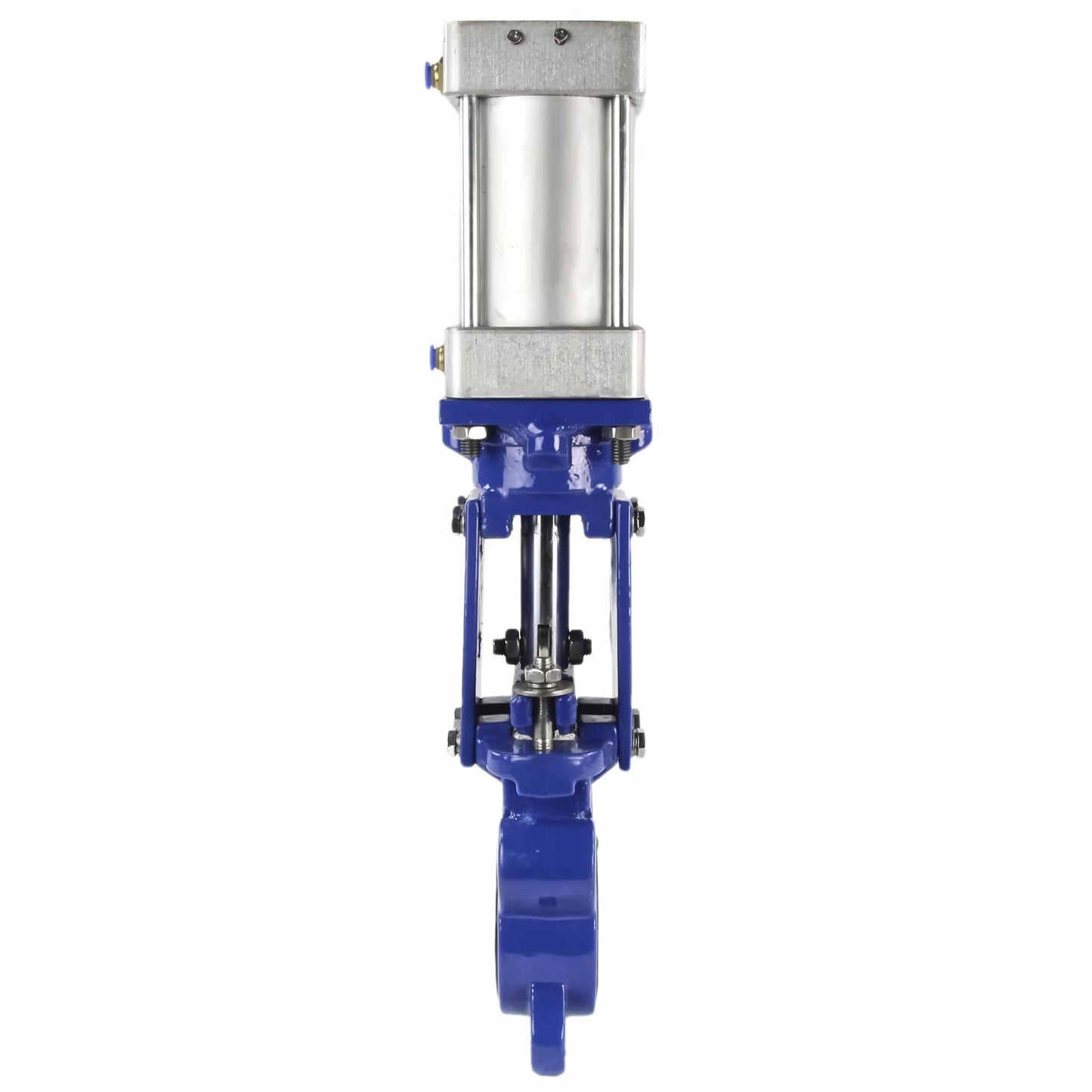

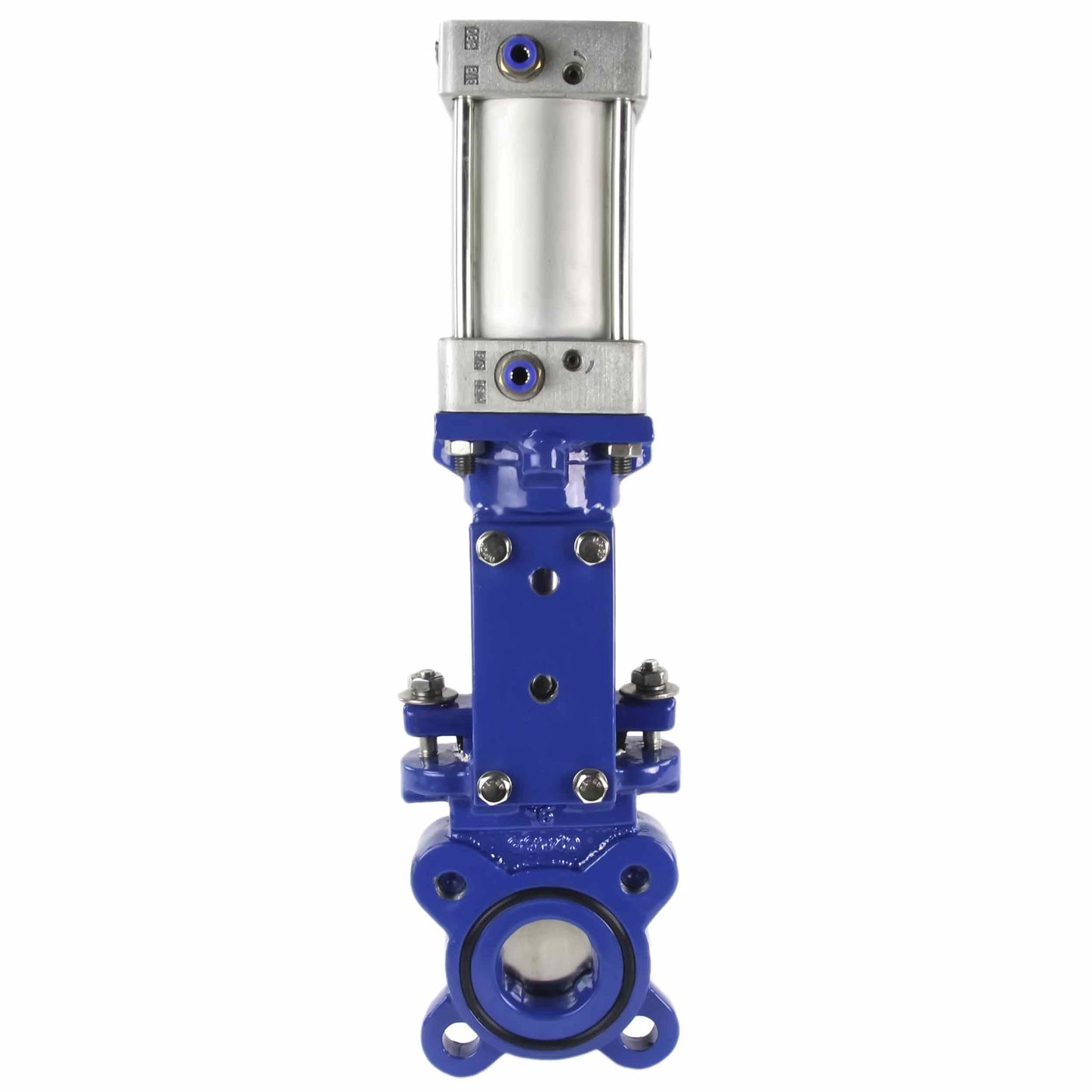

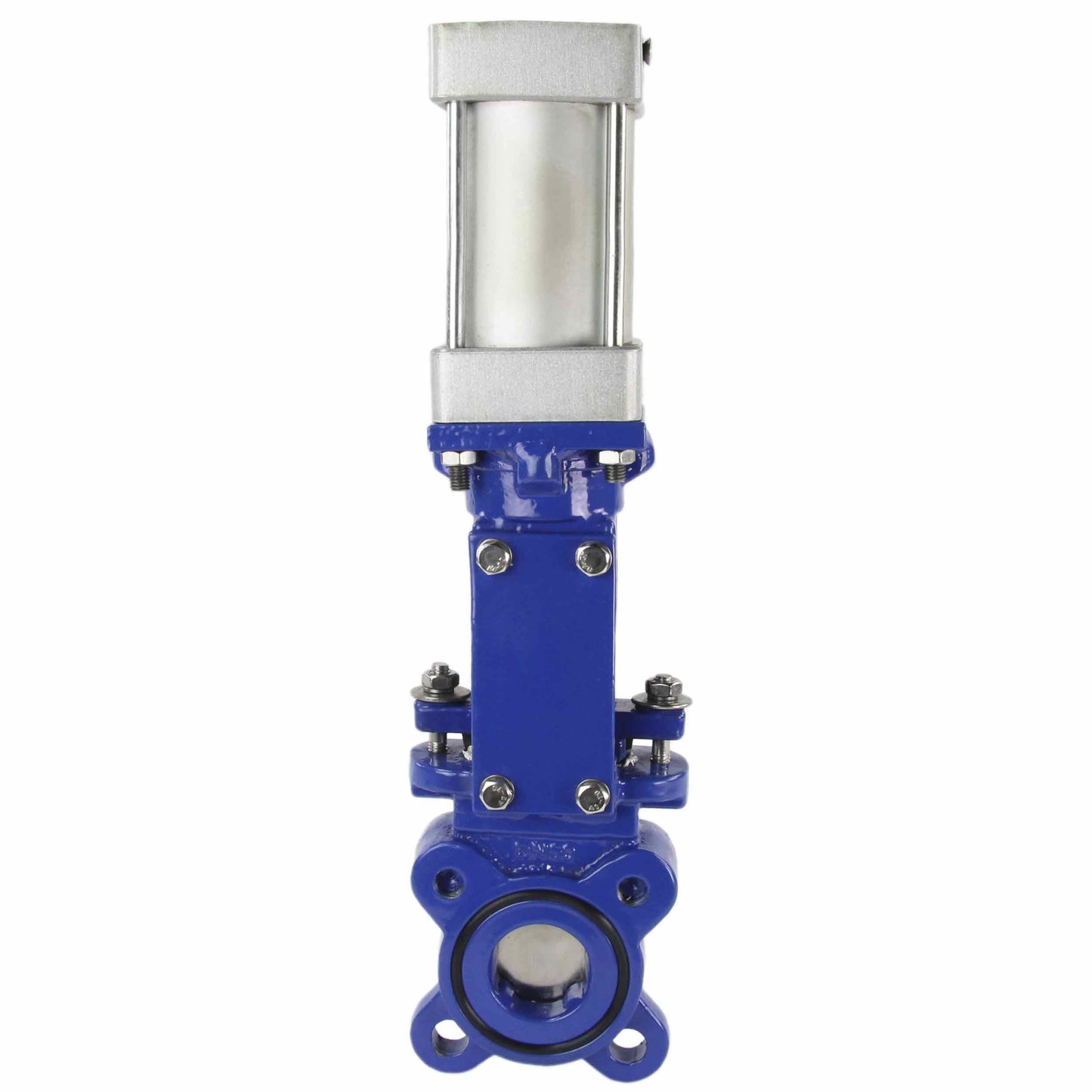

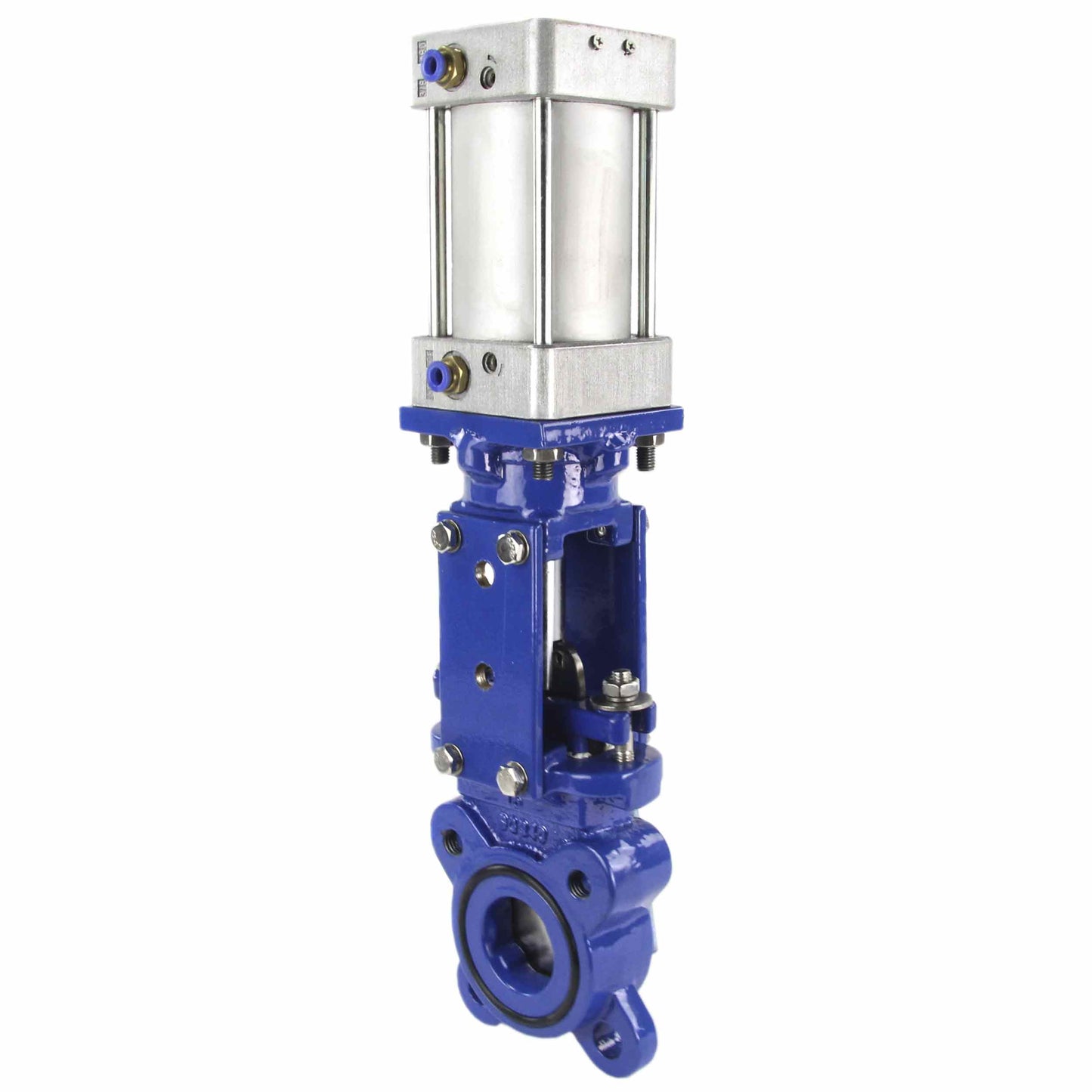

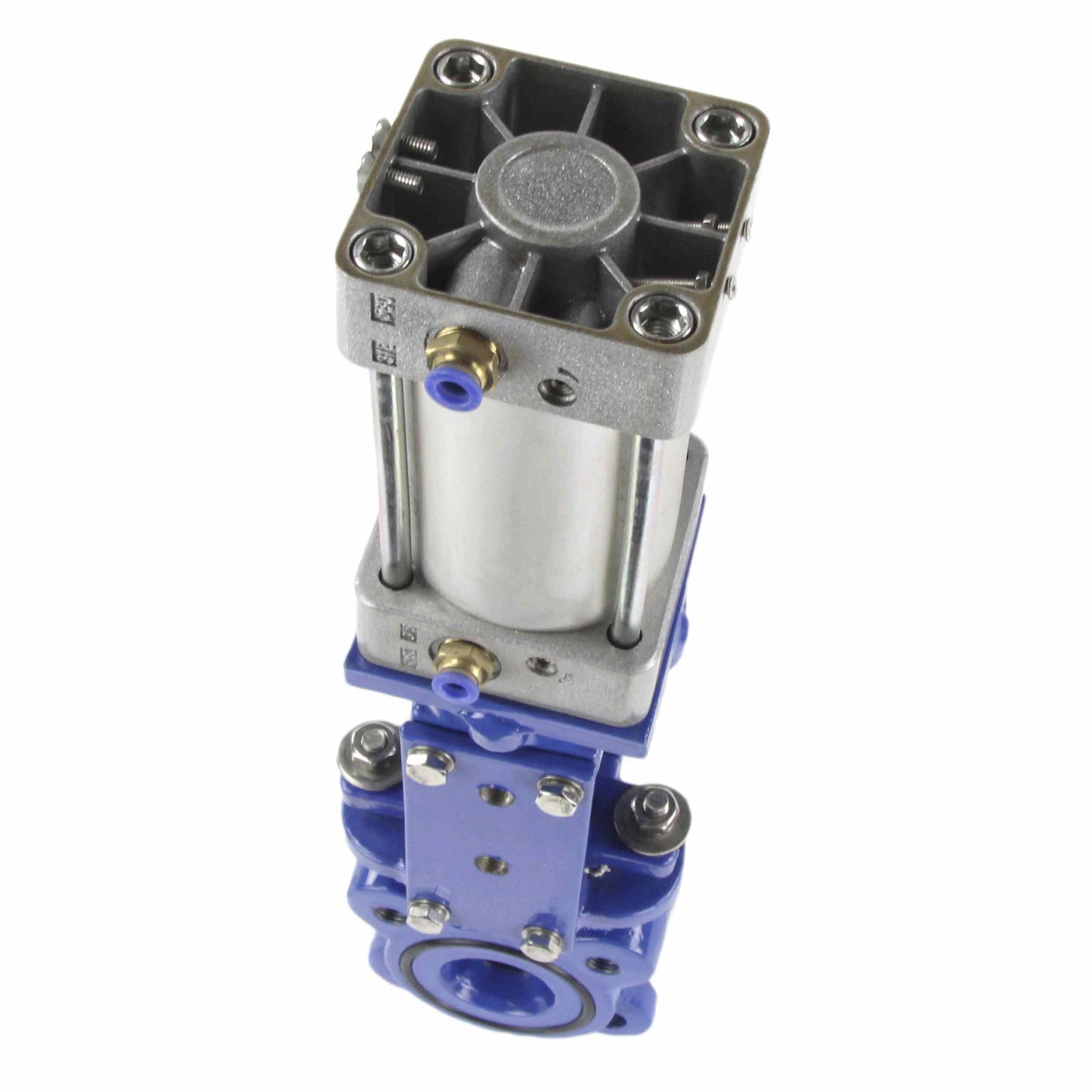

Knife gate
The number that matters
Nominal pressure
16bar
The pressure class of the valve body at 20 °C. Working limits depend on the medium and its temperature.
Construction
Parts and materials
Knife Gate Valve DNOVA is intended for installation on a pipeline as a shut-off device and for regulating the flow of the working medium in water supply systems and the chemical industry. 1.3. The principle of operation of the gate valve is to move the gate (knife) perpendicular to the flow of the medium. When the nominal diameter of the pipeline is completely blocked, a stop occurs flow, with partial flow - adjustment. The tightness of the gate valve in the closed state is ensured by pressing the gate valve to the seal under the influence of the pressure of the working medium.The protective cover covers and effectively protects the thread and surface of the rod from corrosion caused by external environmental factors.
Overall and installation dimensions of the gate valve DNOVA GVKRc3131E-2W-Fb-2P, wafer type, body material - stainless steel AISI 304, with pneumatic actuator
| DN | L | D | D1 | D2 | H | H1 | N - Th | Weight |
| 50 | 48 | 165 | 125 | 99 | 430 | 510 | 4 – M16 | 11 |
| 65 | 48 | 185 | 145 | 118 | 470 | 560 | 4 – M16 | 13 |
| 80 | 51 | 200 | 160 | 132 | 543 | 640 | 8 – M16 | 15 |
| 100 | 51 | 220 | 180 | 156 | 592 | 700 | 8 – M16 | 19 |
| 125 | 57 | 250 | 210 | 184 | 688 | 810 | 8 – M16 | 25 |
| 150 | 57 | 285 | 240 | 211 | 780 | 920 | 8 – M20 | 30 |
| 200 | 70 | 340 | 295 | 266 | 923 | 1090 | 12 – M20 | 40 |
Valve sketch DNOVA GVKRc3131E-2W-Fb-2P, wafer type, body material - stainless steel AISI 304, with pneumatic actuator
Construction and materials of the gate DNOVA GVKRc3131E-2W-Fb-2P, wafer type, body material - stainless steel AISI 304, with pneumatic actuator
| № | Part name | Material |
| 1 | Body | Steel 304 |
| 2 | Disk | Steel 304 |
| 3-4 | Bolt / Nut | Steel A3 |
| 5 | padding | PTFE |
| 6 | Gland packing | Steel 304 |
| 7-9 | Bolt / Nut | Steel A3 |
| 10 | Clamping chuck | Steel 45 |
| 11 | Protective cover | Steel A3 |
| 12 | Support | Steel A3 |
| 13 | Pneumatic actuator | - |
| 14 | Seat seal | EPDM |
Material sketch of valve parts DNOVA GVKRc3131E-2W-Fb-2P, wafer type, body material - stainless steel AISI 304, with pneumatic actuator
- Body material
- Stainless steel AISI 304
- Stopper Material
- Stainless steel AISI 304/1.4301
- Maximum allowable temperature
- 120 °C
- Connection type
- Compact flanged
- Control type
- Pneumatic actuator
- Gate valve type
- Knife Gate Valve
- Nominal pressure
- 16 bar
- Type of seal
- EPDM
- Country of origin
- China
