Description
Gate valve GVKR-2W-Fb-OST stainless steel, interflanged with OST-flange and bare stem under electric actuator is designed to be installed on the pipeline as a shut-off device and regulate the flow of medium in water supply systems (except drinking water supply systems) and chemical industry.
The principle of operation of the gate valve is to move the gate (knife) perpendicular to the flow of medium. In case of complete closing of the pipeline nominal bore diameter the flow is stopped, in case of partial closing the flow is regulated.
Technical characteristics of gate valves DNOVA GVKR3232M-2W-Fb-OST-METAL interflanged with OST-flange type A and bare stem, body - stainless steel 316, gate - stainless steel 316, seal - METAL, under electric actuator:
| Nominal diameter DN, mm | 50-300 |
| Working pressure PN, bar | 10-16 |
| Working medium temperature t, ⁰C | from -20 to +300 |
| Working medium | wastewater, slurry, viscous, powdered and crystallized media, acids |
| Flow direction | double-sided |
| Body material | stainless steel AISI/SS 316 |
| Seal | METAL |
| Control type | flange OST 26-07-763-73 under electric actuator |

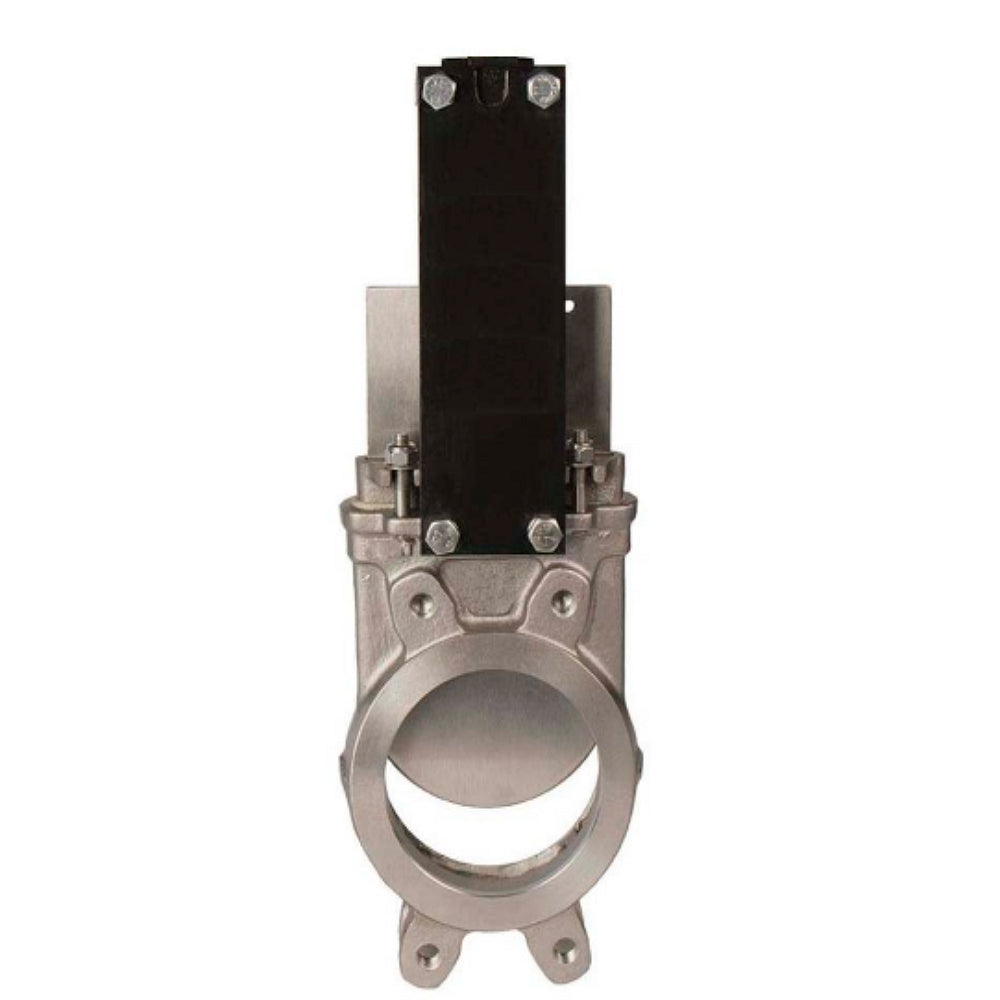

Gate valves DNOVA GVKR3232M-2W-Fb-OST-METAL interflanged with OST-flange type A and bare stem, body - stainless steel 316, gate - stainless steel 316, seal - METAL, under electric actuator
Dimensions and dimensions of gate valves DNOVA GVKR3232M-2W-Fb-OST-METAL interflanged with OST-flange type A and bare stem, body - stainless steel 316, gate - stainless steel 316, seal - METAL, under electric actuator:
| DN | L | D | D1 | D2 | H | h1 | h2 | Weight |
| 50 | 46 | 160 | 125 | 95 | 250 | 3 | 4 | 8,5 |
| 65 | 48 | 185 | 145 | 118 | 310 | 3 | 4 | 10 |
| 80 | 51 | 200 | 160 | 127 | 305 | 3 | 4 | 12 |
| 100 | 51 | 220 | 180 | 128 | 342 | 3 | 4 | 14 |
| 125 | 51 | 250 | 210 | 184 | 432 | 3 | 4 | 20 |
| 150 | 57 | 280 | 240 | 212 | 478 | 3 | 4 | 25 |
| 200 | 70 | 340 | 295 | 266 | 520 | 3 | 4 | 35 |
| 250 | 70 | 400 | 350 | 319 | 650 | 3 | 4 | 50 |
| 300 | 76 | 450 | 400 | 370 | 745 | 3 | 4 | 68 |
Sketch dimensions and dimensions Gate valves DNOVA GVKR3232M-2W-Fb-OST-METAL interflanged with OST-flange type A and bare stem, body - stainless steel 316, gate - stainless steel 316, seal - METAL, under electric actuator
Table of parts and materials for gate valves DNOVA GVKR3232M-2W-Fb-OST-METAL interflanged with OST-flange type A and bare stem, body - stainless steel 316, gate - stainless steel 316, seal - METAL, under electric actuator:
| № | Part name | Material |
| 1 | Casing | stainless steel AISI/SS 316 |
| 2 | Schieber | stainless steel AISI/SS 316 |
| 3-4 | Bolt-nut | A2-steel A4 steel |
| 5 | Seal | PTFE+graphite |
| 6 | Gland packing | WCB steel |
| 7-9 | Bolt-nut | A2-steel A4 |
| 10 | Stem | stainless steel AISI/SS 316 |
| 11 | Rack | A3 steel |
| 12 | Seat seal | METAL |
| 13 | Rack head | WCB steel |
| 14 | Nut | brass |
| 15 | Pin | steel 45 |
| 16 | Cotter pin | A3 steel |
Sketch of parts and materials of slide gate valves DNOVA GVKR3232M-2W-Fb-OST-METAL interflanged with OST-flange type A and bare stem, body - stainless steel 316, gate - stainless steel 316, seal - METAL, under electric actuator
