Description
The gate valve is designed for installation on the pipeline as a shut-off device and regulation of the working medium flow in water supply systems (except for drinking water supply systems) and chemical industry.
The principle of operation of the gate valve is to move the gate (knife) perpendicular to the flow of medium. In case of complete closing of the pipeline nominal bore diameter the flow is stopped, in case of partial closing the flow is regulated.
Technical characteristics of gate valves DNOVA GVKR3131M-1W-Fb-S-WENZ single-sided, flanged, body - stainless steel 304, gate - stainless steel 304, seal - metal, control - hand wheel, WENZ:
| Parameters | Values |
| Nominal diameter DN, mm | 50-250 |
| Nominal pressure PN, bar | 10 |
| Working medium temperature, °C | -60 to 500 |
| Working medium | water, acids, viscous media, wastewater, powdered and crystallized media, slurry |
| Tightness class | B |
| Control type | manual |
| Pipeline connection | interflanged |
| Material | Stainless steel AISI/SS 304/08X18H10 |
| Application | Engineering networks, Drainage systems |
| Service life, years | 15 |
| Manufacturer's country | China |

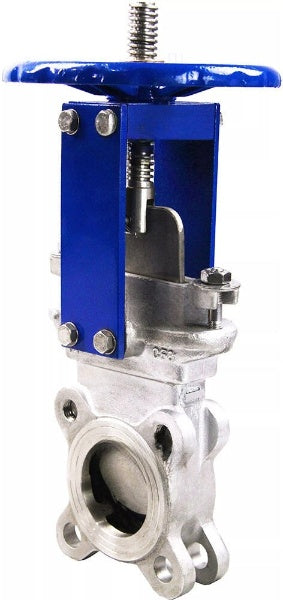

Gate valves DNOVA GVKR3131M-1W-Fb-S-WENZ single-sided, flanged, body - stainless steel 304, gate - stainless steel 304, seal - metal, control - hand wheel, WENZ
Dimensions and dimensions of gate valves DNOVA GVKR3131M-1W-Fb-S-WENZ single-sided, flanged, body - stainless steel 304, gate - stainless steel 304, seal - metal, control - hand wheel, WENZ:
| Model | Size in mm | |||||||||||
| DN | L | D | D1 | D2 | D0 | H1 | T | d | ● | O | N-Th | |
| DN50 | 50 | 48 | 165 | 125 | 99 | 180 | 260 | 12 | 18 | 4 | 0 | 4-M16 |
| DN80 | 80 | 51 | 200 | 160 | 132 | 200 | 320 | 12 | 18 | 4 | 4 | 8-M16 |
| DN100 | 100 | 51 | 220 | 180 | 156 | 240 | 358 | 12 | 18 | 4 | 4 | 8-M16 |
| DN125 | 125 | 57 | 250 | 210 | 184 | 260 | 395 | 12 | 18 | 4 | 4 | 8-M16 |
| DN150 | 150 | 57 | 285 | 240 | 211 | 280 | 450 | 14 | 23 | 4 | 4 | 8-M20 |
| DN200 | 200 | 70 | 340 | 295 | 266 | 300 | 532 | 16 | 23 | 4 | 4 | 8-M20 |
| DN250 | 250 | 70 | 395 | 350 | 319 | 320 | 670 | 18 | 23 | 6 | 6 | 12-M20 |
Sketch dimensions and dimensions Gate valves DNOVA GVKR3131M-1W-Fb-S-WENZ single-sided, flanged, body - stainless steel 304, gate - stainless steel 304, seal - metal, control - hand wheel, WENZ
Table of parts and materials for gate valves DNOVA GVKR3131M-1W-Fb-S-WENZ single-sided, flanged, body - stainless steel 304, gate - stainless steel 304, seal - metal, control - hand wheel, WENZ:
| № | Part name | Material |
| 1 | Casing | SS304 stainless steel |
| 2 | Schieber | stainless steel SS304 |
| 3 | Guide seal | PTFE |
| 4 | Packing | PTFE |
| 5 | Gland | stainless steel SS304 |
| 6 | Rack | steel Q235 |
| 7 | Pin | steel 45 |
| 8 | Patron | WCB steel |
| 9 | Rod | stainless steel SS304 |
| 10 | Upper rack assembly | cast iron GGG40 |
| 11 | Bearing | GCr15 steel |
| 12 | Nut | brass |
| 13 | Cover | Q235 steel |
| 14 | Handwheel | GGG40 cast iron |
| 15 | Wedge | 316L stainless steel |
Material sketch of gate valves GVKR3131M-1W-Fb-S-WENZ single-sided, flanged, body - stainless steel 304, gate - stainless steel 304, seal - metal, control - hand wheel, WENZ
