How it works
Knife gate
The number that matters
Nominal pressure
16bar
The pressure class of the valve body at 20 °C. Working limits depend on the medium and its temperature.
Construction
Parts and materials
Applications
Media and industries
- Water
- Industrial Water
- Industry
- Wastewater systems

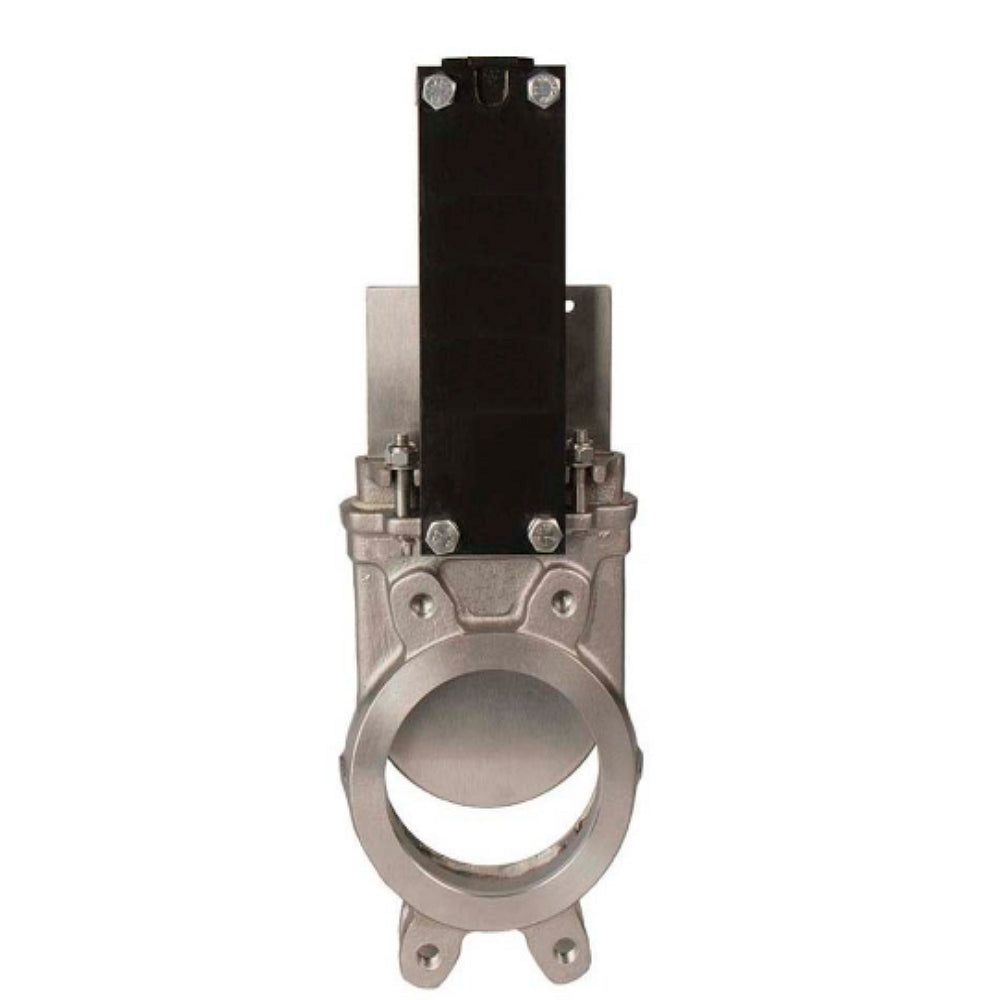

Gate valve GVKR-2W-Fb-OST stainless steel, interflanged with OST-flange and bare stem under electric actuator is designed to be installed on the pipeline as a shut-off device and regulate the flow of medium in water supply systems (except drinking water supply systems) and chemical industry.
The principle of operation of the gate valve is to move the gate (knife) perpendicular to the flow of medium. In case of complete closing of the pipeline nominal bore diameter the flow is stopped, in case of partial closing the flow is regulated.
Technical characteristics of gate valves DNOVA GVKR3131E-2W-Fb-304-OST-EPDM interflanged with OST-flange type A and bare stem, body - stainless steel 304, gate - stainless steel 304, seal - EPDM, under electric actuator:
| Nominal diameter DN, mm | 50-300 |
| Working pressure, bar | 10-16 |
| Working medium temperature t, °C | from -30 to +120 |
| Working medium | water, slightly contaminated liquids with suspended solids content up to 5% |
| Flow direction | double-sided |
| Body material | stainless steel AISI/SS 304 |
| Seal | EPDM |
| Control type | flange OST 26-07-763-73 under electric actuator |
Gate valves DNOVA GVKR3131E-2W-Fb-304-OST-EPDM interflanged with OST-flange type A and bare stem, body - stainless steel 304, gate - stainless steel 304, seal - EPDM, under electric actuator
Dimensions and dimensions of gate valves DNOVA GVKR3131E-2W-Fb-304-OST-EPDM interflanged with OST-flange type A and bare stem, body - stainless steel 304, gate - stainless steel 304, seal - EPDM, under electric actuator:
| DN | L | D | D1 | D2 | H | h1 | h2 | Weight |
| 50 | 46 | 160 | 125 | 95 | 250 | 3 | 4 | 8,5 |
| 65 | 48 | 185 | 145 | 118 | 310 | 3 | 4 | 10 |
| 80 | 51 | 200 | 160 | 127 | 305 | 3 | 4 | 12 |
| 100 | 51 | 220 | 180 | 128 | 342 | 3 | 4 | 14 |
| 125 | 51 | 250 | 210 | 184 | 432 | 3 | 4 | 20 |
| 150 | 57 | 280 | 240 | 212 | 478 | 3 | 4 | 25 |
| 200 | 70 | 340 | 295 | 266 | 520 | 3 | 4 | 35 |
| 250 | 70 | 400 | 350 | 319 | 650 | 3 | 4 | 50 |
| 300 | 76 | 450 | 400 | 370 | 745 | 3 | 4 | 68 |
Sketch dimensions and dimensions Gate valves DNOVA GVKR3131E-2W-Fb-304-OST-EPDM interflanged with OST-flange type A and bare stem, body - stainless steel 304, gate - stainless steel 304, seal - EPDM, under electric actuator
Table of parts and materials for gate valves DNOVA GVKR3131E-2W-Fb-304-OST-EPDM interflanged with OST-flange type A and bare stem, body - stainless steel 304, gate - stainless steel 304, seal - EPDM, under electric actuator:
| № | Part name | Material |
| 1 | Casing | stainless steel AISI/SS 304 |
| 2 | Schieber | stainless steel AISI/SS 304 |
| 3-4 | Bolt-nut | A2-steel A4 steel |
| 5 | Seal | PTFE+graphite |
| 6 | Gland packing | WCB steel |
| 7-9 | Bolt-nut | A2-steel A4 |
| 10 | Stem | stainless steel AISI/SS 304 |
| 11 | Rack | A3 steel |
| 12 | Seat seal | EPDM |
| 13 | Rack head | WCB steel |
| 14 | Nut | brass |
| 15 | Pin | steel 45 |
| 16 | Cotter pin | A3 steel |
Sketch of parts and materials of slide gate valves DNOVA GVKR3131E-2W-Fb-304-OST-EPDM interflanged with OST-flange type A and bare stem, body - stainless steel 304, gate - stainless steel 304, seal - EPDM, under electric actuator
- Body material
- Stainless steel AISI 304
- Maximum allowable temperature
- 120 °C
- Connection type
- Compact flanged
- Control type
- Under electric drive
- Operating environment
- Water and Industrial Water
- Applications
- Industry and Wastewater systems
- Nominal pressure
- 16 bar
- Type of seal
- EPDM
- Locking material
- Stainless steel AISI 304
- Limit switches
- No
- Country of origin
- China
Production. Usually 7–14 business days after you approve the quotation and pay. Made-to-specification items are confirmed in the quotation.
Freight. Not charged at checkout. A manager quotes air and sea freight to your port or airport, and nothing ships until you approve the price and the freight.
To North America. From approval and payment to the destination port or airport: air 14–24 days, sea 32–60 days. Estimates, not guarantees.
Terms. EXW Ningbo or FOB Ningbo Port; CIF on request. The agreed term is written on the Proforma Invoice.
