Description

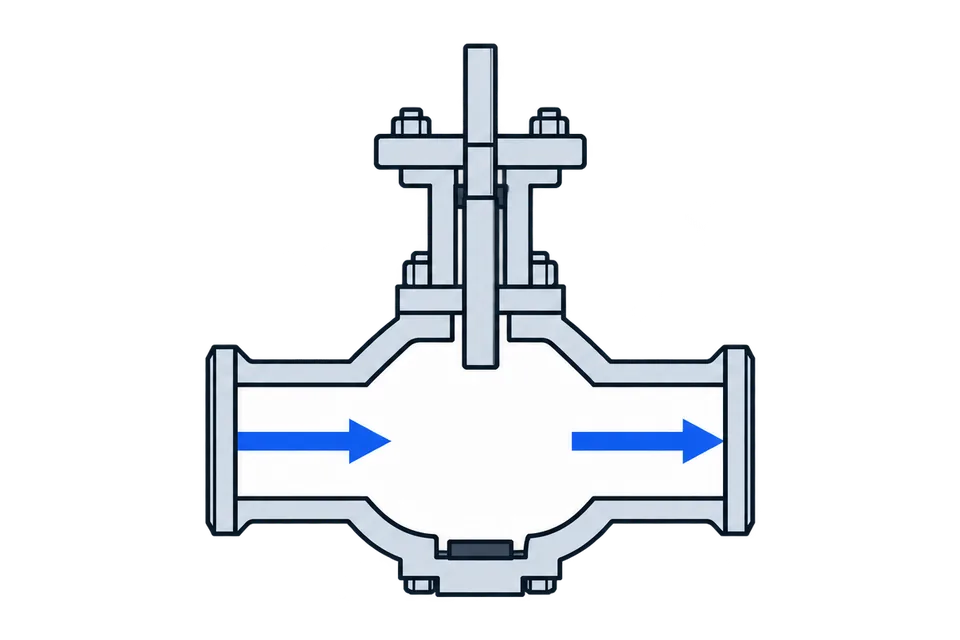

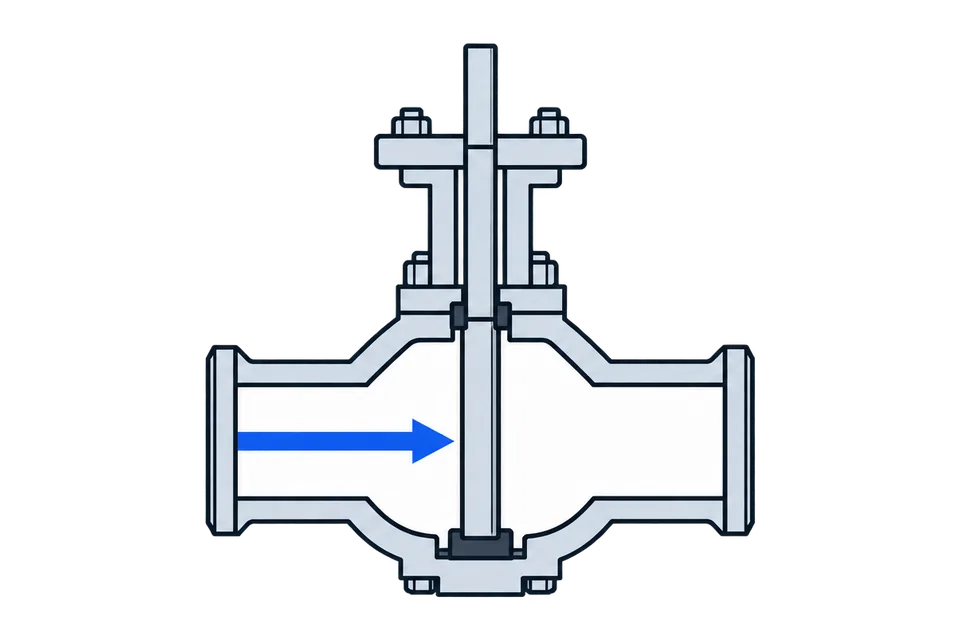

The gate valve is designed for installation on a pipeline as a shut-off device and for regulating the flow of the working medium in water supply systems (except for drinking water supply systems) and the chemical industry.
Pneumatic distributors are used for control in pneumatic systems with a NAMUR mating surface for installing distributors through through holes in the body. Electromagnetic control is carried out using voltage coils 12-AC, 12-DC, 24-AC, 24-DC, 110-AC, 220-AC. Depending on the model, distributors have one-way or two-way control. Pneumatic distributors with electromagnetic control have a wide range of models and include common types of switching for three (3/2) and five (5/2 and 5/3) linear pneumatic distributors. Intended for use with gate valves with a pneumatic cylinder. Application is also possible on other valves with a pneumatic drive.

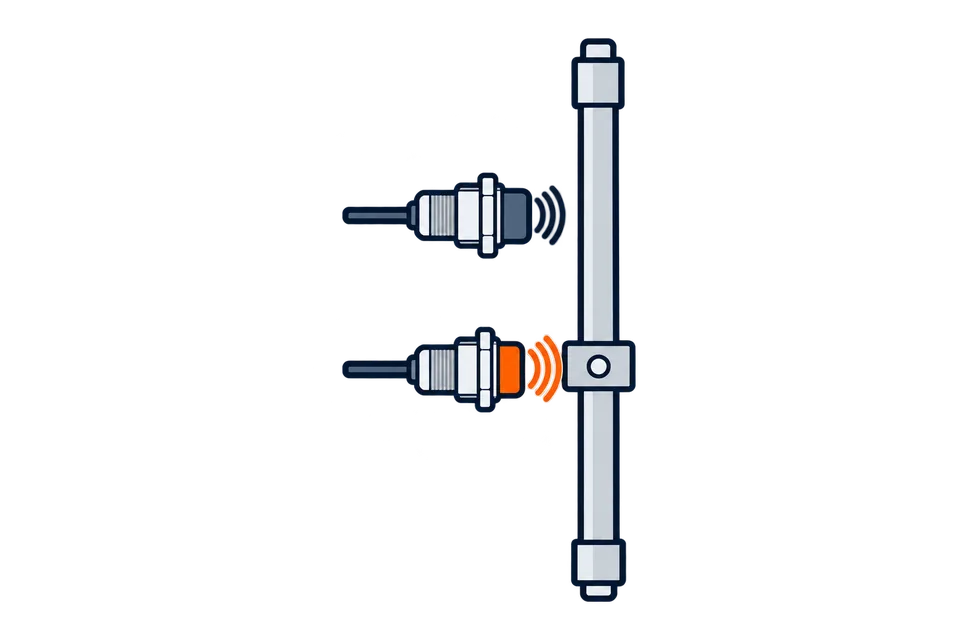

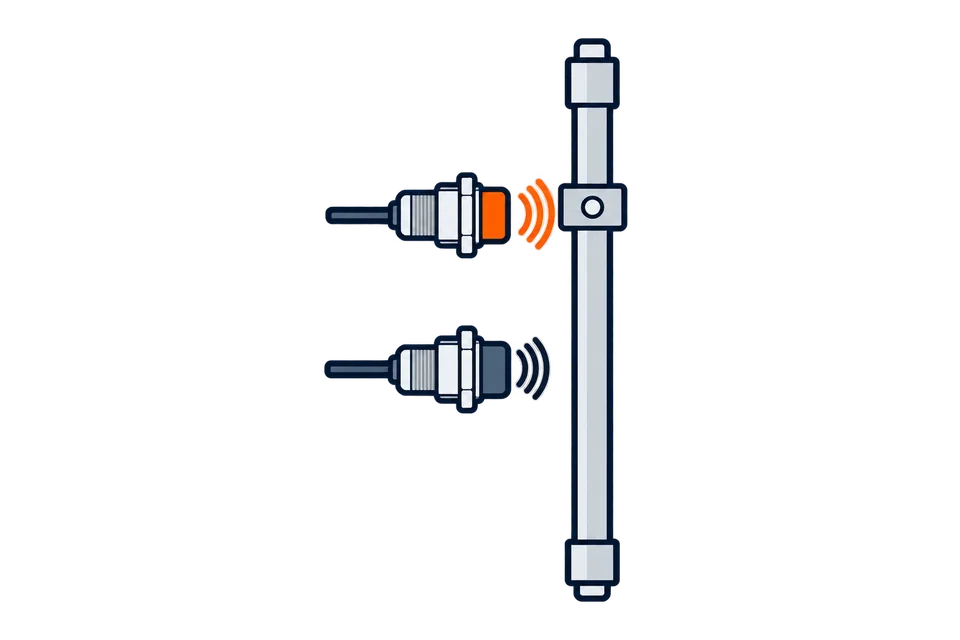

An inductive sensor is a contactless sensor designed to control the position of metal objects. It is not sensitive to other materials. Inductive sensors are successfully and widely used to solve many automation problems in manufacturing. They are manufactured with normally open and normally closed contacts, but there are options with both types of contact simultaneously. They work by changing the parameters of the magnetic field created by the inductance coil inside the sensor.

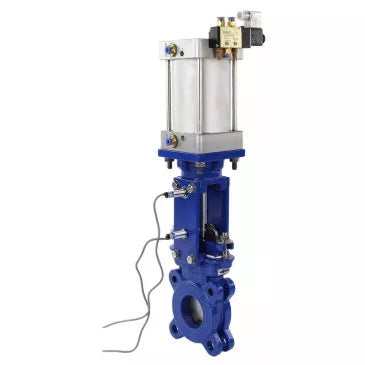

Technical characteristics of DNOVA GVKR1331N-2W-Fb-2P DN80 PN10 wafer gate valves, with a rising spindle, body - cast iron GGG-40, seal - NBR, with pneumatic actuator, WENZ, pneumatic distributor 4V210-08 24V and inductive sensors LJ12A3-4-J/EZ 24V:
| Name | Meaning |
| Nominal pressure PN, bar | 10 |
| Connection type | interflange |
| Working medium | water |
| Control type | pneumatic drive |
| Application | water supply, heat supply, industry |
| Gate valve type | Gate valve |
| Working environment temperature, °C | from -30 to +110 |
Sketch of the dimensions and sizes of the gate valves DNOVA GVKR1331N-2W-Fb-2P DN80 Ru10 interflange, with a rising spindle, body - cast iron GGG-40, seal - NBR, with pneumatic actuator, WENZ, pneumatic distributor 4V210-08 24V and inductive sensors LJ12A3-4-J / EZ 24V
Dimensions and sizes of DNOVA GVKR1331N-2W-Fb-2P DN80 PN10 wafer gate valves, with a retractable spindle, body - cast iron GGG-40, seal - NBR, with pneumatic actuator, WENZ, pneumatic distributor 4V210-08 24V and inductive sensors LJ12A3-4-J/EZ 24V:
| Size | Du80 |
| DN, mm | 80 |
| L, mm | 51 |
| D, mm | 200 |
| D1, mm | 160 |
| D2, mm | 132 |
| D0, mm | 100 |
| H1, mm | 558 |
| G, inch | 1/2″ |
| N - Th | 8 – M16 |
| T, mm | 12 |
| Ød, mm | 18 |
| ⬤, mm | 2 |
| 〇, mm | 6 |
Sketch of parts and materials of gate valves DNOVA GVKR1331N-2W-Fb-2P DN80 Ru10 interflange, with a rising spindle, body - cast iron GGG-40, seal - NBR, with pneumatic actuator, WENZ, pneumatic distributor 4V210-08 24V and inductive sensors LJ12A3-4-J/EZ 24V
Table of parts and materials of gate valves DNOVA GVKR1331N-2W-Fb-2P DN80 Ru10 interflange, with a rising spindle, body - cast iron GGG-40, seal - NBR, with pneumatic actuator, WENZ, pneumatic distributor 4V210-08 24V and inductive sensors LJ12A3-4-J/EZ 24V:
| Item No. | Details | Material |
| 1 | Frame | cast iron GGG40 |
| 2 | Sealing ring | NBR |
| 3 | Gate | Stainless steel SS304 |
| 4 | Guide seal | PTFE |
| 5 | Stuffing | PTFE |
| 6 | Gland packing | WCB steel |
| 7 | Pin | steel 45 |
| 8 | Cartridge | WCB steel |
| 9 | Stock | steel 2Cr13 |
| 10 | Rack | steel Q235 |
| 11 | Switch | - |
| 12 | Pneumatic cylinder | - |
| 13 | Solenoid valve | - |
| 14 | Filter | - |
Technical parameters of SC pneumatic cylinders
| Name | Meaning |
| Model | SC |
| Design | double acting |
| Working environment | compressed air |
| Damping | adjustable |
| Working pressure range, bar | 1-9 |
| Operating temperature range, °C | from -5 to +70 |
Sketch of dimensions and sizes of SC pneumatic cylinders
Dimensions and sizes of SC pneumatic cylinders
| Model | SC 100x100 |
| A, mm | 112 |
| A1, mm | 125 |
| A2, mm | 70 |
| A3, mm | 50 |
| A4, mm | 104 |
| h3, mm | 10 |
| h4, mm | 10 |
| NM, mm | 4-M8 |
| nd, mm | 2-Ø8.2 |
| B, mm | 112 |
| B1, mm | 75±0.5 |
| B2, mm | 32±0.5 |
| C, mm | 33 |
| D, mm | Ø100 |
| E, mm | 21 |
| F, mm | 6.2±0.1 |
| S, mm | 100±1 |
| H, mm | 126 |
| H1, mm | 34±1 |
| H2, mm | 12±0.5 |
| H3, mm | 24.5±1 |
| d1, mm | 10.2 |
Technical parameters of the pneumatic distributor DNOVA 4V210-08
| Name | Meaning |
| Type of pneumatic distributor | spool valve |
| Model of pneumatic distributor | 4V210-08 |
| Working pressure, bar | 1.5 ÷ 1.8 |
| Response frequency, cycles/sec | 5 |
Technical parameters of inductive sensors LJ12A3-4
| Name | Meaning |
| Design | cylindrical |
| Sensor type | induction |
| Current, mA | 400 |
| Operating distance, mm | 4 |
| Trigger indication | There is |
| Degree of protection, IP | 67 |
Specifications
