Description
The gate valve is designed for installation on the pipeline as a shut-off device and regulation of the working medium flow in water supply systems (except for drinking water supply systems) and chemical industry.
The principle of operation of the gate valve is to move the gate (knife) perpendicular to the flow of medium. At full closing of the pipeline nominal bore diameter the flow is stopped, at partial closing the flow is regulated.
The principle of operation of pneumatic actuator is based on the movement of the built-in piston due to compressed air, which is supplied to the system from a compressor or tank.
Technical characteristics of gate valves DNOVA GVKR1331M-1W-Fb-2P-WENZ PN6 unidirectional, interflanged, spindle - extendable, body - cast iron GGG40, gate - stainless steel 304, seal - EPDM, pneumatically actuated, WENZ:
| Parameters | Values |
| Nominal diameter DN, mm | 50-300 |
| Nominal pressure PN, bar | DN50÷100 - 16 DN125÷250 - 10 DN300 - 6 |
| Working medium temperature, °C | -30 to +300 |
| Working medium | water, slurry, viscous, powdered and crystallized media, acids, wastewater |
| Tightness class | B |
| Control type | pneumatic cylinder |
| Connection to pipeline | interflanged |
| Body material | cast iron GGG40 (analog BCh40) |
| Application | water treatment and sewerage systems, utility networks (except for drinking water supply systems |
| Service life, years | 10 |

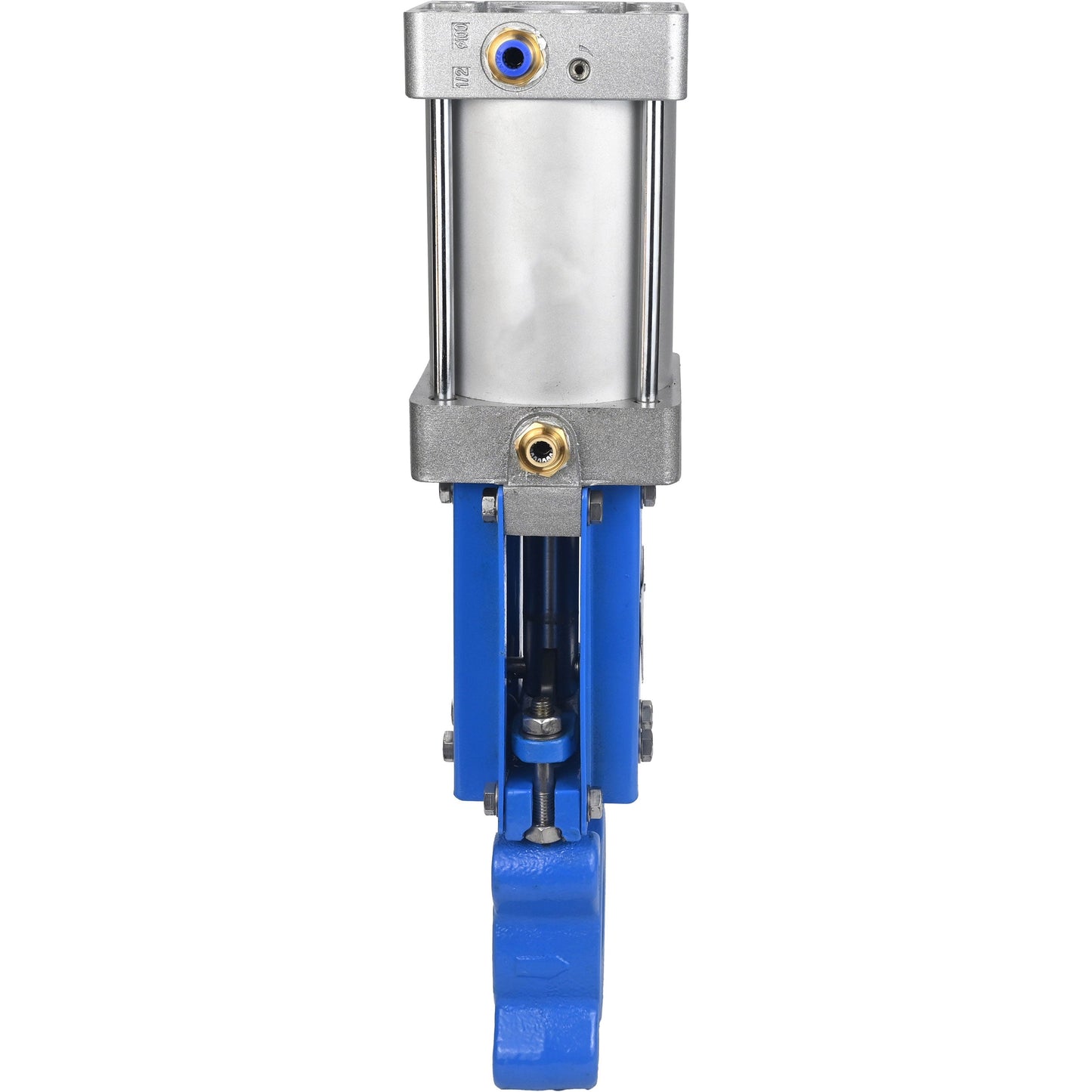

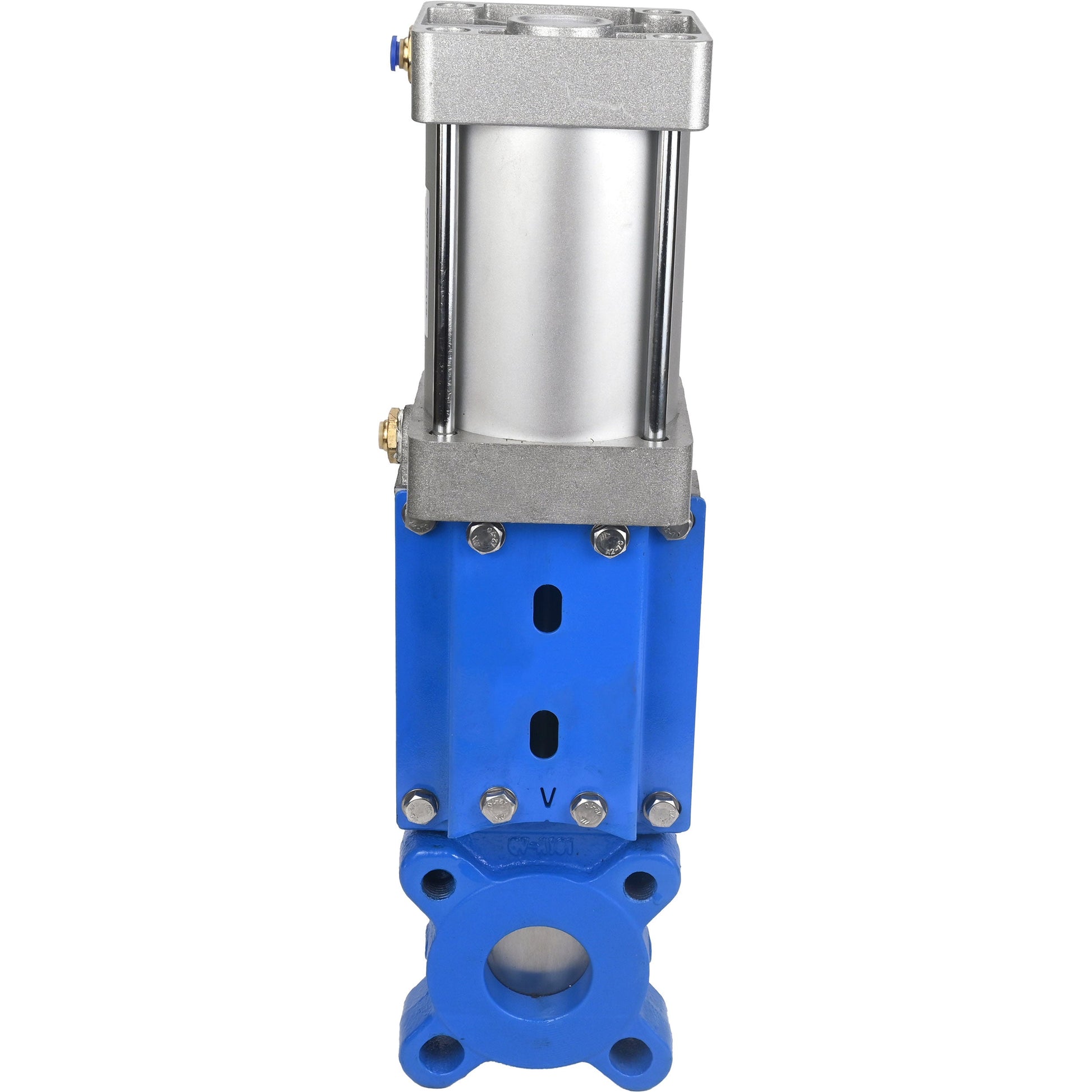

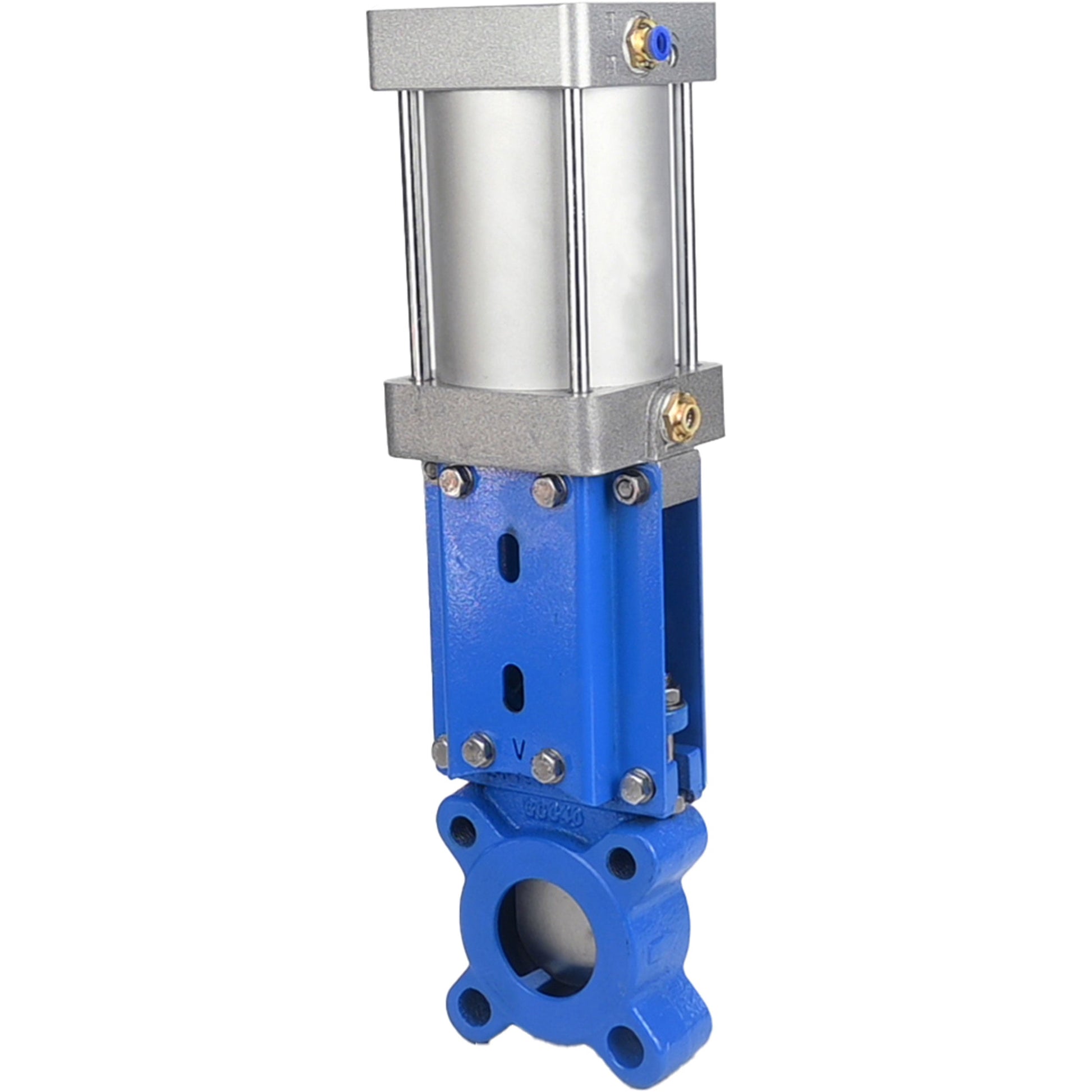

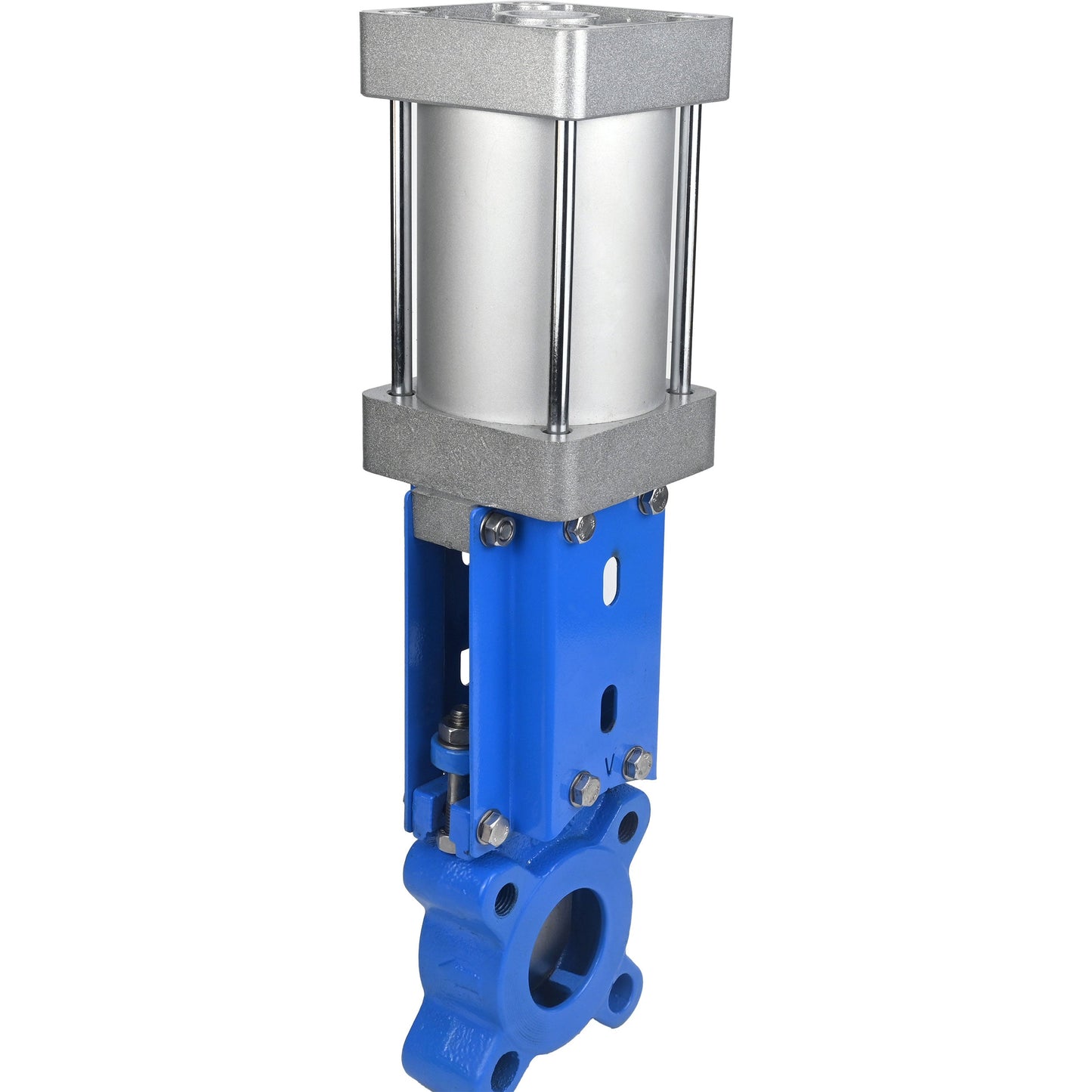

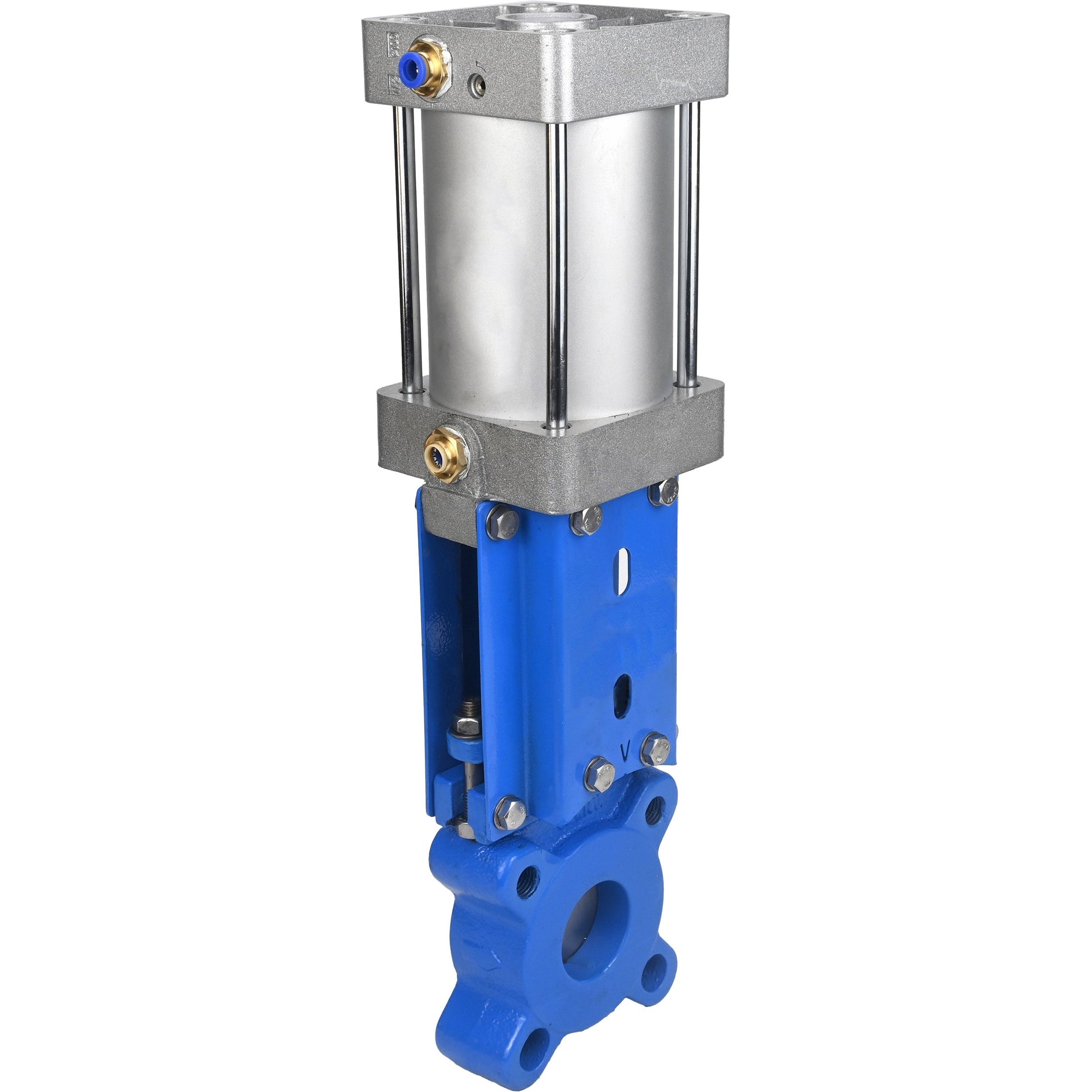

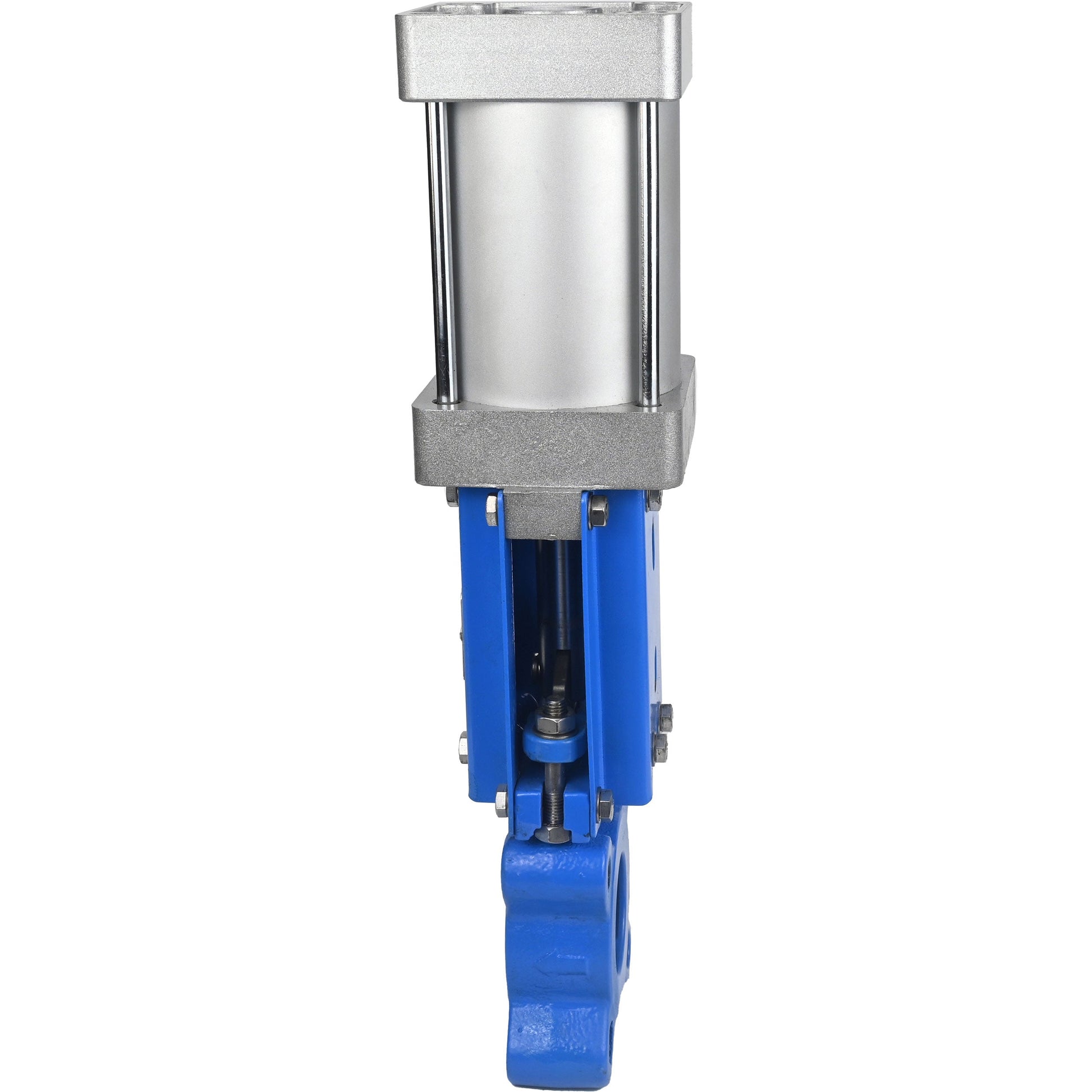

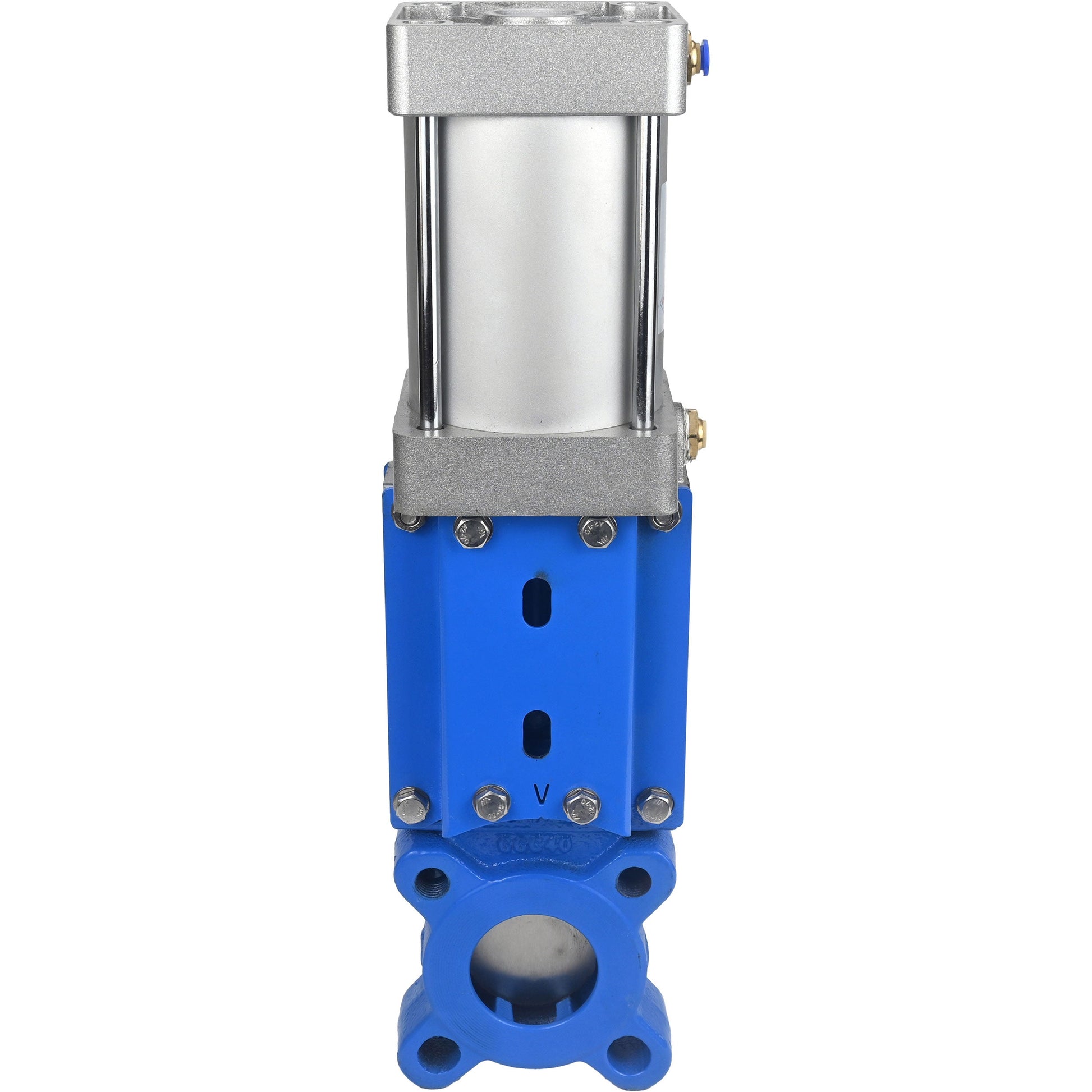

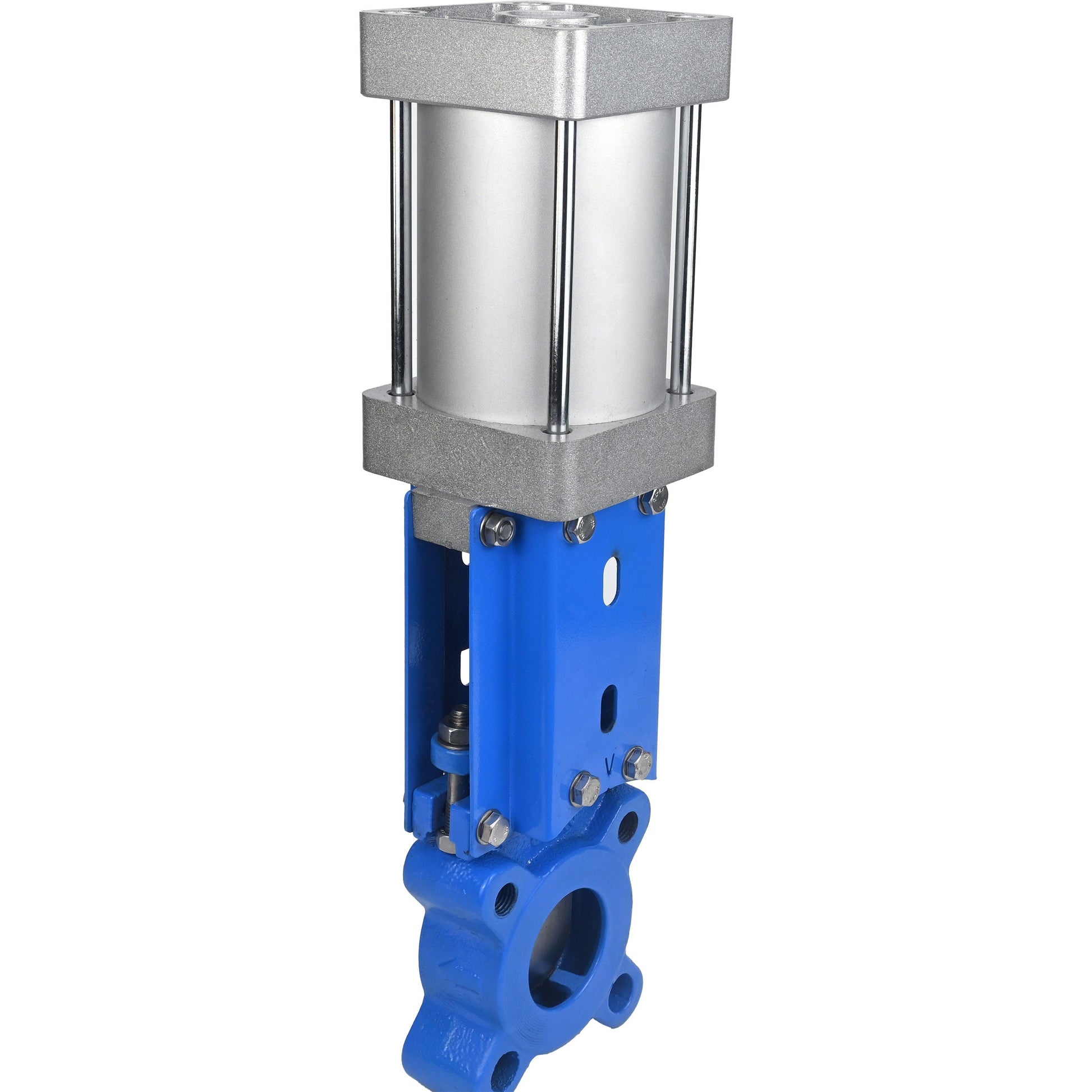

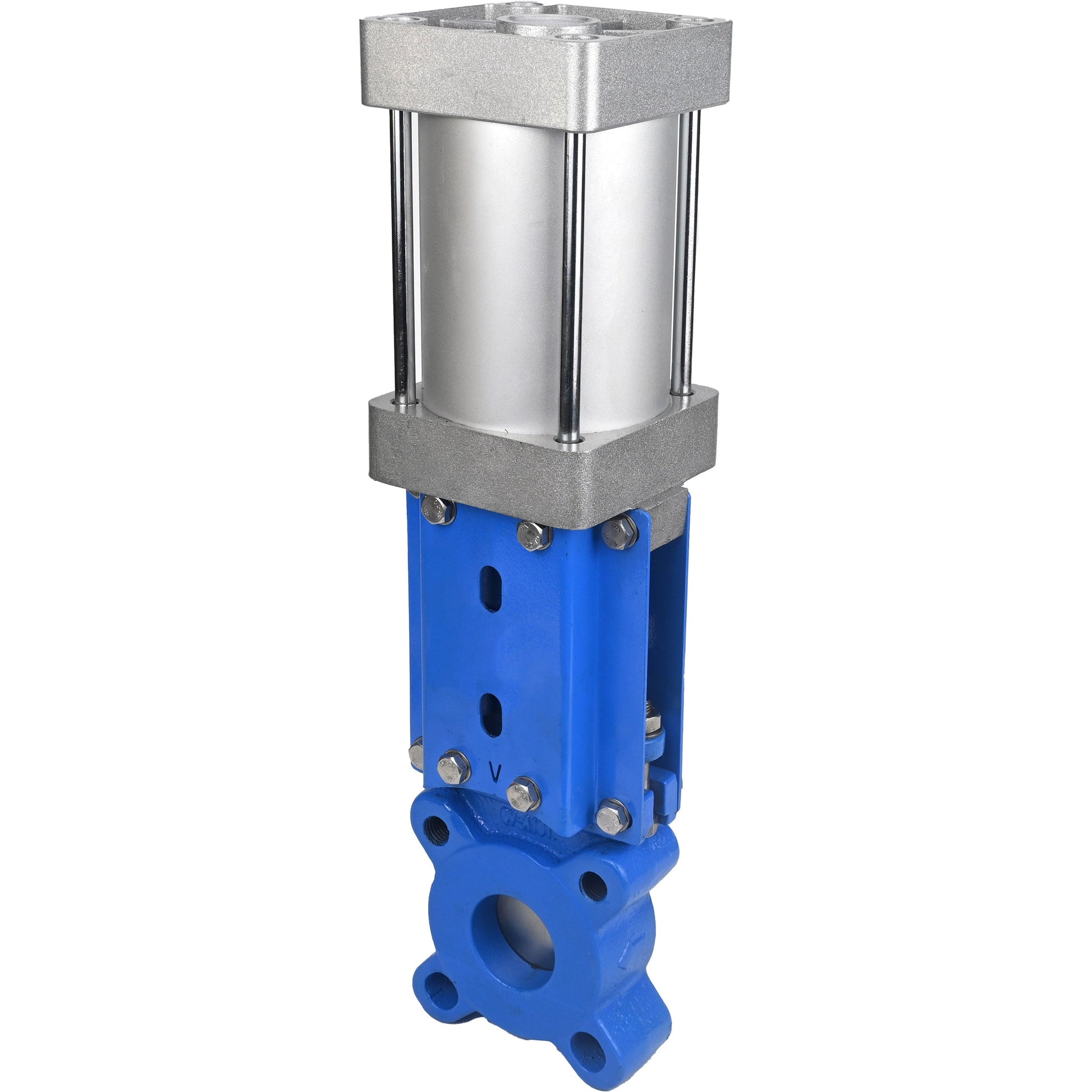

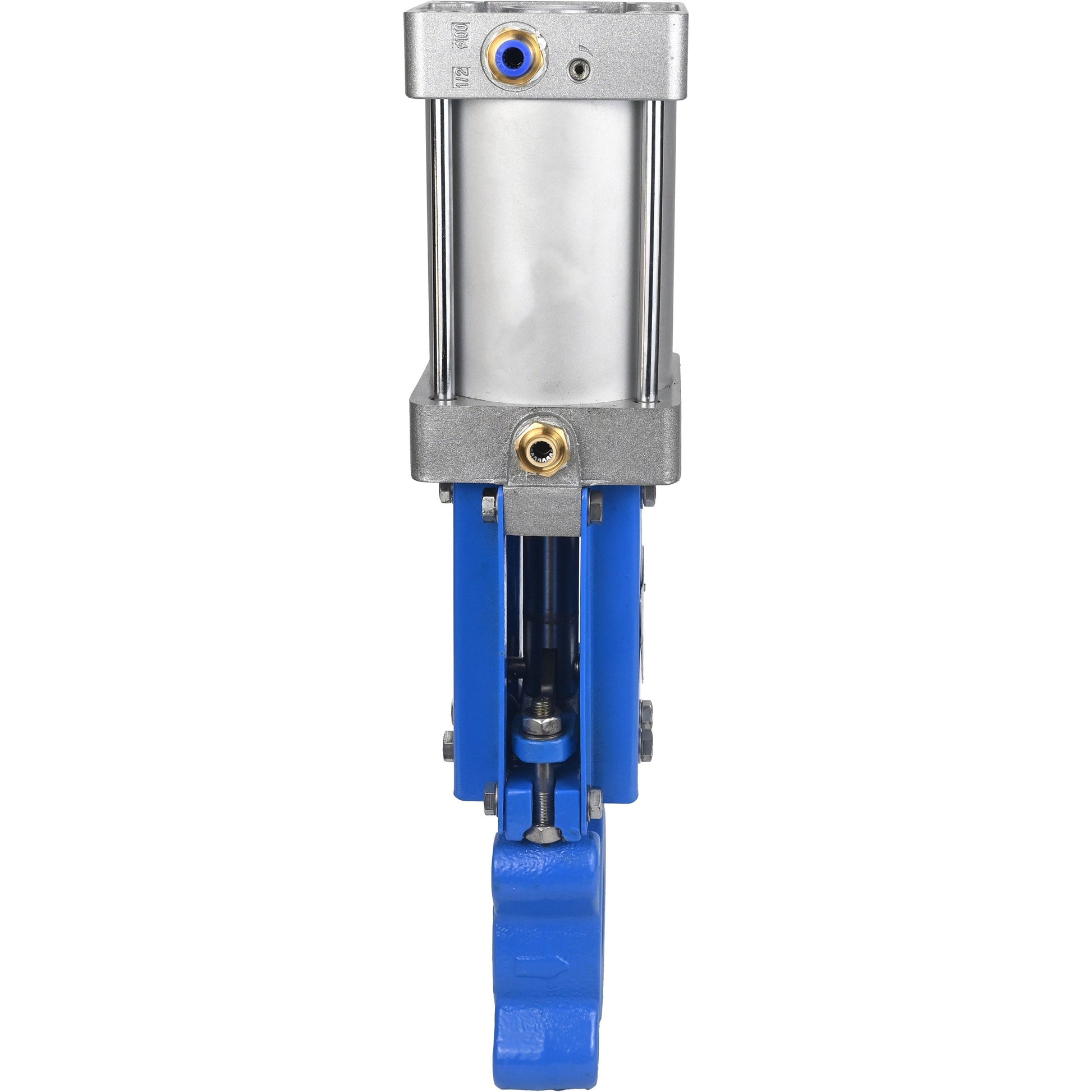

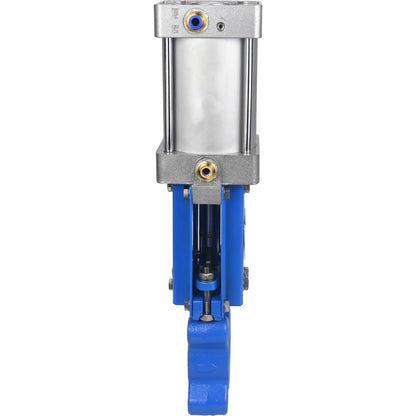

Gate valves DNOVA GVKR1331M-1W-Fb-2P-WENZ PN6 unidirectional, interflanged, spindle - extendable, body - cast iron GGG40, gate - stainless steel 304, seal - EPDM, pneumatically actuated, WENZ
Dimensions and dimensions of gate valves DNOVA GVKR1331M-1W-Fb-2P-WENZ PN6 unidirectional, interflanged, spindle - extendable, body - cast iron GGG40, gate - stainless steel 304, seal - EPDM, pneumatically actuated, WENZ:
| Size | DN300 |
| DN, mm | 300 |
| L, mm | 76 |
| D, mm | 445 |
| D1, mm | 400 |
| D2, mm | 370 |
| H1 | 1232 |
| G, inch | 3/4″ |
| N - Th | 12 – М20 |
| T, mm | 16 |
| Ød, mm | 23 |
| ⬤, mm | 6 |
| 〇, mm | 6 |
| Weight, kg | 70 |
Sketch dimensions and dimensions Gate valves DNOVA GVKR1331M-1W-Fb-2P-WENZ PN6 unidirectional, interflanged, spindle - extendable, body - cast iron GGG40, gate - stainless steel 304, seal - EPDM, pneumatically actuated, WENZ
Table of parts and materials for gate valves DNOVA GVKR1331M-1W-Fb-2P-WENZ PN6 unidirectional, interflanged, spindle - extendable, body - cast iron GGG40, gate - stainless steel 304, seal - EPDM, pneumatically actuated, WENZ:
| № | Part name | Material |
| 1 | Casing | cast iron GGG40 |
| 2 | Schieber | stainless steel AISI/SS 304 |
| 3 | Guide seal | PTFE |
| 4 | Gland packing | PTFE |
| 5 | Seal | WCB steel |
| 6 | Rack | Q235 steel |
| 7 | Pin | steel 45 |
| 8 | Chuck | WCB steel |
| 9 | Pneumatic cylinder rod | steel 45+Cr |
| 10 | Switch | - |
| 11 | Rack head | cast iron GGG40 |
| 12 | Pneumatic cylinder | - |
| 13 | Solenoid | - |
| 14 | Filter | - |
| 15 | Wedge | cast iron GGG40 |
Sketch of parts and materials of slide gate valves DNOVA GVKR1331M-1W-Fb-2P-WENZ PN6 unidirectional, interflanged, spindle - extendable, body - cast iron GGG40, gate - stainless steel 304, seal - EPDM, pneumatically actuated, WENZ
Main technical characteristics of SC 160x330 pneumatic cylinders:
| Gate valve DN | DN300 |
| Pneumatic cylinder model | SC 160x330 |
| Main characteristics of pneumatic cylinders | |
| Action type | double action |
| Operating medium | compressed air: - at ambient air temperature from +5°C to +50°C dew point 10°C lower than the ambient temperature; - at temperatures below +5°C the dew point is 5°C lower than the ambient temperature. ambient temperature |
| Mounting type | FA FB CA CB LB YB |
| Damping | adjustable |
| Working pressure range, bar | 1-9 |
| Maximum allowable pressure, bar | 13,5 |
| Operating temperature range, °C | -5 ÷ 70 |
| Speed range, mm/s | 20 - 300 |
| Piston diameter, mm | 160 |
| Stroke, mm | 330 |
| Stroke diameter, mm | 40 |
