Multi-turn electric actuator
Knife gate
The number that matters
Nominal pressure
16bar
The pressure class of the valve body at 20 °C. Working limits depend on the medium and its temperature.
Construction
Parts and materials
Applications
Media and industries
- Water
- Water Supply
- Industry
- Heating Systems
The gate valve is designed for installation on the pipeline as a shut-off device and regulation of the working medium flow in water supply systems (except for drinking water supply systems) and chemical industry. The principle of operation of the gate valve is to move the gate (knife) perpendicular to the flow of medium. At full closing of the pipeline nominal bore diameter the flow is stopped, at partial closing the flow is regulated.
The multi-turn actuator is designed to automate the process of control of industrial valves, as well as to determine the position of the valve shut-off body.
Technical characteristics of gate valves DNOVA GVKN1331N-2W-Fb-OST double-sided, interflanged, spindle - non-retractable, body - cast iron GGG40, gate - stainless steel 304, seal - NBR, WENZ, with electric multi-turn actuator MT-N-xEM-O2-380-U1:
| Name | Meaning |
| Connection type | interflange |
| Control type | electric actuator |
| Application | water supply, industry, heating systems |
| Gate valve type | Schieber |
| Working medium temperature, °C | -30 to 110 |
| Tightness class | A |
| Medium | water |
| Country of manufacturer | China |
| Service life, years | 10 |

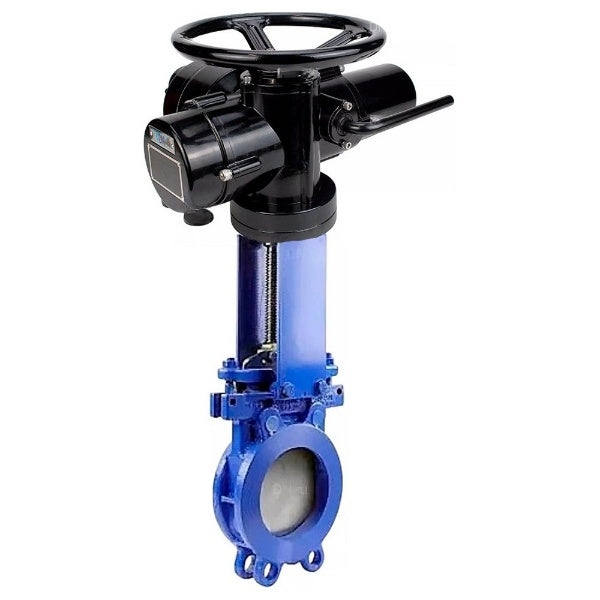

Gate valves DNOVA GVKN1331N-2W-Fb-OST double-sided, interflanged, spindle - non-retractable, body - cast iron GGG40, gate - stainless steel 304, seal - NBR, WENZ, with electric multi-turn actuator MT-N-xEM-O2-380-U1
Dimensions and dimensions of gate valves DNOVA GVKN1331N-2W-Fb-OST double-sided, interflanged, spindle - non-retractable, body - cast iron GGG40, gate - stainless steel 304, seal - NBR, WENZ, with electric multi-turn actuator MT-N-xEM-O2-380-U1:
| Size | H1, mm | L, mm |
| DN50 | 273 | 411 |
| DN65 | 298 | 411 |
| DN80 | 325 | 411 |
| DN100 | 363 | 411 |
| DN125 | 403 | 411 |
| DN150 | 432 | 411 |
Sketch dimensions and dimensions Gate valves DNOVA GVKN1331N-2W-Fb-OST double-sided, interflanged, spindle - non-retractable, body - cast iron GGG40, gate - stainless steel 304, seal - NBR, WENZ, with electric multi-turn actuator MT-N-xEM-O2-380-U1
Table of parts and materials for gate valves DNOVA GVKN1331N-2W-Fb-OST double-sided, interflanged, spindle - non-retractable, body - cast iron GGG40, gate - stainless steel 304, seal - NBR, WENZ, with electric multi-turn actuator MT-N-xEM-O2-380-U1:
| № | Details | Material |
| 1 | Body | cast iron GGG40 |
| 2 | Seat seal | NBR |
| 3 | Schieber | stainless steel 304 |
| 4 | Guide seal | PTFE |
| 5 | Seal | PTFE |
| 6 | Gland packing | WCB steel |
| 7 | Pin | steel 45 |
| 8 | Chuck | WCB steel |
| 9 | Rod | 2Cr13 steel |
| 10 | Rack | Q235 steel |
| 11 | Rack top plate | HT200 cast iron |
| 12 | Nut | brass |
| 13 | Bearing | GCr15 steel |
| 14 | attachment | Q235 steel |
Sketch of parts and materials of slide gate valves DNOVA GVKN1331N-2W-Fb-OST double-sided, interflanged, spindle - non-retractable, body - cast iron GGG40, gate - stainless steel 304, seal - NBR, WENZ, with electric multi-turn actuator MT-N-xEM-O2-380-U1
Technical parameters of multi-turn actuators MT-N-xEM-O2-380-U1:
| Name | Meaning |
| Drive type | multi-turn |
| Motor type | asynchronous |
| Supply voltage, V | 380 |
| Cable entry | waterproof G1/2 |
| Automatic shut-off in positions “open”, “closed” and in case of jamming. | is |
| Enclosure protection class, IP | 67 |
| Winding insulation type | F |
| Ambient temperature, °C | -30 to +70 |
| Ambient humidity, % | ≤95 (25°C) |
| Enclosure explosion protection | no |
Multi-turn actuators MT-N-xEM-O2-380-U1
Dimensions and dimensions of multi-turn actuators MT-N-xEM-O2-380-U1:
| Model | MT-N-005EM-O2-380-U1 | MT-N-010EM-O2-380-U1 | MT-N-015EM-O2-380-U1 |
| W, mm | 334 | 334 | 334 |
| H, mm | 258 | 258 | 258 |
| L, mm | 411 | 411 | 411 |
| DxD, mm | 100x100 | 100x100 | 100x100 |
| D1, mm | 104 | 104 | 104 |
| D2, mm | 70 | 70 | 70 |
| d1, mm | 32 | 32 | 32 |
| d2, mm | 44 | 44 | 44 |
| f, mm | 8 | 8 | 8 |
| h, mm | 5 | 5 | 5 |
| h1, mm | 3 | 3 | 3 |
| h2, mm | 18 | 18 | 18 |
| 4-M, mm | 4-M12 | 4-M12 | 4-M12 |
Sketch of dimensions and dimensions of multi-turn actuators MT-N-xEM-O2-380-U1
Table of device of multi-turn actuators MT-N-xEM-O2-380-U1:
| № | Parts |
| 1 | Electric motor |
| 2 | Gearmotor |
| 3 | Worm gearbox |
| 4 | Worm |
| 5 | Handle |
| 6 | Torque mechanism |
| 7 | Disc spring set |
| 8 | Opening indicator |
| 9 | Moving mechanism |
| 10 | Output shaft |
| 11 | Worm gearbox |
| 12 | Bevel gear |
Sketch of the device of multi-turn actuators MT-N-xEM-O2-380-U1
- Body material
- Cast iron GGG40
- Maximum allowable temperature
- 110 °C
- Connection type
- Compact flanged
- Control type
- electric drive
- Operating environment
- Water
- Applications
- Water Supply, Industry, and Heating Systems
- Nominal pressure
- 16 bar
- Type of seal
- NBR
- Locking material
- Stainless steel AISI 304
- Explosion-proof
- No
- Limit switches
- No
- Type of electric actuator
- Multi-turn
- Rated current consumption
- 0.45 A
- Country of origin
- China
