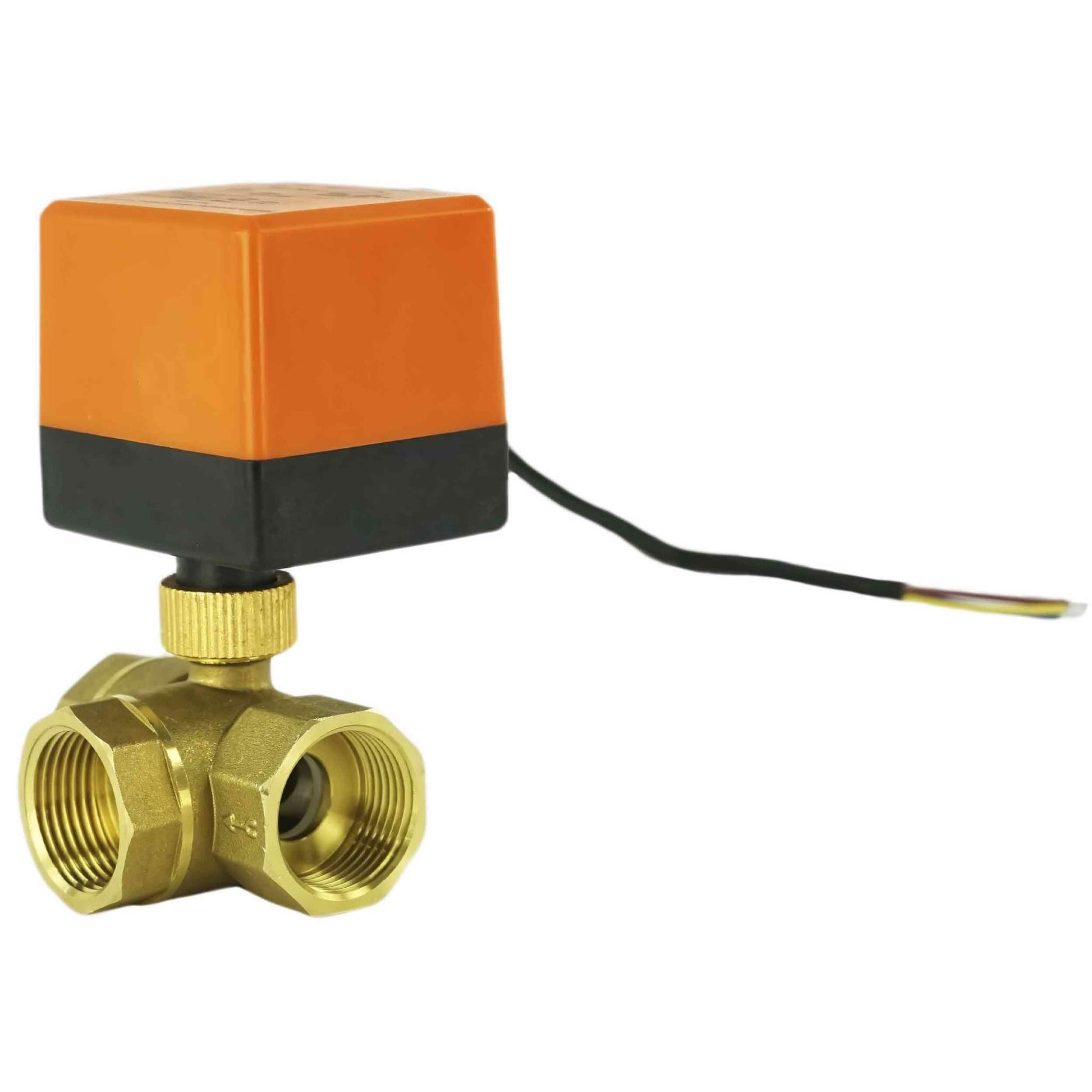

Brass ball 3-way valve Threaded L-type standard port DNOVA BV0030NP-SP-3L-T-ED with DNOVA 220VAC without limit switches

From $10.33 USD
From $10.33 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

Brass ball 3-way valve threaded L-type standard port DNOVA BV0030NP-SP-3L-T-ED with DNOVA 220VAC without limit switches controls water, air, oil and other media compatible with the materials of construction. Ideal where lead free construction are required for potable drinking water as well as general industrial applications. DNOVA electric actuated valves use power-to-open and power-to-close, stays in the last known position with loss of power. The actuator will rotate the output drive 90° to change the position of the ball valve. A manual override is provided for use in setup or power failure situations. The override is operated with a standard hex wrench. The housing is rated Type 3X (IP65). Heavy duty motor is integral to the actuator housing, providing the smallest physical size to power ratio of typical actuators on the market.

Overall and installation dimensions brass ball valve DNOVA BV0030NP-SP-3L-T-ED with DNOVA 220VAC without limit switches

Brass ball valve sketch DNOVA BV0030NP-SP-3L-T-ED with DNOVA 220VAC without limit switches

DN, mm H, mm W, mm L, mm Ø section, mm A, mm B, mm C, mm X, mm Y, mm Z, mm
15 127 43 55 10 80 63 84 63 71 83
20 137 53 67 14 80 63 84 63 71 83
25 142 61 80 17 80 63 84 63 71 83

Specifications

Country of origin
China
Port opening
Standard Port
Configuration
Three way Type L
Body material
Brass
Material ball
Brass
Material ball seal
NBR, PTFE
Maximum allowable temperature
248 °F / 120 °C
Connection type
Threaded NPT/BSP
Control type
Electric actuator 220VAC
Operating environment
Cold Water, Hot Water, Ethylene Glycol
Applications
Heat Supply

Delivery

The cost and delivery time for your order depend on several factors, including the specific product you are ordering, the quantity, and the country of destination. Each product may have different manufacturing lead times and shipping requirements, which can affect the overall delivery schedule.

To get the most accurate and up-to-date information on delivery costs and timelines, we recommend contacting our sales managers. They will be happy to provide you with a detailed quote and estimated delivery time based on your specific requirements.

Please feel free to reach out to us for any questions or further assistance regarding your order.

Variant Variant total Quantity Price Variant total
DN15 / 16 barD160-22661
DN15 / 16 barD160-22661
$10.33/ea		 $0.00
$10.33/ea $0.00
DN20 / 16 barD160-22662
DN20 / 16 barD160-22662
$12.16/ea		 $0.00
$12.16/ea $0.00
DN25 / 16 barD160-22663
DN25 / 16 barD160-22663
$14.48/ea		 $0.00
$14.48/ea $0.00
