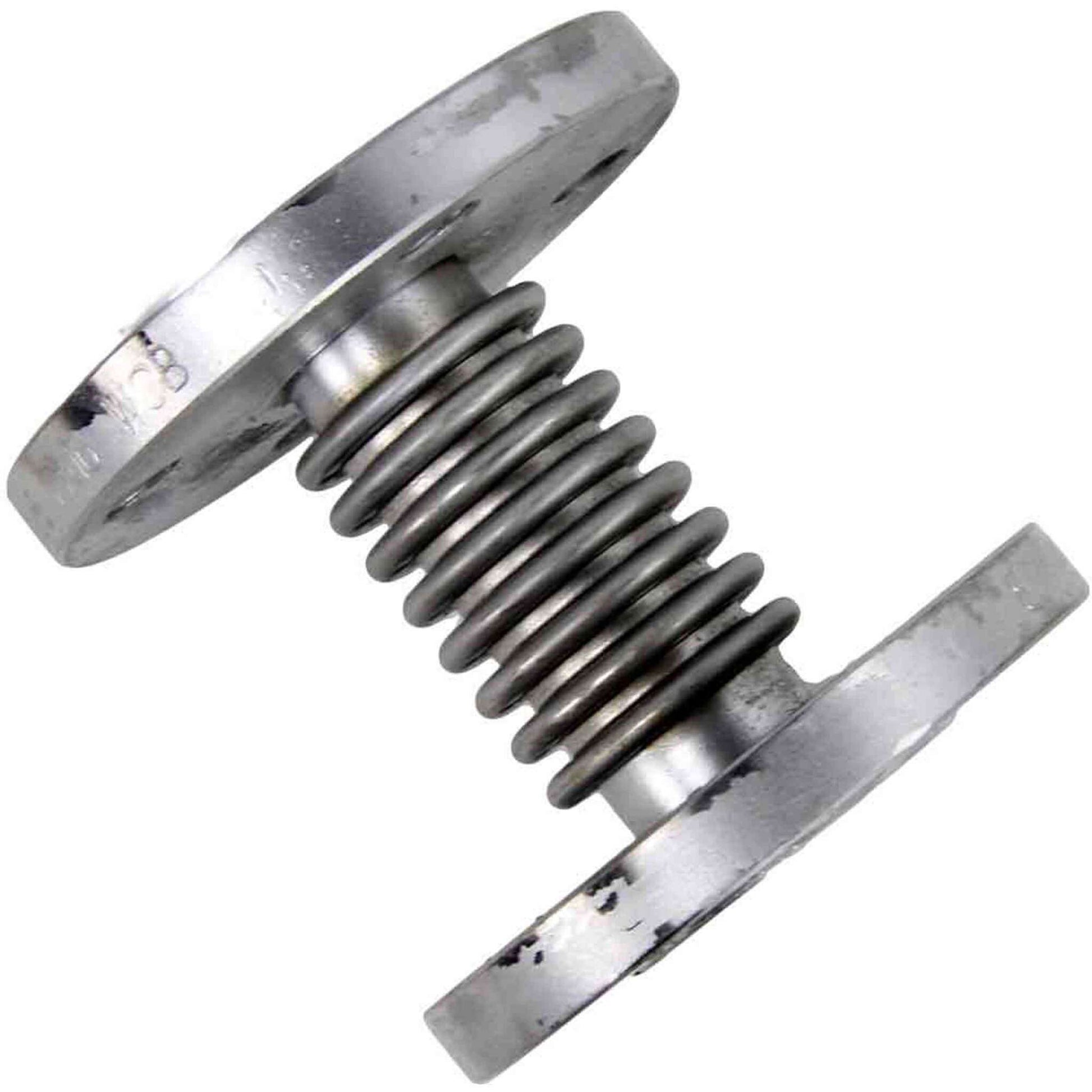

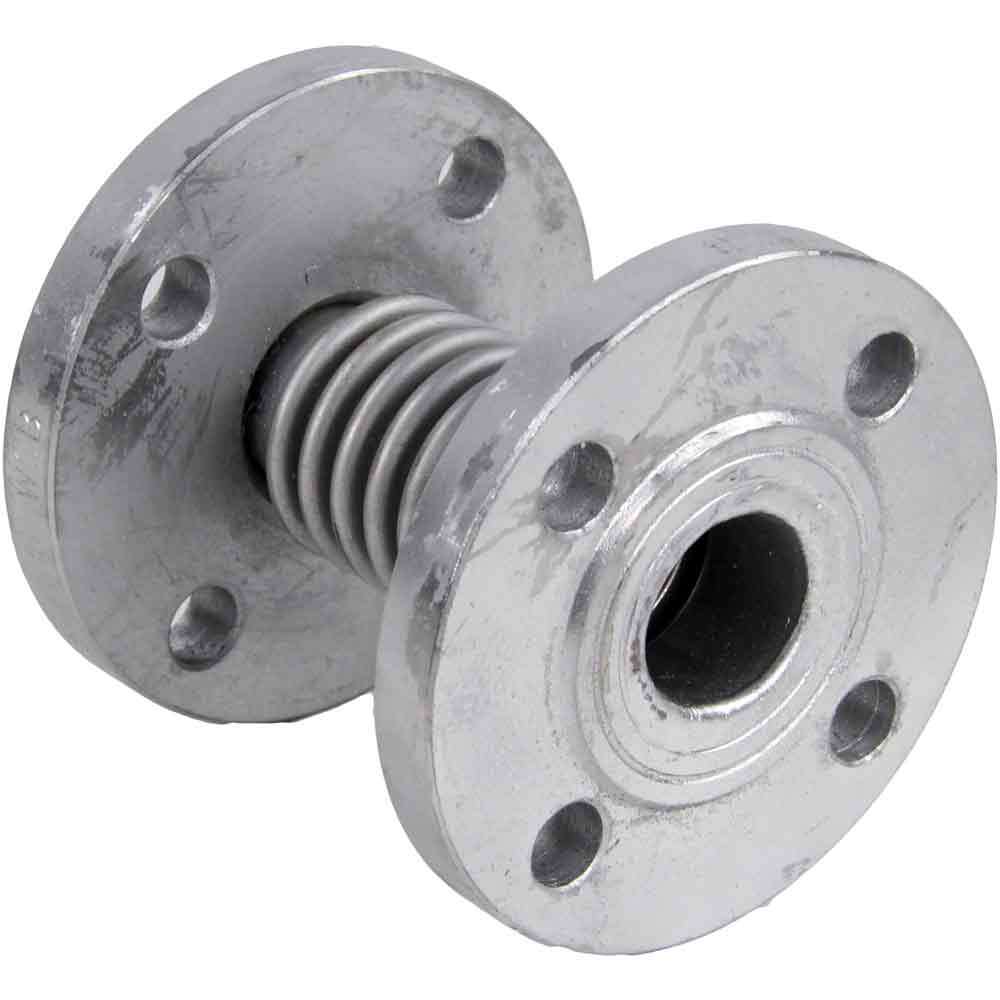

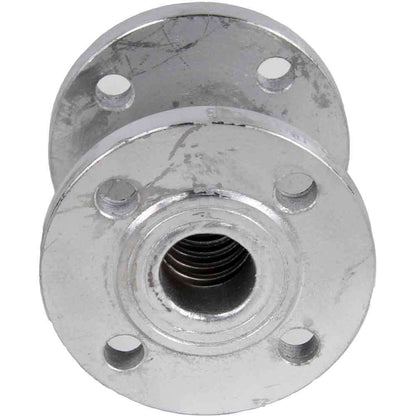

Bellows expansion joint DNOVA CB-3234-F PN16 30mm, body material - stainless steel AISI 316

From $10.72 USD
From $10.72 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

Bellows expansion joints, also known as bellows expansion joints, are devices consisting of a flexible metal bellows capable of absorbing thermal expansion, compression, or angular deflection in pipelines and systems. They are used to compensate for axial, lateral, and angular movements, providing stability to the system amidst temperature and pressure fluctuations. Bellows expansion joints are typically made from specialized materials, often stainless steel, and find wide applications in various industries where compensating for thermal expansions and contractions is essential, preventing damage to pipelines and equipment.





 Installation dimensions of the bellows axial compensator DNOVA CB-3234-F PN16 30mm, body material - stainless steel AISI 316

 Dimensional sketch of bellows axial compensator DNOVA CB-3234-F PN16 30mm, body material - stainless steel AISI 316

DN ID, mm A, mm b, mm B, mm Number and diameter of flange holes, mm L,
mm		 Weight, kg
25 38 115 16 85 4-16 110 2,7
32 42 140 16 100 4-18 115 3,7
40 48 150 16 110 4-18 120 3,8
50 60 165 18 125 4-18 110 5,0
65 76 185 18 145 4-18 110 6,0
80 89 200 20 160 8-18 110 7,0
100 114 220 20 180 8-18 120 8,2
125 139 250 22 210 8-18 130 10,5
150 168 285 22 240 8-23 145 12,5
200 219 340 24 295 12-23 140 18,5
250 270 405 26 355 12-27 150 25,5
300 323 460 28 410 12-27 160 40,0

Specifications

Body material
Stainless steel AISI 316
Maximum allowable temperature
550 °C
Connection type
Flanged
Operating environment
Water, Air, Liquid Medium
Applications
Heating Systems, Irrigation Systems, Ventilation Systems
Nominal pressure
16 bar
Type of seal
None
Compression
15 mm
