How it works
Quarter-turn lever
Two-way ball valve
The number that matters
Nominal pressure
40bar
The pressure class of the valve body at 20 °C. Working limits depend on the medium and its temperature.
Construction
Parts and materials
Applications
Media and industries
- Water
- Steam
- Petroleum Products
- Liquid Media
- Neutral Media
- Gaseous Media
- Water Supply
- Heat Supply
The ball valve is used as a shut-off valve in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are not aggressive to valve materials.
Technical parameters Ball Valves DNOVA BV3232P(3pc)-FP-F-ISO-H, flanged, body - 316 stainless steel, full bore, sealing - PTFE, with handle:
| Characteristic | Value |
| Sealing class | “A” |
| Seal type | PTFE / PTFE / Teflon |
| Connection | flanged |
| Valve device type | two-way |
| Valve Ball Bore | full bore |
| Control type | handle |
| Medium temperature | -20 to +150 °C |
| Medium | water, steam, petroleum products, liquid media, neutral media, gaseous media |
| Field of application | water supply, heat supply, Pneumatic systems |
| Manufacturer's country | China |

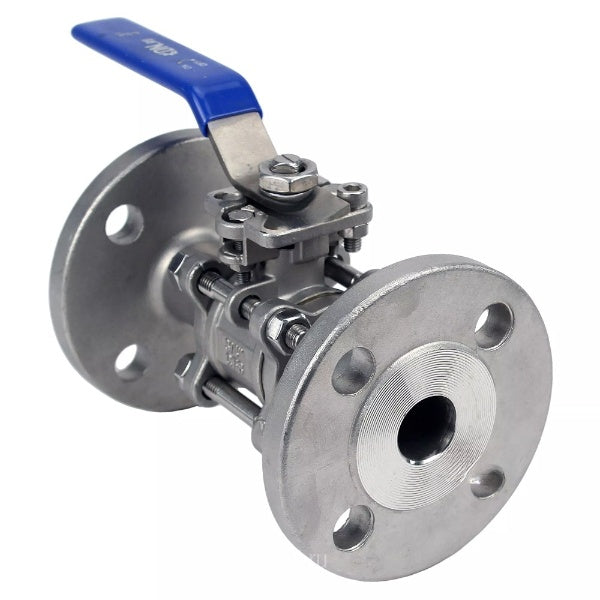

Ball Valves DNOVA BV3232P(3pc)-FP-F-ISO-H, flanged, body - 316 stainless steel, full bore, sealing - PTFE, with handle
Dimensions and dimensions Ball Valves DNOVA BV3232P(3pc)-FP-F-ISO-H, flanged, body - 316 stainless steel, full bore, sealing - PTFE, with handle:
| DN | D, mm | D1, mm | D2, mm | W, mm | L, mm | b, mm | f, mm | A, mm | B, mm | KxK, mm | N – ØZ, mm |
| 65 | 185 | 145 | 122 | 260 | 290 | 22 | 3 | Ø70 | Ø102 | 17x17 | 8 – Ø18 |
| 80 | 200 | 160 | 138 | 260 | 310 | 24 | 3 | Ø70 | Ø102 | 17x17 | 8 – Ø18 |
| 100 | 235 | 190 | 162 | 300 | 350 | 26 | 3 | Ø70 | Ø102 | 19x19 | 8 – Ø22 |
Sketch of dimensions and dimensions Ball Valves DNOVA BV3232P(3pc)-FP-F-ISO-H, flanged, body - 316 stainless steel, full bore, sealing - PTFE, with handle
Parts and materials table Ball Valves DNOVA BV3232P(3pc)-FP-F-ISO-H, flanged, body - 316 stainless steel, full bore, sealing - PTFE, with handle:
| № | Part name | Quantity | Material |
| 1 | Flange part | 2 | stainless steel AISI/SS 316 |
| 2 | Stud | 4/6/8 | stainless steel AISI/SS 304 |
| 3 | Nut | 8/12/16 | stainless steel AISI/SS 304 |
| 4 | Gasket | 8/12/16 | stainless steel AISI/SS 304 |
| 5 | Seal | 2 | PTFE |
| 6 | Ball | 1 | stainless steel AISI/SS 316 |
| 7 | Body | 1 | stainless steel AISI/SS 316 |
| 8 | Thrust pad | 1 | PTFE |
| 9 | Rod | 1 | stainless steel AISI/SS 316 |
| 10 | Packing | 3 | PTFE |
| 11 | Thrust ring | 1 | stainless steel AISI/SS 304 |
| 12 | Positioning screw | 1 | stainless steel AISI/SS 304 |
| 13 | Movable cover | 1 | stainless steel AISI/SS 304 |
| 14 | Positioning bolt | 1 | stainless steel AISI/SS 304 |
| 15 | Hexagonal nut | 1 | stainless steel AISI/SS 304 |
| 16 | Handle | 1 | stainless steel AISI/SS 201+PVC |
| 17 | Locking stopper | 1 | stainless steel AISI/SS 201 |
Parts and material sketch Ball Valves DNOVA BV3232P(3pc)-FP-F-ISO-H, flanged, body - 316 stainless steel, full bore, sealing - PTFE, with handle
- Body material
- Stainless steel AISI 316
- Maximum allowable temperature
- 150 °C
- Connection type
- Flanged
- Control type
- Handle
- Operating environment
- Water, Steam, Petroleum Products, Liquid Media, Neutral Media, and Gaseous Media
- Applications
- Water Supply, Heat Supply, and Pneumatic Systems
- Nominal pressure
- 40 bar
- Type of seal
- PTFE / PTFE / Teflon
- Locking material
- Stainless steel AISI 316
- Valve feedback
- No
- Explosion-proof
- No
- Manual override
- No
- Limit switches
- No
- Feedback sensor
- No
- Country of origin
- China
