Description
Ball valves are used as shut-off valves in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to valve materials.
Pneumatic actuators DNOVA pneumatic double-acting rotary actuators PA-DAXXX and pneumatic rotary actuators with return spring PA-SA-XXX are designed for automation of industrial valve control process with maximum torque up to 2128 Nm.
Pneumatic valves are used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.
Manual doubler with worm gear and HDM reduction gearbox allows to manually set the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual doubler is intended to provide the most effective and efficient solution to the full range of manual override applications.
The limit switch unit is designed for visual and electrical signaling of the end positions of the valve shut-off body: valve, tap or disc gate. It is mounted on top of the pneumatic actuator surface and is connected to the actuator shaft in DIN standard. The sealed box usually contains two sensors that monitor the position of the actuator shaft and signalize in extreme positions. OMRON microswitches, inductive sensors or reed switches are used as sensors. The visual indication of the position can be observed on the housing of the unit there is a 3D visual indicator RED-CLOSED and GREEN-OPEN.

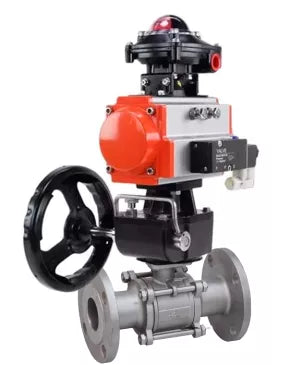

Technical parameters of ball valves DNOVA BV3131P(3pc)-FP-F-ISO-H DN15-40 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE, with pneumatic drive PA-DA, with pneumatic distributor 4V320-08 220V, with limit switch unit APL-410N EX , manual Doubler MON1-250-T26-ISO:
|
Parameter |
Value |
|
Operating pressure, bar |
40 |
|
Working medium temperature, °C |
From -20 to 180 |
|
Application |
Water supply, heat supply, Pneumatic systems |
|
Working medium |
Water, steam, oil products, liquid media, neutral media, gaseous media |
|
Connection to pipeline |
Flanged |
|
Type of flow cross-section |
Full-bore |
|
Type of control |
With pneumatic actuator |
|
Connection |
Flanged |
|
Control |
Double-acting pneumatic actuator |
|
Presence of limit switches |
Yes |
|
Presence of pneumatic distributor |
Yes |
|
Warranty, years |
1 |
|
Country of manufacture |
China |
Dimensions and sizes of ball valves DNOVA BV3131P(3pc)-FP-F-ISO-H DN15-40 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE, with pneumatic drive PA-DA, with pneumatic distributor 4V320-08 220V, with limit switch unit APL-410N EX , manual Doubler MON1-250-T26-ISO:
| Model | D, mm | L, mm | B1, mm | E, mm | ØD, mm | ØD1, mm | ØG, mm | f, mm | T, mm | C, mm | H, mm |
| DN15 | 15 | 130 | 153 | 72 | 95 | 65 | 45 | 2 | 16 | 120 | 174 |
| DN20 | 20 | 150 | 153 | 72 | 105 | 75 | 58 | 2 | 18 | 120 | 174 |
| DN25 | 25 | 160 | 153 | 72 | 115 | 85 | 68 | 2 | 18 | 120 | 174 |
| DN32 | 32 | 180 | 153 | 72 | 140 | 100 | 78 | 2 | 18 | 120 | 174 |
| DN40 | 40 | 200 | 174 | 89 | 150 | 110 | 88 | 3 | 18 | 120 | 174 |
Table of parts and materials of ball valves DNOVA BV3131P(3pc)-FP-F-ISO-H DN15-40 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE, with pneumatic drive PA-DA, with pneumatic distributor 4V320-08 220V, with limit switch unit APL-410N EX , manual Doubler MON1-250-T26-ISO:
|
№ |
Part name |
Material |
Quantity |
|
1 |
Body |
Steel SS304 / SS316 |
1 |
|
2 |
Ball |
Steel S304 / S316 |
1 |
|
3 |
Bolt |
Steel S201 / S304 |
4~6 |
|
4 |
Nut |
Steel S201 / S304 |
6~12 |
|
5 |
Seal |
PTFE |
1 |
|
6 |
Stem |
Steel SS304 / SS316 |
1 |
|
7 |
Gland |
Steel S201 / S304 |
1 |
|
8 |
Cover |
Steel WCB/CF8/CF8M |
2 |
|
9 |
Seat rings |
PTFE |
2 |
|
10 |
Thrust washer |
PTFE |
1 |
Technical parameters of pneumatic actuator DNOVA
|
Parameter |
Value |
|
Construction |
Double-acting |
|
Working pressure, bar |
6 |
|
Working medium |
Filtered compressed air or non-aggressive gases, oils |
|
Availability of manual doubler |
Handwheel |
Dimensions and sizes of pneumatic actuator DNOVA:
| Actuator model | DA-052 | DA-065 |
| G, mm | 15 | 15 |
| M, mm | 80 | 80 |
| N, mm | 30 | 30 |
| F0, mm | 34 | 34 |
| P, mm | 20 | 20 |
| B1, mm | 153 | 174 |
| C, mm | 30 | 36 |
| E, mm | 72 | 89 |
| J | 4-M5x8 | 4-M6x10 |
| K | 4-M6x10 | 4-M8x12 |
| F, mm | 26 | 26 |
| A1, mm | 108 | 125 |
| D, mm | 41 | 46 |
| L | 11x11 | 14x14 |
| H | F03 | F05 |
| I | F05 | F07 |
Parts and materials table for the pneumatic actuator DNOVA:
|
№ |
Name |
Quantity |
Material |
Coating |
|
1 |
Body |
1 |
Extruded aluminum |
Hard anodized |
|
2 |
Side plugs |
2 |
Cast aluminum |
- |
|
3 |
Gear |
1 |
Stainless steel |
Nickel-plated |
|
4 |
Piston |
2 |
Steel/Aluminum |
Oxidation/galvanized |
|
5 |
Plugs |
8 |
Stainless steel |
- |
|
6 |
Piston ring |
2 |
NBR |
- |
|
7 |
Springs |
0–12 |
Spring steel |
Epoxy coating |
|
8 |
Piston bearing |
2 |
Engineering plastic |
- |
|
9 |
Piston ring |
2 |
NBR |
- |
|
10 |
Plug |
2 |
NBR |
- |
|
11 |
Thrust ring |
2 |
Engineering plastic |
- |
|
12 |
Ring |
1 |
Engineering plastic |
- |
|
13 |
Washer |
1 |
Stainless steel |
- |
|
14 |
Spring clip |
2 |
Stainless steel |
- |
|
15 |
Indicator |
1 |
Plastic |
- |
|
16 |
Indicator body |
1 |
Plastic |
- |
|
17 |
Bearing |
1 |
Engineering plastic |
- |
|
18 |
Cam |
1 |
Steel |
Oxidation/ galvanized steel |
|
19 |
Bearing |
1 |
NBR |
- |
|
20 |
Bearing |
1 |
Engineering plastic |
- |
|
21 |
Bearing |
1 |
Engineering plastic |
- |
|
22 |
Sealing ring |
2 |
NBR |
- |
|
23 |
Sealing ring |
2 |
NBR |
- |
|
24 |
Bearing |
2 |
Stainless steel |
- |
|
25 |
Adjustment nut |
2 |
Stainless steel |
- |
|
26 |
Adjustment screw |
2 |
Stainless steel |
- |
|
27 |
Bushing |
2 |
Aluminum |
- |
Technical parameters of pneumatic valve DNOVA
|
Name |
Value |
|
Type of pneumatic valve |
Spool valve |
|
Working pressure, bar |
1.5 ÷ 8 |
|
Supply voltage, V |
220 V |
|
Full power, Va |
4.5 |
|
Control |
Two-way electromagnetic |
|
Response frequency, cycle/sec |
5 |
Dimensions and sizes of pneumatic valve DNOVA:
| Pneumatic valve model | 4V320-08 |
| A, mm | 71.9 |
| B, mm | 45 |
| C, mm | 94.4 |
| D, mm | 27 |
| E, mm | 69 |
| F, mm | 40 |
| I, mm | 24 |
| K, mm | 40 |
| L, mm | 188.8 |
| M, mm | 69.4 |
| N, mm | 50 |
| O, mm | 82.4 |
| P, mm | 24 |
| S, mm | 20 |
| T, mm | 6.5 |
| U, mm | 2.4 |
| V, mm | 4 |
| H, mm | 82.4 |
Technical parameters of the manual doubler DNOVA
|
Parameter |
Value |
|
Protection rating, IP |
67 |
|
Type of connection |
ISO 5211 |
Dimensions and sizes of the manual doubler DNOVA:
| Manual doubler model | HDM-1 |
| b1, mm | 14 |
| N, mm | 22 |
| b2, mm | 14 |
| M, mm | 16 |
| D1, mm | 50 |
| D2, mm | 70 |
| D3, mm | 50 |
| D4, mm | 70 |
| ØC, mm | 88 |
| C, mm | 120 |
| A, mm | 90 |
| F, mm | 115 |
| Y, mm | 145 |
| 4-M1 | 4-M6 |
| 4-M2 | 4-M8 |
| 4-Ø1 | 4-Ø6.5 |
| 4-Ø2 | 4-Ø8.5 |
| E, mm | 70x70 |
| B, mm | 55 |
| S, mm | 53 |
| K, mm | 10 |
| T, mm | 145 |
Parts and materials table for manual doubler DNOVA:
|
№ |
Part name |
Material |
|
1 |
Stem for pneumatic actuator mounting |
Steel |
|
2, 8 |
Sealing ring |
EPDM |
|
3 |
Locking spring |
Spring steel |
|
4 |
Upper end cover |
Aluminum alloy |
|
5 |
Screw |
Steel 304 |
|
6 |
Locking bracket (main rod) |
Steel 304 |
|
7 |
Body |
Aluminum alloy |
|
9 |
Gearbox |
Cast iron BCh50 |
|
10 |
Transition coupling |
Cast iron BCh40 |
|
11 |
Gearbox stem |
Cast iron BCh40 |
Technical parameters of limit switch unit DNOVA
| Name | Value |
| Maximum limit switch voltage, V | 250 |
| Degree of protection of the housing, IP | 67 |
| Operating medium temperature, °C | from -40 to +80 |
| Service life, years | 10 |
Dimensions and sizes of the limit switch unit DNOVA:
| Model | D, mm | D1, mm | H, mm | L, mm | B, mm | M, mm |
| APL-410N EX | 9.5 | 5 | 174 | 177 | 178 | 8 |
Passports and certificates
Data sheet for DNOVA DA/SA-xxx double-acting pneumatic actuator with return springs
