Ball valve DNOVA BV3131P(3pc)-FP-F-ISO-H is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of BV3131P(3pc)-FP-F-ISO-H series valves is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are not aggressive to valve materials.

Double-acting pneumatic actuator DNOVA PA-DA is designed for automation of control process of industrial shut-off valves - gates, ball valves. DNOVA pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.

Pneumatic valve DNOVA 4V320-10 220V is used to change direction, start, stop compressed air flows in pneumatic system depending on external control action.

The DNOVA APL-410N EX limit switch box is an electrical device designed to open and close the working circuit and to visualise the positions of the shut-off valve body. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalise extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-coloured visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labelled CLOSED is visible; if it is open, only the yellow part labelled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the colour difference between open and closed position reduces the probability of misinterpretation of information. Thanks to the use of the BCV it becomes possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics in case of fault detection.

The DNOVA MON manual doubleturn actuator with worm gear and HDM reduction gearbox enables manual setting of the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual override is intended to provide the most efficient and effective solution to the full range of manual override applications.

The AFC2000 air treatment unit is designed to clean compressed air from moisture and solid particles, remove condensate, automatically maintain pressure at a preset level, and supply lubricant from a reservoir in the compressed air stream to pneumatic system components with a large capacity range from 500 litres/minute to 10,000 litres/minute. The lubricator (oil atomiser) adds oil with a viscosity of 32 mm²/s (=cSt) at 40°C to the pneumatic system for further lubrication of control components - pneumatic cylinders and pneumatic valves.

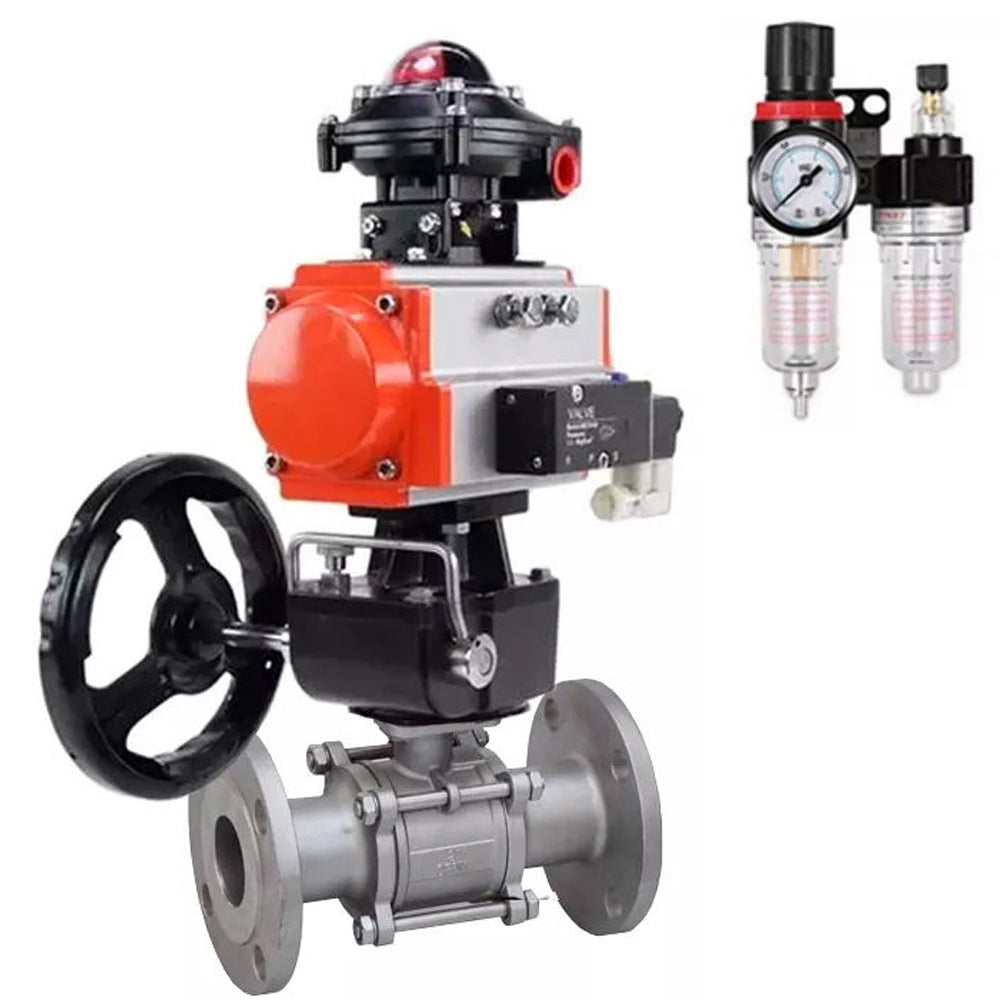

Technical parameters of ball valves DNOVA BV3131P(3pc)-FP-F-ISO-H with double-acting pneumatic actuator PA-DA, pneumatic valve 4V320-10 220V, BCV APL-410N EX, manual doubler MON, ATU AFC2000:

Sketch of ball valves DNOVA BV3131P(3pc)-FP-F-ISO-H with double-acting pneumatic actuator PA-DA, pneumatic valve 4V320-10 220V, ball valve APL-410N EX, manual override MON, ball valve AFC2000

Dimensions and dimensions of ball valves DNOVA BV3131P(3pc)-FP-F-ISO-H with double-acting pneumatic actuator PA-DA, pneumatic valve 4V320-10 220V, BCV APL-410N EX, manual doubler MON, ATU AFC2000:

Detail and material sketch of ball valves DNOVA BV3131P(3pc)-FP-F-ISO-H

Table of parts and materials for ball valves DNOVA BV3131P(3pc)-FP-F-ISO-H:

Technical parameters of the PA-DA double-acting pneumatic actuator:

Sketch of parts and materials of DNOVA PA-DA double-acting pneumatic actuator

Parts and materials table for double-acting pneumatic actuator DNOVA PA-DA:

Pneumatic valve DNOVA 4V320-10 220V

Technical parameters of pneumatic valve DNOVA 4V320-10 220V

Limit Switch Block DNOVA APL-410N EX

Technical parameters of the limit switch unit DNOVA APL-410N EX

Table of parts and materials of the limit switch block DNOVA APL-410N EX:

Sketch of the DNOVA MON handwheel.

Technical parameters of DNOVA MON handwheels:

Sketch of parts and materials for the DNOVA MON handwheel.

Parts and materials table for the DNOVA MON handwheel:
