Description
Butterfly valves are designed for use as shut-off or regulating valves for controlling flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries. Operating principle: The valves are opened and closed by turning the disk by 90°. Opening is performed by turning the handle counterclockwise, closing - clockwise.
PA-DA-XXX double-acting pneumatic rotary actuators and PA-SA-XXX double-acting pneumatic rotary actuators with return spring are designed to automate the process of controlling industrial valves with maximum torque up to 2128 Nm.
Technical parameters of Water Butterfly valves DNOVA WBV3131S-2W-T-H, body material - stainless steel AISI 304, seal - Silicon, with pneumatic actuator PA-DA-052 double action:
| Characteristic | meaning |
| Gate type | rotary disk |
| Diameter | 15-100 mm |
| Nominal pressure | 10 bar |
| Working medium temperature | -50 to +180°C |
| Application | Food industry |
| Connection type | coupling (threaded) |
| Control type | pneumatic actuator |
| Sealing class | A |
| Manufacturer's country | China |
| Warranty | 12 months. |

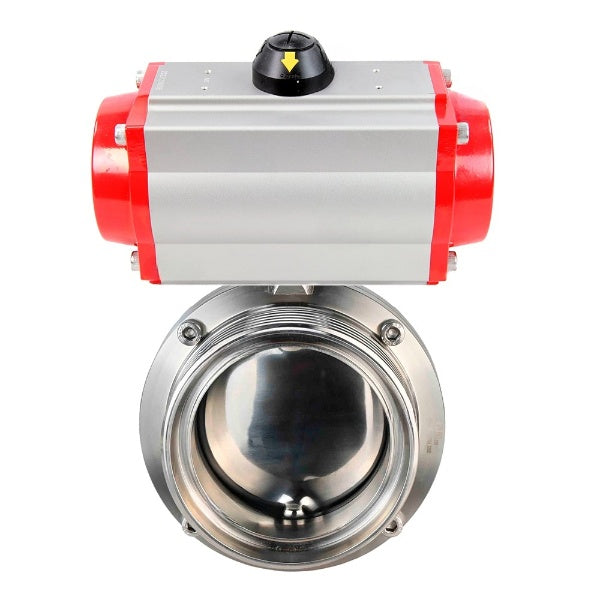

Butterfly valves WBV3131S-2W-T-H, body material - stainless steel AISI 304, seal - Silicon, with pneumatic actuator PA-DA-052 double action
Dimensions and dimensions of butterfly valves DNOVA WBV3131S-2W-T-H, body material - stainless steel AISI 304, seal - Silicon, with pneumatic actuator PA-DA-052 double action:
| Diameter | D, mm | G, mm | D1, mm | A, mm | H, mm | J, mm | K, mm |
| DN15 | 15 | Rd34x1/8 | 78 | 66 | 86 | 126 | 8x8 |
| DN20 | 19 | Rd44x1/6 | 78 | 66 | 86 | 126 | 8x8 |
| DN25 | 25 | Rd52x1/6 | 78 | 66 | 86 | 126 | 8x8 |
| DN32 | 31 | Rd58x1/6 | 86 | 70 | 90 | 126 | 8x8 |
| DN40 | 37 | Rd65x1/6 | 90 | 74 | 92 | 126 | 8x8 |
| DN50 | 49 | Rd78x1/6 | 106 | 76 | 104 | 133 | 10x10 |
| DN65 | 66 | Rd95x1/6 | 124 | 80 | 113 | 144 | 10x10 |
| DN80 | 81 | Rd110x1/4 | 139 | 84 | 123.5 | 160 | 10x10 |
| DN100 | 100 | Rd130x1/4 | 159 | 104 | 133.5 | 160 | 10x10 |
Sketch Butterfly valves WBV3131E-2W-T-H, body material - stainless steel AISI 304, seal - EPDM, with pneumatic actuator PA-DA-052 double action
Materials of butterfly valves DNOVA WBV3131S-2W-T-H, body material - stainless steel AISI 304, seal - Silicon, with pneumatic actuator PA-DA-052 double action:
| № | Part Name | Material |
|---|---|---|
| 1 | Body | Stainless steel AISI 304 |
| 2 | Rotary assembly | Stainless steel AISI 304 |
| 3 | Disc | Stainless steel AISI 304 |
| 4 | Seat seal | EPDM or Silicon |
| 5 | Nut | Steel A2~70 |
| 6 | Bolt | Steel A2~70 |
| 7 | Plug | ABS plastic |
| 8 | Handle | Polyamide plastic |
Sketch of parts and materials Butterfly valves WBV3131S-2W-T-H, body material - stainless steel AISI 304, seal - Silicon, with pneumatic actuator PA-DA-052 double action
Technical data of DA double-acting pneumatic actuators:
| Type of pneumatic actuator | DA - double-acting |
| Nominal pressure PN, bar | 12 |
| Working pressure, bar | 2...8 |
| Working medium | filtered compressed air |
| Maximum particle diameter of the working medium, µm2 | ≤30 |
| Ambient temperature, ⁰C | -20 to +80 |
| Swivel angle, ° | 0 - 90 |
| Swivel angle adjustment, % | ±5 |
| Position indicator | open/closed |
| Top connection standard | NAMUR |
| Air connection standard | NAMUR |
| Average life, cycles closed/open | 70 000 (for non-aggressive media and medium pressure and temperature values) |
DA pneumatic actuators double-acting rotary actuators
Dimensions and mounting dimensions of DA double-acting pneumatic actuators:
| Model | A, mm | B, mm | C, mm | D, mm | E, mm | F, mm | G, mm | H, mm |
| PA-x-052 | 30 | 41,5 | 65,5 | 72 | 92 | 65 | 30 | 80 |
| PA-x-065 | 36 | 47 | 81 | 88 | 108 | 72 | 30 | 80 |
| PA-x-083 | 46 | 57 | 98,5 | 108,7 | 128,7 | 92 | 30 | 80 |
| PA-x-105 | 57,5 | 64 | 122,5 | 133 | 153 | 109,5 | 30 | 80 |
| PA-x-130 | 67,5 | 74,5 | 145,5 | 155 | 185 | 127,5 | 30 | 130 |
| PA-x-140 | 75 | 77 | 161 | 172 | 202 | 137,5 | 30 | 130 |
| PA-x-160 | 87 | 87 | 184 | 197 | 227 | 159 | 30 | 130 |
| PA-x 210 | 113 | 113 | 235,5 | 255 | 285 | 210 | 30 | 130 |
| PA-x-270 | 147 | 147 | 299 | 326 | 356 | 273 | 30 | 130 |
| PA-x-300 | 162 | 174 | 330 | 350 | 380 | 312 | 30 | 130 |
| PA-x-350 | 190 | 195 | 483 | 410 | 440 | 365 | 30 | 130 |
| Model | I, mm | J, mm | M, mm | N, mm | Z, mm | d, mm | K | L |
| PA-x-052 | 36 | 50 | 11x11 | 14 | 147 | 40 | M5x8 | M6x10 |
| PA-x-065 | 50 | 70 | 14x14 | 18 | 168 | 40 | M6x10 | M8x13 |
| PA-x-083 | 50 | 70 | 17x17 | 21 | 204 | 40 | M6x10 | M8x13 |
| PA-x-105 | 70 | 102 | 22x22 | 26 | 268 | 40 | M8x13 | M10x16 |
| PA-x-130 | 70 | 102 | 22x22 | 26 | 301 | 55 | M8x13 | M10x16 |
| PA-x-140 | 102 | 125 | 27x27 | 31 | 390 | 55 | M10x16 | M12x20 |
| PA-x-160 | 102 | 125 | 27x27 | 31 | 458 | 55 | M10x16 | M12x20 |
| PA-x-210 | - | 140 | 36x36 | 40 | 532 | 80 | - | M16x25 |
| PA-x-270 | - | 165 | 46x46 | 50 | 718 | 80 | - | M20x25 |
| PA-x-300 | - | 165 | 46x46 | 50 | 760 | 80 | - | M20x25 |
| PA-x-350 | 165 | 254 | 46x46 | 50 | 920 | 80 | M20x25 | 8xM16x25 |
Sketch of dimensions of DA double-acting pneumatic actuators
Materials of parts for DA double-acting pneumatic actuators:
| № | Part name | Material |
| 1 | Indicator screw | ABS plastic |
| 2 | Position indicator | ABS plastic |
| 3 | Spring clip | stainless steel 304 |
| 4 | Metal washer | stainless steel 304 |
| 5 | Pressure washer | engineering plastic |
| 6 | Housing | hard anodized extruded aluminum alloy |
| 7 | Pressure washer | engineering plastic |
| 8 | Limiter | alloy steel |
| 9 | Shaft sealing ring upper | NBR |
| 10 | Upper shaft sliding ring | engineering plastic |
| 11 | Shaft | nickel plated alloy steel |
| 12 | Shaft sliding ring lower | engineering plastic |
| 13 | Shaft O-ring lower | NBR |
| 14 | Plug | NBR |
| 15 | Seal ring of adjusting screws | NBR |
| 16 | Washer of adjusting screw | stainless steel 304 |
| 17 | Lock nut of adjusting screw | stainless steel 304 |
| 18 | Adjusting screw | stainless steel 304 |
| 19 | Piston | die-cast aluminum alloy |
| 20 | Piston guide plate | engineering plastic |
| 21 | Piston sliding ring | engineering plastic |
| 22 | Piston O-ring | NBR |
| 23 | Spring set | spring steel |
| 24 | Cover O-ring | NBR |
| 25 | End cap | cast aluminum with polyester coating |
| 26 | Cover screw | stainless steel 304 |
| 27 | Stop screw | stainless steel 304 |
| 28 | Adapter | carbon steel |
Material sketch of DA double-acting pneumatic actuators
Specifications
Country of origin
Body material
Maximum allowable temperature
Connection type
Control type
Operating environment
Water,
Steam,
Food environment,
Neutral media
Applications
Food industry
Nominal pressure
Type of seal
Locking material
Manual override
Limit switches
Actuator model
Type of pneumatic actuator
