In detail
What it is made of
How it works

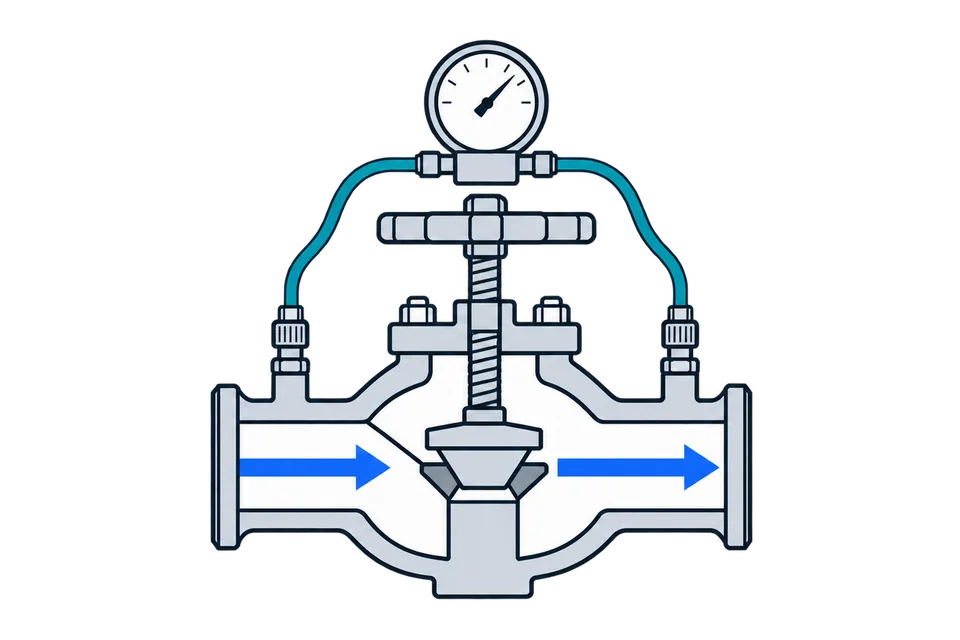

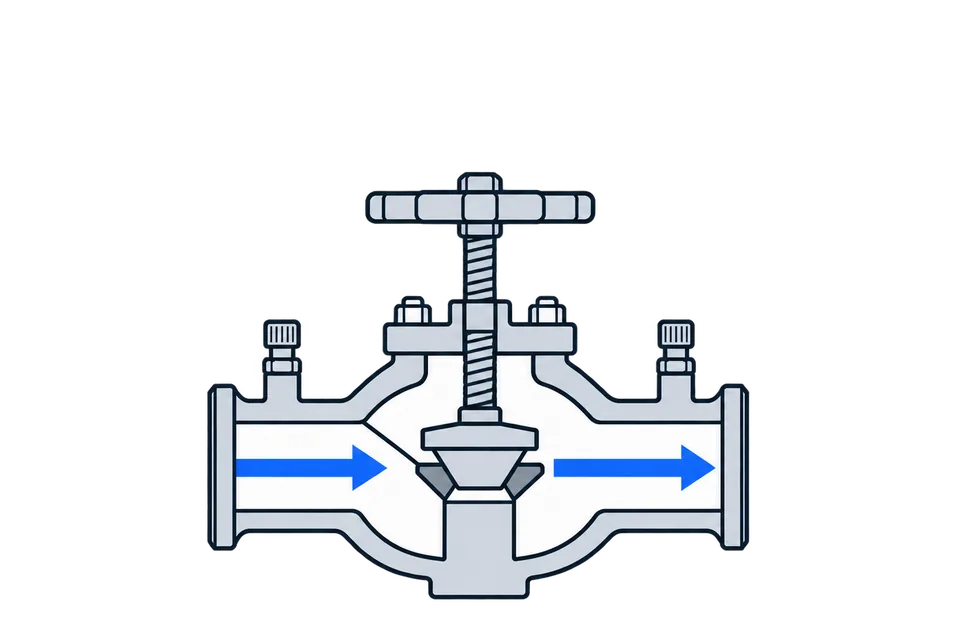

Static balancing valve
The number that matters
Nominal pressure
16bar
The pressure class of the valve body at 20 °C. Working limits depend on the medium and its temperature.
Construction
Parts and materials
Applications
Media and industries
- Water
- Air
- Oil Products
- Heat Supply
- Refrigeration
The balancing valve is designed for hydraulic balancing, regulation and limitation of the flow of the working medium in heating and cooling systems. The valve can effectively solve the problem of uneven distribution of temperature and heat in the heating system. At the same time, the balancing valve will allow you to accurately adjust the pressure drop and flow rate for accurate balancing of the working medium in the pipeline network system.
Overall dimensions of the socket balancing valve DNOVA VB0000P-T PN16 brass
| DN | L | Weight |
| mm | kg | |
| 15 | 76 | 0.36 |
| 20 | 80 | 0.415 |
| 25 | 88 | 0.54 |
| 32 | 95 | 0.73 |
| 40 | 105 | 0.98 |
| 50 | 118 | 1.47 |
Sketch of coupling balancing valve DNOVA VB0000P-T PN16 brass, Threaded connection
Materials of parts of the socket balancing valve DNOVA VB0000P-T PN16 brass, Threaded connection
| № | Name | Quantity | Material |
| 1 | Pressure plate gasket | 1 | PTFE |
| 2 | Washer | 1 | PTFE |
| 3 | Pressure plate | 1 | Brass |
| 4 | Plug | 1 | Brass |
| 5 | Valve stem | 1 | Brass |
| 6 | Spindle | 1 | Brass |
| 7 | Setting blocker | 1 | Brass |
| 8, 9 | O-ring - black | 3 | EPDM |
| 10 | locking ring | 1 | 15XM steel |
| 11 | Body | 1 | Brass |
| 12 | Exhaust valve locking cap | 2 | Brass |
| 13 | O-ring gasket | 2 | EPDM |
| 14 | Measuring nipple | 2 | Brass |
| 15 | Blue connecting tape | 1 | EPDM |
| 16 | Nipple cover | 2 | Brass |
| 17 | Cover gasket | 2 | EPDM |
| 18 | Red connecting tape | 1 | EPDM |
| 19 | Stop screw | 1 | Brass |
| 20 | Flywheel plug | 1 | PA66 plastic |
| 21 | Flywheel | 1 | PA66 plastic |
Detailed sketch of socket balancing valve DNOVA PN16 brass, Threaded connection
- Body material
- Brass
- Connection type
- Threaded NPT/BSP
- Operating environment
- Water, Air, and Oil Products
- Applications
- Heat Supply and Refrigeration
- Nominal pressure
- 16 bar
- Type of seal
- PTFE
- Locking material
- Brass
- Balancing valve type
- Static
- Country of origin
- China
